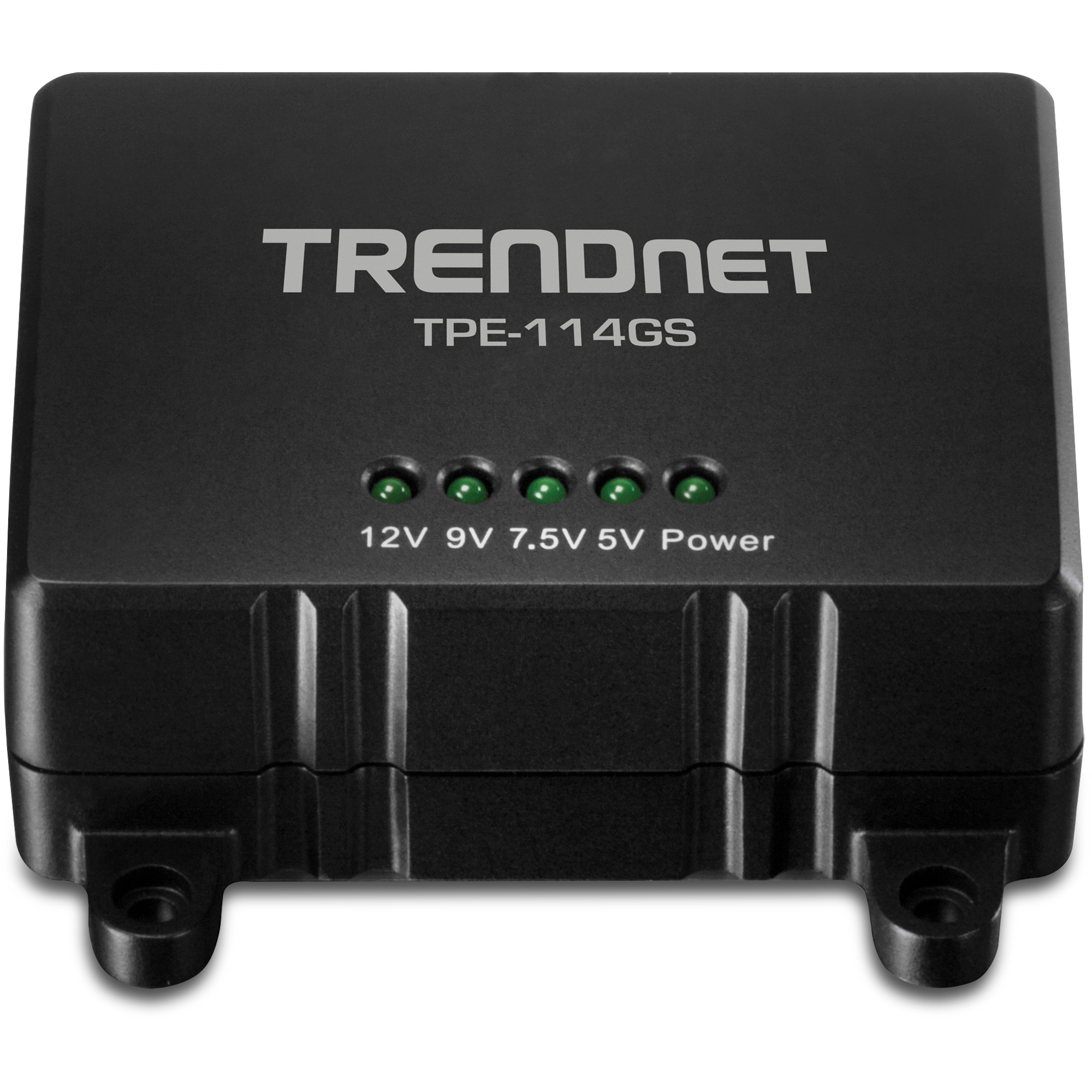

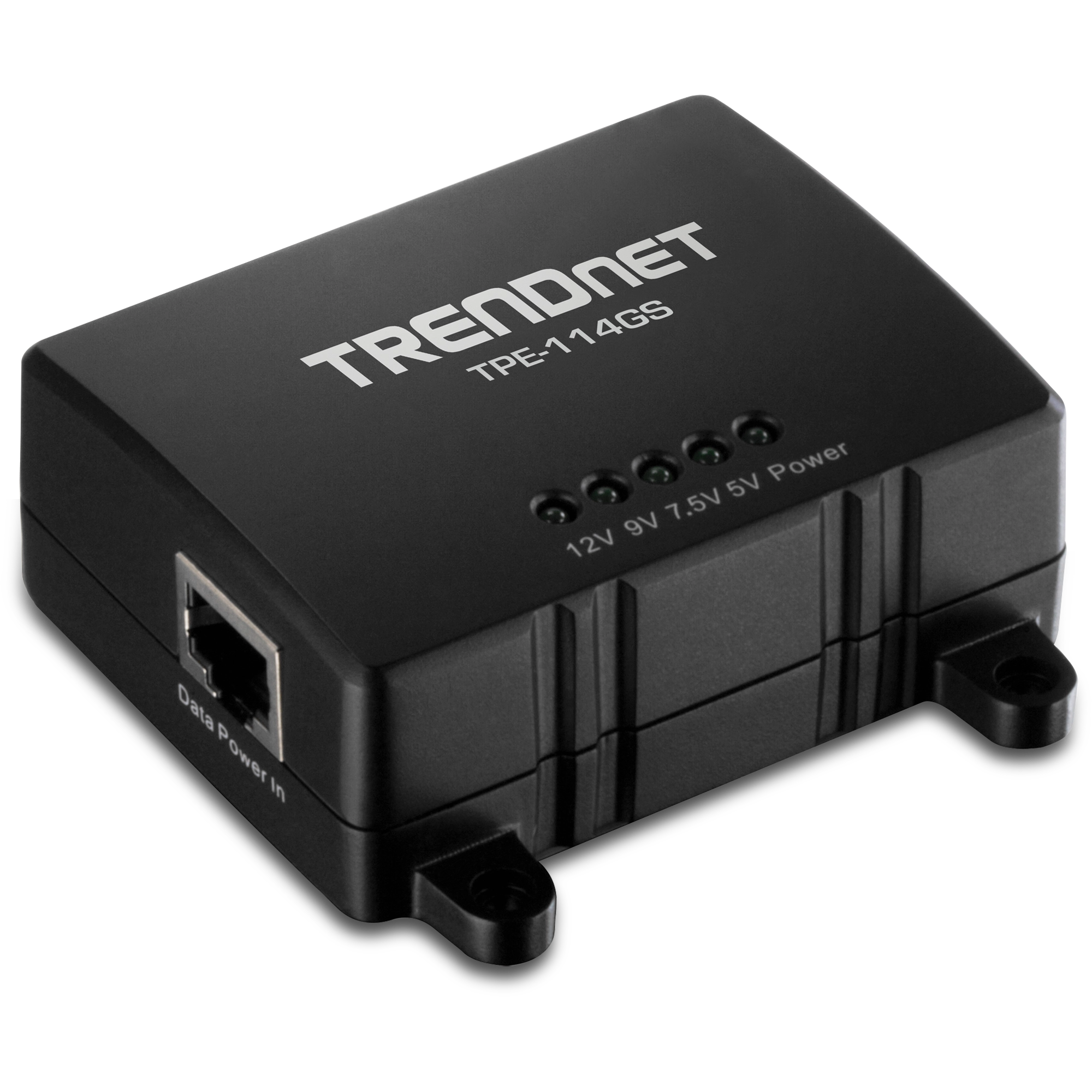

Gigabit Power over Ethernet (PoE) Splitter

TPE-114GS   (Version v1.1R)

  • Used to install a non-PoE device in remote locations
  • Splits a networked PoE signal into separate power and Gigabit data sources
  • Set the output power to either 5V, 7.5V, 9V, or 12V
  • Use this compact device with TRENDnet PoE switches or injectors
  • Save on installation and equipment costs

DISCONTINUED PRODUCT

The TPE-114GS (Version v1.1R) has been discontinued. It has been replaced by the TPE-104GS (Version v2.0R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 592.02 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 627.81 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 601.81 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 615.08 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 600.23 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 608.95 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TPE-114GS(v1.0R).pdf
Date: 10/8/2014
File Size: 631.14 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: Web_EUNL-TPE-114GS(V1.0R)_05082012.pdf
Date: 7/18/2012
File Size: 1.52 MB
Download
Quick Installation Guide (English)
Filename: Web_QIG_TPE-114GS(V1.0R).pdf
Date: 5/10/2012
File Size: 3.24 MB
Download
Quick Installation Guide (Україна)
Filename: Ukrainian_QIG_TPE-114GS(V1).pdf
Date: 7/8/2013
File Size: 803.28 KB
Download

Product Images

JPEG Image
File Size: : 309.95 KB
Date: : 12/28/2011
Download
JPEG Image
File Size: : 422.08 KB
Date: : 12/28/2011
Download
JPEG Image
File Size: : 423.85 KB
Date: : 12/28/2011
Download
JPEG Image
File Size: : 312.05 KB
Date: : 12/28/2011
Download
JPEG Image
File Size: : 332.17 KB
Date: : 12/28/2011
Download
TIFF Image
File Size: : 3.89 MB
Date: : 12/28/2011
Download
TIFF Image
File Size: : 5.48 MB
Date: : 12/28/2011
Download
TIFF Image
File Size: : 5.37 MB
Date: : 12/28/2011
Download
TIFF Image
File Size: : 4.10 MB
Date: : 12/28/2011
Download
TIFF Image
File Size: : 4.33 MB
Date: : 12/28/2011
Download
JPEG Image
File Size: : 309.95 KB
Date: : 5/10/2012
Download
TIFF Image
File Size: : 3.89 MB
Date: : 5/10/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
What is the maximum Ethernet cable length that can be used with the TPE-114GS?
The maximum Ethernet cable length is 100 meters (328ft).
My TPE-114GS is not receiving power from my PoE injector. What should I check?
Please ensure the PoE injector is operating properly and that the Ethernet cable is Cat5e or higher. Please also ensure the cable is a known working cable....
My powered device is not operating properly. What should I do?
Please ensure you have the correct voltage selected for your device. ...
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.3af Power over Ethernet
Network Media
  • 10Mbps: UTP/STP Cat. 5 Up to 100 meters
  • 100Mbps: UTP/STP Cat. 5 and 5e Up to 100 meters
  • Gigabit: UTP/STP Cat. 5e and 6 Up to 100 meters
Ports

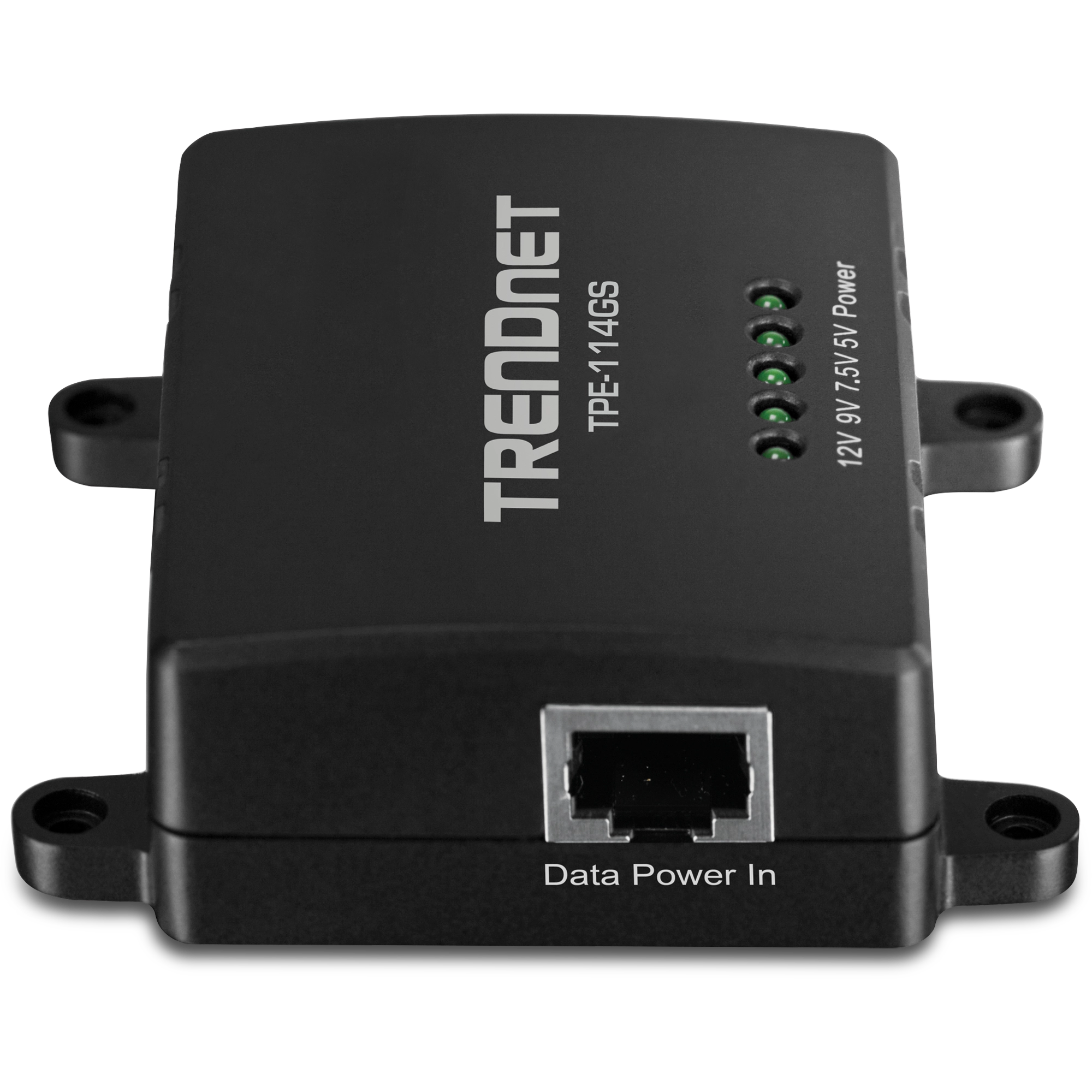

  • 1 x 10/100/1000Mbps Data and Power In

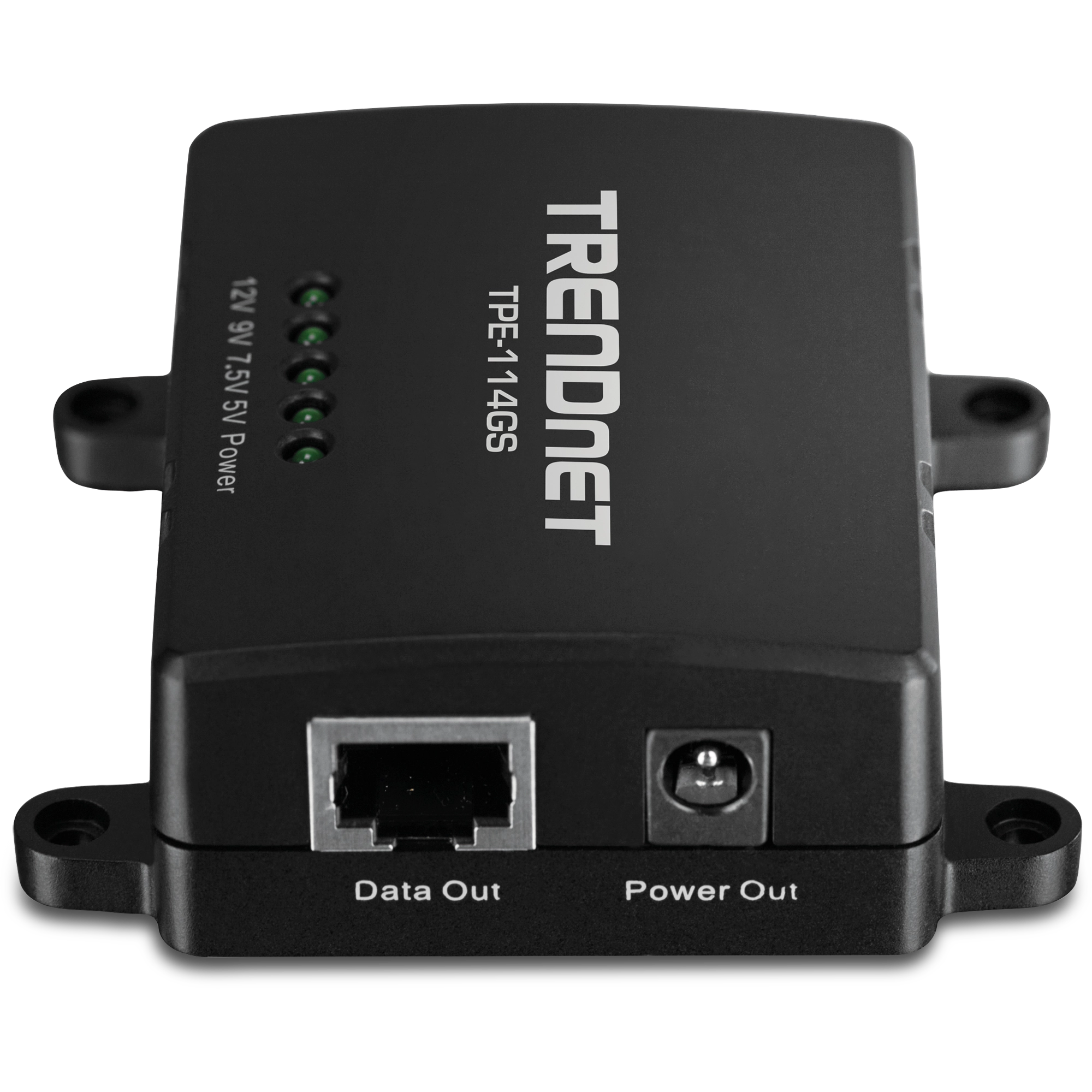

  • 1 x 10/100/1000Mbps Data Out
  • 1 x 5.5mm pin Power Out
Switch

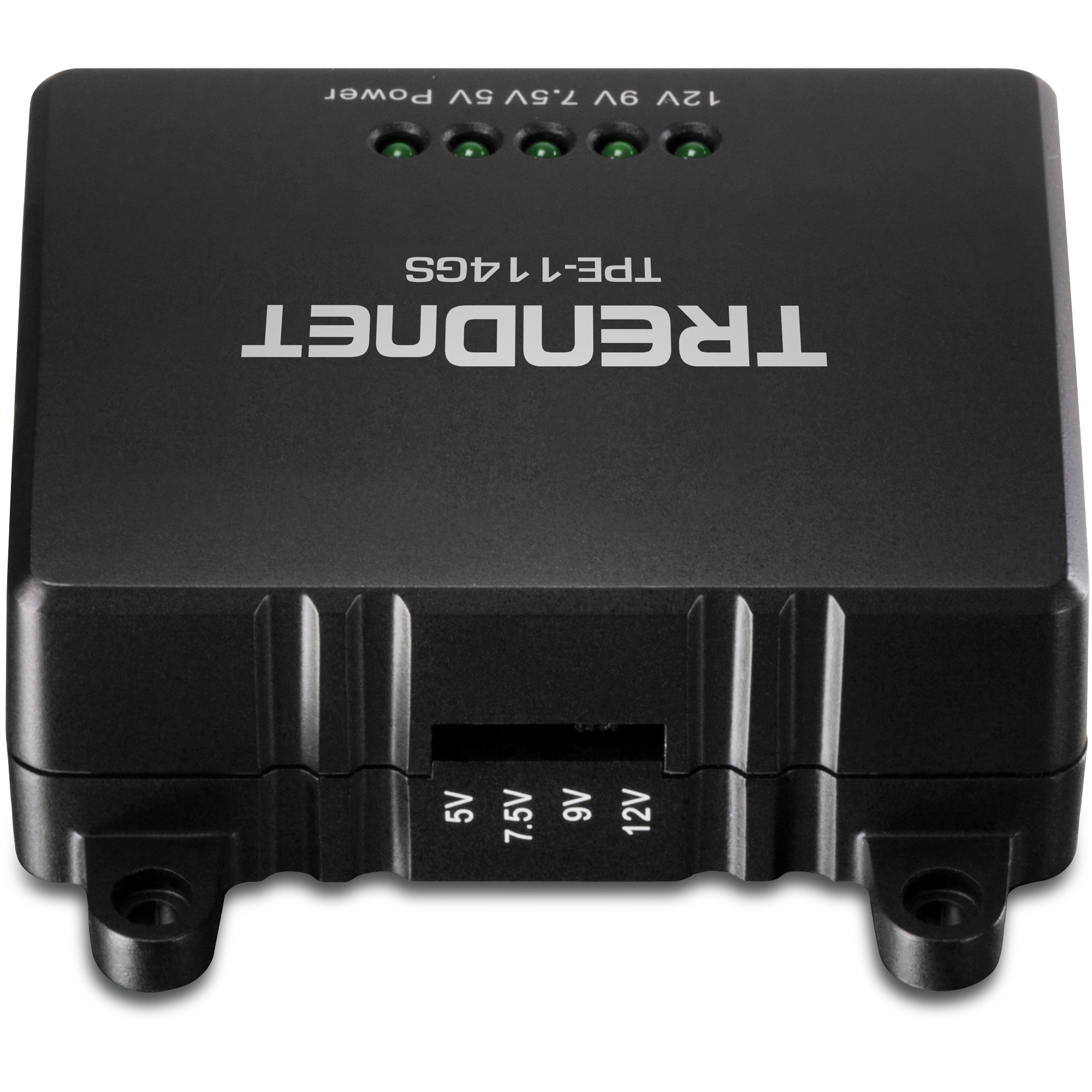

  • Adjustable output power DIP switch (5V, 7.5V, 9V, 12V)
Power
  • Power In: 48VDC 0.4A
  • Power Out: 5V(2A), 7.5V(2A), 9V(1.7A), 12V(1.5A)
Power Consumption
  • Max. 0.3 watt
Jumper Cable
  • 1 x (2.0 x 2.0mm)
  • 1 x (2.5 x 2.0mm)
Dimensions
  • 70 x 55 x 27mm (2.75 x 2.2 x 1 in.)
Weight
  • 65 g (2.3 oz.)
Temperature
  • Operation: 0°C~45°C (32°F~ 113°F)
  • Storage: -20°C~90°C (-4°F~194 °F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TPE-114GS
  • Quick Installation Guide
  • 2 x Power Jack (2.0 x 2.0mm, 2.0 x 2.5 mm)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
