N600 Dual Band Wireless Access Point
TEW-670AP (Version v1.0R)
- Concurrent Dual Band technology generates two separate wireless n networks at the same time
- Manage network access with multiple SSIDs and client access filters
- Quickly connect clients with one touch Wi-Fi Protected Setup (WPS)
- Features Wireless Distribution System (WDS) technology and advanced wireless encryption
DISCONTINUED PRODUCT
The TEW-670AP (Version v1.0R) has been discontinued. It has been replaced by the TEW-821DAP (Version v2.5R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: v1.1.1.14
Firmware Release Date: 8/2010
Note:
- Improved wireless stability
Filename: TEW-670APv1_(FW1.1.1.14).zip
SHA-1 Checksum: 3FB4A1E977A7EC303FC61CEB8C884B5AEB9D17A8
Date: 7/28/2017
File Size: 3.52 MB
Datasheet
Filename: EN_Spec_TEW-670AP(V1.0R).pdf
Date: 8/29/2012
File Size: 888.68 KB
Filename: GE_Spec_TEW-670AP(V1.0R).pdf
Date: 8/29/2012
File Size: 901.73 KB
Quick Installation Guide
Filename: EN_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.59 MB
Filename: FR_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.59 MB
Filename: GE_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.57 MB
Filename: PO_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.01 MB
Filename: SP_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.05 MB
Filename: RU_Web_TEW-670AP(1.01).pdf
Date: 6/22/2010
File Size: 1.83 MB
Filename: EST_Web_TEW-670AP(1.01).pdf
Date: 6/23/2010
File Size: 1.01 MB
User's Guide

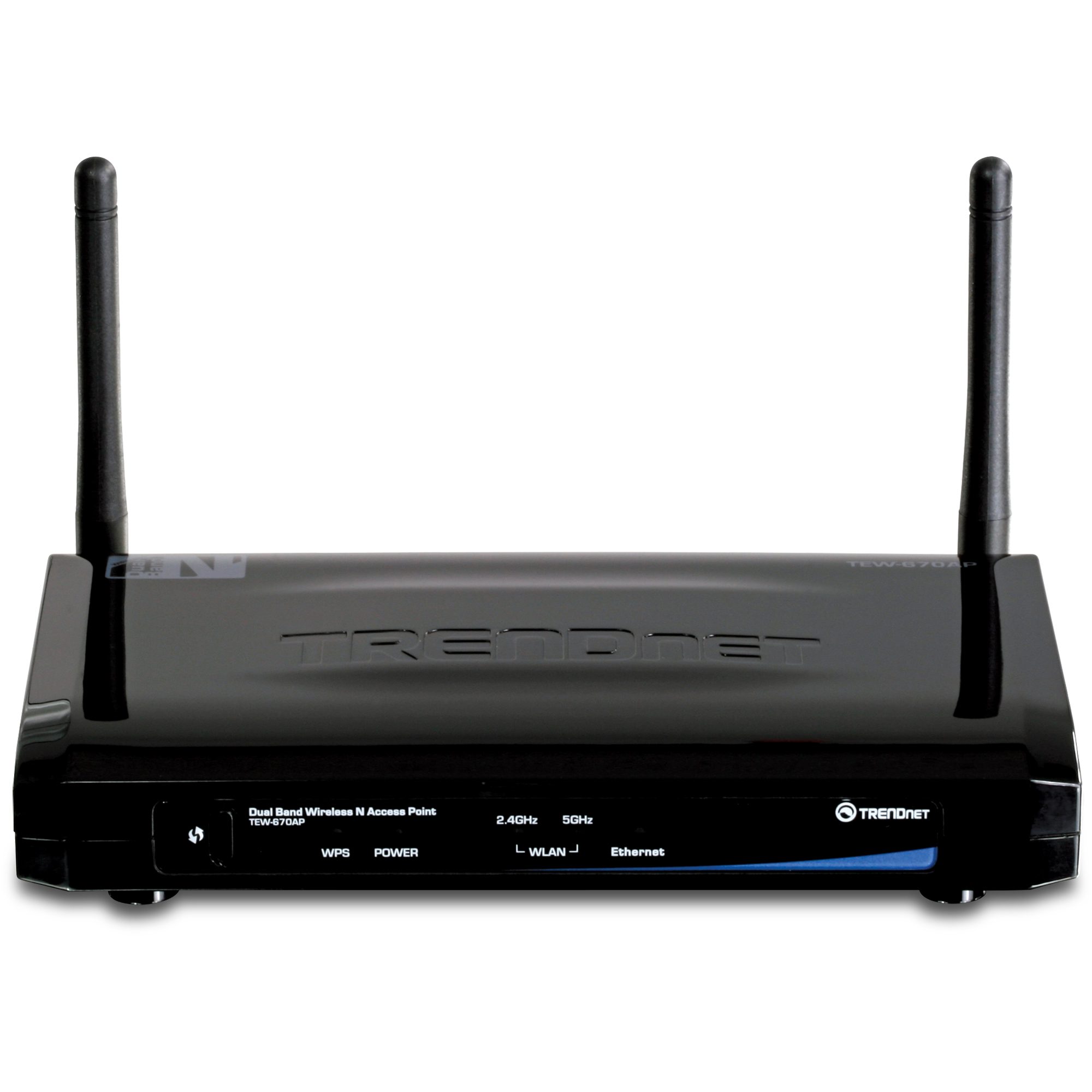

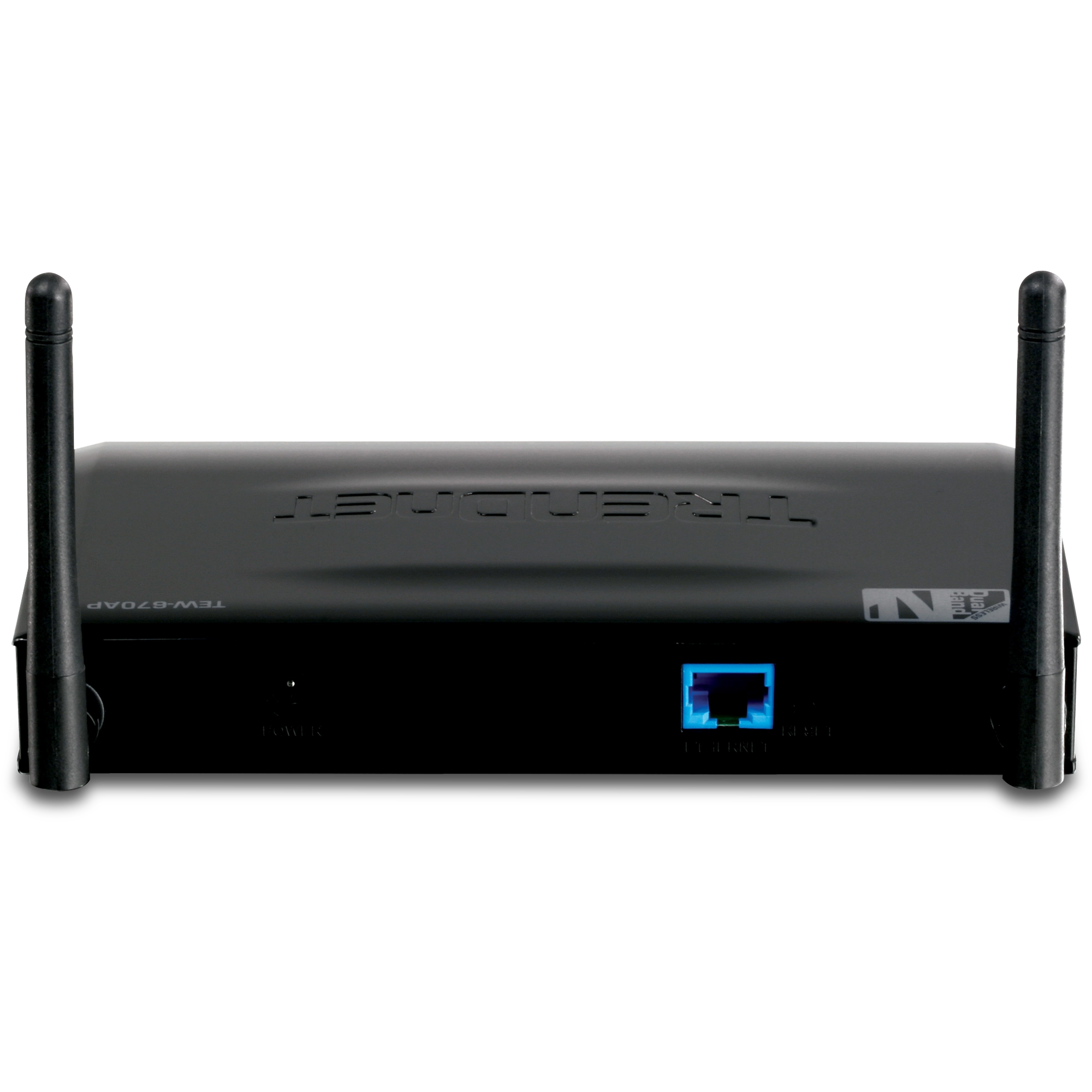

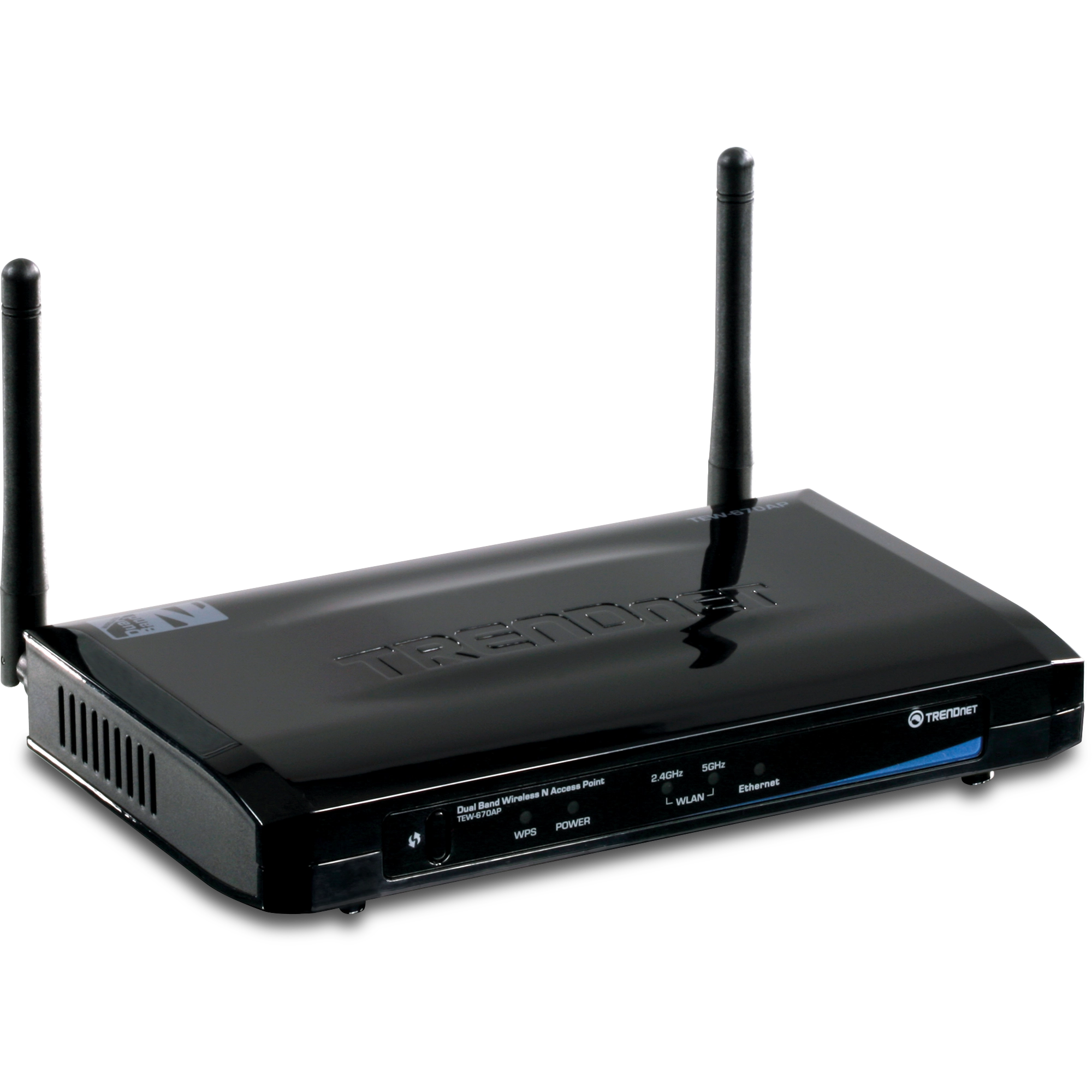

Product Images

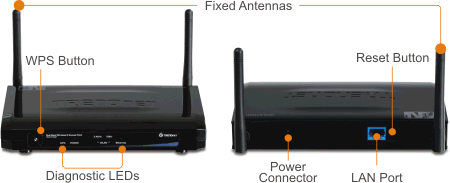

| Hardware | |
| Standards |
|
|---|---|
| LAN | 1 x 10/100Mbps Auto-MDIX port |
| WPS Button | Wi-Fi Protected Setup (WPS) with other WPS compliant devices |
| WDS | Enable/disable Wireless Distribution System support |
| LED Indicator | Power, 2.4GHz WLAN, 5GHz WLAN, WPS, ETHERNET |
| Power Adapter | 12V DC, 1A external power adapter |
| Power Consumption | 450mA (max) |
| Dimension (L x W x H) | 170 x 111 x 26mm (6.7 x 4.4 x 1in.) |
| Weight | 230g (8oz) |
| Temperature |
|
| Humidity | Max. 85% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Frequency | 2.412 ~ 2.484GHz 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~5.250MHz (ETSI) |
| Antenna | 2 x 3dBi fixed dipole antennas 2 x 4dBi internal antennas |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK |
| Data Rate |
|
| Security | 64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES), WPA/WPA2-RADIUS Multiple SSID and SSID isolation support |
| Output Power |
|
| Receiving Sensitivity |
|
| Channels | 2.4GHz : 1~11 (FCC), 1~13 (ETSI) 5GHz : following local regulations |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
