300Mbps Concurrent Dual Band Wireless N Router
TEW-671BR (Version V1.0R)
- Concurrent Dual Band technology generates two separate wireless n networks at the same time
- Wirelessly stream HD content using the uncongested 5GHz frequency while surfing the Internet using the 2.4GHz frequency
- Up to 12x the speed and 4x the coverage of a wireless g network*
- Features Wi-Fi Protected Setup (WPS) and advanced wireless encryption
DISCONTINUED PRODUCT
The TEW-671BR (Version V1.0R) has been discontinued. It has been replaced by the TEW-829DRU (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.2.6.5
Release Date: 1/2012
Note:
- Improved wireless performance and stability
Filename: TEW-671BR_(FW1.2.6.5).zip
SHA-1 Checksum: 5A1D483083B5D499F892C46160C14DC9C565D0C2
Date: 7/28/2017
File Size: 3.62 MB
Datasheet
Filename: EN_Spec_TEW-671BR(v1_0R).pdf
Date: 7/26/2012
File Size: 1.18 MB
Filename: FR_Spec_TEW-671BR(v1_0R).pdf
Date: 7/26/2012
File Size: 1.19 MB
Filename: GE_Spec_TEW-671BR(v1_0R).pdf
Date: 7/26/2012
File Size: 1.17 MB
Filename: SP_Spec_TEW-671BR(v1_0R).pdf
Date: 7/26/2012
File Size: 1.19 MB
Filename: RU_Spec_TEW-671BR(v1_0R).pdf
Date: 5/16/2013
File Size: 1.22 MB
Filename: ITA_Spec_TEW-671BR(v1_0R).pdf
Date: 5/16/2013
File Size: 1.16 MB
Quick Installation Guide
Filename: EN_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 2.08 MB
Filename: FR_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 1.99 MB
Filename: GE_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 1.47 MB
Filename: PO_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 1.47 MB
Filename: SP_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 1.47 MB
Filename: RU_Web_TEW-671BR(1.01).pdf
Date: 5/16/2013
File Size: 2.30 MB
Filename: EST_Web_TEW-671BR(1.01).pdf
Date: 12/26/2012
File Size: 1.59 MB
User's Guide

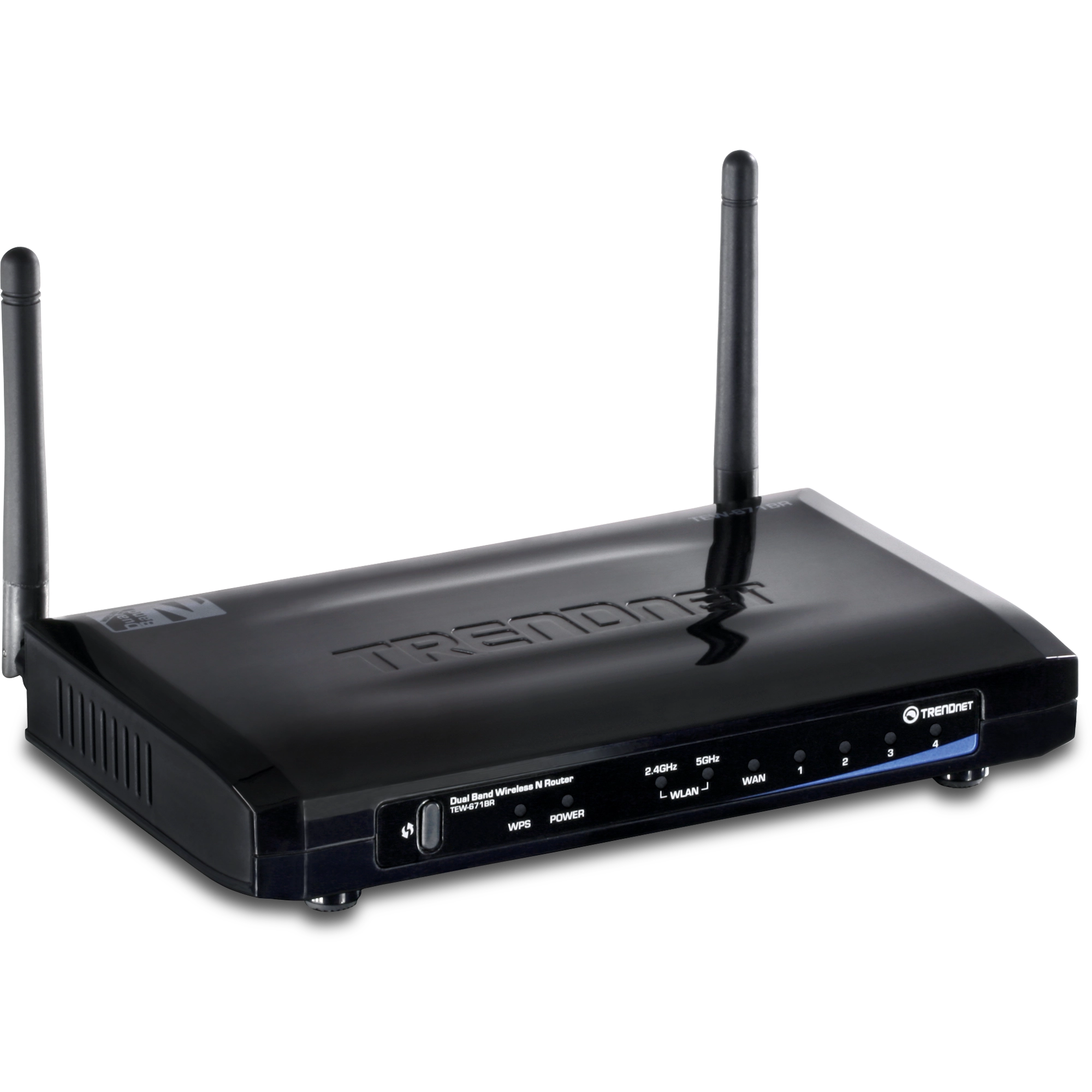

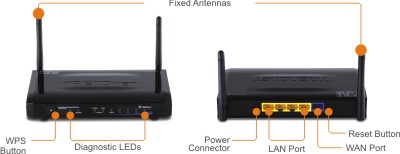

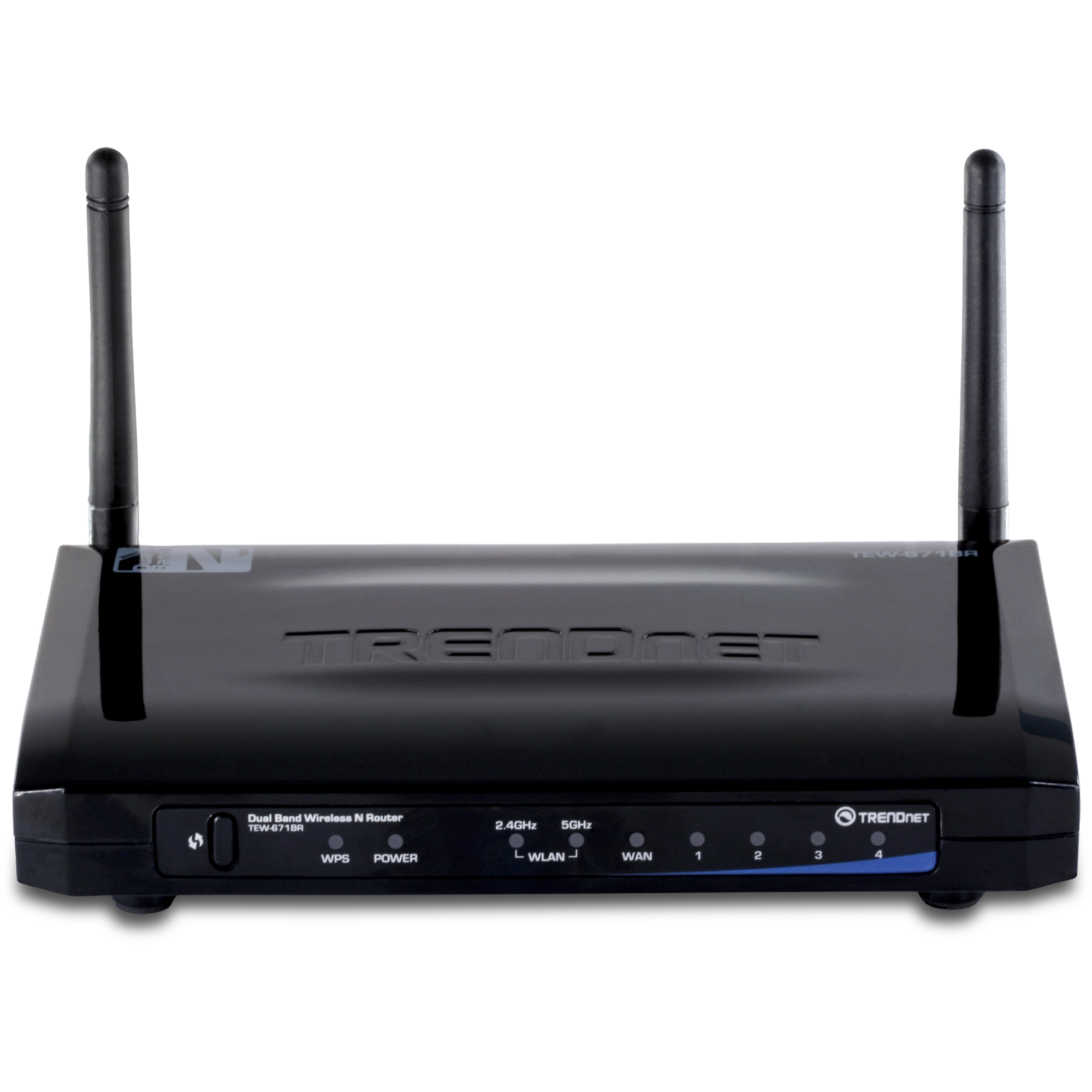

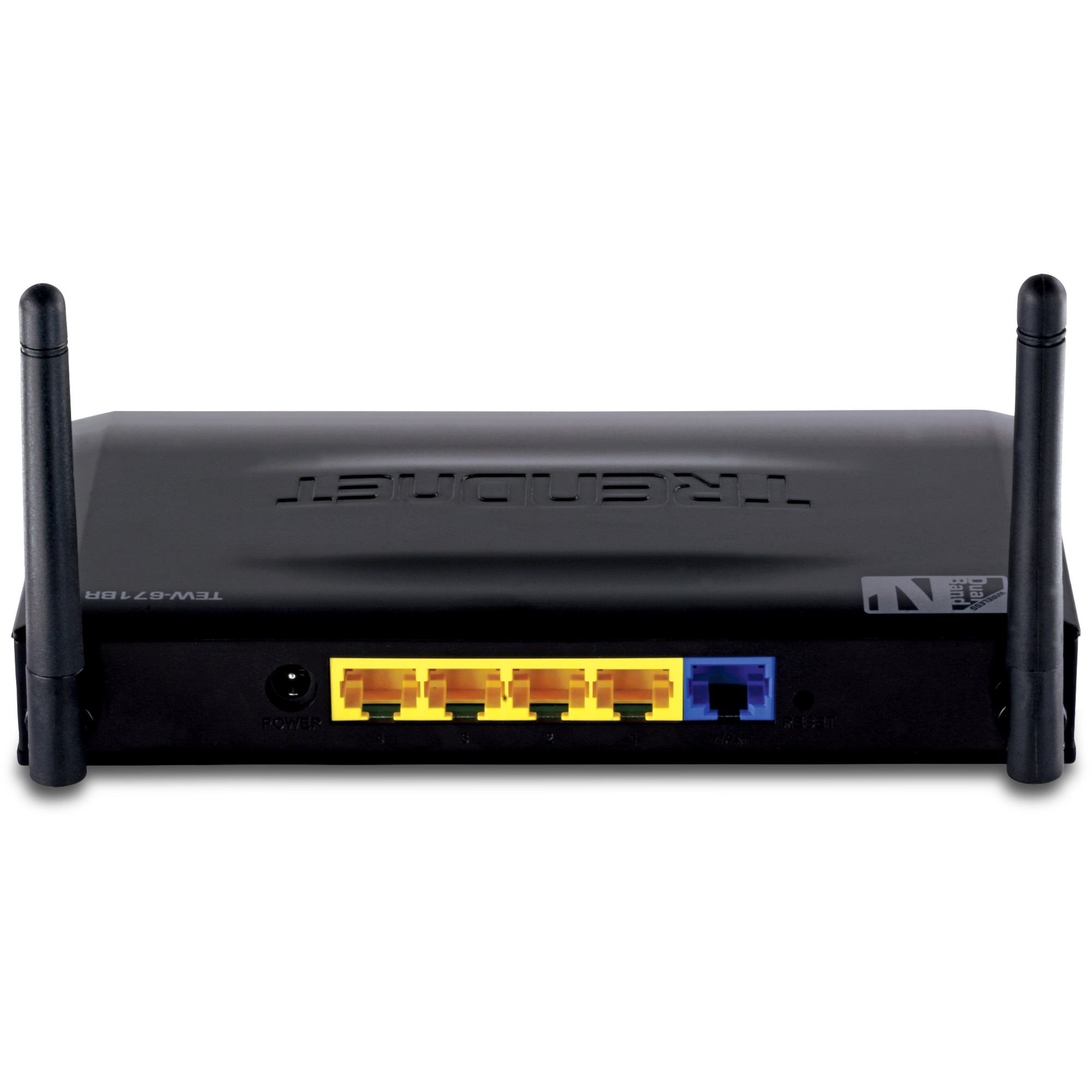

Product Images
Log in to the TEW-671BR by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default User Name and Password are both "admin", without the quotes.
Click on Wireless 2.4GHz or Wireless 5GHz and then Basic to configure the rou...
Log in to the TEW-671BR by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default username and password are both admin.
...
The default username and password for the TEW-671BR are both admin.
Log in to the TEW-671BR by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default username and password are both admin.
After you have logged in to the TEW-671BR click on the Advanced > Port Forwarding page. Enable port...
Press and hold in the recessed reset button on the back of the router for approximately 10 seconds while the power is on to reset the unit. The default login values are as follows.
IP Address: 192.168.10.1
Username: admin
Password: admin
...
This is referring to the WPS (WiFi Protected Setup) PIN. To find the PIN, do the following.
Log in to the TEW-671BR by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default username and password are both admin.
A...
| Hardware | |
| Standards |
|
|---|---|
| WAN | 1 x 10/100Mbps Auto-MDIX port (Internet) |
| LAN | 4 x 10/100Mbps Auto-MDIX port |
| WPS Button | Wi-Fi Protected Setup (WPS) with other WPS compliant devices |
| Connection Type | Dynamic IP, Static (fixed) IP, PPPoE, PPTP |
| Router/ Firewall |
|
| WDS | Enable/disable Wireless Distribution System support |
| LED Indicator | Power, LAN1~LAN4, WAN, 2.4GHz WLAN, 5GHz WLAN, WPS |
| Power Adapter | 12V DC, 1A external power adapter |
| Power Consumption | 900mA (max) |
| Dimension (L x W x H) | 170 x 111 x 26 mm (6.7 x 4.4 x 1 inches) |
| Weight | 320g (0.7 lb) |
| Temperature |
|
| Humidity | Max. 95% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Frequency | 2.412 ~ 2.484GHz 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~5.250MHz (ETSI) |
| Antenna | 2 x 2dBi fixed dipole antenna 2 x 4dBi internal antennas |
| Module Technique |
|
| Data Rate |
|
| Security | 64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES), WPA/WPA2-RADIUS 802.1x Authenticator Multiple SSID and SSID disable/isolation support Isolation between wireless or wireless/wired clients for each SSID |
| QoS | Priority queue, bandwidth allocation support and WMM |
| Output Power |
|
| Receiving Sensitivity |
|
| Channels |
|
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
