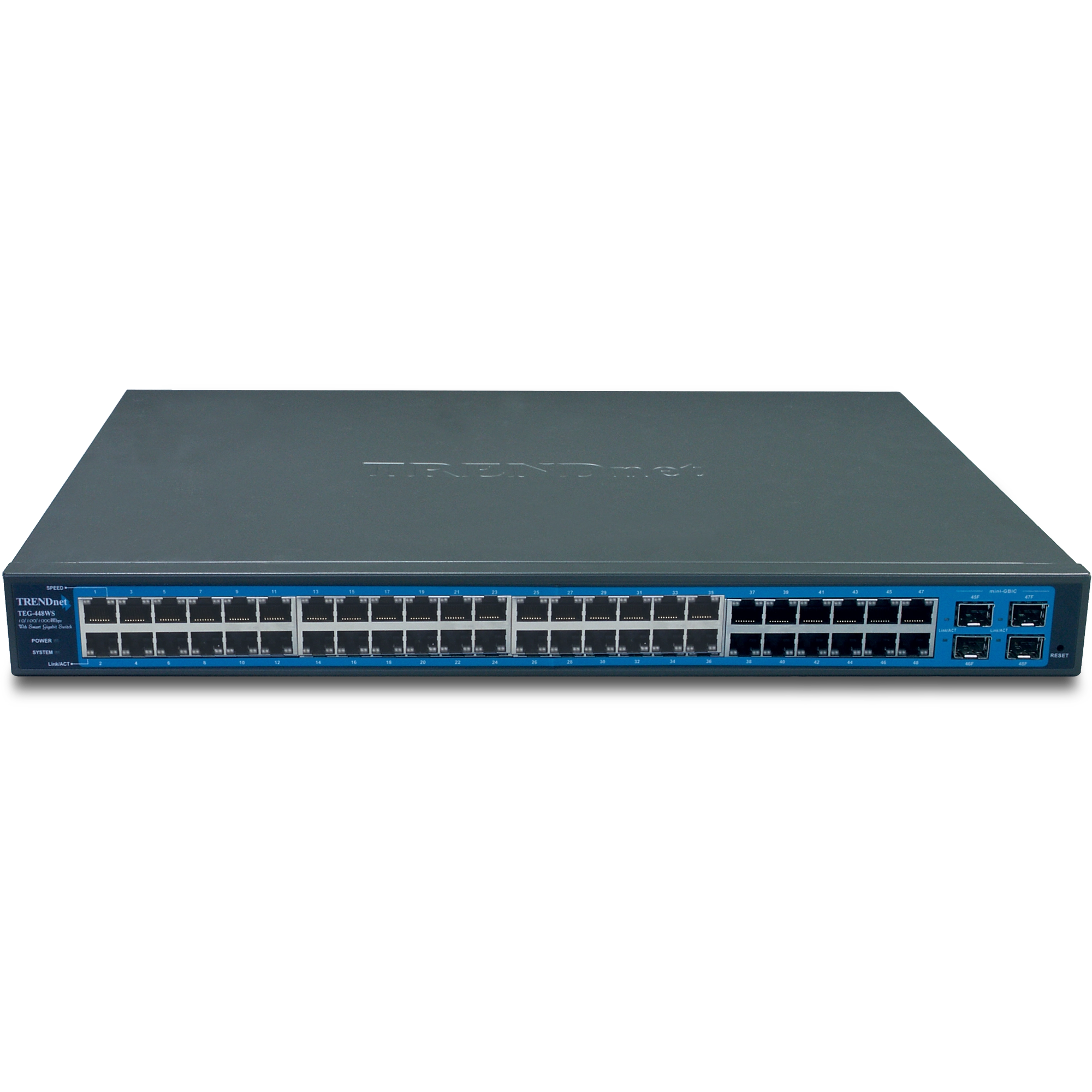

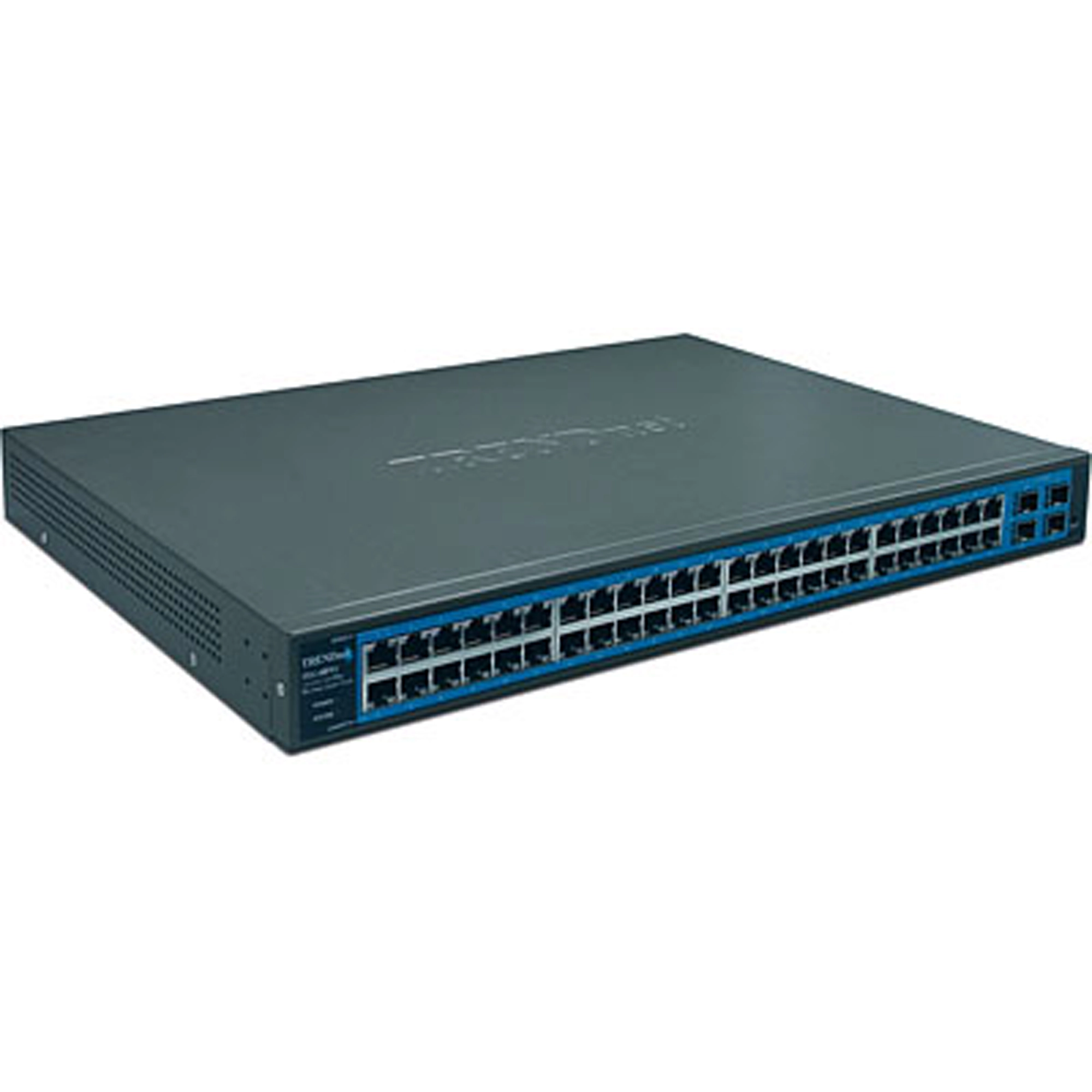

48-Port Gigabit Web-Based Smart Switch

TEG-448WS

   Select Another Version

DISCONTINUED PRODUCT

The TEG-448WS  has been discontinued. It has been replaced by the TEG-524WS (Version v1.1R). For a list of discontinued products, click here.

Utility

Utility
Filename: Management_Utility.zip
SHA-1 Checksum: 43C887F69C87D01B12EB48DBF78CFC6E0F1D169D
Date: 7/25/2017
File Size: 529.98 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-448WS(B1.0R).pdf
Date: 9/21/2010
File Size: 240.10 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-448WS.pdf
Date: 1/10/2006
File Size: 367.63 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-448WS.pdf
Date: 1/10/2006
File Size: 368.14 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-448WS.pdf
Date: 1/10/2006
File Size: 366.30 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-448WS.pdf
Date: 1/10/2006
File Size: 374.64 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEG-448WS(english).pdf
Date: 8/30/2005
File Size: 587.98 KB
Download
Quick Installation Guide (Français)
Filename: QIG_TEG-448WS(french).pdf
Date: 8/30/2005
File Size: 591.83 KB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEG-448WS(german).pdf
Date: 8/30/2005
File Size: 593.22 KB
Download
Quick Installation Guide (Pусский)
Filename: QIG_TEG-448WS(spanish).pdf
Date: 8/30/2005
File Size: 595.67 KB
Download

User's Guide

User Guide
Filename: UG_TEG-448WS.pdf
Date: 9/9/2008
File Size: 792.16 KB
Download

Product Images

JPEG Image
File Size: : 297.72 KB
Date: : 8/30/2005
Download
JPEG Image
File Size: : 272.46 KB
Date: : 8/30/2005
Download
TIFF Image
File Size: : 2.57 MB
Date: : 8/30/2005
Download
TIFF Image
File Size: : 2.44 MB
Date: : 8/30/2005
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-SX/LX (GBIC)
  • IEEE 802.3x Full Duplex Flow Control
Network Media
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5
  • Gigabit: UTP/STP Cat. 5, 5E, 6
Protocol /Topology
  • CSMA/CD, Star
LAN Ports
  • 48 x 10/100/1000Mbps Auto Negotiation Gigabit Ethernet ports
  • 4 x Mini-GBIC slots, Share with 4 1000BASE-T Slots (Share with 4 1000Base-T Ports)
Data Transfer Rate
  • Ethernet: 10Mbps/20Mbps (Half-Duplex/Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half-Duplex/Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Address Table
  • 8K Entries
Data RAM Buffer
  • 1632KBytes
Diagnostic LEDs
  • Per Unit: Power, System
  • Per Gigabit Ethernet: Link/ACT
  • Per Cooper Gigabit Port: Link/ACT, Speed (1000M-Green, 100M-Amber)
  • Per Mini-GBIC Gigabit Port: Link/ACT
Power/Consumption
  • 100-240V AC, 50/60Hz Internal Power Supply / 70 Watts (Max)
Dimensions (W x D x H)
  • 440 x 310 x 44 mm (17.32" x 12.25" x 1.73")
Weight
  • 4.43kg (9.75 lbs)
Temperature
  • Operating : 0° C ~ 40° C (32° F ~ 104° F)
  • Storage: -10° C ~ 70° C (14° F ~ 158° F)
Humidity
  • Operating: 10% ~ 90% RH
  • Storage: 5% ~ 90% RH
Certifications
  • FCC Class A, CE Class A

PACKAGE CONTENTS
  • TEG-448WS
  • Quick Installation Guide
  • Utility CD-ROM
  • Power Cord
  • Rack-Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
