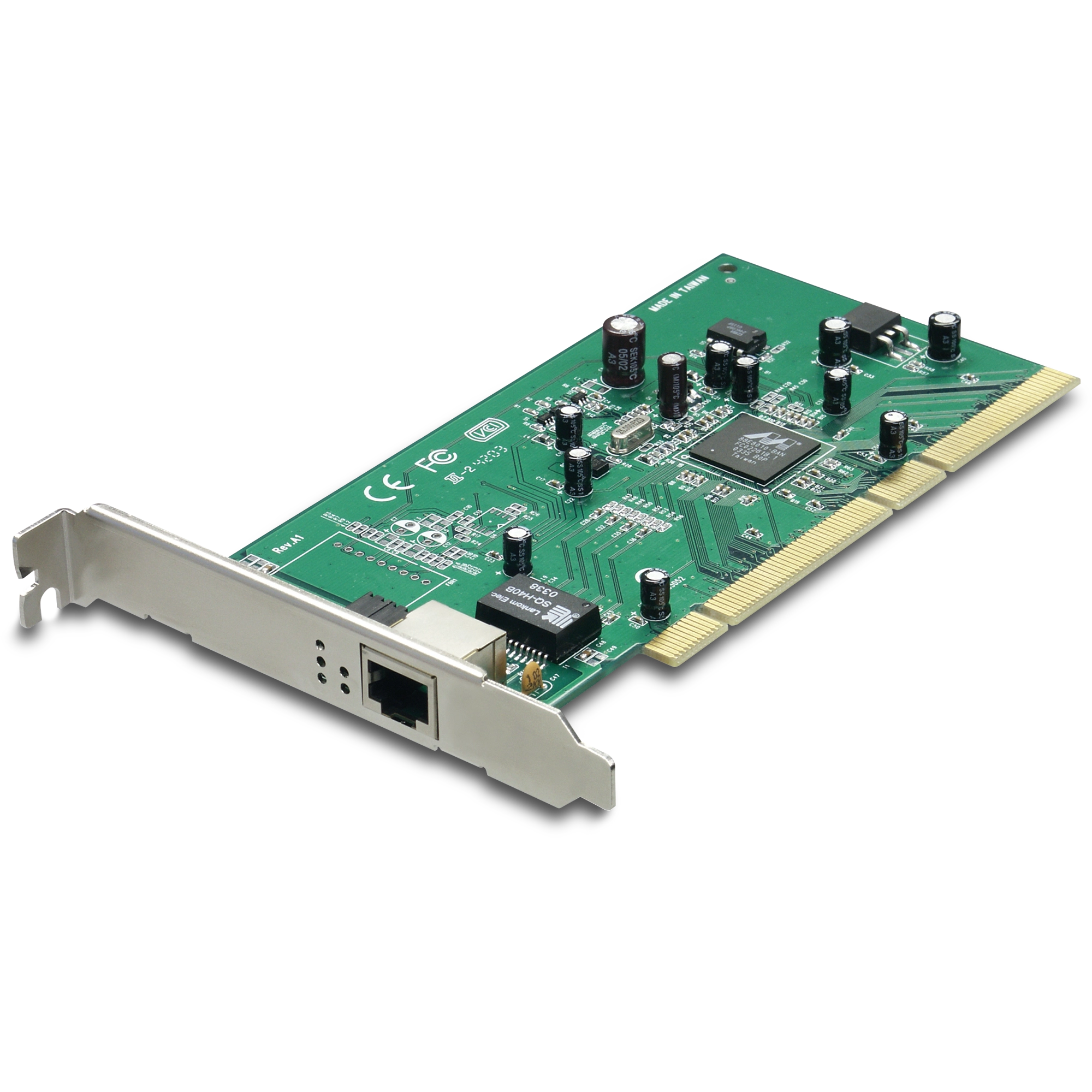

64-bit 10/100/1000Mbps Copper Gigabit PCI Adapter

TEG-PCITXM2

DISCONTINUED PRODUCT

The TEG-PCITXM2  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Filename: Driver_TEG-PCITXM2_1.0.zip
SHA-1 Checksum: ED956442B96C4BA384C212F25E6287763C19543C
Date: 7/25/2017
File Size: 721.92 KB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEG-PCITXM2(English).pdf
Date: 3/29/2005
File Size: 185.81 KB
Download Email
Datasheet (Français)
Filename: Spec_TEG-PCITXM2(French).pdf
Date: 3/29/2005
File Size: 178.02 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEG-PCITXM2(German).pdf
Date: 3/29/2005
File Size: 205.62 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-PCITXM2.pdf
Date: 11/30/2005
File Size: 188.22 KB
Download Email

Product Images

JPEG Image
File Size: : 300.68 KB
Date: : 9/9/2004
Download
High-Res TIF
File Size: : 2.80 MB
Date: : 9/9/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet
  • ANSI/IEEE 802.3 Auto-Negotiation
Protocol:
  • CSMA/CD
Data Transfer Rate:
  • Ethernet: 10Mbps/20Mbps (Half/Full Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: 2-pair UTP Cat. 3,4,5
  • Fast Ethernet: 2-pair UTP Cat. 5
  • Gigabit Ethernet: 4-pair UTP Cat 5/Cat 5E
Host Interface:
  • 32/64-bit PCI Rev.2.2
Connector:
  • Single RJ-45 UTP/STP, Auto MDI-X
Diagnostic LEDs:
  • Link: 10, 100,1000Mbps ACT, FDX/COL
Power Consumption:
  • 4.25 watts (max)
Driver Support:
  • Windows 98SE/ME/NT4/2000/XP,
  • Linux Kernel 2.4.13 or above,
  • Netware 5.x/6.x
Temperature:
  • Operating: 0° to 40° C (32° to 104°F)
  • Storage: -10° to 70° C (14° to 158°F)
Humidity:
  • Operating: 10 % to 90 %
  • Storage: 5% ~ 90%
Certifications:
  • FCC Class B, CE Class B, VCCI Class B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
