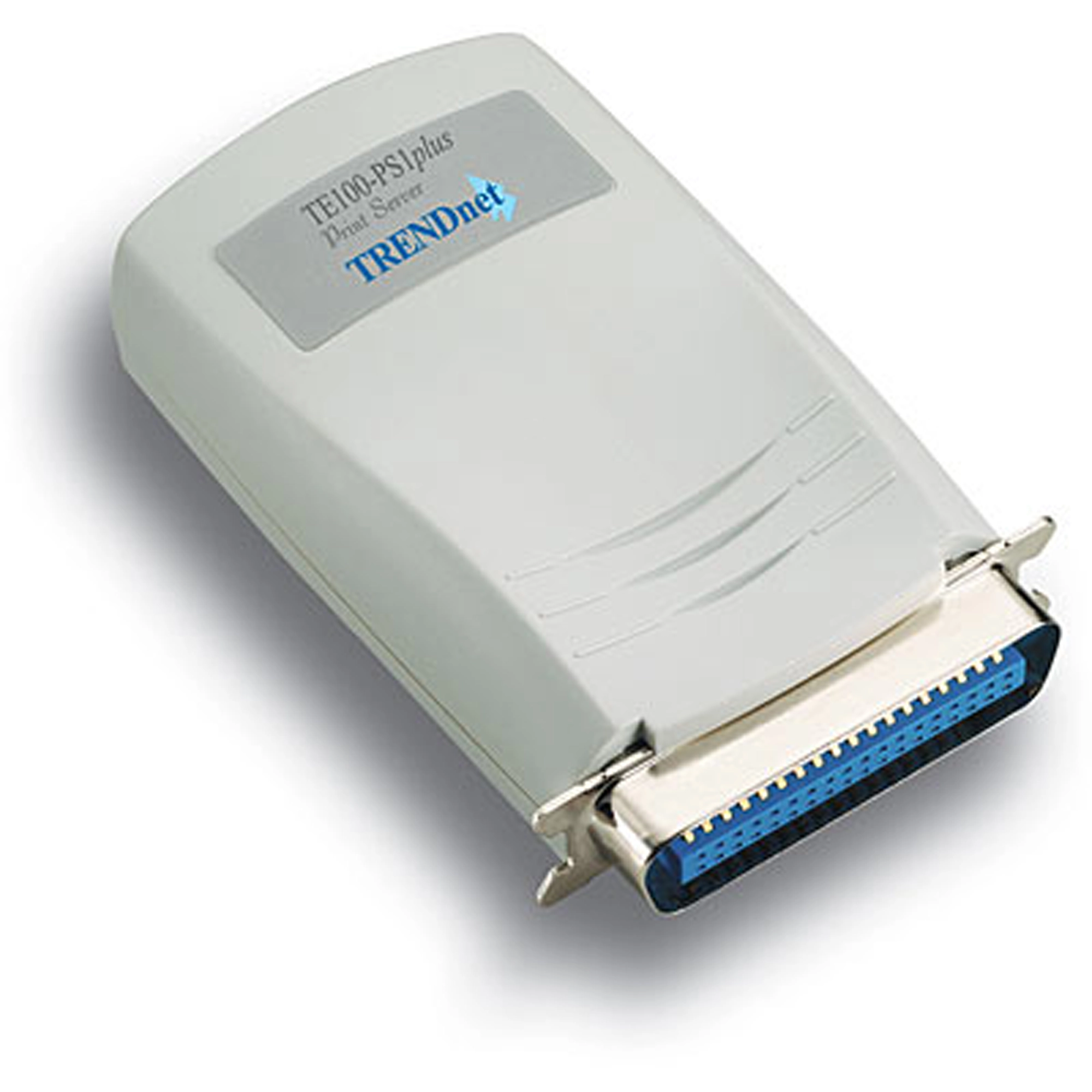

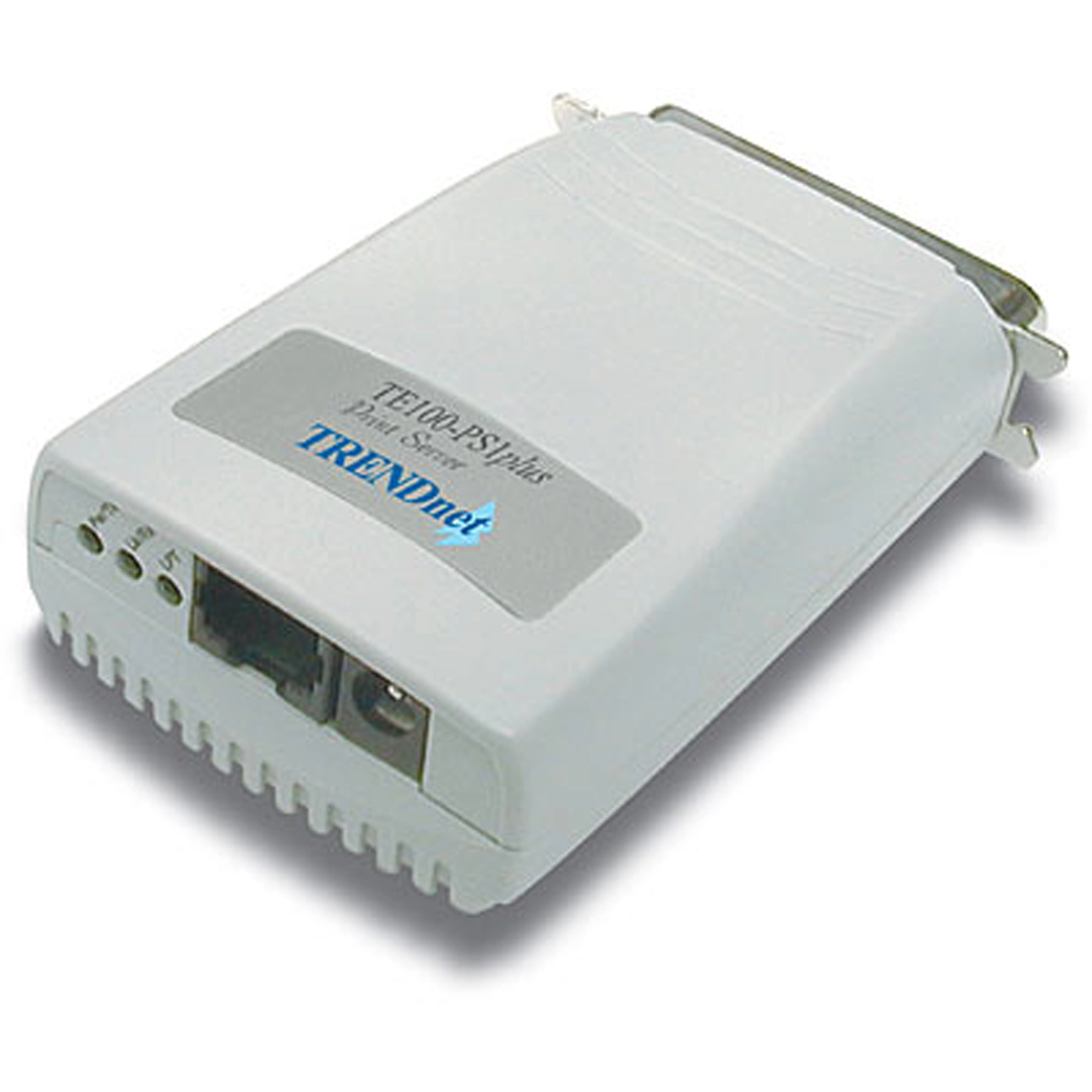

10/100Mbps Multiprotocol Single-Parallel Port Fast Ethernet Print Server

TE100-PS1plus   (Version 1.0)

  • This multiprotocol print server transforms virtually all stand-alone parallel printer into a shared network printer
  • Full 100Mbps connectivity significantly boosts network printer performance
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PS1plus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
WinLPR Utility.
Filename: WinLPR.zip
SHA-1 Checksum: 5C65B9BB99DEE6D68791FC0ABD10F468A67679D5
Date: 7/25/2017
File Size: 95.43 KB
Download
Utility
Print Server Admin Utility Version 2.01
Filename: PS_Admin_2.01.zip
SHA-1 Checksum: 0E6CC37838BE6B4246BACAEE179D8A9C2FAA3D76
Date: 7/25/2017
File Size: 1.76 MB
Download

Datasheet

Datasheet
Filename: Spec_TE100-PS1plus.pdf
Date: 5/2/2013
File Size: 188.24 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-PS1plus.zip
Date: 7/25/2017
File Size: 2.05 MB
Download
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX ANSI/IEEE 802.3 NWay auto-negotiation
LAN Port:
  • Auto-negotiating NWay UTP/STP RJ-45 port
Printer Interface:
  • IEEE1284 Centronic 36 Male Connector
Network Cables:
  • CAT 3, 4, 5 UTP/STP for 10Base-T (100 meter max.) CAT 5 UTP/STP for 100Base-TX (100 meter max.)
Supported Frame Types:
  • IEEE 802.2, IEEE 802.3, Ethernet II, and Ethernet SNAP
Supported Protocols:
  • TCP/IP, IPX/SPX, NetBEUI, and AppleTalk/EtherTalk
LED Indicator:
  • Power/TX, Link/Rx, LPT
Power:
  • External Power Supply; 5 VDC, 1.6A, 8 watts max.
Dimensions:
  • 92.8mm x 58mm x 25.3mm (3.65 x 2.28 x 1 inch)
Weight:
  • 65 g. (2.3 Oz.)
Temperature:
  • Operating: 0°C ~ 50°C (32°F ~ 122°F)
  • Storage:: -25°C ~ 55°C (-13°F ~ 131°F)
Humidity:
  • Operating: 10% - 90%
  • Storage: 5%~90% (non-condensing)
Emission:
  • FCC, CE, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
