ProView Wireless Network Camera
TV-IP501W (Version v1.0R)
- Transmit high quality video over an encrypted wireless signal
- View streaming video, hear sounds and record from any Internet connection
- Program motion detection recording, email alerts and more
- Manage up to 32 cameras with complimentary software
DISCONTINUED PRODUCT
The TV-IP501W (Version v1.0R) has been discontinued. It has been replaced by the TV-IP328PI (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 3.52
Release Date: 5/2011
Note: enable Proviewer mobile support
Filename: FW_TV-IP501W(3.52).zip
SHA-1 Checksum: BC81A7E8A40C9C85D2576C11129ADB7686FE8B76
Date: 7/27/2017
File Size: 835.17 KB
Datasheet
Filename: EN_Spec_TV-IP501W(v1.0R).pdf
Date: 12/19/2011
File Size: 926.54 KB
Filename: FR_Spec_TV-IP501W(v1.0R).pdf
Date: 12/19/2011
File Size: 926.54 KB
Filename: GE_Spec_TV-IP501W(v1.0R).pdf
Date: 12/19/2011
File Size: 937.72 KB
Filename: SP_Spec_TV-IP501W(v1.0R).pdf
Date: 12/19/2011
File Size: 928.95 KB
Filename: RU_Spec_TV-IP501W(v1.0R).pdf
Date: 5/16/2013
File Size: 2.04 MB
Filename: IT_Spec_TV-IP501W(v1.0R).pdf
Date: 5/16/2013
File Size: 928.46 KB
Quick Installation Guide
Filename: EN_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 9/16/2009
File Size: 5.13 MB
Filename: FR_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 9/16/2009
File Size: 5.29 MB
Filename: GE_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 9/16/2009
File Size: 2.70 MB
Filename: PO_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 5/16/2013
File Size: 2.73 MB
Filename: SP_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 9/16/2009
File Size: 2.66 MB
Filename: RU_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 5/16/2013
File Size: 3.84 MB
Filename: EST_Web_TV-IP501P_TV_IP501W(V1.0R)_070109.pdf
Date: 9/16/2009
File Size: 2.70 MB
User's Guide

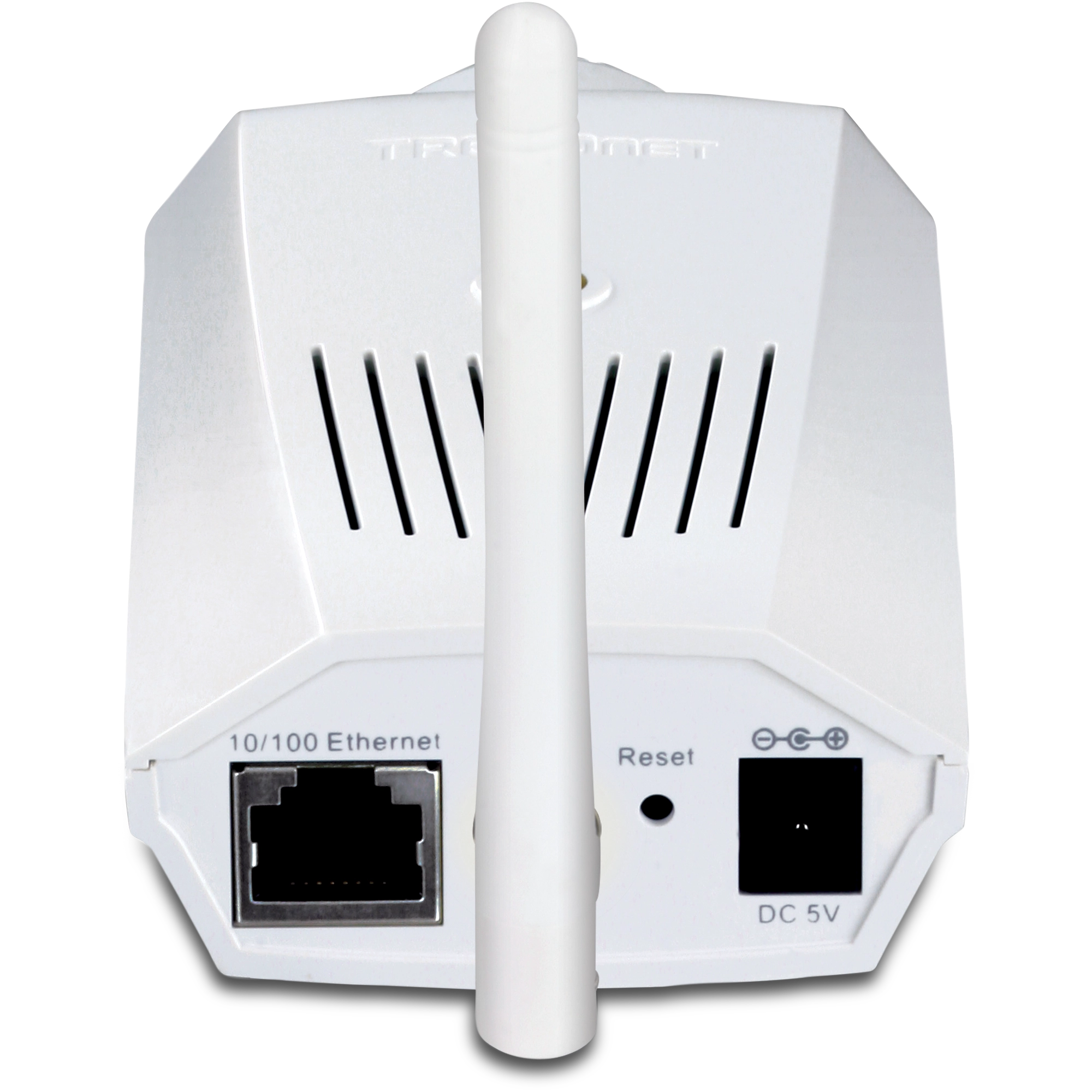

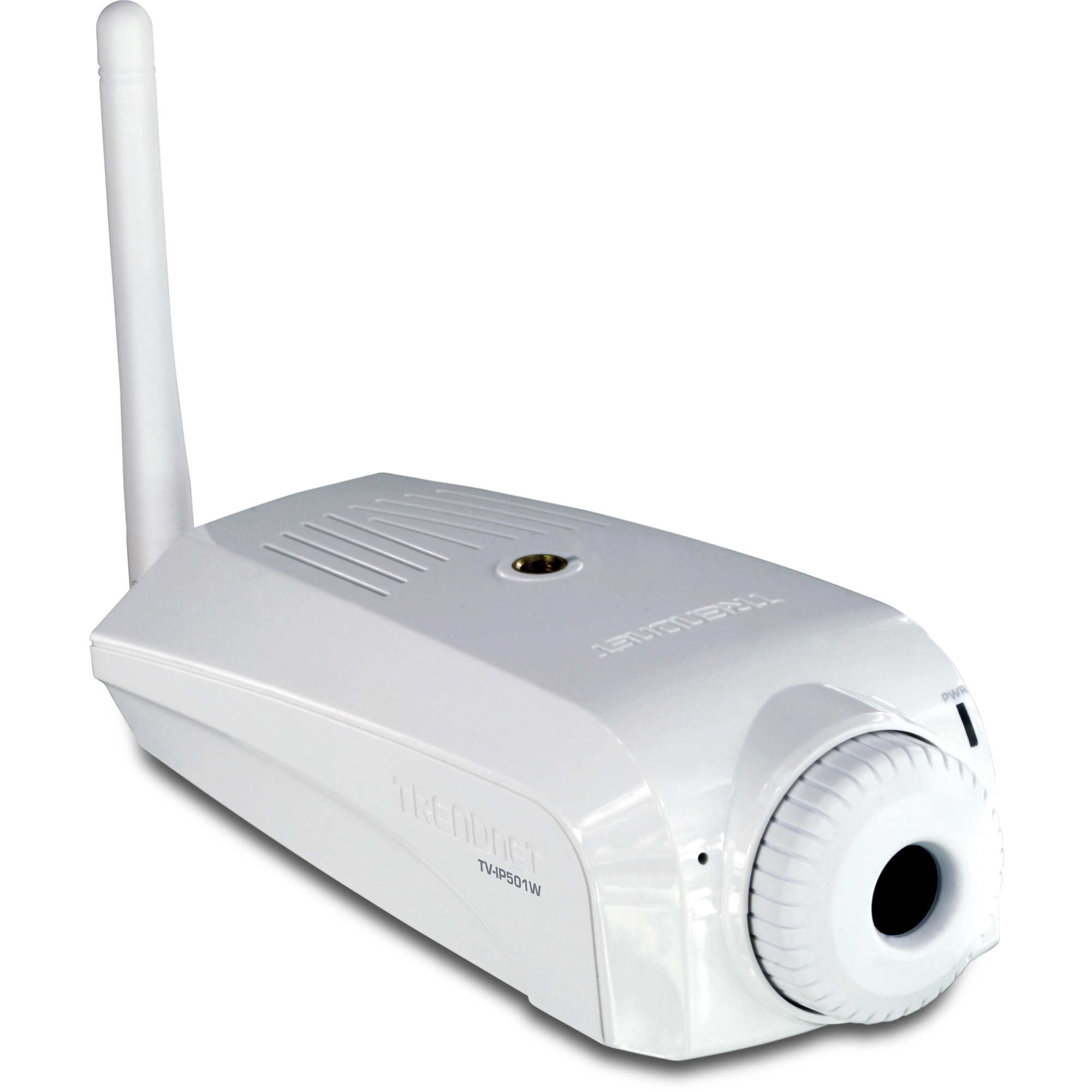

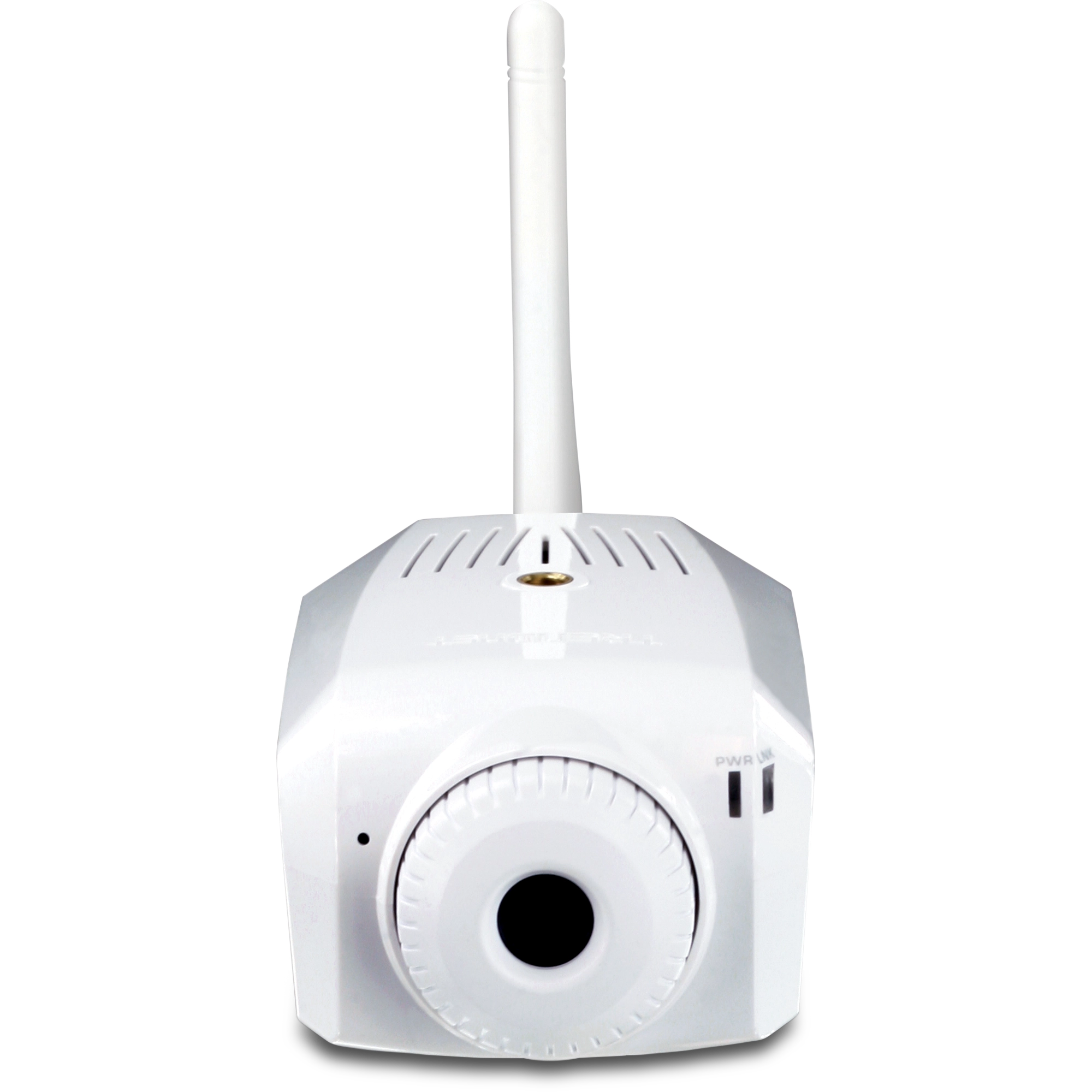

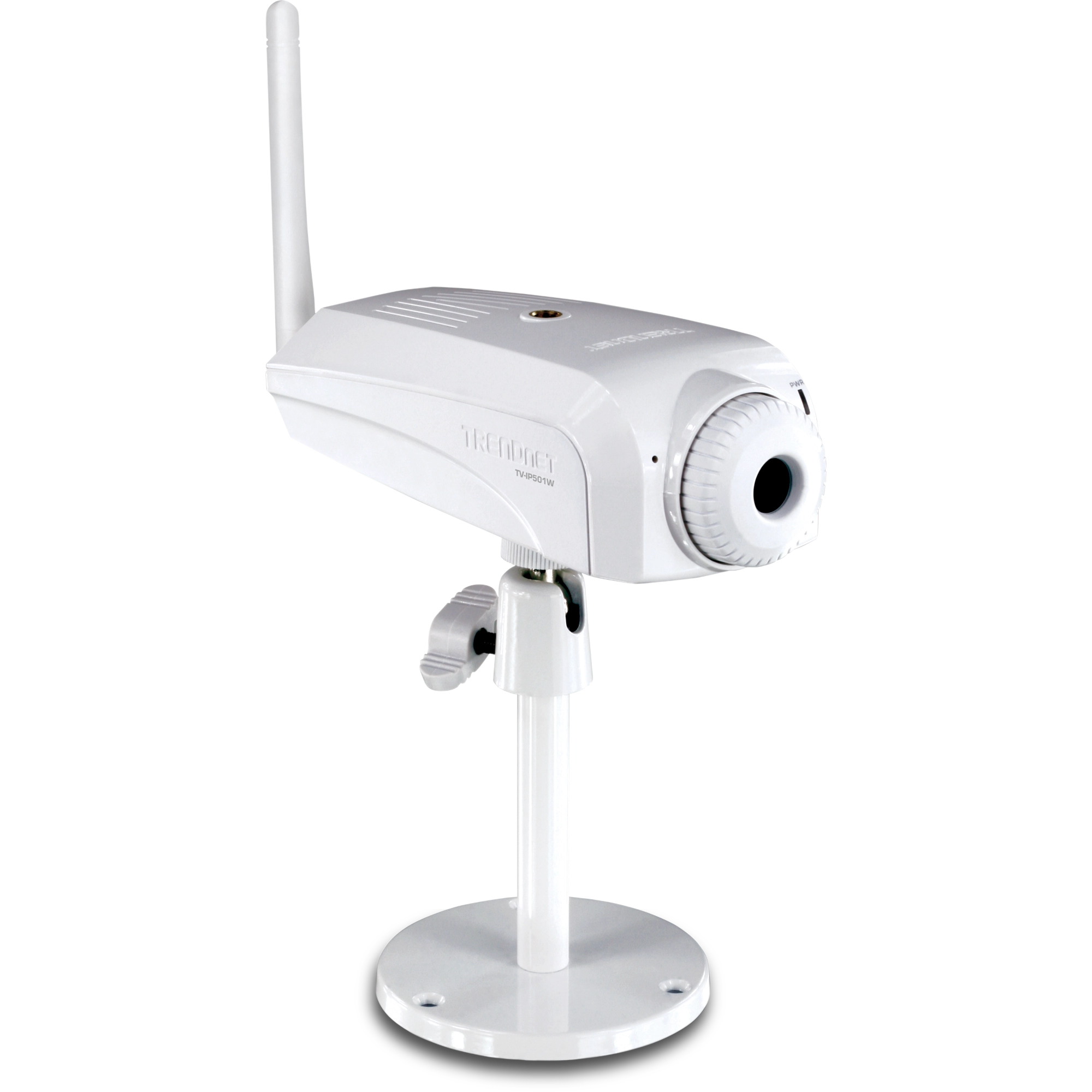

Product Images
| Camera | |
| General | Sensor: 1/4” color CMOS image sensor Resolution: up to 640 x 480 pixels Board lens Focal length: 4.57mm F/No: F1.9 Minimum illumination: 1 Lux Focus depth: 20cm ~ infinity View angle: horizontal: 45 degree, vertical: 35 degree |
|---|---|
| Audio | Built-in microphone Sensitivity: -48dB +/- 3dB (5 meters max) Frequency: 50~16000Hz S/N: 50dB Codec: PCM |
| Image & Video | Compression: MJPEG Exposure/white balance control: automatic Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps |
| Hardware | |
| Network | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX |
| LED | Power, Link |
| Reset Button | Reset settings |
| Power Consumption | 2.6 watts |
| Power | 5V, 2.5A external power adapter |
| Dimension | 195 x 90 x 50mm (7.7 x 3.5 x 2 in.) |
| Stand Dimension | 128 mm (4.7 in.) |
| Weight | Camera: 143g (5oz.) Stand: 121g (4.3oz.) |
| Temperature | Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -15°C ~ 50°C (5°F ~ 122°F) |
| Certification | CE, FCC |
| Wireless | |
| Standard | IEEE 802.11b and IEEE 802.11g |
| Frequency | 2.412 ~ 2.4835GHz ISM band |
| Antenna | 1 x 2dBi detachable dipole antennas (Reverse-SMA connector) |
| Data Rate (auto fallback) | 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps |
| Security | 64/128-bit WEP(ASCII/HEX), WPA-PSK, WPA2-PSK |
| Output Power | 802.11b: 16dBm (typical) 802.11g: 12dBm (typical) |
| Receiving Sensitivity | 802.11b: -82dBm at 11Mbps 802.11g: -66dBm at 54Mbps |
| Channel | 1~11 (FCC), 1~13 (ETSI) |
| Requirement | |
| To View Camera Browser | Internet Explorer 6.0 or above, Safari 2.0 or above, Firefox 2.0 or above and Netscape |
| To Run IPView Pro Software | Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) |
| IPView Pro 2.0 | Channel: supports up to 32 cameras Record/Playback/Motion Detection/Audio |
| Network Protocols | IPV4, ARP, TCP, UDP,ICMP DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client HTTP Server PPPoE UPnP |
| Management | |
| Remote | Remote management supported |
| Backup / Restore | Save/retrieve configuration files |
| Settings | |
| Image | Brightness, contrast, noise reduction, saturation, sharpness, white balance, flip mirror(horizontal/vertical) |
| Video | Encoding type: MJPEG Compression rate: 5 levels Frame rate: 1, 5, 7, 15, 20, Auto (up to 30fps) Frequency: 50Hz, 60Hz |
| Recording (via Software) | Storage size: 32MB (minimum) Recording type: event based (motion detection), continuous and scheduled |
| Snapshot (via Software) | Trigger event: motion detection Action: send alert email and/or upload to FTP |
| Access Port | HTTP port: 80 (default) |
| Digital Zoom | 4x |
| Dynamic DNS | Yes |
| Time | Synchronize with NTP server or set time/date manually |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
