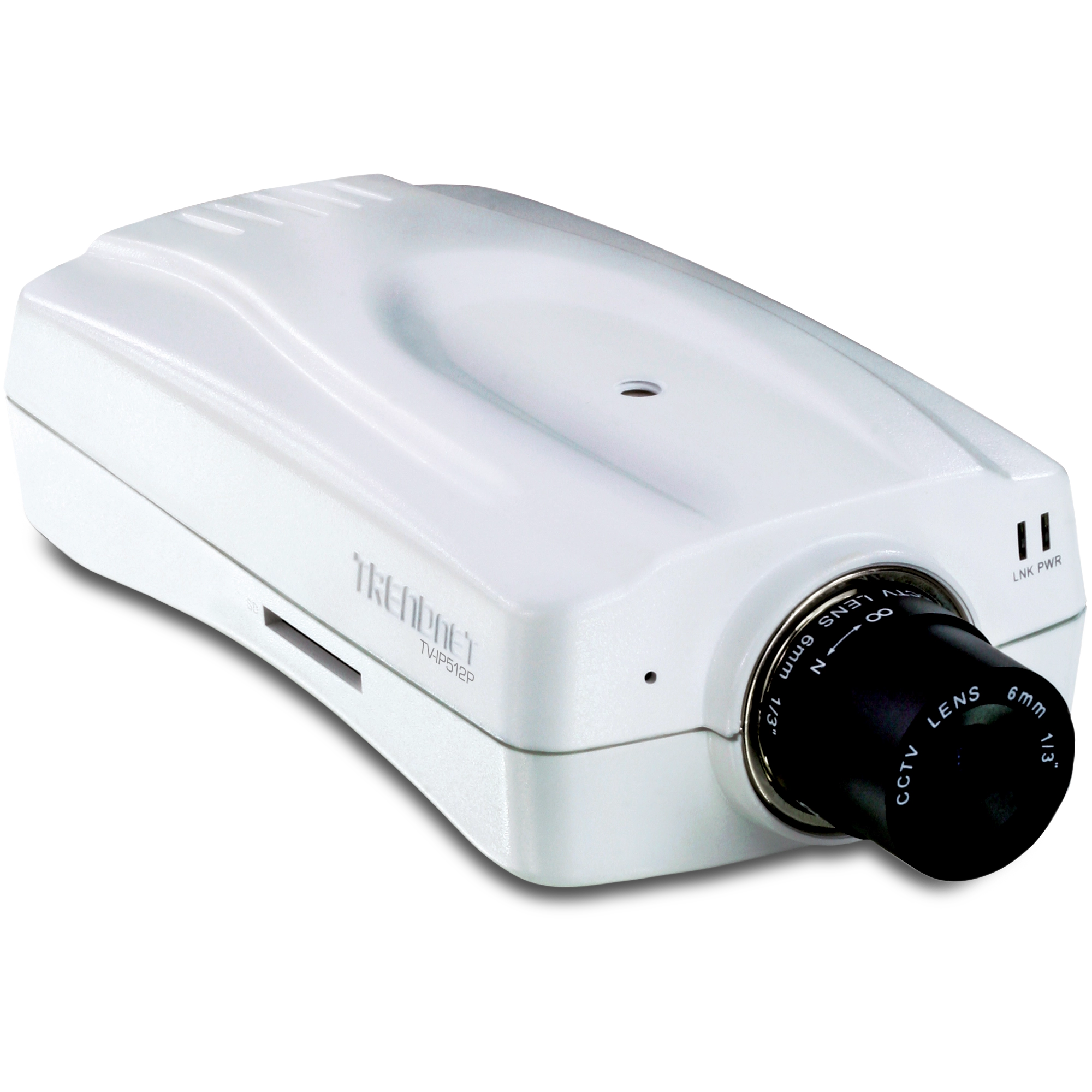

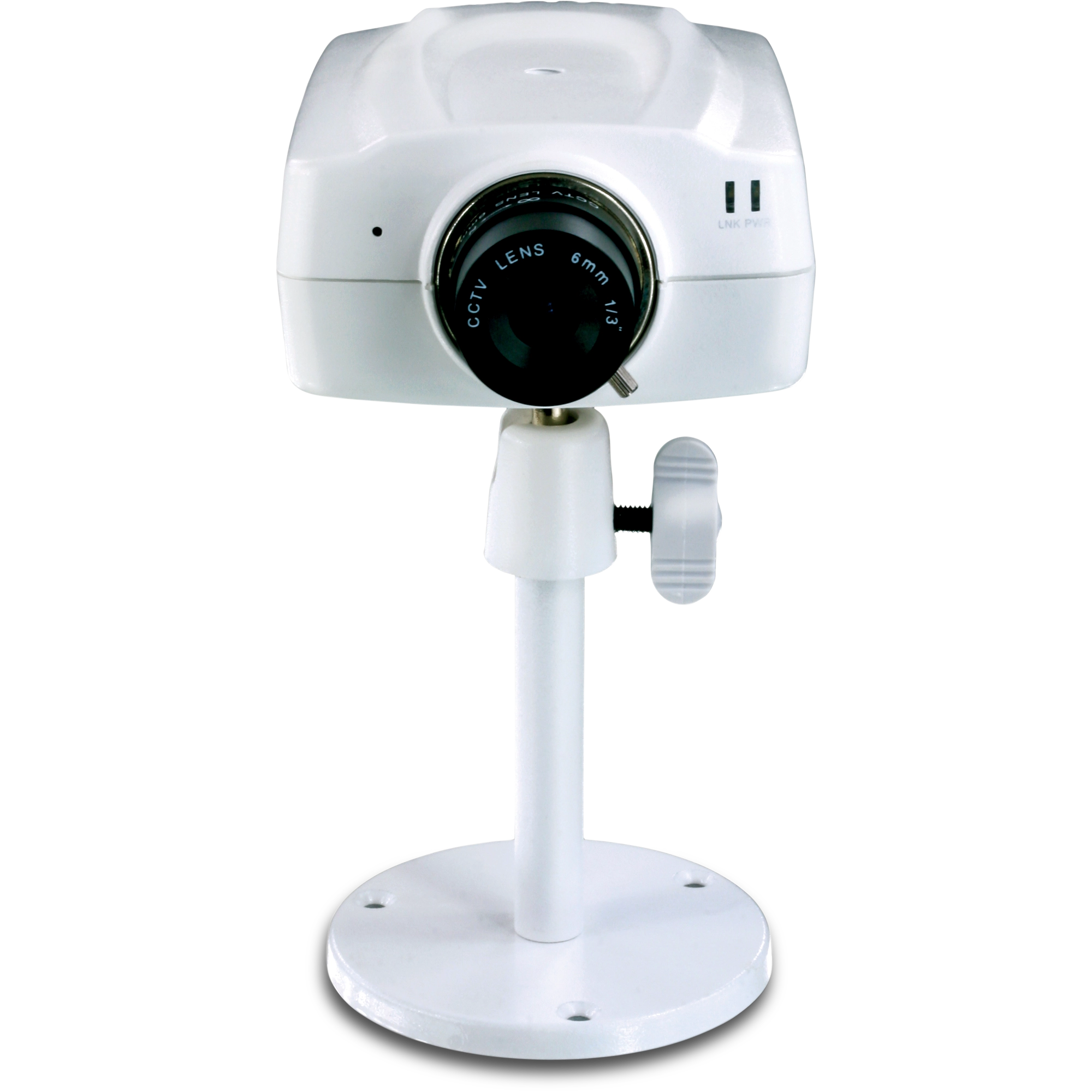

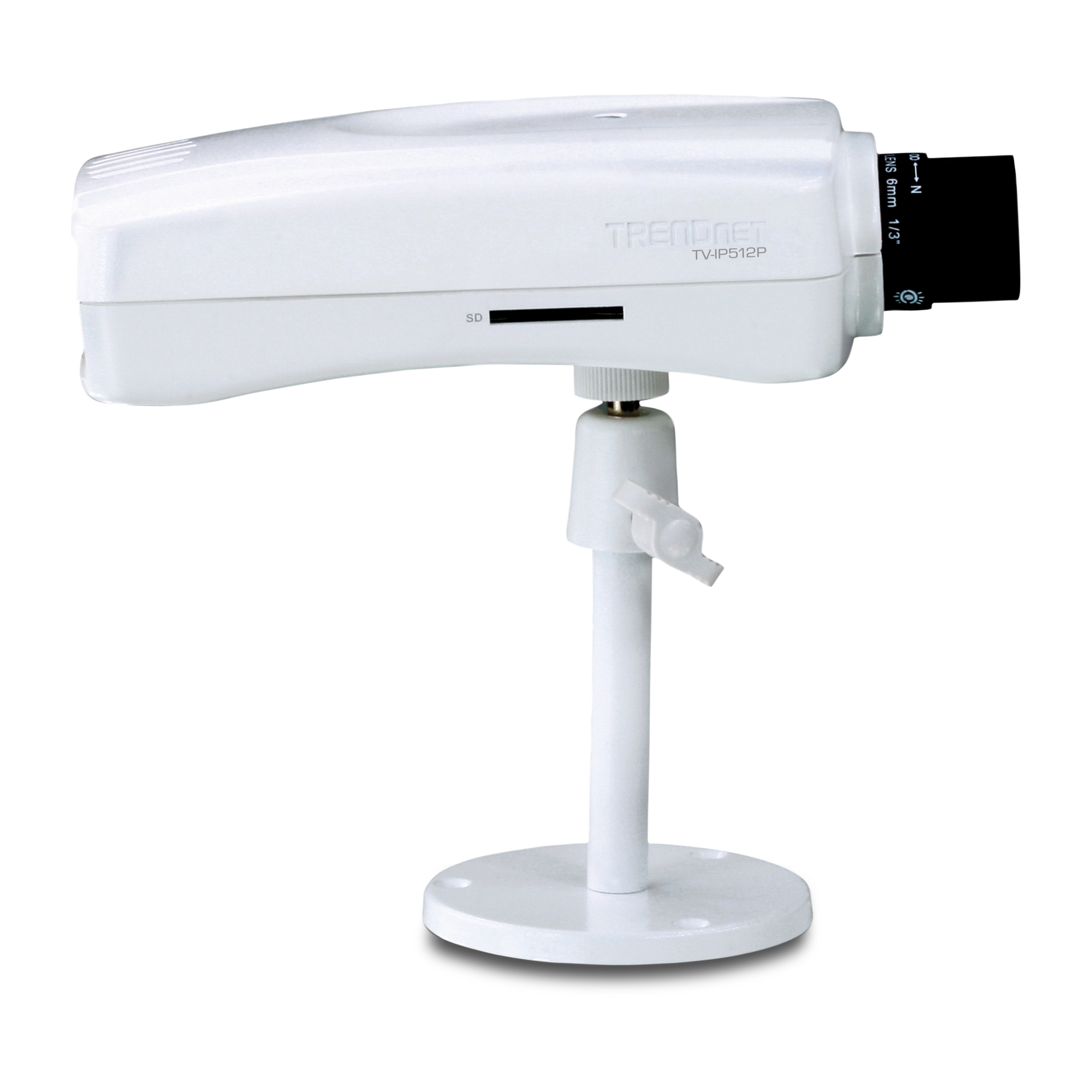

PoE Network Camera

TV-IP512P   (Version v1.3R)

   Select Another Version
  • No need to install this camera near a power source, power and data are received through a single Ethernet cable
  • View streaming video, hear sounds and record from any Internet connection
  • Program motion detection recording, email* alerts and more with complimentary software
  • Features a removable lens, I/O ports and 2-way audio

DISCONTINUED PRODUCT

The TV-IP512P (Version v1.3R) has been discontinued. It has been replaced by the TV-IP344PI (Version v2.0R). For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.0.4
Firmware Release Date: 5/2013
Note:

  1. Fixes security vulnerabilities

Filename: FW_TV-IP512P_512WN(1.0.4).zip
SHA-1 Checksum: B27998BBB4C8503E9314730F504E389B56AD6F6C
Date: 7/27/2017
File Size: 6.71 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x64_1.10.0.zip
SHA-1 Checksum: 2B5BD0BFFF960D487E4ADFC1130AE0B64220A986
Date: 8/2/2018
File Size: 367.72 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x64_1.10.0.zip
SHA-1 Checksum: 2B5BD0BFFF960D487E4ADFC1130AE0B64220A986
Date: 8/2/2018
File Size: 367.72 MB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 1.07 MB
Download Email
Datasheet (Français)
Filename: FR_SpecTV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 1.09 MB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 1.05 MB
Download Email
Datasheet (Español)
Filename: SP_SpecTV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 1.05 MB
Download Email
Datasheet (Pусский)
Filename: RU_SpecTV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 2.30 MB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TV-IP512P(v1.3R).pdf
Date: 1/29/2013
File Size: 1.07 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 5.02 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 5.02 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 4.30 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TV-IP512P(1.31).pdf
Date: 5/16/2013
File Size: 4.24 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 4.36 MB
Download
Quick Installation Guide (Русский)
Filename: RU_Web_TV-IP512P(1.31).pdf
Date: 5/16/2013
File Size: 5.30 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 3.94 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP512P(1.31).pdf
Date: 3/8/2010
File Size: 6.24 MB
Download

Product Images

JPEG Image
File Size: : 318.69 KB
Date: : 9/13/2010
Download
JPEG Image
File Size: : 231.25 KB
Date: : 9/13/2010
Download
JPEG Image
File Size: : 217.02 KB
Date: : 9/13/2010
Download
JPEG Image
File Size: : 224.52 KB
Date: : 9/13/2010
Download
TIFF Image
File Size: : 11.29 MB
Date: : 9/13/2010
Download
TIFF Image
File Size: : 2.62 MB
Date: : 9/13/2010
Download
TIFF Image
File Size: : 8.12 MB
Date: : 9/13/2010
Download
TIFF Image
File Size: : 2.76 MB
Date: : 9/13/2010
Download
ROHS compliant WEEE crossed-out bin symbol.
Camera
General
  • Sensor: 1/4” color CMOS SOC image sensor
  • Resolution: 640 x 480 pixels
  • Lens: 1/3” CS-Mount, replaceable
  • Focal Length: 6mm
  • F/No: F1.8
  • Minimum illumination: 0.5 Lux @ F1.8
  • Minimum Object Distance (M.O.D.): 1cm
  • View angle: diagonal 44 degree
Audio
  • Built-in omni-directional microphone
  • Sensitivity: -48dB +/- 3dB (5 meters max)
  • Frequency: 50~16000Hz
  • S/N: 50dB
  • External speaker output
  • Two-way audio with echo canceling
  • Codec: ARM/PCM
Image & Video
  • Compression: MPEG-4 / MJPEG
  • Profiles: up to 4 profiles simultaneously
  • Exposure/white balance control: automatic
  • Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps

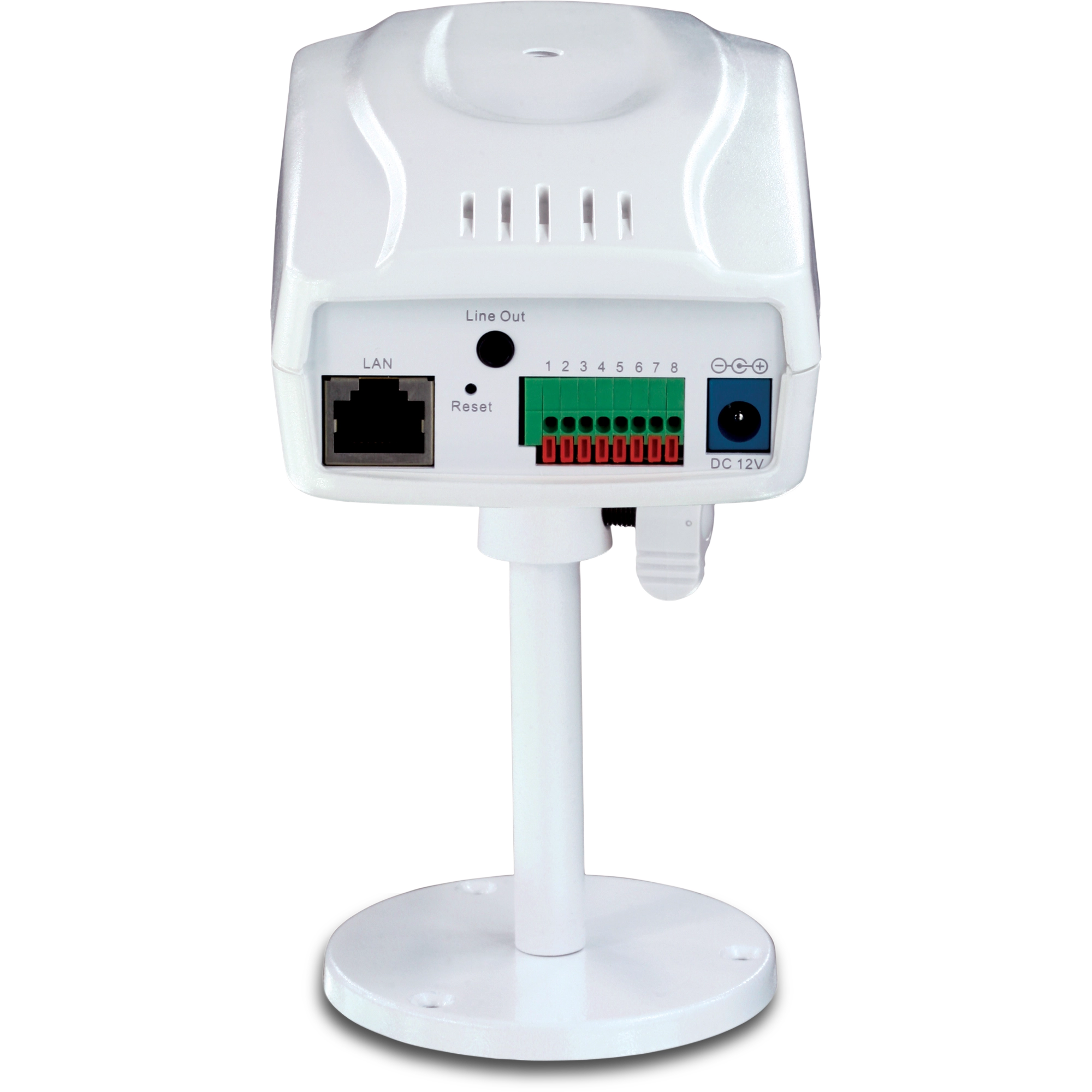

I/O Connector
  • Input: 2 sets (pin 1/2, pin 3/4)
  • Output: 1 set (pin 5/6)
  • RS-485: 1 set (pin 7/8)
SD slot
  • Secure Digital card (up to 16G)
Hardware
Network
  • IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
  • IEEE 802.3af PoE
LED
  • Power, Link
Reset Button
  • Resets to factory defaults
Power Consumption
  • 9 watts
Power
  • 12V, 1.5A external power adapter
Dimension
  • 170 x 80 x 40mm (6.7 x 3.2 x 1.6 in.)
Stand Dimension
  • 128 mm (4.7 in.)
Weight
  • Camera: 260g (9.2 oz.)
  • Stand: 116g (4.1 oz.)
Temperature
  • Operating: 0°C ~ 40°C (39°F ~ 104°F)
  • Storage: -15°C ~ 60°C (5°F ~ 140°F)
Certification
  • CE, FCC
Requirement
To View
  • Internet Explorer 6.0 or above
To Run Software
  • Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
IPView Pro 2.0
  • Channel: supports up to 32 cameras
  • Record/Playback/Motion Detection/Audio
Network Protocols
  • IPV4, ARP, TCP, UDP,ICMP
  • DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
  • HTTP Server
  • Samba Client
  • PPPoE
  • UPnP AV
  • RTP (Real Time Protocol)
  • RTCP (Real Time Control Protocol)
  • RTSP (Real Time Streaming Protocol)
Management
Account
  • Up to 20 user accounts
Remote
  • Remote Management supported
Backup / Restore
  • Save/retrieve configuration files
Log
  • System log up to 500 entries
Settings
  • Brightness, contrast, noise reduction, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black/white mode
Video
  • Profile 1-2
  • Encoding type: MPEG-4 and MJPEG
  • Resolution: 640 x 480, 320 x 240, 160 x 120
  • Frame rate: 1, 2, 3, 5, 10, 15, 30
  • Fixed bit rate: 64k, 128k, 256k, 384k, 512k, 768k, 1M, 1.5M, 2M
  • Profile 3
  • Encoding type: MJPEG
  • Resolution: 640 x 480, 320 x 240, 160 x 120
  • Frame rate: 1, 2, 3, 5, 10, 15, 30
  • Fixed bit rate: 64k, 128k, 256k, 384k, 512k, 768k, 1M, 1.5M, 2M
  • Profile 4 (for mobile device only)
  • Encoding type: MPEG-4
  • Resolution: 640 x 480, 320 x 240, 160 x 120
  • Frame rate: 1, 2, 3, 5, 10, 15, 30
  • Fixed bit rate: 64k, 128k, 256k, 384k, 512k, 768k, 1M, 1.5M, 2M
Recording
  • Resolutions: 4 profiles
  • Storage size: 32MB (minimum)
  • Recording type: event based (motion detection and digital input trigger), continuous and scheduled
Snapshot
  • Trigger event: motion detection or digital input signal
  • Action: send alert email and/or upload to FTP
Port Settings
  • HTTP port: 80 (default)
  • RTSP port: 554 (default)
Digital Zoom
  • 16x
Dynamic DNS
  • Yes
Time
  • Synchronize with NTP server or set time/date manually

PACKAGE CONTENTS
  • TV-IP512P
  • CD-ROM (Utility & User's Guide)
  • Multi-Language Quick Installation Guide
  • Cat. 5 Ethernet cable (1.5m/ 5ft.)
  • Power adapter (12V, 1.5A)
  • Camera Stand

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
