N600 Dual Band Wireless USB Adapter
TEW-664UB (Version v1.0R)
- Connect your PC or Laptop to a high speed Dual Band wireless n network
- Automatically connects to 2.4GHz and 5GHz wireless networks
- 12x the speed and 4x the coverage of wireless g
- One-touch connection to wireless networks with Wi-Fi Protected Setup (WPS)
DISCONTINUED PRODUCT
The TEW-664UB (Version v1.0R) has been discontinued. It has been replaced by the TEW-808UBM (Version v1.0R). For a list of discontinued products, click here.Drivers
Filename: MacDriver_TEW-624UB_644UB_664UB(10.3_10.6).zip
SHA-1 Checksum: 8723CEE648EEA3653E6D81E483D10EE4F891EE11
Date: 7/28/2017
File Size: 4.86 MB
Utility
Filename: UtilityDriver_TEW-664UB(include Win7).zip
SHA-1 Checksum: 68A1A777A73F0D43E09DA3039CECA6DA864365B9
Date: 7/28/2017
File Size: 11.44 MB
Datasheet
Filename: EN_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.20 MB
Filename: FR_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.17 MB
Filename: GE_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.15 MB
Filename: SP_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.13 MB
Filename: RU_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.22 MB
Filename: ITA_Spec_TEW-664UB(v1.0R).pdf
Date: 2/14/2014
File Size: 1.14 MB
Quick Installation Guide
Filename: EN_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 760.36 KB
Filename: FR_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 763.16 KB
Filename: GE_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 763.37 KB
Filename: PO_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 770.09 KB
Filename: SP_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 760.53 KB
Filename: RU_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 1.55 MB
Filename: EST_Web_TEW-664UB(V1).pdf
Date: 5/13/2013
File Size: 768.62 KB
User's Guide

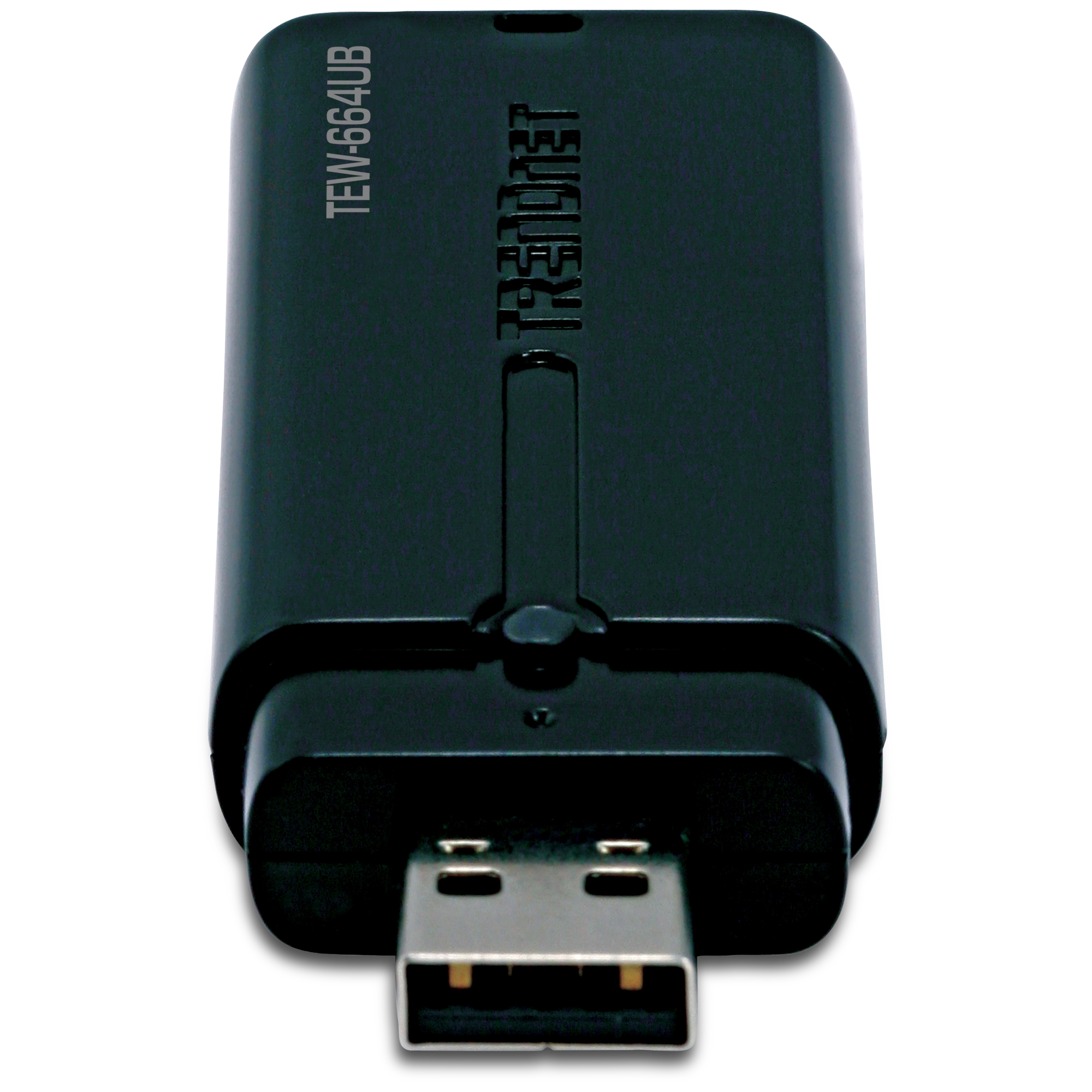

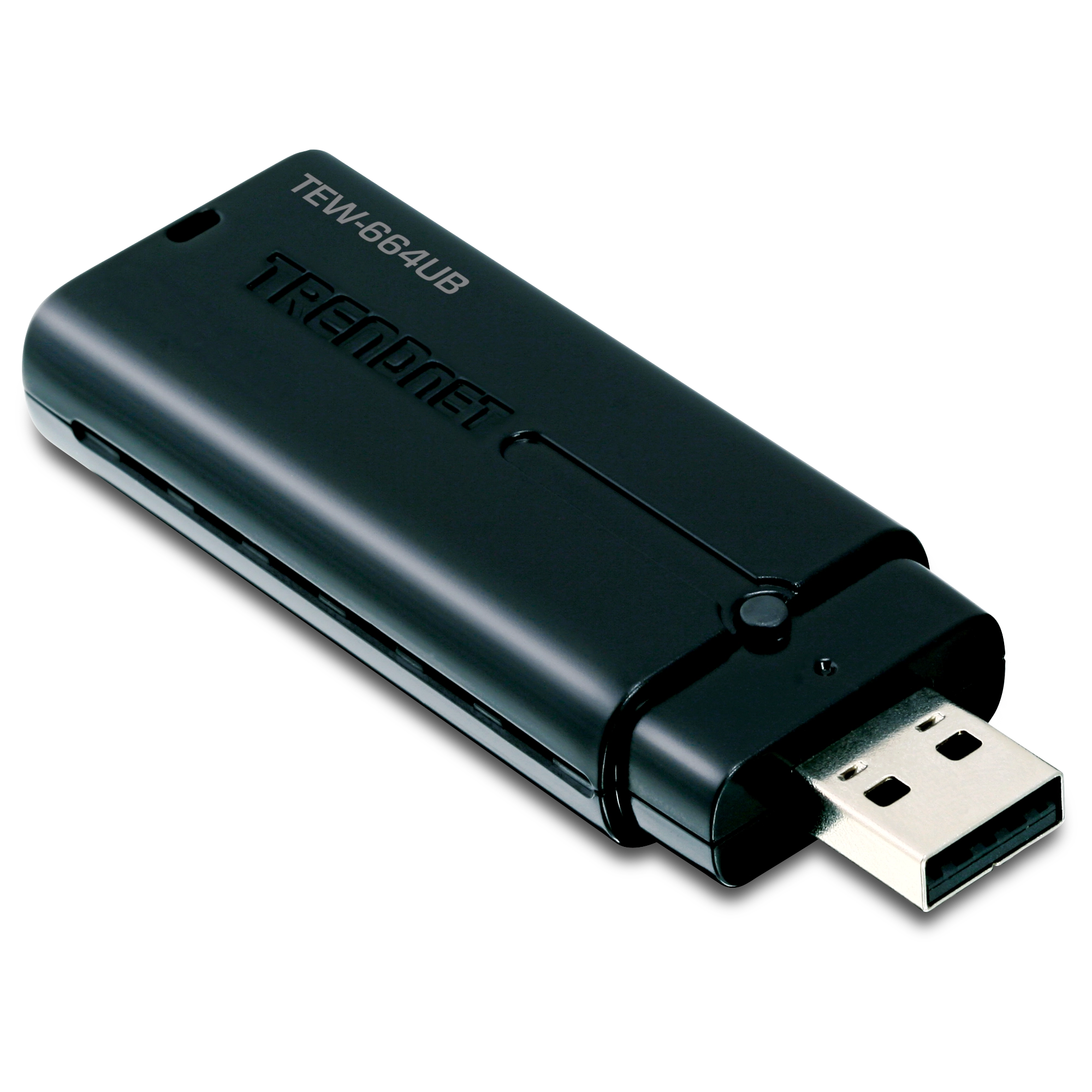

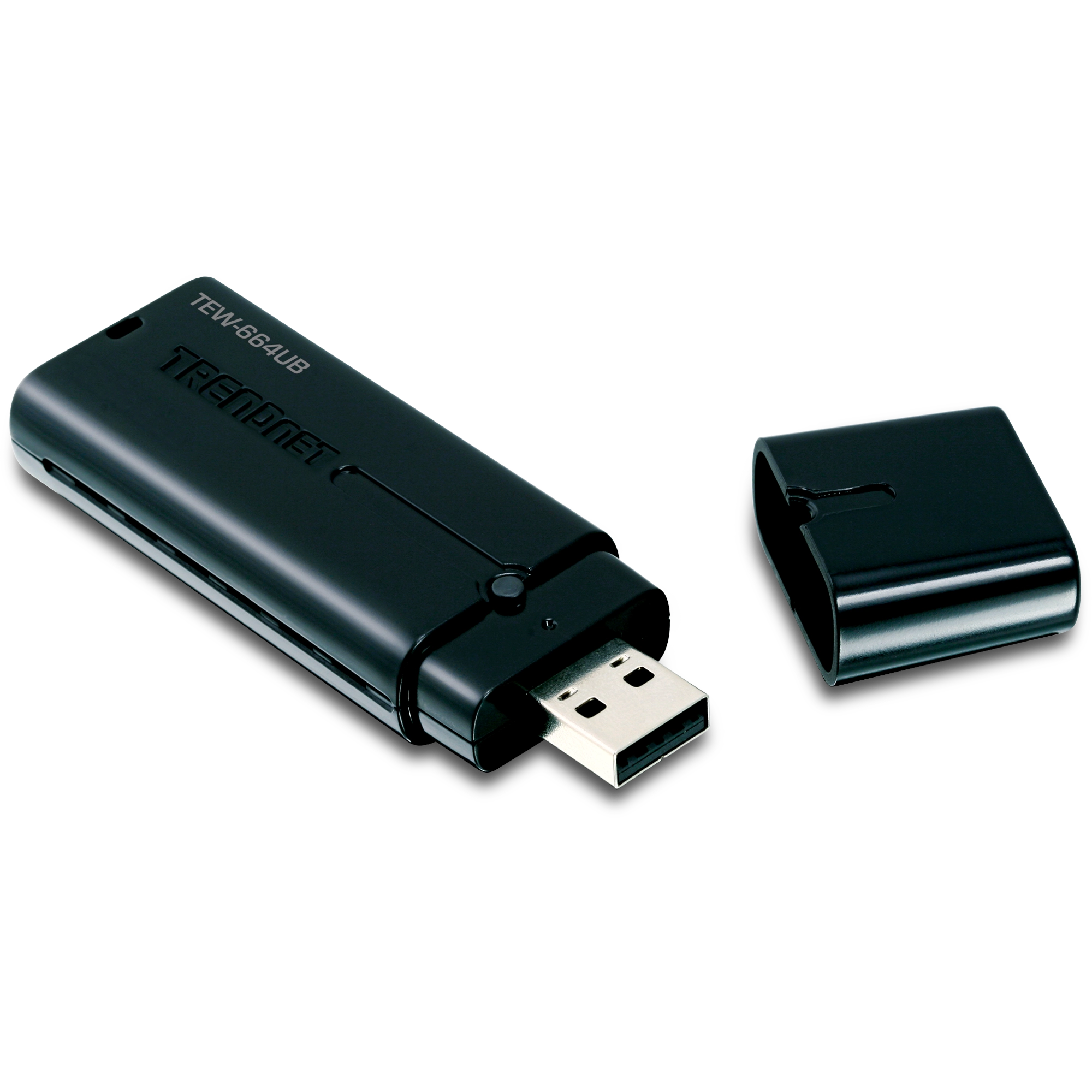

Product Images
| Hardware | |
| Interface | USB 2.0 |
| Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0) |
| LED Indicator | Activity |
| Power Consumption | Receive mode: 300mA (max) ; Transmit mode : 450mA (max) |
| Supported OS | Windows 7 (32/64-bit)/ Vista (32/64-bit) / XP (32/64-bit) /2000, Mac OS X 10.4/10.5 |
| Dimensions (LxWxH) | 80 x 27 x 12mm (3.1 x 1 x 0.5in) |
| Weight | 20g (0.7oz) |
| Temperature | Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 65° C (14° ~ 149° F) |
| Humidity | 5% ~ 95% max (non-condensing) |
| Certification | FCC, CE |
| Wireless | |
| Frequency | 802.11n: 2.412 ~ 2.484 GHz 802.11a: 5.150GHz ~ 5.350GHz / 5.725GHz ~ 5.825GHz (FCC) 5.150GHz ~5.350GHz / 5.470GHz ~ 5.725GHz (ETSI) |
| Antenna | Built-in 2 on board antennas |
| Data Rate (auto fallback) | 802.11a: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps |
| Output Power | 802.11a: 10dBm (typical) 802.11b: 16dBm (typical) 802.11g: 13dBm (typical) 802.11n : 13dBm (typical) |
| Receiving Sensitivity | 802.11b: -86dBm at 11Mbps 802.11g: -71dBm at 54Mbps 802.11a: -70dBm at 54Mbps 802.11n: -66dBm at 300Mbps 802.11a: -69dBm at 300Mbps |
| Encryption | 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK |
| Channel | 802.11b/g/n: 1~11 (FCC), 1~13 (ETSI) 802.11a: 36, 40, 44, 48, 149, 153, 157, 161, 165 (FCC), 36, 40, 44, 48 (ETSI) |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
