8-Port Gigabit GREENnet PoE+ Switch

TPE-TG80g   (Version v2.0R)

   Select Another Version
  • 8 x Gigabit PoE+ ports (up to 30 watts per PoE+ port)
  • Up to 30 W per port with 105 W total power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • 16 Gbps switching capacity
  • Sturdy metal case
  • Up to 75% GREENnet power savings

DISCONTINUED PRODUCT

The TPE-TG80g (Version v2.0R) has been discontinued. It has been replaced by the TPE-TG80g (Version v3.4R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 601.51 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 609.01 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 583.26 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 605.44 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 569.78 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TPE-TG80g(v1.0R).pdf
Date: 8/29/2013
File Size: 603.08 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: EUNL_Web_TPE-TG80g(V1.0R)_05162012.pdf
Date: 7/18/2012
File Size: 804.01 KB
Download
Quick Installation Guide
Filename: QIG_Web_TPE-TG80g(V1.0R).pdf
Date: 7/18/2012
File Size: 1.84 MB
Download

Product Images

JPEG Image
File Size: : 238.68 KB
Date: : 7/5/2012
Download
JPEG Image
File Size: : 222.24 KB
Date: : 7/5/2012
Download
JPEG Image
File Size: : 195.58 KB
Date: : 7/5/2012
Download
TIFF Image
File Size: : 2.80 MB
Date: : 7/5/2012
Download
TIFF Image
File Size: : 2.57 MB
Date: : 7/5/2012
Download
TIFF Image
File Size: : 2.36 MB
Date: : 7/5/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
What is the total power budget of the TPE-TG80g?
The TPE-TG80g has a total power budget of 123 Watts.
Does the TPE-TG80g have wall mounts?
 Unfortunately the TPE-TG80g does not have wall mounts.
Can the TPE-TG80g power 802.3af powered devices?
 Yes, the TPE-TG80g can power both 802.3af and 802.3at devices.
Is the TPE-TG80G backwards compatible with 802.3af standards?
Yes, the TPE-T88g is compatible with 802.3af standards.
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3at Power over Ethernet (PoE+)
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3X Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Ports

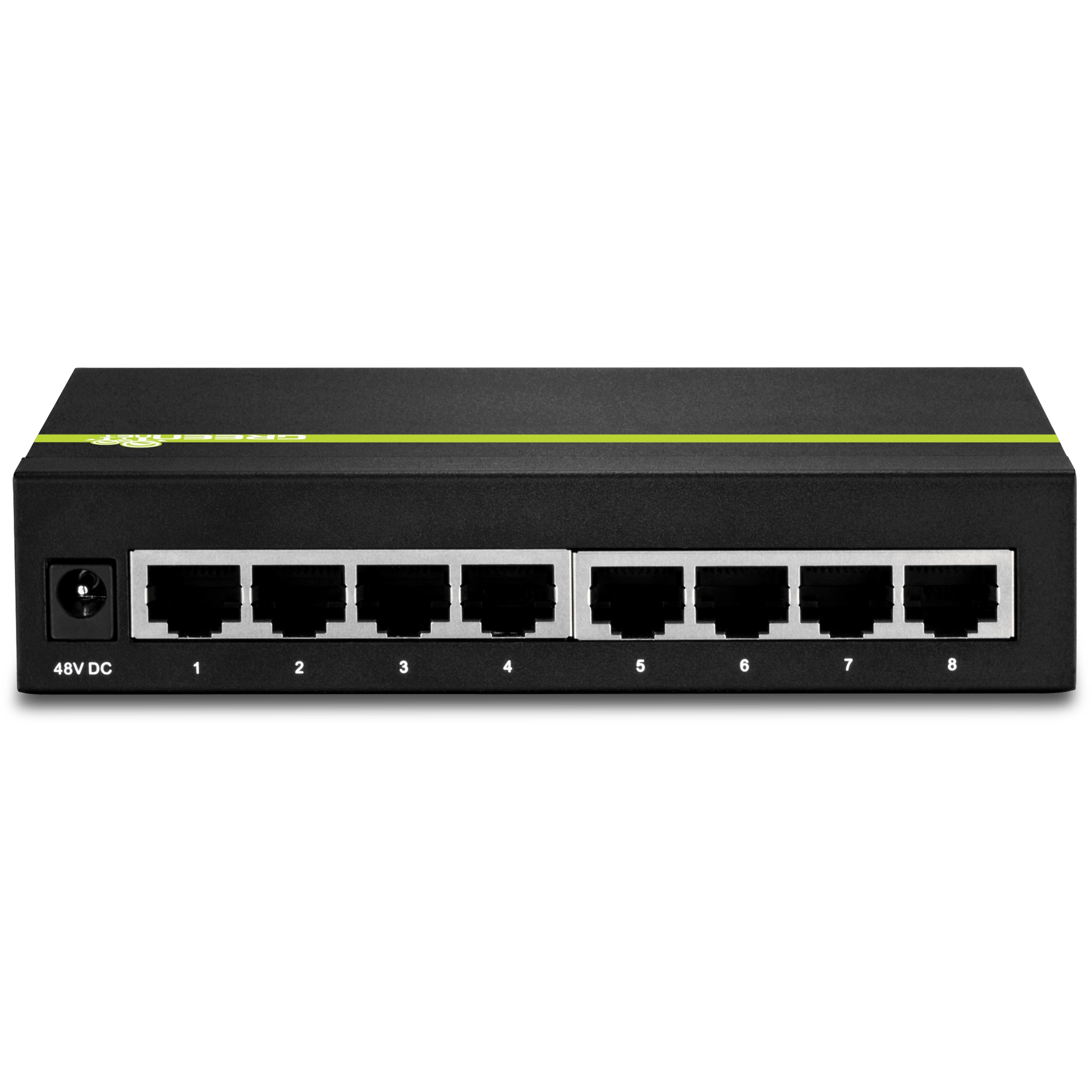

  • 8 x Gigabit Auto-MDIX PoE / PoE+ ports
Data Transfer Rate
  • Ethernet: 10/20 Mbps (Half / Full Duplex)
  • Fast Ethernet: 100/200 Mbps (Half / Full Duplex)
  • Gigabit: 2000 Mbps (Full Duplex)
Forwarding Rate
  • 1,000 Mbps: 1,488,000 pps
  • 100 Mbps: 148,800 pps 1
  • 10 Mbps: 14,880 pps
Data RAM Buffer
  • 96 Kbytes
Address Table
  • 1K MAC entries
Switch Fabric
  • 16 Gbps
Power
  • Input: 100-240V 50/60 Hz, 2.1A
  • Output: 52VDC, 2.31A External Power Adapter

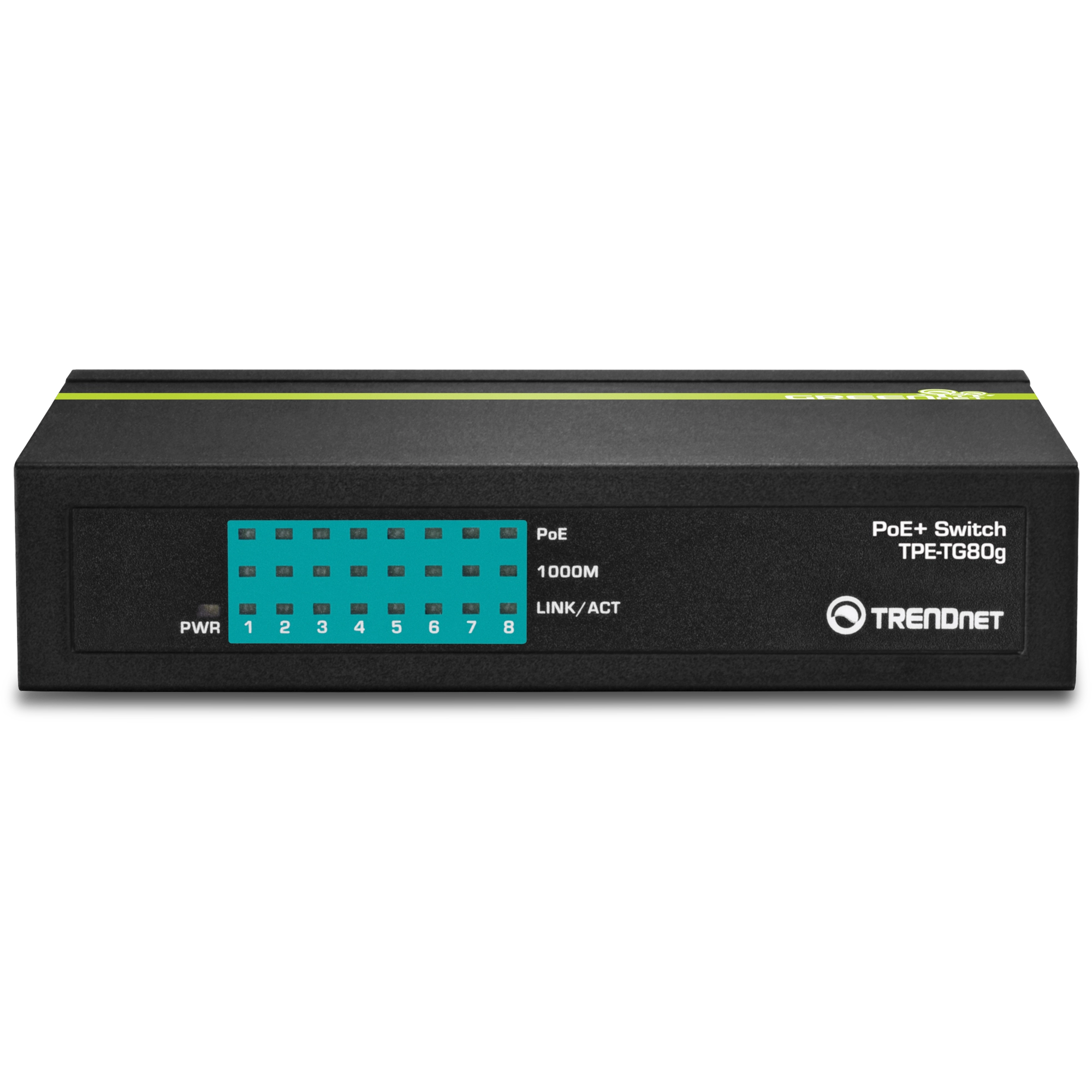

Diagnostic LEDs
  • Power, PoE, 1000 Mbps, Link/Activity
Power Consumption
  • Min: 5 watts (standby)
  • Max: 120 watts
  • PoE Max: 105 watts
  • (7 x 15 watts PoE devices connected or 3 x 30 watts PoE+ devices connected)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity
  • Max 90% (non-condensing)
Dimensions
  • 142 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)
Weight
  • 400 g (14 oz.)
Certifications
  • CE, FCC
PoE
Power over Ethernet
  • Up to 15.4 watts for PoE Up to 30 watts for PoE+ PoE: pin 3, 6 for power+ and pin 1, 2 for power- (mode A)

PACKAGE CONTENTS
  • TPE-TG80g
  • Quick Installation Guide
  • Power Adapter (52V DC, 2.31A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
