N600 Wireless Dual Band USB Adapter

TEW-664UB   (Version v2.0R)

   Select Another Version
  • Upgrade your computer to 300 Mbps Dual Band Wireless N
  • Connects to a 2.4 GHz or a 5 GHz wireless network
  • Seamlessly stream HD video over the less congested 5 GHz band
  • One-touch connection to router with the Wi-Fi Protected Setup (WPS) button

DISCONTINUED PRODUCT

The TEW-664UB (Version v2.0R) has been discontinued. It has been replaced by the TEW-808UBM (Version v1.0R). For a list of discontinued products, click here.

Utility

Drivers/Utility (Mac)
Filename: MacUtility_TEW-664UBv2(2.01_OSx10.4-10.7).zip
SHA-1 Checksum: 6726D076F797C20237FC799F8B84D68E42B2A37D
Date: 7/28/2017
File Size: 11.09 MB
Download
Driver/Utility
Filename: UtilityDriver_TEW-664UBv2(2.02).zip
SHA-1 Checksum: AEA2FEDDB5157DF6E5BE8CE2A8FE5FF64893CBD5
Date: 7/28/2017
File Size: 18.09 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1,019.76 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1,002.07 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1,011.42 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1.01 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1,001.34 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-664UB(v2.0R).pdf
Date: 3/17/2014
File Size: 1,023.05 KB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Web_QIG_TEW-664UB(V2.0R).pdf
Date: 11/7/2012
File Size: 1.86 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-664UB(v2.0R).pdf
Date: 11/7/2012
File Size: 1.32 MB
Download

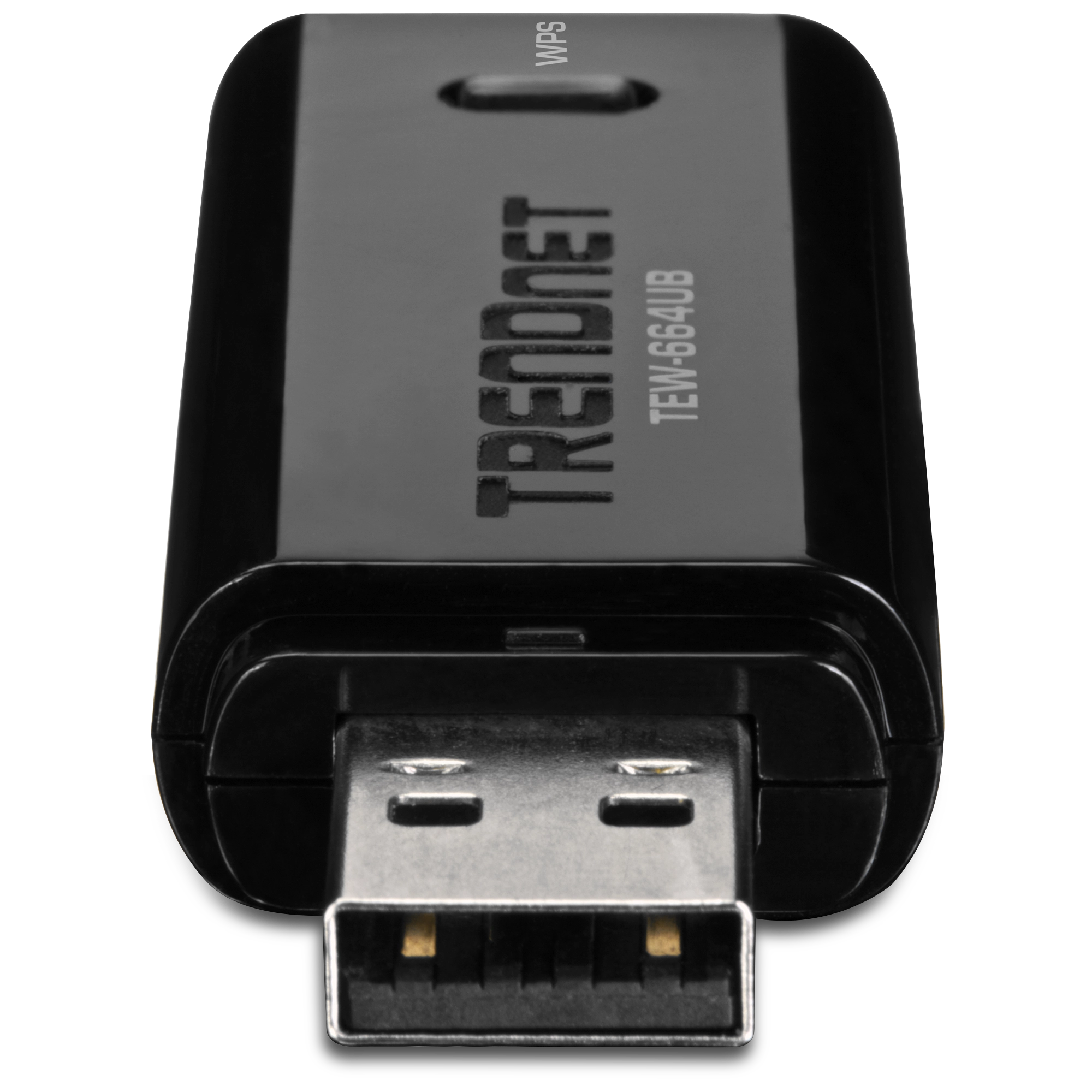

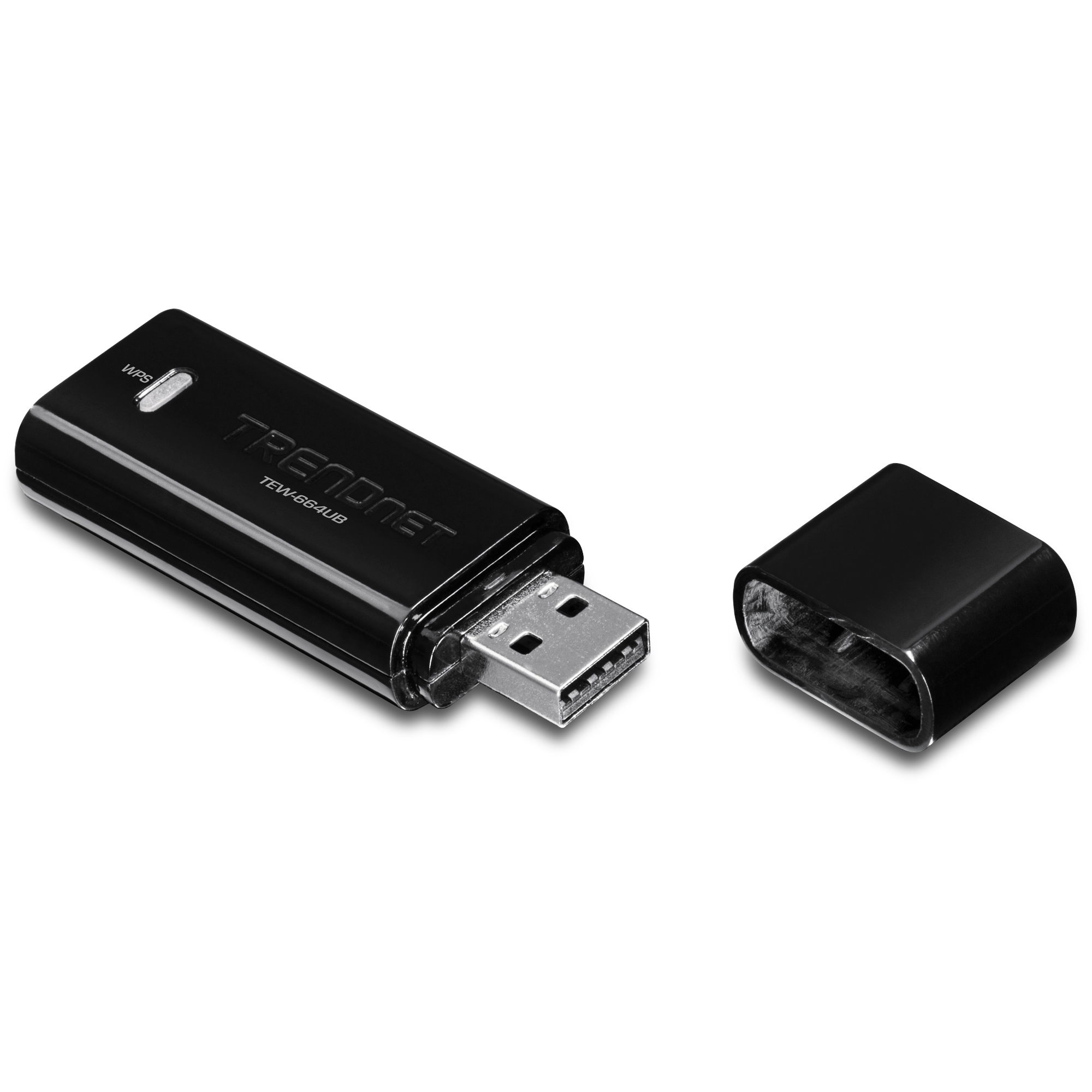

Product Images

JPEG Image
File Size: : 161.29 KB
Date: : 5/9/2012
Download
JPEG Image
File Size: : 290.05 KB
Date: : 5/9/2012
Download
TIFF Image
File Size: : 1.86 MB
Date: : 5/9/2012
Download
TIFF Image
File Size: : 3.65 MB
Date: : 5/9/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
HARDWARE
Interface
  • USB 2.0, 1.1 standard
Standards
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
WPS Button
  • Enables WPS connection
Power Consumption
  • Receive mode: 200mA (max)
  • Transmit mode: 400mA (max)
Supported OS
  • Windows 8, 7, Vista, XP, 2000
  • Mac: 10.4 - 10.7
Dimensions (l x w x h)
  • 65 x 23 x 11 mm (2.5 x 1 x 0.5 in )
Weight
  • 11.33 g (0.4 oz.)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -10° ~ 65°C (14° ~ 149°F)
Humidity
  • Max. 95% (non-condensing)
Certifications
  • CE, FCC
WIRELESS
Modulation
  • OFDM (BPSK, QPSK, 16QAM, 64QAM), DSSS (DPBSK, DQPSK, CCK)
Antenna
  • 2 high performance internal antennas
Frequency
  • 802.11b/g/n: 2.412 ~ 2.484 GHz
  • 802.11a/n: 5.150 ~ 5.250/5.725 ~ 5.825 GHz
Media Access Protocol
  • CSMA / CA with ACK
Data Rate (auto fallback)
  • 802.11a: up to 54 Mbps
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 300 Mbps (for both 2.4 & 5GHz)
Output Power
  • 2.4 GHz: 28dBm
  • 5 GHz: 16dBm
Receiving Sensitivity
  • 802.11b: -76dBm (typical)
  • 802.11g: -65dBm (typical) (for both 2.4 & 5 GHz)
  • 802.11n : -61dBm (typical) (for both 2.4 & 5 GHz)
Encryption
  • 64/128-bit WEP, WPA / WPA2-RADIUS, WPA / WPA2-PSK (AES / TKIP)
Channels
  • 2.4GHz: 1~11 (FCC), 1~13 (ETSI)
  • 5GHz: 36,40,44,48,149,153,157,161,165 (FCC) 36,40,44,48 (ETSI)

PACKAGE CONTENTS
  • TEW-664UB
  • CD-ROM (Utility & Driver)
  • Multi-Language Quick Installation Guide
  • 1 x USB Cable (15.5 cm / 6.1 in)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
