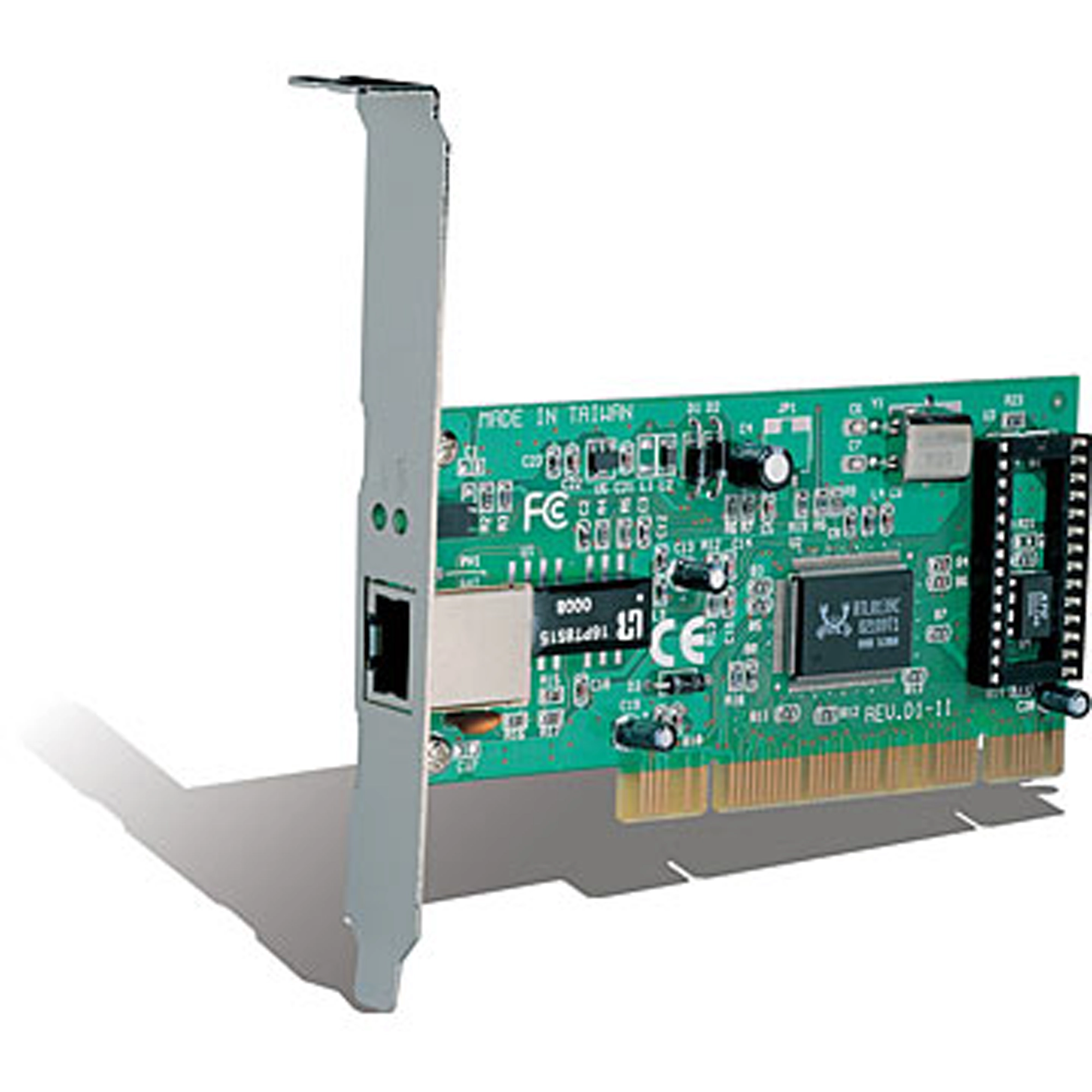

100Mbps Fast Ethernet PCI Card

TE100-PCIW   (Version 1.0)

  • The perfect solution for high speed Internet through your desktop computer
  • Universal Plug and Play allows simple install into most desktop PCs
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PCIW (Version 1.0) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

Drivers

Driver (Linux)
Filename: Linux_TE100-PCIW.zip
SHA-1 Checksum: 11DC9130079D82D4CBC83635055AFC5BF06D633D
Date: 7/25/2017
File Size: 14.42 KB
Download
Driver
MAC installation notes.
Filename: Driver_TE100-PCIW.zip
SHA-1 Checksum: F2A6BD536D1601CB960C12A92E31D4E6F803B4AF
Date: 7/25/2017
File Size: 610.86 KB
Download

User's Guide

Manual
Filename: UG_TE100-PCIW.pdf
Date: 8/18/2004
File Size: 102.12 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ100Base-TX, IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX
Data Transfer Rate:
  • 100 or 10Mbits/sec.
Topology:
  • Star
Protocol:
  • CSMA/CD
Addressable:
  • Users: 1024 maximum
Connectors:
  • 1 RJ-45 (10Mbps of 100Mbps speed)
Diagnostic LEDs:
  • ACT, LINK, 100, FDX
Network Cables:
  • Category 3/4/5 UTP/STP cable for 10Mbps and category 5 UTP/STP cable for 100Mbps network speed.
Network Cables:
  • Software Support
  • Windows NT
  • Windows 95/98
  • Windows for Workgroups
  • Novell NetWare
  • LAN Manager
  • IBM LAN Server
  • IBM LAN TCP/IP
  • NDIS Driver
  • DEC PATHWORKS
  • Banyan
  • SCO UNIX
  • Packet Driver
  • FTP PC/TCP
  • NCSA TCP/IP


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
