150Mbps Wireless N ADSL 2/2+ Modem Router
TEW-657BRM (Version v1.0R)
- Combination ADSL 2/2+ modem and high speed wireless n router
- Compatible with most ADSL-based Internet service provider networks
- 6x the speed and 3x the coverage of wireless g* technology
- Advanced features include a double firewall, Wi-Fi Protected Setup, and Quality of Service controls
DISCONTINUED PRODUCT
The TEW-657BRM (Version v1.0R) has been discontinued. For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Release Date: 12/2009
Note: Initial Release
Firmware Version: 1.00.1
Filename: TEW-657BRMv1.0R(1.00.1).zip
SHA-1 Checksum: 68A784FC1818E21F016EBD97C9B41F0F13A9349B
Date: 7/28/2017
File Size: 2.78 MB
Datasheet
Filename: Spec_EN_TEW-657BRM(V1.0R).pdf
Date: 4/8/2013
File Size: 1.06 MB
Quick Installation Guide
Filename: EN_Web_TEW-657BRM(1.01)_101509.pdf
Date: 4/8/2013
File Size: 2.21 MB
Filename: FR_Web_TEW-657BRM(1.01)_101509.pdf
Date: 4/8/2013
File Size: 2.93 MB
Filename: GE_Web_TEW-657BRM(1.01)_101509.pdf
Date: 4/8/2013
File Size: 1.77 MB
Filename: PO_Web_TEW-657BRM(1.01)_101409.pdf
Date: 5/16/2013
File Size: 2.26 MB
Filename: SP_Web_TEW-657BRM(1.01)_101509.pdf
Date: 4/8/2013
File Size: 2.33 MB
Filename: RU_Web_TEW-657BRM(1.01)_100109.pdf
Date: 5/16/2013
File Size: 4.20 MB
Filename: EST_Web_TEW-657BRM(1.01)_101409.pdf
Date: 4/8/2013
File Size: 1.49 MB
User's Guide

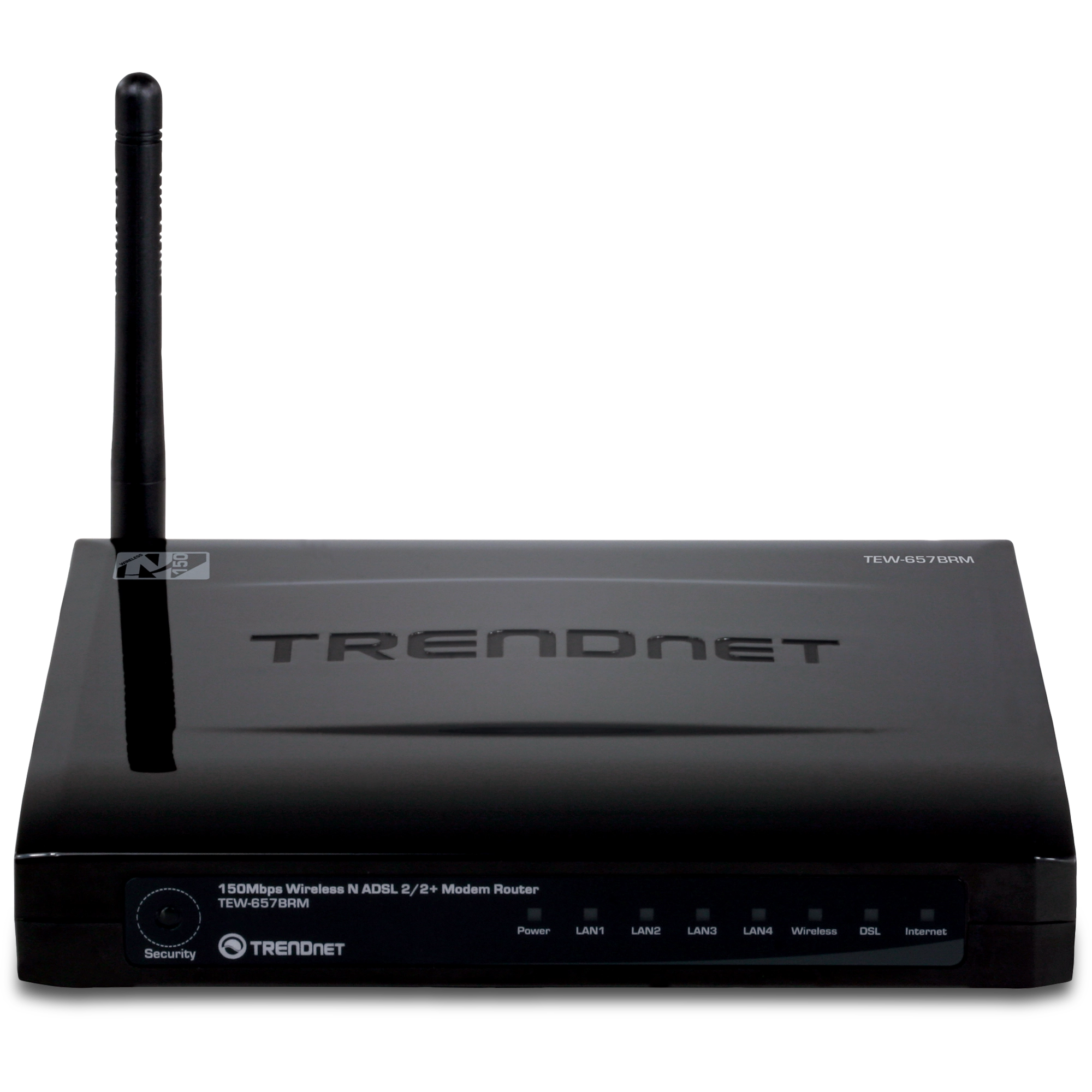

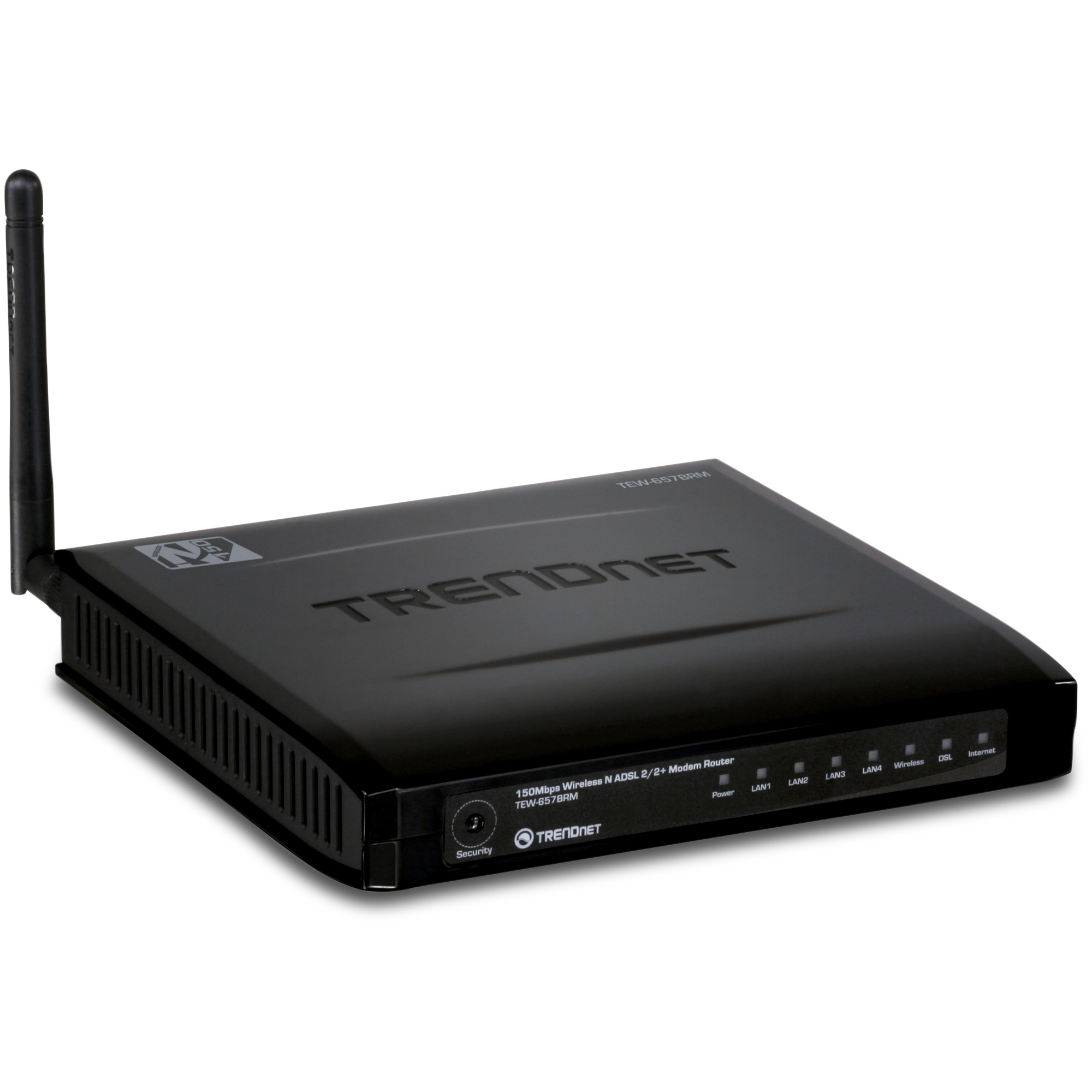

Product Images
Press and hold in the reset button on the back of the router for approximately 15 seconds while the power is on.
The default values are as follows.
IP Address: 192.168.10.1
Username: admin
Password: admin
SSID: TRENDnet657
Encryption: none
...
Login to the TEW-657BRM by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both "admin", without the quotes.
Click on Advanced>Port Forward on the left hand side. The following example shows how to forward TCP port 80 to IP ad...
The default username and password are both "admin", without the quotes.
Login to the TEW-657BRM by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both "admin", without the quotes.
...
Login to the TEW-657BRM by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both "admin", without the quotes.
Click on Wireless on the left hand side to manage your wireless network parameters.
...
Login to the TEW-657BRM by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both "admin", without the quotes.
Click on Wireless then click on Configure SSID.
Select the highest form of security supported by your wireles...
Contact your ISP and gather the following information.
VCI and VPI values
DSL Modulation
Login Method
DSL Multiplexing method
Username and Password
Login to the TEW-657BRM by entering https://192.168.10.1 into the address line of your browser.
The default User Name is "admin",...
| Hardware | |
| Standards | Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, Based on IEEE 802.11n technology |
|---|---|
| ATM | VC and LLC Multiplexing Bridged/Routed Ethernet over ATM (RFC1483/2684) OAM F4/F5 loop-back PPP over ATM (RFC2364) PPP over Ethernet (RFC2516) |
| WAN Port (ADSL line Interface) | 1x RJ-11 port Complies with ADSL standards - ANSI T1.413 Issue2 - G.992.1 (G.dmt, Annex A) - G.992.2 (G.lite) Complies with ADSL2 standard - G.992.3 (G.dmt.bis) Complies with ADSL2+ standard - G.992.5 Annex M |
| LAN | 4 x 10/100Mbps Auto-MDIX ports |
| WPS Button | Enables Wi-Fi Protected Setup (WPS) function |
| UPnP | UPnP IGD 1.0 compliant |
| Firewall | NAT, Access Control, URL Content Filter |
| LED Indicator | Power, WPS, LAN1~LAN4, WLAN, ADSL and Internet |
| Power Adapter | 12V DC, 1A external power adapter |
| Power Consumption | 6.03watts (max) |
| Dimension (L x W x H) | 150 x 145 x 26mm (5.9 x 5.7 x 1.0in.) |
| Weight | 275g (9.7oz) |
| Temperature | Operation: 0° ~ 40°C (32°F ~ 104°F) Storage: -20° ~ 60°C (-4°F ~ 140°F) non-condensing |
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Frequency | 2.415 ~2.484GHz band |
| Modulation | DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM) |
| Antenna | 1 x 2dBi detachable dipole antenna |
| Data Rate | 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 135Mbps |
| Security | WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK |
| Output Power | 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 13dBm (typical) |
| Receiving Sensitivity | 802.11b: -83dBm (typical) @ 11Mbps 802.11g: -66dBm (typical) @ 54Mbps 802.11n: -62dBm (typical) @ *135Mbps |
| Channels | 1~ 11 (FCC), 1~13 (ETSI) |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
