USB Mobile Docking Station
TU2-ET200
- Connect up to 8 peripherals to your computer such as printers, scanners and digital cameras
- 8 unique ports deliver maximum user flexibility on the go
- Your device will be instantly recognized with Hot Plug technology
DISCONTINUED PRODUCT
The TU2-ET200 has been discontinued. It has been replaced by the TUC-DS1 (Version v1.0R). For a list of discontinued products, click here.Drivers
Datasheet
Filename: Spec_TU2-ET200(English).pdf
Date: 12/21/2004
File Size: 222.50 KB
Filename: Spec_TU2-ET200(French).pdf
Date: 12/21/2004
File Size: 1.23 MB
Filename: Spec_TU2-ET200(German).pdf
Date: 2/10/2005
File Size: 216.85 KB
Filename: Spec_TU2-ET200(Spanish).pdf
Date: 2/23/2005
File Size: 226.52 KB
Quick Installation Guide
User's Guide
Filename: UG_TU2-ET200-Japanese.pdf
Date: 12/21/2004
File Size: 1.01 MB
Filename: UG_TU2-ET200-English.pdf
Date: 12/21/2004
File Size: 1.39 MB
Filename: UG_TU2-ET200-French.pdf
Date: 12/21/2004
File Size: 842.31 KB
Filename: UG_TU2-ET200-German.pdf
Date: 12/21/2004
File Size: 836.75 KB
Filename: UG_TU2-ET200-Spanish.pdf
Date: 12/21/2004
File Size: 800.69 KB
Filename: UG_TU2-ET200-Italian.pdf
Date: 12/21/2004
File Size: 808.82 KB

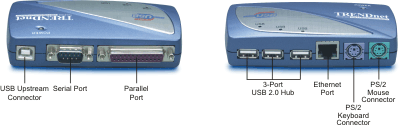

Product Images
| Hardware | |
| Computer Connection: | 1 upstream USB 2.0 port |
|---|---|
| Interface: | USB 2.0 Standard, 1.1 Specifications Compliant |
| USB Cable: | 1 x 1.8 meters (6 ft) USB 2.0 AB type cable |
| Console Port Connectors: |
|
| Driver Support: | Windows 98/98SE/ME/2000/XP/2003 Server |
| LED Indicator: |
|
| Power: |
|
| USB-Power Consumption: | 450mA ~ 500mA max |
| Dimensions: | 118 x 64 x 25 mm (4.65 x 2.5 x 0.98 inches) |
| Weight: | Appro. 117 g. (0.26lb.) |
| Temperature: |
|
| Humidity: | 0%~80%, Non-Condensing |
| Certification: | FCC, CE |
 | |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
