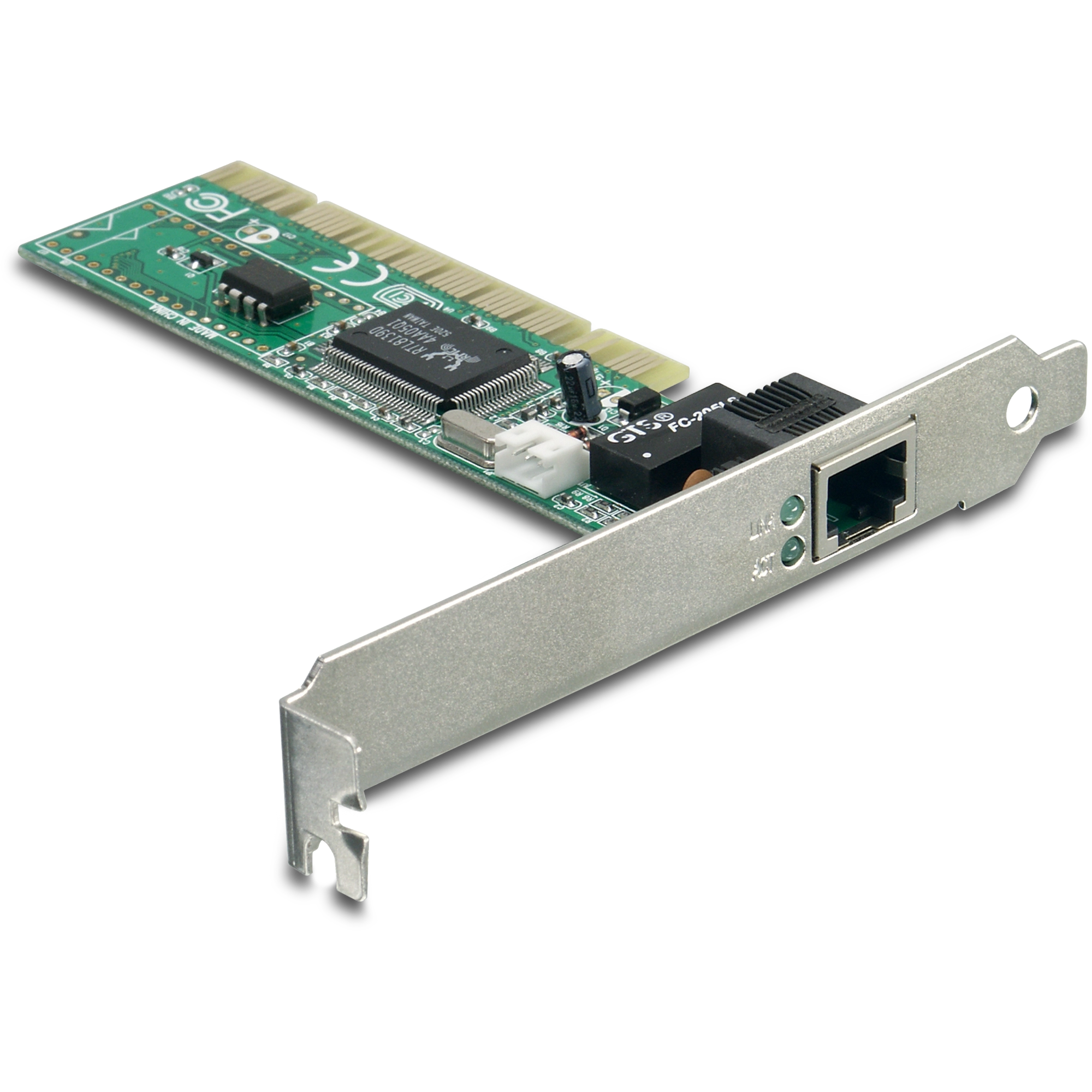

10/100Mbps PCI Adapter w/ WOL

TE100-PCIWA   (Version 2.1R)

   Select Another Version
  • Seamlessly surf the Internet and share data rich content
  • Wake-On-LAN wakes up your computer when a signal is received
  • Double your network speed to 200Mbps with full duplex technology
  • Easy Plug and Play installation

DISCONTINUED PRODUCT

The TE100-PCIWA (Version 2.1R) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

Utility

Driver/Utility
Filename: Driver_TE100-PCIWA(v2.1R).zip
SHA-1 Checksum: 80FCFA0E4FFD5D22DBB525A65AB39C7864FD119A
Date: 7/25/2017
File Size: 463.03 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/2/2007
File Size: 221.80 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/2/2007
File Size: 223.42 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/2/2007
File Size: 227.15 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/2/2007
File Size: 223.40 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/2/2007
File Size: 799.11 KB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TE100-PCIWA(V2.1R).pdf
Date: 10/8/2008
File Size: 314.38 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 386.71 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 384.82 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 383.96 KB
Download
Quick Installation Guide (Português)
Filename: PO_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 375.93 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 383.88 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 417.76 KB
Download
Quick Installation Guide (Romania)
Filename: RO_QIG_TE100-PCIWN_PCIWA.pdf
Date: 7/10/2007
File Size: 374.89 KB
Download

Product Images

JPEG Image
File Size: : 445.24 KB
Date: : 8/9/2007
Download
TIFF Image
File Size: : 2.63 MB
Date: : 8/9/2007
Download
JPEG Image
File Size: : 462.45 KB
Date: : 8/9/2007
Download
TIFF Image
File Size: : 2.12 MB
Date: : 8/9/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standard
  • IEEE 802.3 10Base-T, IEEE 802.3μ 100Base-TX
  • ANSI/IEEE 802.3 auto-negotiation
  • IEEE 802.3x full-duplex flow control
Interface
  • 32-bitPCI BUS rev2.1/2.2
Protocol
  • CSMA/CD
Network Media
  • Ethernet: UTP/STP CAT3, 4, 5 EIA/TIA-568 100-ohm
  • Fast Ethernet: UTP/STP CAT5, EIA/TIA-568 100-ohm
Data Transfer Rate
  • 10Mbps:10/20Mbps (half/full-duplex)
  • 100Mbps:100/200Mbps (half/full-duplex)
Diagnostic LED
  • Link, Activity
Supported OS
  • Windows 95/98(SE)/2000/NT/XP(32-bit)/2003 server/Vista(32/64-bit)
  • Novell NetWare ODI, NDIS, SCO UNIX, Linux, LAN Manager
Temperature
  • Operating:0° C ~ 50° C (32° F ~ 122° F)
  • Storage:-20° C ~ 70° C (-4° F ~ 158° F)
Humidity
  • Operating:10 % to 90 % non-condensing
  • Storage:5 % to 90 % non-condensing
Certifications
  • CE,FCC

PACKAGE CONTENTS
  • TE100-PCIWA
  • Multi-language quick installation guide
  • Driver diskette
  • 3 wiredWOL cable

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
