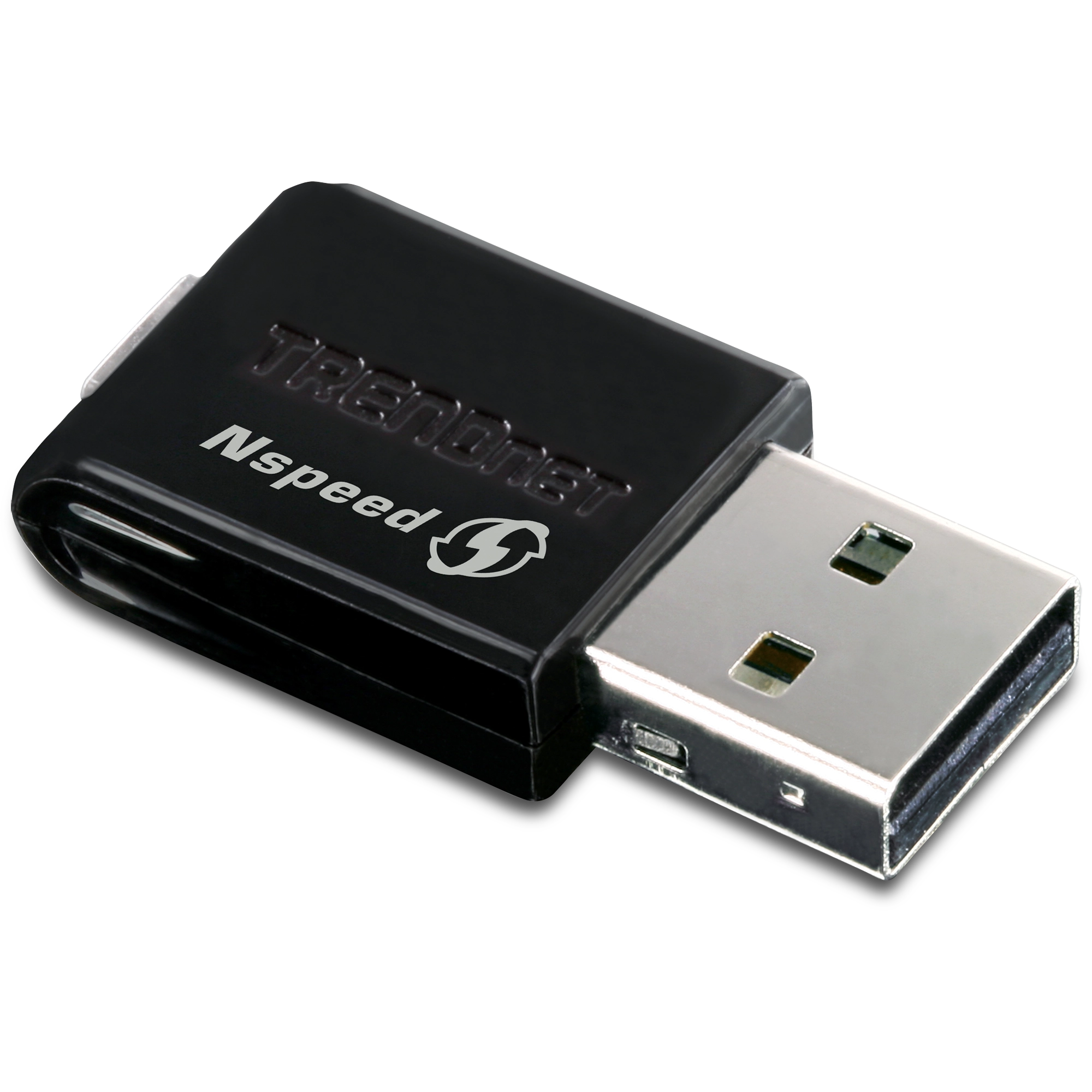

Mini Wireless N Speed USB Adapter

TEW-649UB   (Version v1.0R)

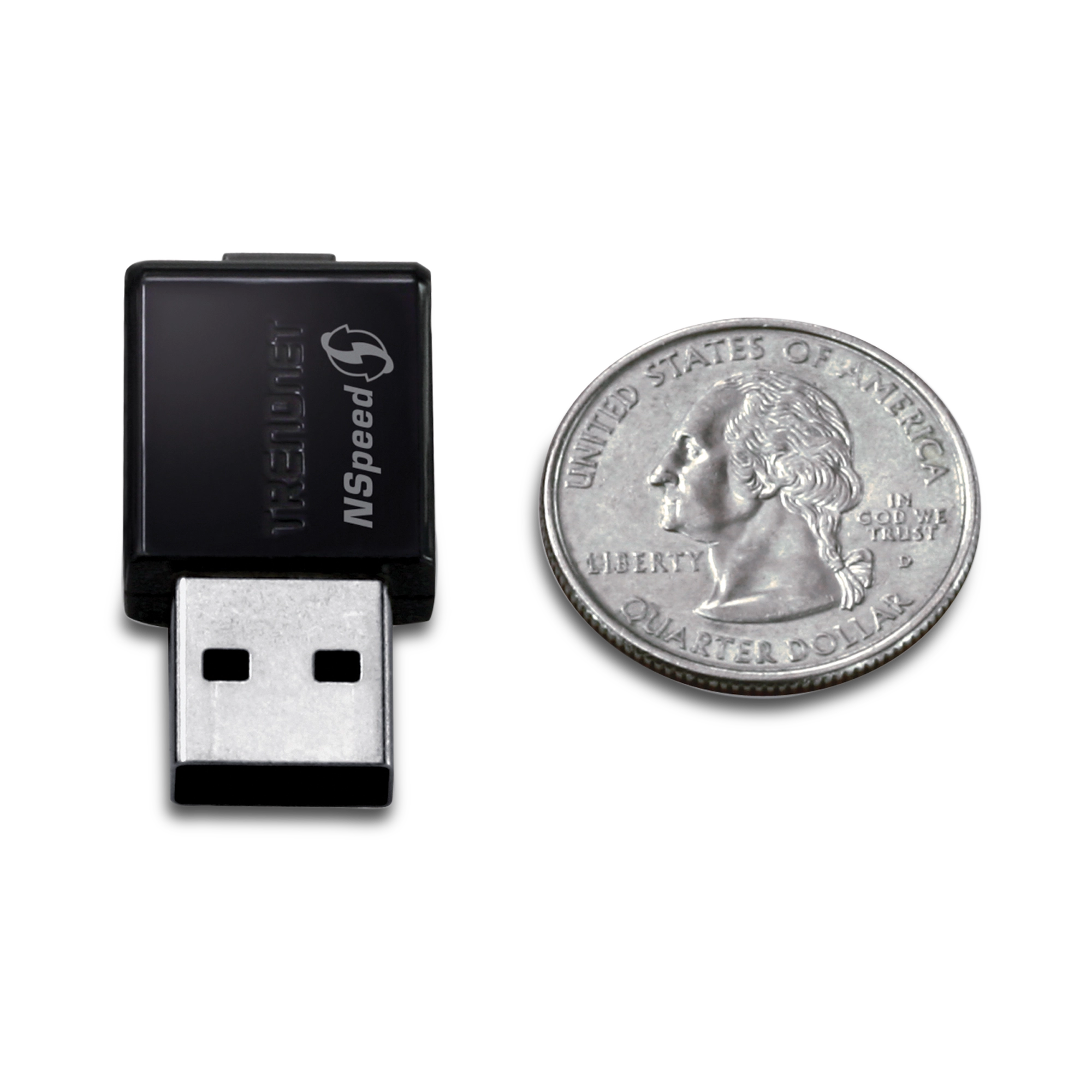

  • Ultra compact high speed wireless n adapter

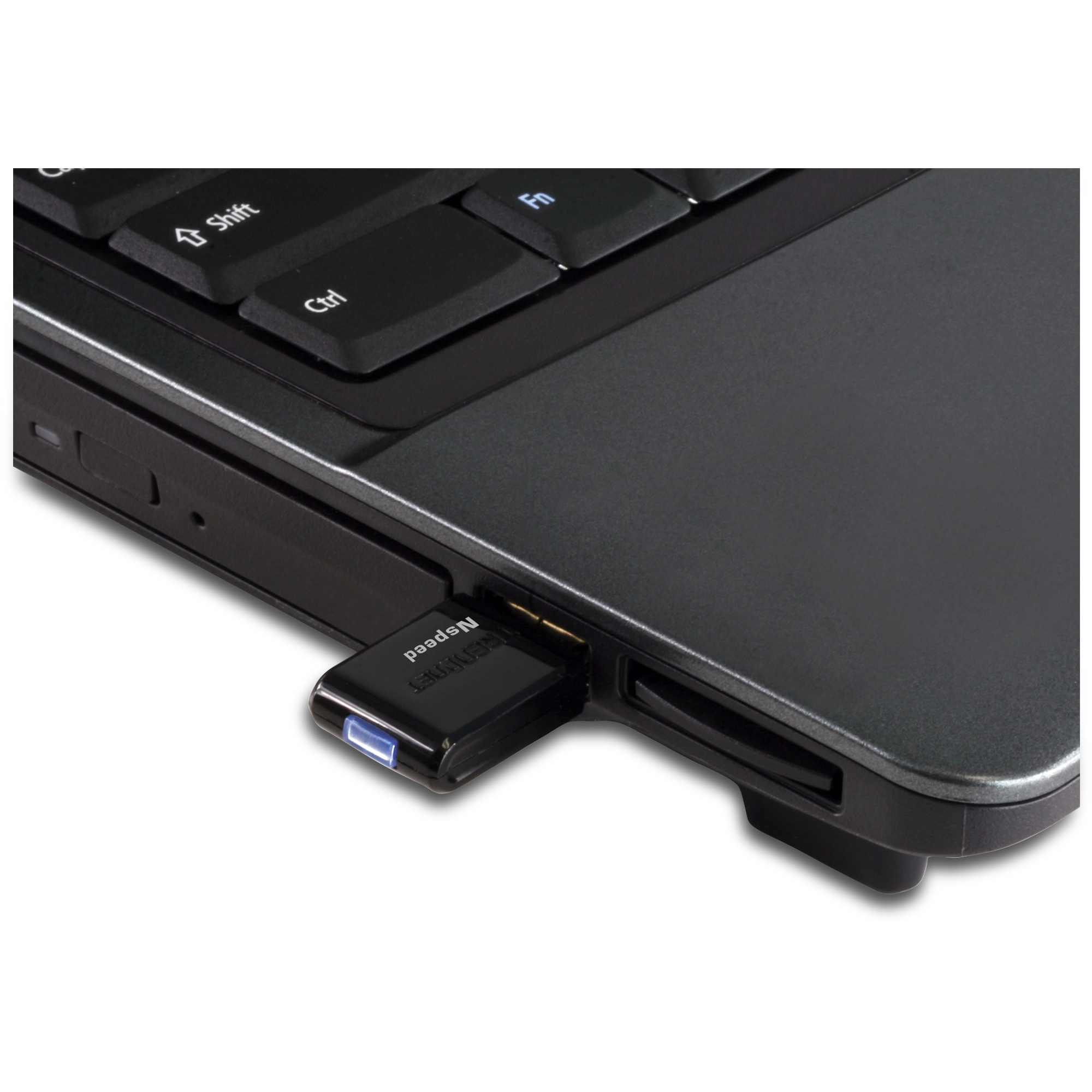

  • Upgrade your laptop or desktop to wireless n
  • 8x the speed and 4x the coverage of wireless g technology
  • One-touch setup with Wi-Fi Protected Setup (WPS)

DISCONTINUED PRODUCT

The TEW-649UB (Version v1.0R) has been discontinued. It has been replaced by the TEW-648UBM (Version v2.0R). For a list of discontinued products, click here.

Utility

Utility/Driver (MacOS 10.7)
Filename: MacDriver(10.7).zip
SHA-1 Checksum: 666E6789C403F571884451F7B6D5F3683004EDA5
Date: 7/28/2017
File Size: 1.70 MB
Download
Utility/Driver (MacOS 10.8)
Filename: MacDriver(10.8).zip
SHA-1 Checksum: 033914DB487099DB4CB519F70A75F257EE417195
Date: 7/28/2017
File Size: 1.71 MB
Download
Utility/Driver (MacOS 10.4~10.6)
Filename: MacDriver(10.4~10.6).zip
SHA-1 Checksum: 27E6BCF0E48CA082D8B2E0A3ED8332A0C1A763FF
Date: 7/28/2017
File Size: 12.63 MB
Download
Utility/Driver
Filename: UtilityDriver_TEW-649UB.zip
SHA-1 Checksum: 9CD0B6FAE4FC21799B989398BF6D6627DAC075AC
Date: 7/28/2017
File Size: 13.60 MB
Download
Utility/Driver (Français)
Filename: French_UtilityDriver_TEW-649UB(1.02).zip
SHA-1 Checksum: FEFBD8645DE4C8A51F65D4C300D12B5DA4B640EB
Date: 7/28/2017
File Size: 12.10 MB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1.01 MB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1.01 MB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1,002.17 KB
Download Email
Datasheet (Português)
Filename: PO_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1.01 MB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1.03 MB
Download Email
Datasheet (Русский)
Filename: RU_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1.55 MB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TEW-649UB(V1.0R).pdf
Date: 3/17/2014
File Size: 1,000.34 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEW-649UB(1.03).pdf
Date: 8/11/2010
File Size: 1.81 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-649UB(1.03).pdf
Date: 8/11/2010
File Size: 1.84 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-649UB(1.03).pdf
Date: 8/11/2010
File Size: 1.40 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEW-649UB(1.03).pdf
Date: 8/11/2010
File Size: 1.38 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-649UB(1.03).pdf
Date: 8/11/2010
File Size: 1.39 MB
Download
Quick Installation Guide (Русский)
Filename: RU_Web_TEW-649UB(1.03).pdf
Date: 5/16/2013
File Size: 2.02 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEW-649UB(1.3).pdf
Date: 8/11/2010
File Size: 1.37 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-649UB(V1.0R).pdf
Date: 1/15/2013
File Size: 2.46 MB
Download

Product Images

JPEG Image
File Size: : 281.86 KB
Date: : 8/25/2009
Download
JPEG Image
File Size: : 372.10 KB
Date: : 8/25/2009
Download
JPEG Image
File Size: : 478.57 KB
Date: : 9/22/2009
Download
TIFF Image
File Size: : 3.29 MB
Date: : 8/25/2009
Download
TIFF Image
File Size: : 4.77 MB
Date: : 8/25/2009
Download
TIFF Image
File Size: : 2.10 MB
Date: : 9/22/2009
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Interface
  • USB 2.0
Standards
  • IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
LED Indicator
  • Activity, WPS
WPS Button
  • Enables WPS connection
Power Consumption
  • Receive mode: 290mA (max)
  • Transmit mode : 320mA (max)
Supported OS
  • Windows 7 (32/64-bit)/ Vista (32/64-bit)/ XP(32/64-bit)/ 2000
  • Mac OS 10.4 – 10.8
Dimensions (LxWxH)
  • 33.9 x 17 x 7mm (1.3 x 0.66 x 0.27in)
Weight
  • 3g (0.1oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • 10% ~ 95% max (non-condensing)
Certifications
  • CE, FCC
Wireless
Modulation
  • OFDM, DSSS
Antenna
  • Built-in on board antennas
Frequency
  • 2.412 ~ 2.484 GHz
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • 802.11n: 150Mbps (TX)/300Mbps (RX)
Output Power
  • 802.11b: 15dBm (typical)
  • 802.11g: 14dBm (typical)
  • 802.11n: 12dBm (typical)
Receiving Sensitivity
  • 802.11b: -76dBm (typical) at 11mpbs
  • 802.11g: -65dBm (typical) at 54Mbps
  • 802.11n: -61dBm at 150Mbps
Encryption
  • 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Channels
  • 1~11 (FCC), 1~13 (ETSI)

PACKAGE CONTENTS
  • TEW-649UB
  • CD-ROM (Utility and Driver)
  • Multi-Language Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
