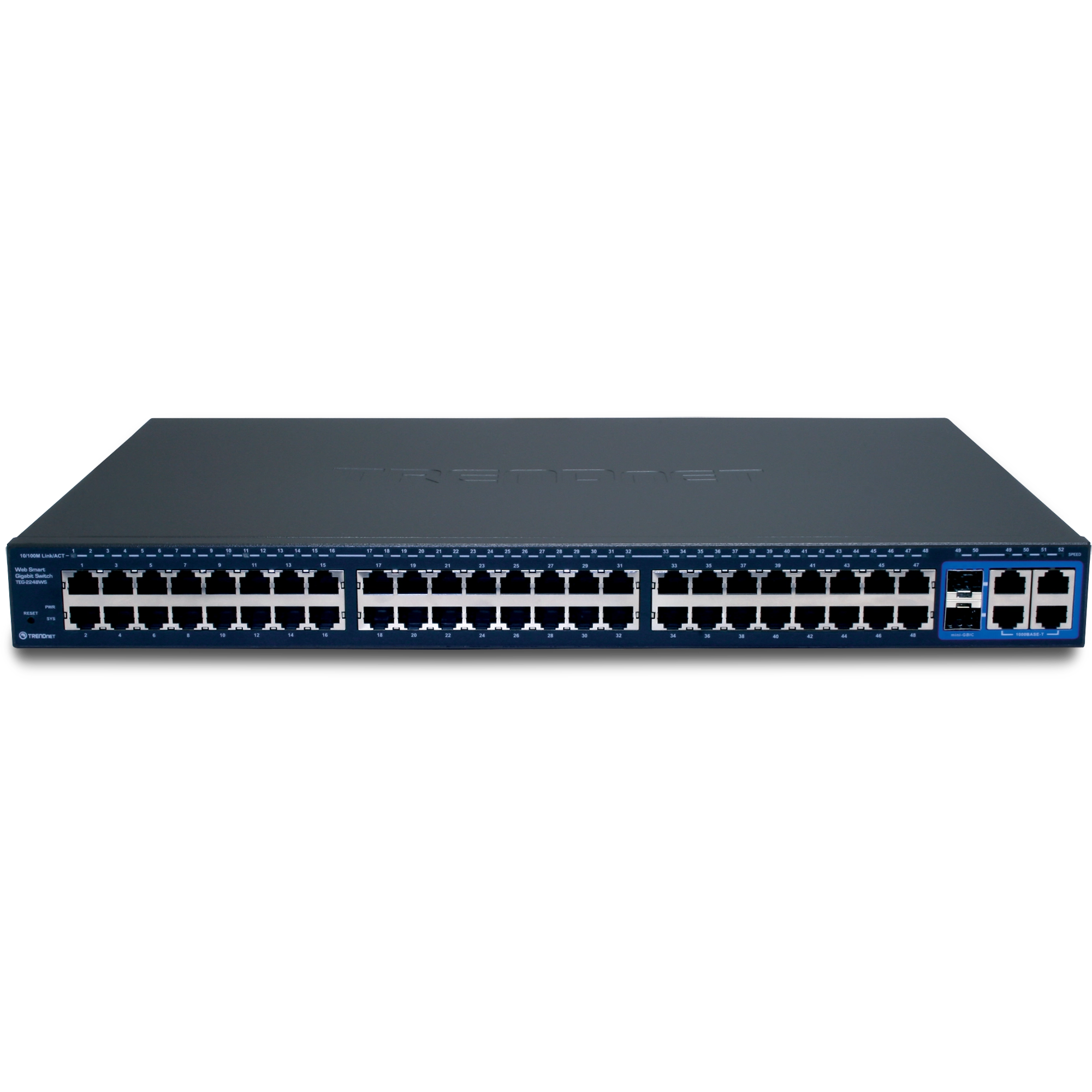

48-Port 10/100 Mbps Web Smart Switch w/4 Gigabit Ports and 2 Mini-GBIC Slots

TEG-2248WS   (Version B1.0R)

   Select Another Version
  • Provides SNMP (v1), IEEE 802.1X and STP Support
  • 17.6 Gbps switching capacity
  • 48 x 10/100 Mbps Auto-MDIX ports
  • 4 x Gigabit Auto-MDIX ports and 2 x shared mini-GBIC slots
  • Supports IEEE 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring

DISCONTINUED PRODUCT

The TEG-2248WS (Version B1.0R) has been discontinued. It has been replaced by the TEG-2248WS (Version C1.0R). For a list of discontinued products, click here.

Utility

Utility
Filename: Management_Utility.zip
SHA-1 Checksum: 43C887F69C87D01B12EB48DBF78CFC6E0F1D169D
Date: 7/25/2017
File Size: 529.98 KB
Download

Firmware

Firmware
Firmware Version: 3.02.03
Release Date: 3/2012

Notes:
  1. Fixed issue modifying VLAN member ports when Asymmetric VLAN is enabled.
  2. Fixed web management login issue with Chrome, Opera, and Safari web browsers
  3. Fixed web management issue frequently prompting to re-login on some web browsers.
  4. Fixed web management issue display error in new version browsers such as IE9.

Note:
If you encounter problems when logging into the web management interface, you may need to temporarily disable your Antivirus software. Antivirus software installed with additional web browser components installed (such as the AVG® Anti-Virus Surf Shield component under the LinkScanner feature) may cause problems when accessing or logging into the web management interface.


Filename: FW_TEG-2248WS_B1.xR_B2.xR_B3.xR(3.02.03).zip
SHA-1 Checksum: 8522004A449FA278ED5A23A0A47CC743FC357504
Date: 7/25/2017
File Size: 499.61 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 580.17 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 587.06 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 555.20 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 590.20 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 541.57 KB
Download Email
Datasheet (Italiano)
Filename: IT_Spec_TEG-2248WS(B1.0R).pdf
Date: 12/20/2013
File Size: 582.66 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.47 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.39 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.47 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.46 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.47 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.84 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEG-2248WS(3.02).pdf
Date: 8/9/2011
File Size: 1.49 MB
Download

User's Guide

User's Guide(English)
Filename: UG_TEG-2248WS_(3.12).pdf
Date: 8/9/2011
File Size: 1.89 MB
Download

Product Images

JPEG Image
File Size: : 240.62 KB
Date: : 11/30/2007
Download
JPEG Image
File Size: : 198.49 KB
Date: : 11/30/2007
Download
JPEG Image
File Size: : 152.83 KB
Date: : 11/30/2007
Download
TIFF Image
File Size: : 2.12 MB
Date: : 11/30/2007
Download
TIFF Image
File Size: : 1.68 MB
Date: : 11/30/2007
Download
TIFF Image
File Size: : 1.52 MB
Date: : 11/30/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
HARDWARE
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
  • IEEE 802.3x Flow Control and Back Pressure
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1Q VLAN Tag
  • IEEE 802.1X Authentication
  • SNMP v1
Network Media
  • Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
  • Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
  • Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
Protocol/Topology
  • CSMA/CD, Star
LAN Ports
  • 48 x 10/100 Mbps Auto-MDIX Fast Ethernet ports
  • 4 x 10/100/1000 Mbps Auto-MDIX Gigabit ports
  • 2 x 1000Base-SX/LX Mini-GBIC slots (shared with 2 Gigabit ports)
Data Transfer Rate
  • Ethernet: 10 Mbps/20 Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100 Mbps/200 Mbps (Half/Full-Duplex)
  • Gigabit Ethernet: 2000 Mbps (Full-Duplex)
Address Table
  • 8K Entries
Switch Fabric
  • 17.6 Gbps forwarding capacity
Forwarding Rate
  • 13 Mpps
Data RAM Buffer
  • 128 KBytes
Diagnostic LEDs
  • Per unit: Power, System
  • Per Fast Ethernet: Link/ACT, 100 Mbps
  • Per Copper Gigabit port: Link/ACT, Speed (1000 Mbps-green, 100 Mbps-amber)
  • Per Mini-GBIC port: Link/ACT, 1000 Mbps
Power Supply
  • 100-240V AC, 50/60 Hz internal universal power supply
Power Consumption
  • 24 watts (max)
Dimensions (W x D x H)
  • 440 x 310 x 44 mm (17.32 x 12.25 x 1.73 in.)
Weight
  • 2.6 kg (5.78 lbs)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Operating: 10% ~ 90% (non-condensing)
  • Storage: 5% ~ 90% RH (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TEG-2248WS
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power Supply
  • Rack Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
