8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

TI-PG80F   (Version v2.0R)

   Select Another Version
  • 8 x Gigabit PoE+ ports
  • 200W PoE power budget
  • 16Gbps switching capacity
  • Supports jumbo frames up to 9KB
  • Hardened IP40 rated metal housing

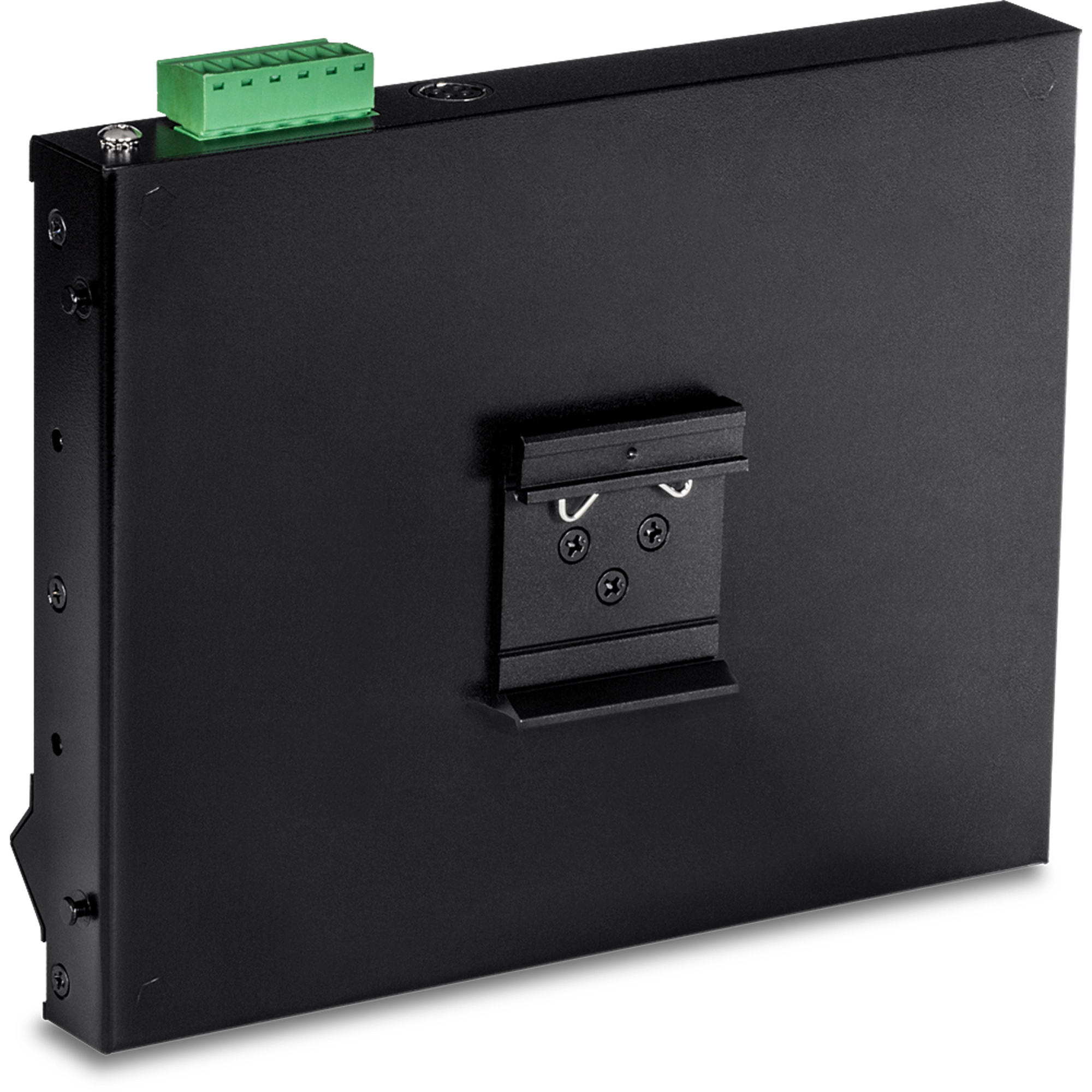

  • Includes DIN-Rail bracket and magnetic wall mount kit
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Alarm relay triggered by power failure
  • Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048, and 48VDC3000)
  • NDAA / TAA compliant
NDAA/TAA Compliant

Datasheet

Datasheet (Español)
Filename: SP_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.45 MB
Download Email
Datasheet (English)
Filename: EN_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.44 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.30 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.44 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.45 MB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.48 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-PG80F_(v2.0R).pdf
Date: 10/17/2022
File Size: 3.45 MB
Download Email

Quick Installation Guide

Quick Installation Guide (QIG)
Filename: Lineart_TI-PG50F_PG62F_PG80F_PG102F(V1).pdf
Date: 9/28/2021
File Size: 4.07 MB
Download

Product Images

PNG Image
File Size: : 8.43 MB
Date: : 6/5/2020
Download
PNG Image
File Size: : 7.41 MB
Date: : 6/5/2020
Download
PNG Image
File Size: : 8.54 MB
Date: : 6/5/2020
Download
PNG Image
File Size: : 8.97 MB
Date: : 6/5/2020
Download
PNG Image
File Size: : 7.86 MB
Date: : 6/5/2020
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8KV support
DC Power
  • Input: 48 – 56 V DC
  • Compatible power supply: TI-S24052, TI-S24048, TI-S48048 (sold separately)
  • Max. consumption: 5.76W (no PoE)
AC Power
  • Input: 100 – 240V AC, 50/60Hz, 2A
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Output: 48V DC, 3.34A 160W max.
PoE
  • PoE budget: 200W @56V DC
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 500,000 hours
Housing
  • IP40 metal case
  • DIN-Rail mount
  • Wall mount
  • Magnet mount
  • Grounding point
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 185 x 145 x 25mm (7.2 x 5.7 x 1 in.)
Weight
  • 726g (2 lb.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-PG80F
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail, wall and magnet mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
