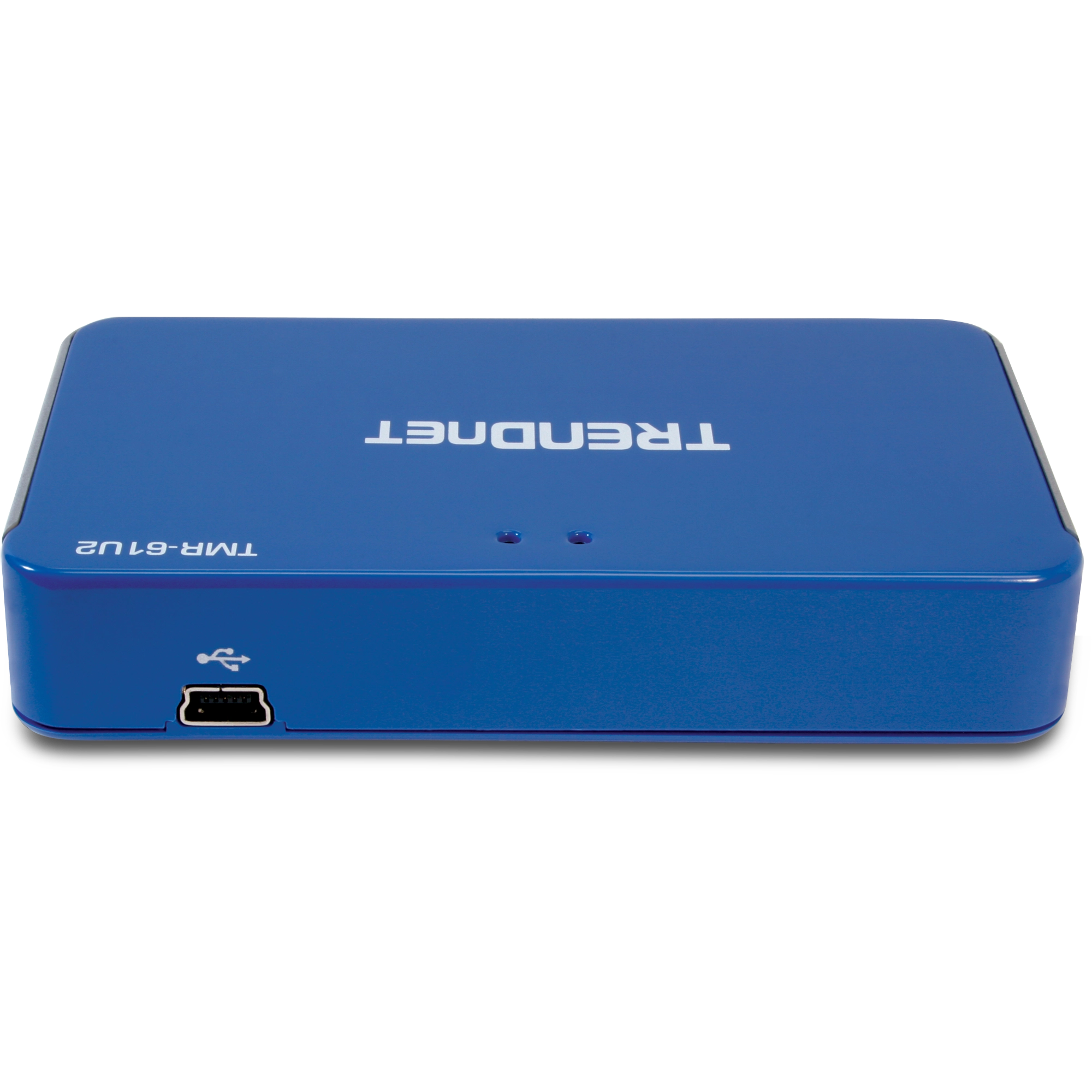

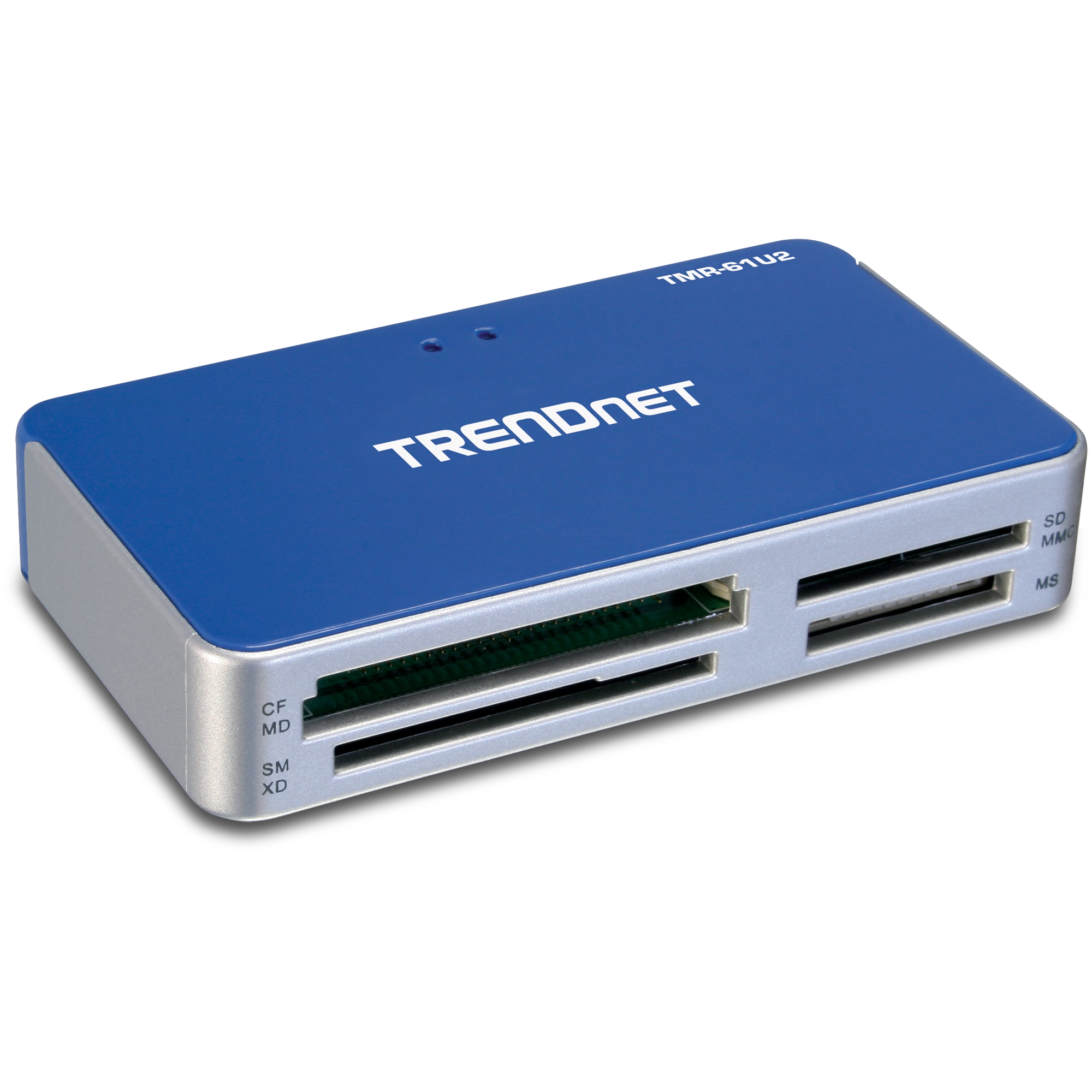

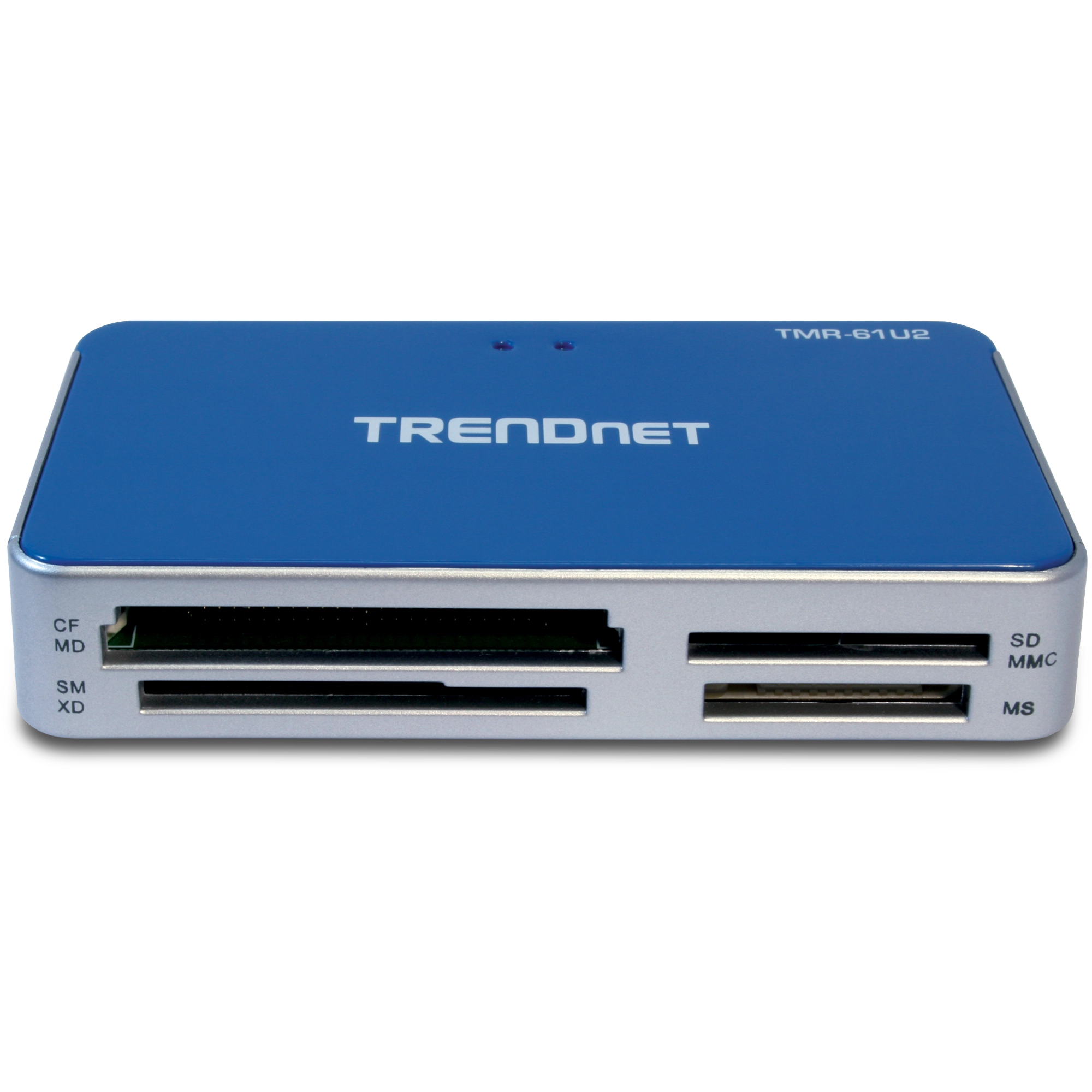

USB 6-in-1 Memory Card Reader/Writer

TMR-61U2   (Version v3.0R)

  • Download data from your memory cards directly to your computer
  • Accepts most memory cards
  • Plug in to any USB port and transfer pictures, music and more

DISCONTINUED PRODUCT

The TMR-61U2 (Version v3.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TMR-61U2(v3).pdf
Date: 9/24/2007
File Size: 224.94 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TMR-61U2(v3).pdf
Date: 9/24/2007
File Size: 227.88 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TMR-61U2(v3).pdf
Date: 9/24/2007
File Size: 229.30 KB
Download Email
Datasheet (Español)
Filename: EN_Spec_TMR-61U2(v3).pdf
Date: 9/24/2007
File Size: 224.94 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TMR-61U2(v3).pdf
Date: 9/24/2007
File Size: 994.58 KB
Download Email

User's Guide

User's Guide (English)
Filename: UG_TMR-61U2(v3.0R).pdf
Date: 9/18/2007
File Size: 1.08 MB
Download

Product Images

JPEG Image
File Size: : 336.27 KB
Date: : 9/18/2007
Download
JPEG Image
File Size: : 290.38 KB
Date: : 9/18/2007
Download
JPEG Image
File Size: : 299.28 KB
Date: : 9/18/2007
Download
TIFF Image
File Size: : 2.84 MB
Date: : 9/18/2007
Download
TIFF Image
File Size: : 2.50 MB
Date: : 9/18/2007
Download
TIFF Image
File Size: : 2.35 MB
Date: : 9/18/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Interface:
  • USB 1.1
  • USB 2.0
Card Supported:
  • CF: 8MB and up
  • MD: 340MB and up
  • SM: 8MB and up
  • MS Series: 8MB and up
  • SD: 16MB and up
  • MMC/RSMMC: 8MB and up

Power Consumption (500mA max. per port):

  • No card installed: 109mA
  • CF: 119mA (reads) 125mA (writes)
  • MD: 149mA (reads) 390mA (writes)
  • SM: 115mA (reads) 115mA (writes)
  • MS Series: 116mA (reads) 119mA (writes)
  • SD: 130mA (reads) 140mA (writes)
  • MMC/RSMMC: 130mA (reads) 140mA (writes)
Sockets:
  • CF socket x 1 for Compact Flash Type I/II Card & IBM Micro Drive; complies with CF spec 1.4
  • SM socket x 1 for Smart Media Card; complies with SM spec 1.1 (3.3v)
  • MS socket x 1 for Memory Stick; complies with MS spec 1.3, MS Duo, MS PRO
  • SD socket x 1 for Secure Digital Card & Multi-Media Card; complies with SD spec 1.0
Performance (avg.) (USB1.1):
  • CF: Reads 1 Mbps; Writes 890 Kbps
  • SM: Reads 973 Kbps; Writes 488 Kbps
  • MS: Reads 632 Kbps; Writes 471 Kbps
  • SD: Reads 194 Kbps; Writes 246 Kbps
  • MMC: Reads 176 Kbps; Writes 219 Kbps
Performance (avg.) (USB2.0):
  • CF: Reads 5.4 Mbps; Writes 3.0 Mbps
  • SM: Reads 5.0 Mbps; Writes 742 Kbps
  • MS: Reads 858 Kbps; Writes 659 Kbps
  • SD: Reads 7.1 Mbps; Writes 2.6 Mbps
  • MMC: Reads 1.5 Mbps; Writes 471 Kbps
Cable Gauge: 28/22 AWG
LEDs: Power / Link
Dimensions:92x51x17mm (3.6x 2 x 0.7 inch)
Weight:50g. (1.8 oz.)
Operating Temperature
  • Operating:
    • 0 ° ~ 65 ° C (32 ° ~ 146 ° F)
    Storage Temp
  • Storage:
    • -20 ° ~ 80 ° C (-4 ° ~ 176 ° F)
    Humidity:90 %RH (Non-condensing)
    Certification: FCC, CE

    PACKAGE CONTENTS
    • TMR-61U2
    • Driver CD-ROM
    • Multi-Language Quick Installation Guide
    • USB A-B Cable (95cm/3ft)

    All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
