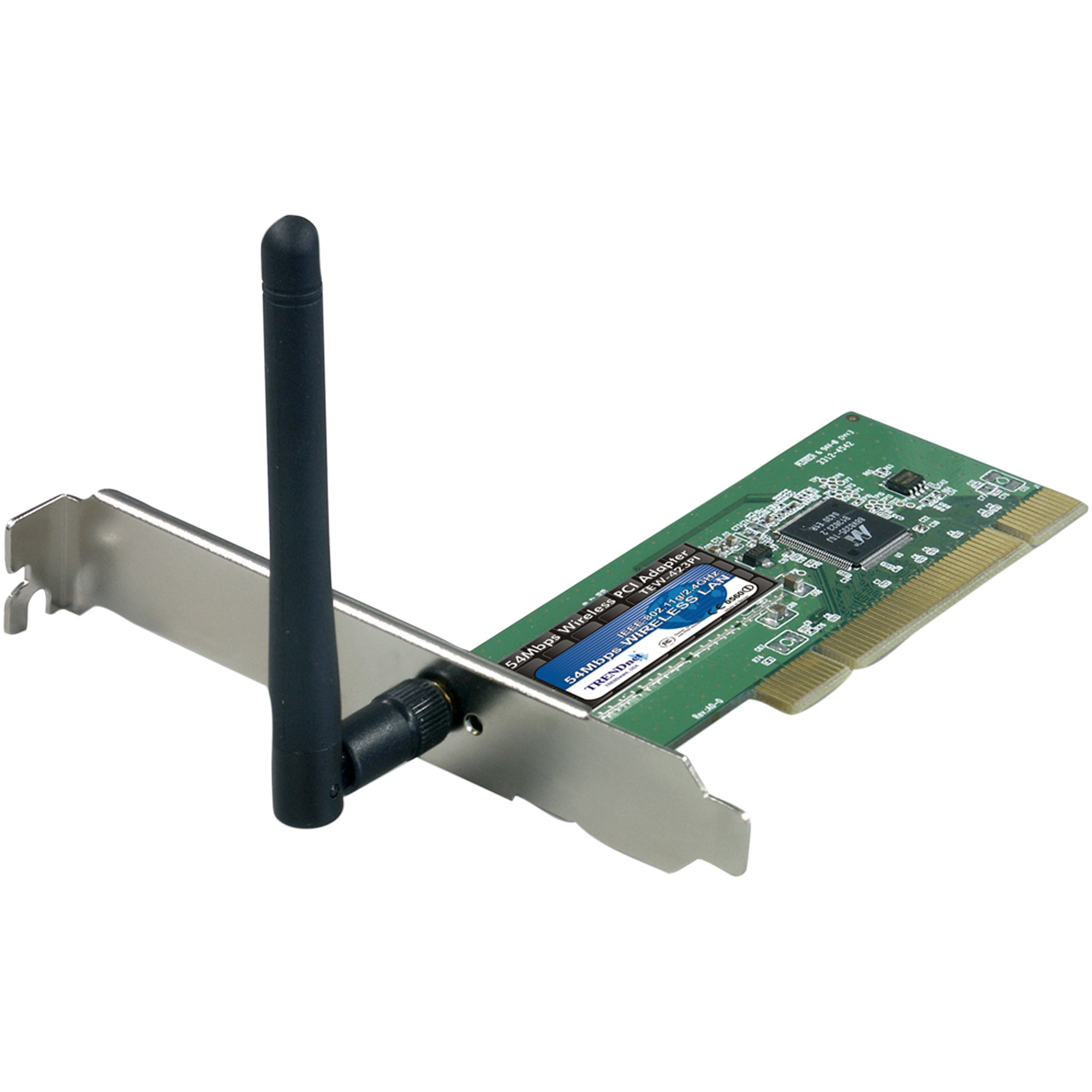

54Mbps 802.11g Wireless PCI Adapter

TEW-423PI   (Version A)

   Select Another Version

DISCONTINUED PRODUCT

The TEW-423PI (Version A) has been discontinued. For a list of discontinued products, click here.

Utility

Driver/Utility
Description:
TEW-421PC / TEW-423PI 802.11g Wireless Adapter Driver
Set Version: 1.40
Utility Version: 2.0.4.300
Driver Version: 6.05.30

Release Note
  • 1. WlanDll.dll Corrected conflict issue with Windows Wireless Zero Configuration.
  • 2. Fixed incorrect transmission rate.
  • 3. Added auto-install driver/utility (with InstallShield) function.
  • 4. Added WPA support for Wireless monitor.

Filename: Utility_Driver_TEW-421_423_v130b5.zip
SHA-1 Checksum: 44C6AB856F5E7F11823FAD457375A91015E6915A
Date: 7/26/2017
File Size: 7.12 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-423PI(English).pdf
Date: 4/20/2005
File Size: 185.61 KB
Download Email
Datasheet (Français)
Filename: Spec_TEW-423PI(French).pdf
Date: 4/20/2005
File Size: 209.43 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-423PI(German).pdf
Date: 4/20/2005
File Size: 199.98 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-423PI(English).pdf
Date: 4/20/2005
File Size: 3.22 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-423PI(French).pdf
Date: 4/20/2005
File Size: 3.63 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-423PI(German).pdf
Date: 4/20/2005
File Size: 3.77 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-423PI(Spanish).pdf
Date: 4/20/2005
File Size: 3.86 MB
Download
Quick Installation Guide (Pусский)
Filename: QIG_TEW-423PI(Russian).pdf
Date: 4/20/2005
File Size: 3.38 MB
Download
Quick Installation Guide (Italiano)
Filename: QIG_TEW-421PC_423PI_IT.pdf
Date: 7/19/2005
File Size: 1.22 MB
Download
Quick Installation Guide (עברית)
Filename: QIG_TEW-423PI(Hebrew).pdf
Date: 1/19/2006
File Size: 1.30 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-423PI-130b5_Utility.pdf
Date: 4/20/2005
File Size: 719.65 KB
Download

Product Images

JPEG Image
File Size: : 352.11 KB
Date: : 7/7/2005
Download
TIFF Image
File Size: : 2.72 MB
Date: : 7/7/2005
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Interface Type:
  • 32-bit PCI 2.2 Bus Master
Standards:
  • IEEE 802.11b and IEEE 802.11g
Antenna:
  • 2dBi Detachable Antenna (Female Reverse SMA Connector)
Data Rate (auto fallback):
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Module Technique:
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access Protocol:
  • CSMA/CA with ACK
Frequency:
  • 2.4 to 2.497 GHz (Industrial Scientific Medical Band)
LED Indicator:
  • Link
Antenna:
  • 1 x 2dBi Detachable Dipole Antenna with Female Reverse SMA Connector
Output Power:
  • 15dBm (typical) @ 802.11b
  • 12dBm (typical) @ 802.11g
Receiving Sensitivity:
  • 54Mbps 10 – 5 BER @ -73 dBm (typical)
  • 22Mbps 10 – 5 BER @ -85 dBm (typical)
  • 11Mbps 10 – 5 BER @ -86 dBm (typical)
Encryption:
  • 64/128-bit
Support OS:
  • Windows 98(SE), ME, 2000, XP
Channels:
  • 1~11 channels (FCC), 1~13 channels (ETSI), 1~14 channels (MKK-Japan), 10~13 channels (France), 3~9 channels (Israel)
Power Consumption:
  • Receive Mode: 480mA
Transmit Mode:
  • 650 mA
Dimensions (LxWxH):
  • 133 x 121 x 21.6 mm (5.2 x 4.8 x 0.85 inches) (without metal bracket)
Weight:
  • 63.5 g ( 2.2 oz.) (with antenna)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -20° ~ 70° C (-4° ~ 158° F)
Humidity:
  • 10% ~ 95% max. (Non-condensing)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
