8-Port Stackable Rack Mount USB & PS/2 KVM Switch
with OSD
TK-804R (Version v2.0R)
- 8-port stackable KVM switch with VGA and USB connection to computers
- On Screen Display (OSD) interface for easy management
- Device monitoring with adjustable Auto-Scan, audible feedback and cascade up to 128 computers
- Supports most operating systems and advanced mouse designs
DISCONTINUED PRODUCT
The TK-804R (Version v2.0R) has been discontinued. It has been replaced by the TK-803R (Version v2.0R). For a list of discontinued products, click here.Firmware
Hardware Version: v2.0R
Firmware Version: A4
Release Date: 7/2011
- Fixed OSD Display error after loading default
- Fixed issues with daisy chaining multiple units
Filename: FW_TK-804R_v2.0R(A4).zip
SHA-1 Checksum: CD4697A39D222FAEA88E602C806160DCE5D09D18
Date: 7/25/2017
File Size: 354.78 KB
Datasheet
Filename: EN_Spec_TK-804R.pdf
Date: 1/11/2012
File Size: 238.65 KB
Filename: FR_Spec_TK-804R.pdf
Date: 1/11/2012
File Size: 244.58 KB
Filename: GE_Spec_TK-804R.pdf
Date: 1/11/2012
File Size: 243.63 KB
Filename: PO_Spec_TK-804R.pdf
Date: 1/11/2012
File Size: 1.01 MB
Filename: SP_Spec_TK-804R.pdf
Date: 1/11/2012
File Size: 242.50 KB
Quick Installation Guide
Filename: EN_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.58 MB
Filename: FR_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.56 MB
Filename: GE_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.56 MB
Filename: PO_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.56 MB
Filename: SP_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.59 MB
Filename: RU_Web_QIG_TK-804R(2.01).pdf
Date: 5/16/2013
File Size: 4.04 MB
Filename: EST_Web_QIG_TK-804R(2.01).pdf
Date: 1/28/2010
File Size: 1.56 MB

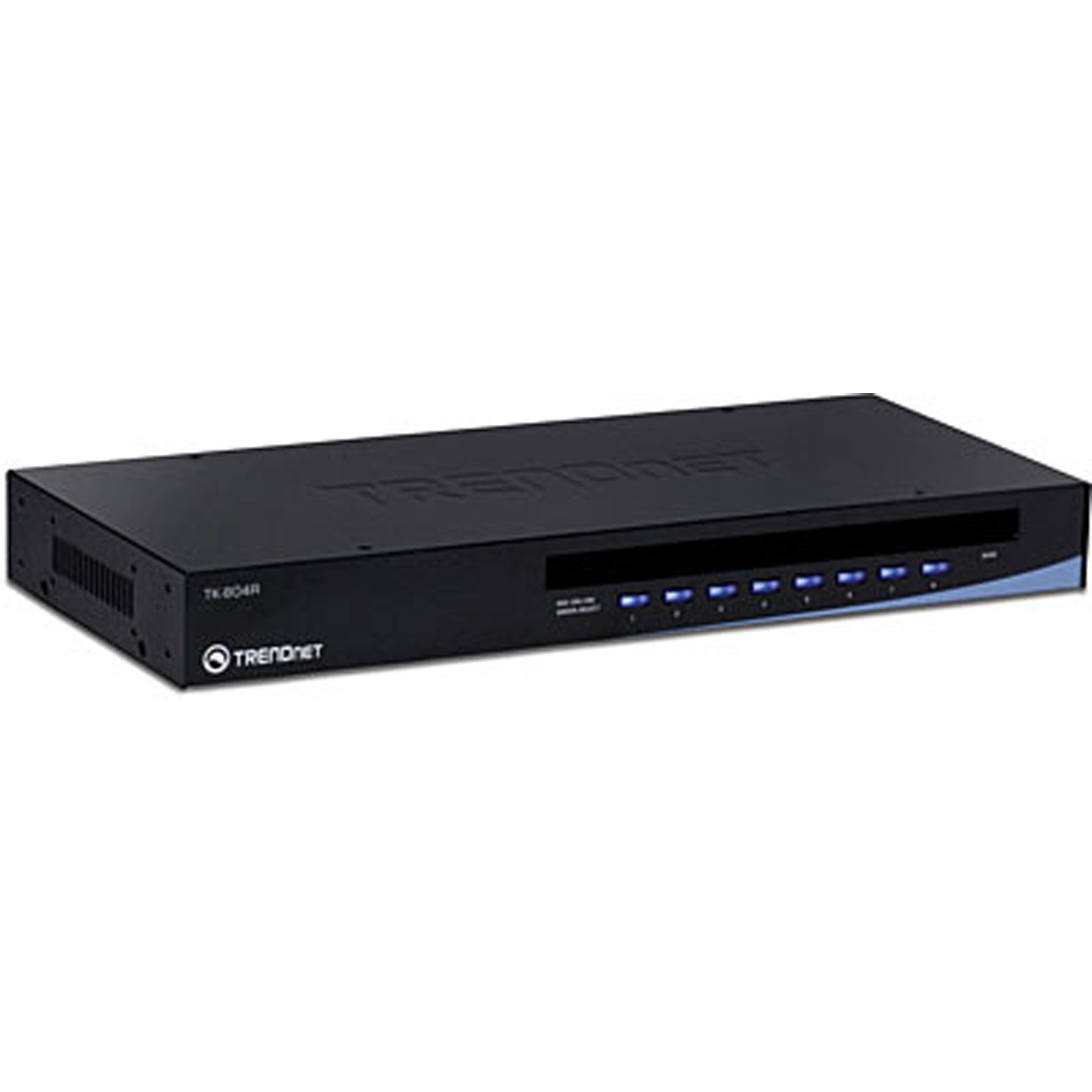

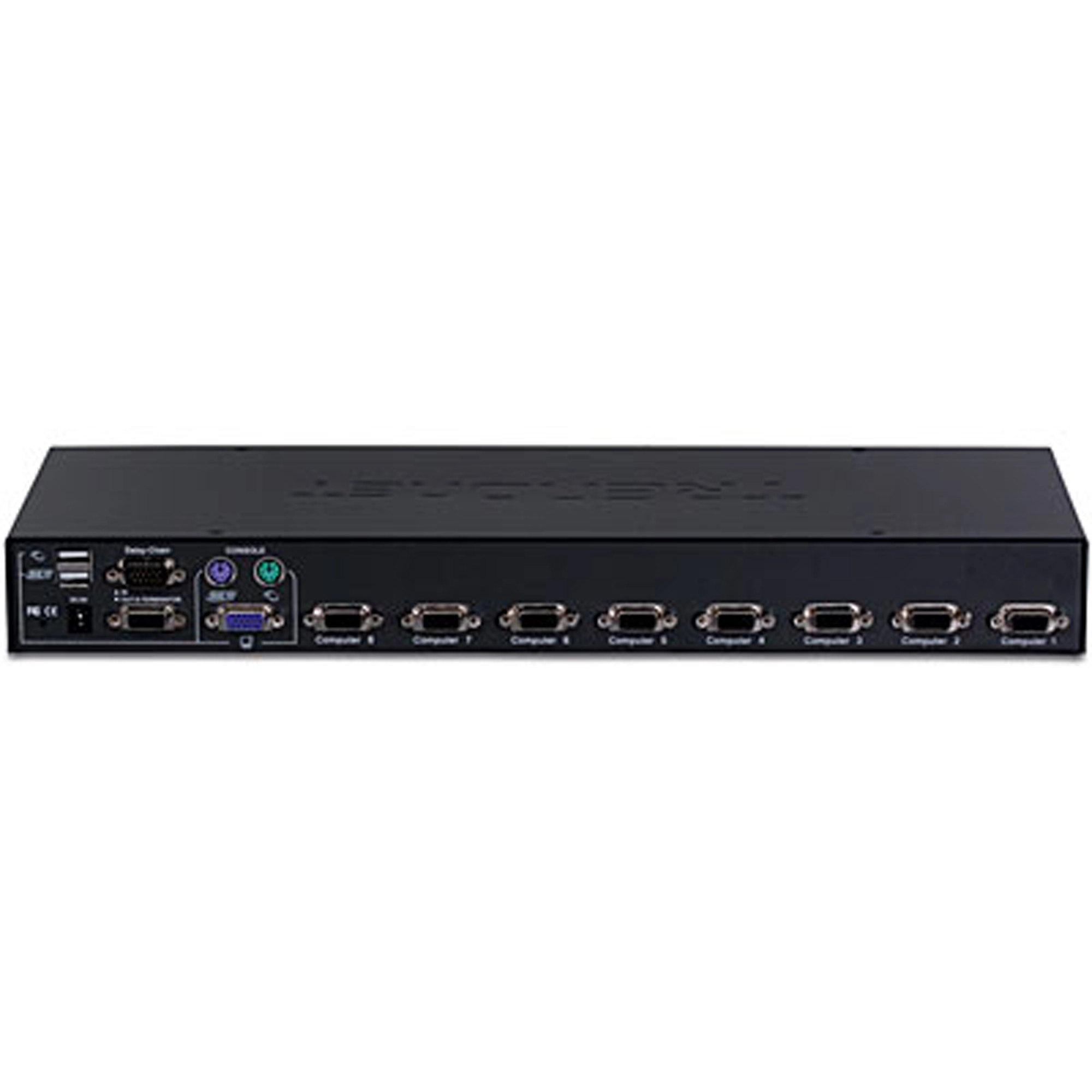

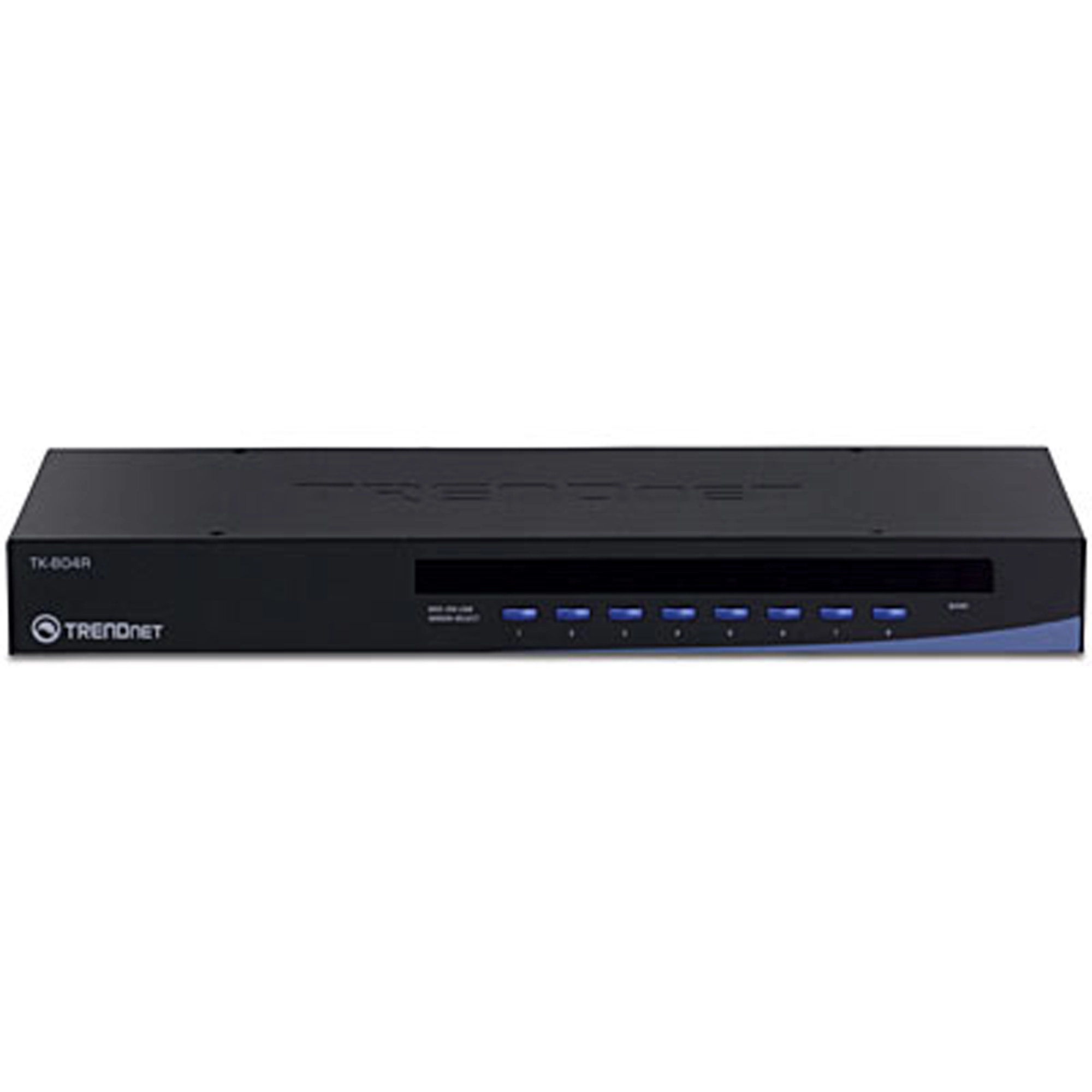

Product Images
| Hardware | |
| Connections | 8 computers |
| USB Interface | USB 1.1 compliant |
| PC Port Connectors (all female) | 8 x VGA HDB 15-pin (female) |
| Console Port Connectors (all female) | 1 x USB (type A) / PS/2 mouse 6-pin mini din 1 x USB (type A) / PS/2 keyboard 6-pin mini din 1 x VGA HDB 15-pin (female) |
| Compatible Cables (sold separately) | TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft) |
| Supported OS | Windows 7/Vista/2003 Server/XP/2000/ME/98SE Linux, Unix, Mac |
| Computer Selection | Hot-key, push buttons or On Screen Display (OSD) control |
| Daisy Chain | 16 levels (up to 128 computers) of up to 30m total distance |
| Auto Scan Modes | Scan: all ports, active ports, ports within the EasyView scan group and active ports within the EasyView scan group (EasyView scan groups are user defined);10-100 second intervals programmable through OSD menu |
| LEDs | Online (red), Select (green) |
| Keyboard Status | Save and restore |
| Power Adapter | 9V DC, 1A external power adapter |
| Power Consumption | 14 watts (max) |
| Dimensions | 407 x 164 x 45mm (16 x 6.5x 1.8in) |
| Weight | 1.89kg (4.17lb.) |
| Temperature | Operating: 0°C~40°C (32°F~104°F) Storage: -20°C~60°C (-4°F~140°F) |
| Humidity | 0%~80% (non-condensing) |
| Certifications | CE, FCC |
PACKAGE CONTENTS |
|
