8-Port Rack Mount KVM Switch

TK-803R   (Version v1.2R)

   Select Another Version
  • 8-port KVM switch with VGA and USB connection to computers
  • Supports both USB and PS/2 connections to console port
  • Device monitoring with adjustable Auto-Scan and audible feedback
  • Supports most operating systems and advance mouse designs

DISCONTINUED PRODUCT

The TK-803R (Version v1.2R) has been discontinued. It has been replaced by the TK-803R (Version v2.0R). For a list of discontinued products, click here.

Firmware

Firmware
Filename: FW_TK-803R_V1(3.03)_120718.zip
SHA-1 Checksum: 83909FA139B2B9F51D8153051D467F74CDE86CFE
Date: 7/25/2017
File Size: 896.28 KB
Download

Datasheet

Data Sheets (English)
Filename: EN_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 606.94 KB
Download Email
Data Sheets (Français)
Filename: FR_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 621.41 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 603.80 KB
Download Email
Data Sheets (Português)
Filename: PO_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 615.38 KB
Download Email
Data Sheets (Español)
Filename: SP_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 615.22 KB
Download Email
Data Sheets (Pусский)
Filename: RU_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 606.37 KB
Download Email
Data Sheets (Italiano)
Filename: IT_spec_TK-803R(v1.2R).pdf
Date: 4/25/2017
File Size: 614.26 KB
Download Email

Quick Installation Guide

Quick Installation Guide (European)
Filename: EuropeanQIG_TK-803R(V1.1R).pdf
Date: 4/25/2017
File Size: 589.86 KB
Download
Quick Installation Guide
Filename: QIG_TK-803R(V1.1R).pdf
Date: 4/25/2017
File Size: 1.57 MB
Download
KVM General Quick Reference Guide
Filename: TK-803R_TK-1603R_General_Quick_Reference_Guide.pdf
Date: 4/25/2017
File Size: 518.51 KB
Download

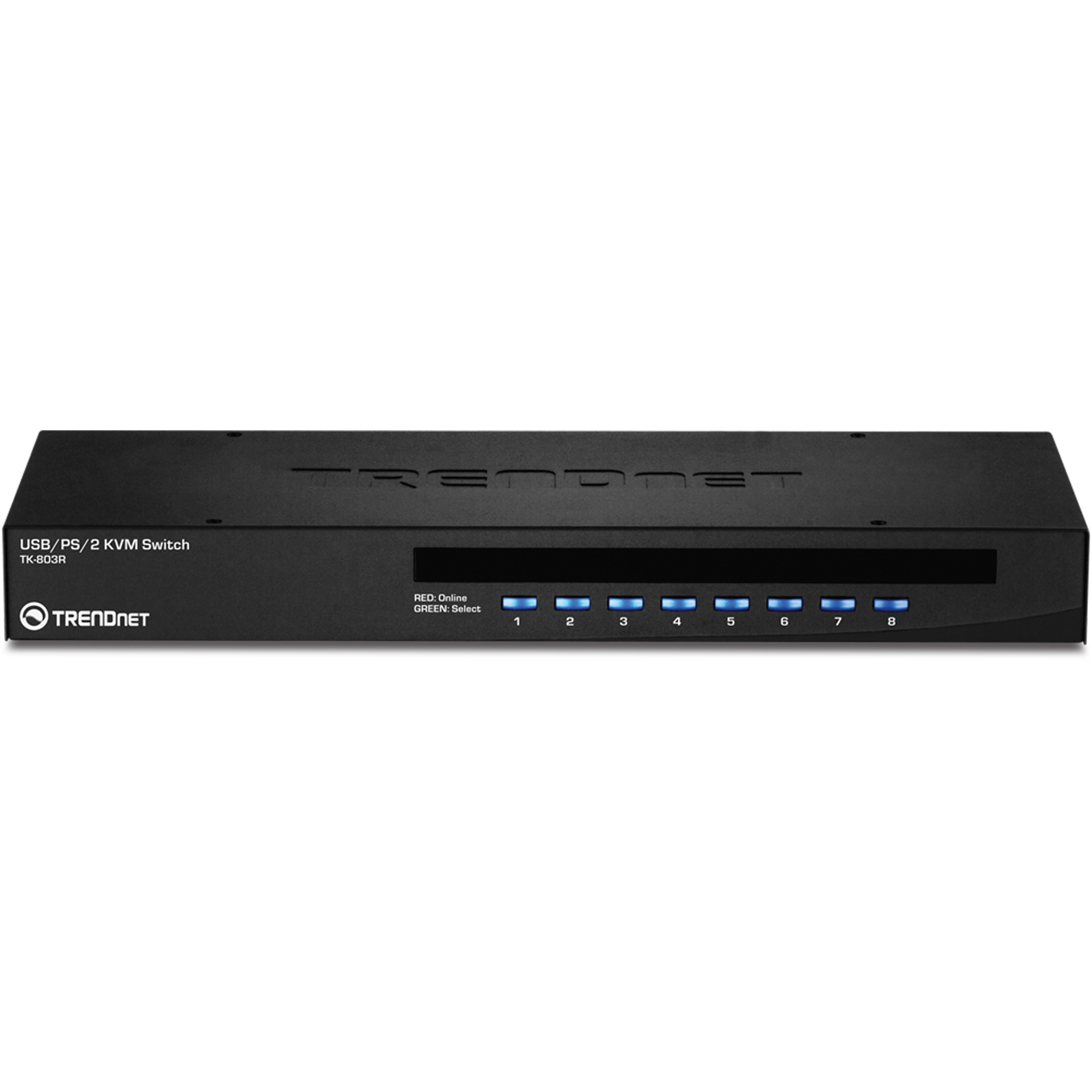

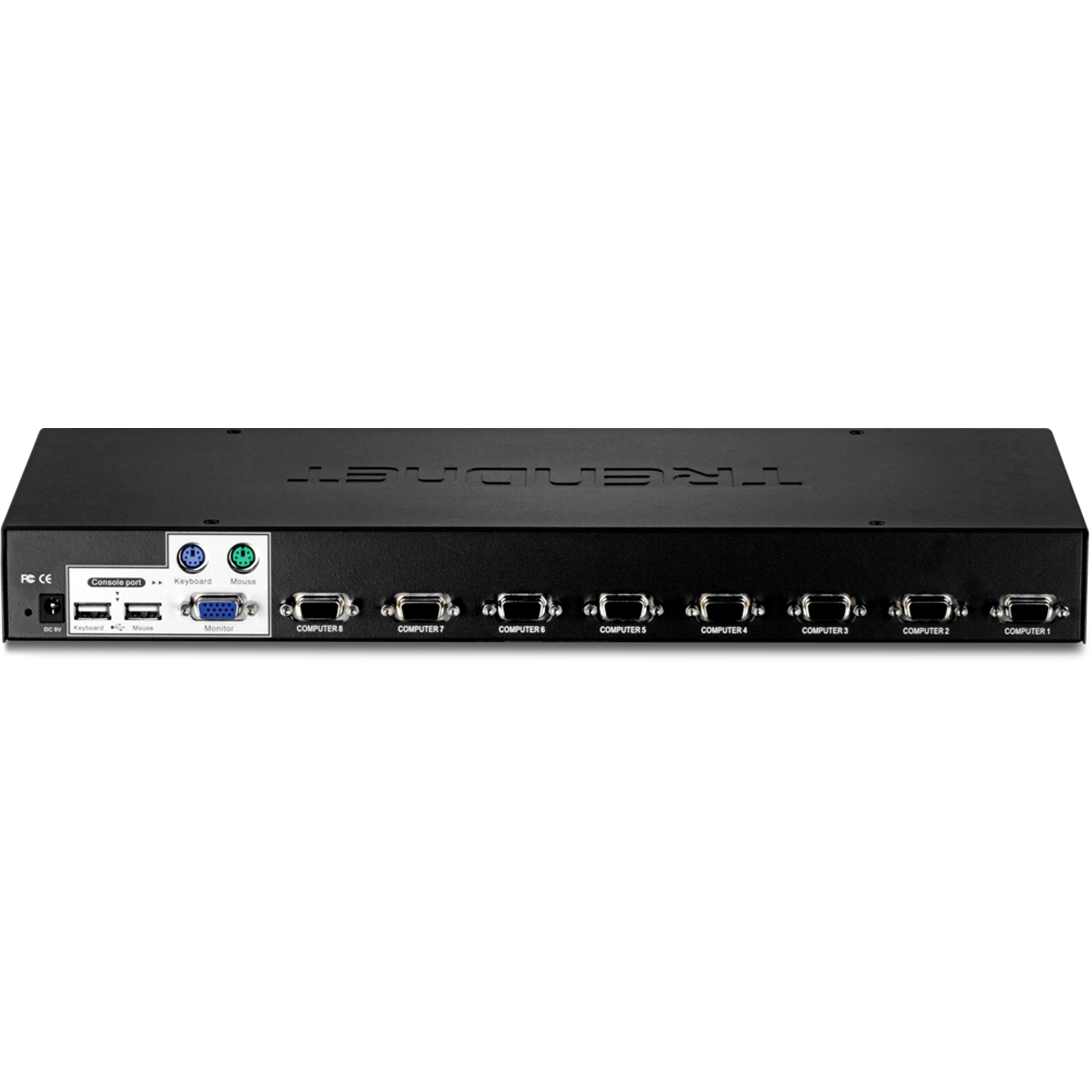

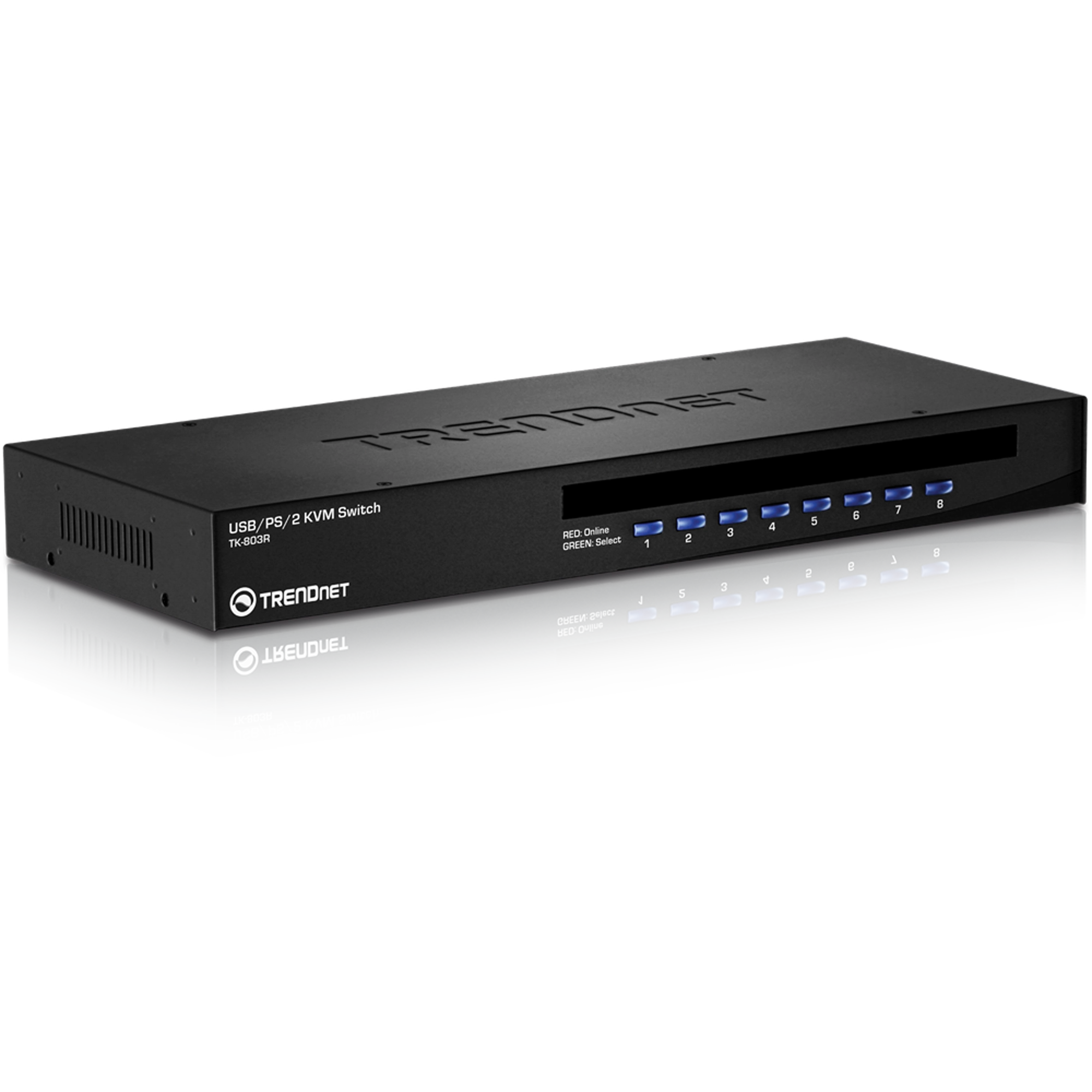

Product Images

JPEG Image
File Size: : 139.95 KB
Date: : 4/25/2017
Download
JPEG Image
File Size: : 142.61 KB
Date: : 4/25/2017
Download
JPEG Image
File Size: : 158.55 KB
Date: : 4/25/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Connections
  • 8 computers/servers
Standard
  • USB 1.1 Compliant
PC Ports
  • 8 x VGA HDB 15-pin (female)
Console Port
  • 1 x USB (Type A)/PS/2 (6-pin mini-DIN) mouse
  • 1 x USB (Type A)/PS/2 (6-pin mini-DIN) keyboard
  • 1 x VGA HDB 15-pin (female)
Cable Interface (Sold Separately)
  • To KVM
  • 1 x VGA HDB 15-pin (male)
  • To Computer
  • 1 x VGA HDB 15-pin (male)
  • 1 x USB (Type A)
Supported OS
  • Windows®, Linux, Mac® and more
PC Selection
  • Keyboard hot key command or push button
Auto-Scan Interval
  • 10-99 seconds (Programmable through hot key)
LEDs
  • On-line (Red), Select (Green)
Keyboard Status
  • Saved & restored
Power Adapter
  • Input: 100 ~ 240 V AC 50~60 Hz
  • Output: 9 V DC 1 A external power adapter
Dimensions
  • 407 x 165 x 45 mm (16.0 x 6.5 x 1.8 in.)
Weight
  • 1.83 kg (4.0 lb)
Temperature
  • Operating: 0 - 40°C (32 - 104°F)
  • Storage: -20 - 60°C (-4 - 140°F)
Humidity
  • Max 80% (non-condensing)
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TK-803R
  • Quick Installation Guide
  • Power Adapter (9 V DC, 1 A)
  • Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
