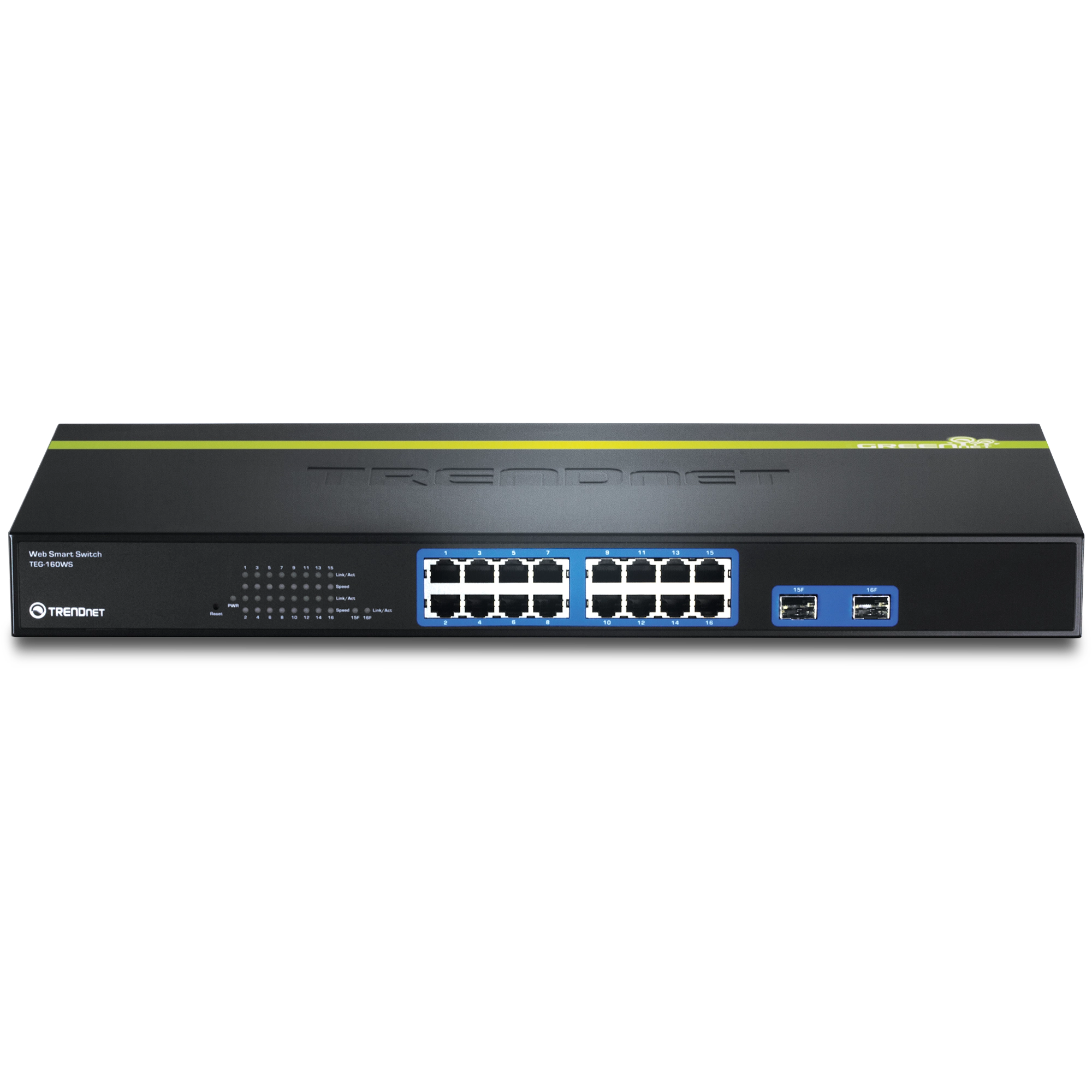

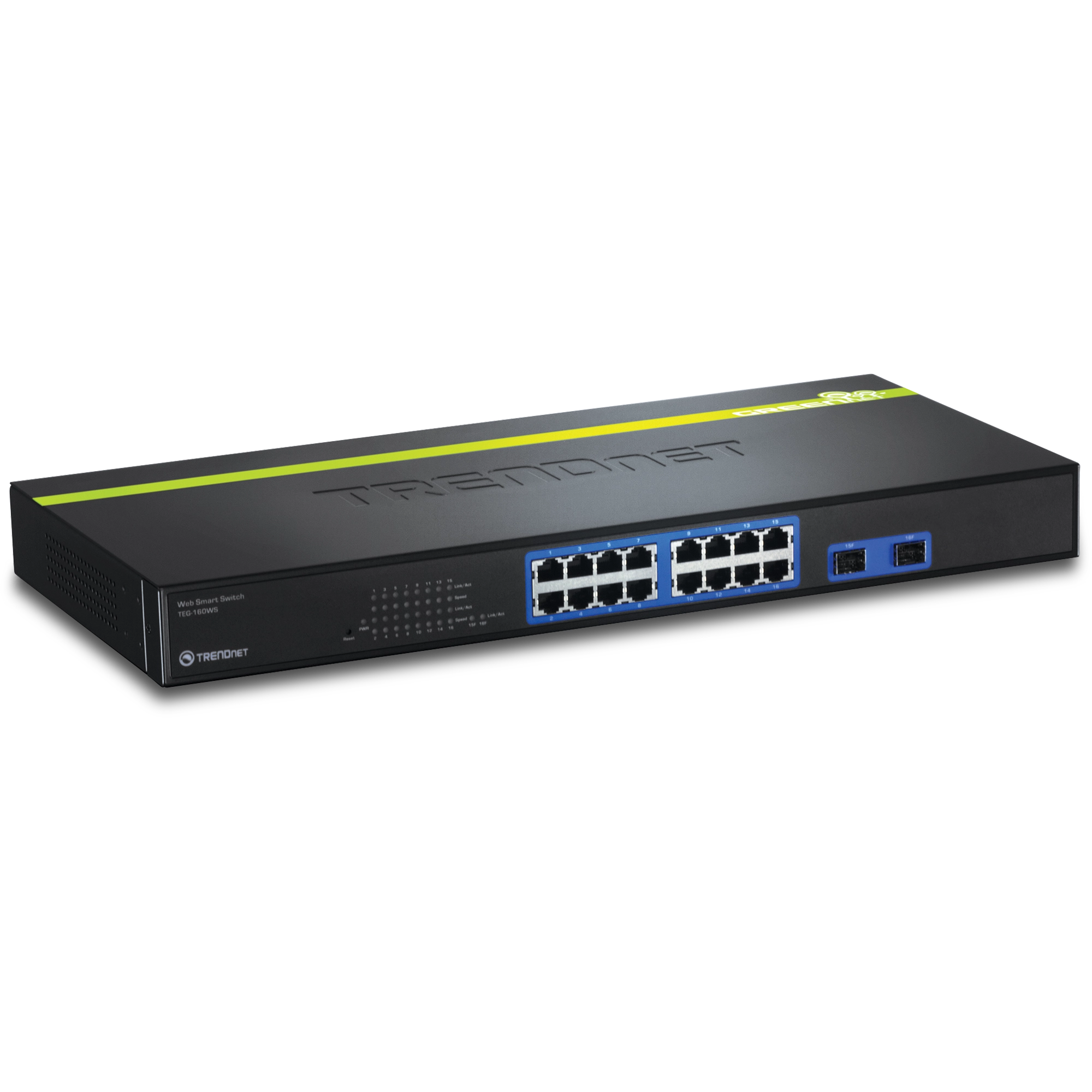

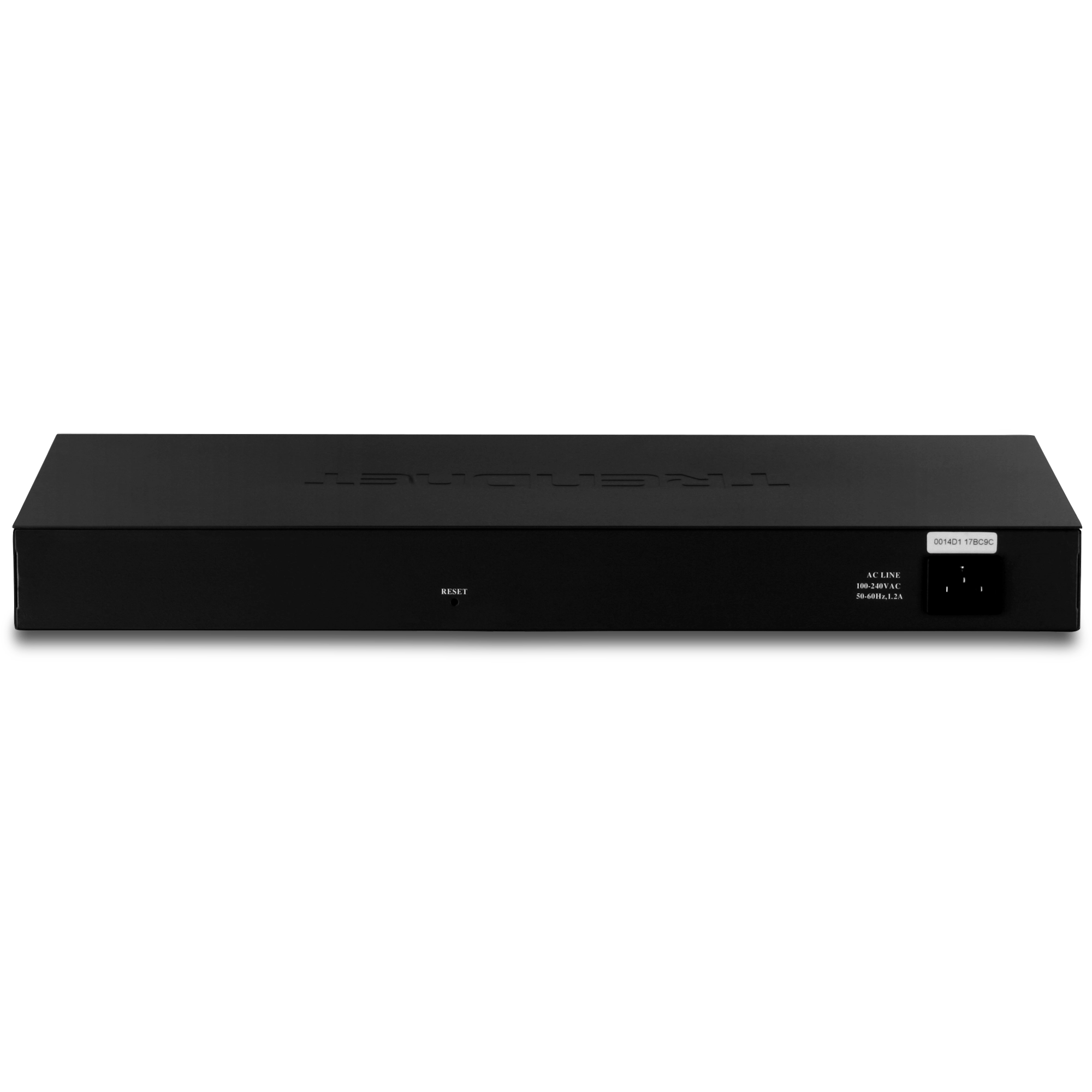

16-Port Gigabit Web Smart Switch

TEG-160WS   (Version D1.0R)

   Select Another Version
  • IPv6, 802.3ad, Private and Voice VLAN support
  • 16 x Gigabit ports
  • 2 shared SFP slots
  • Fanless rack-mount metal housing

DISCONTINUED PRODUCT

The TEG-160WS (Version D1.0R) has been discontinued. It has been replaced by the TEG-204WS (Version v1.1R). For a list of discontinued products, click here.

Utility

Utility (Web Smart Management)

Utility  Version: 3.4
Release Date: 05/2014
Note:

  • Added Windows® 8.1 OS Support

Filename: Utility_WebSmartManagement(v3.4).zip
SHA-1 Checksum: 172AE7AED31C4BC25D38F53792679847FC2172DB
Date: 7/28/2017
File Size: 1.43 MB
Download

Firmware

Firmware

Firmware Version: 1.00.17
Release Date: 10/2018
Note:

  1. Added ability to specify port description.
  2. Modified maximum length from 12 to 20 alphanumeric characters.
  3. Fixed issue logging into the switch management GUI page after firmware upgrade.
  4. Fixed issue changing switch IP address to other class B IP addresses other than 172.16.x.x/16.
  5. Added IGMP fast leave to IGMP snooping settings.

Filename: FW_TEG-160WS_D1(1.00.17).zip
SHA-1 Checksum: 61D490D574E693861D9B4EEAB01643F28796098A
Date: 10/29/2018
File Size: 10.23 MB
Download

Other

MIB

MIB Version: 1.00.10
Release Date: 10/2018
Note:

  1. Added LLDP-MED.
  2. Changed DoS default value to disabled.
  3. Added parameter to specify port description.
  4. Updated max. password length parameter from 12 to 20 alphanumeric characters.
  5. Added IGMP querier and IGMP fast leave parameters.

Filename: MIB_TEG-160WS_D1(1.00.10).zip
Date: 10/29/2018
File Size: 75.85 KB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.33 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEG-160WS(d1.0R).pdf
Date: 6/11/2015
File Size: 1.32 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.60 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.60 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.08 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.06 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.08 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.45 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.06 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.51 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_TEG_160WS(V1.0R).pdf
Date: 9/23/2014
File Size: 3.48 MB
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.15 MB
Download
Quick Installation Guide (Magyar)
Filename: HU_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.52 MB
Download
Quick Installation Guide (български)
Filename: BL_Web_TEG_160WS(V1.0R).pdf
Date: 11/14/2013
File Size: 3.51 MB
Download

User's Guide

User's Guide
Filename: UG_TEG-160WS(D1).pdf
Date: 9/10/2014
File Size: 3.10 MB
Download

Product Images

JPEG Image
File Size: : 162.63 KB
Date: : 9/23/2014
Download
JPEG Image
File Size: : 164.52 KB
Date: : 9/23/2014
Download
JPEG Image
File Size: : 75.53 KB
Date: : 9/23/2014
Download
TIFF Image
File Size: : 2.03 MB
Date: : 9/23/2014
Download
TIFF Image
File Size: : 2.14 MB
Date: : 9/23/2014
Download
TIFF Image
File Size: : 410.40 KB
Date: : 9/23/2014
Download
ROHS compliant WEEE crossed-out bin symbol.
How do I create a VLAN in the TEG-160WS?
For this example we are going to create a VLAN with ports 1-10. Port 10 is going to be a tagged port and 1-9 are going to be untagged. Click Bridge > VLAN > Tagged VLAN. Input the VLAN ID and the VLAN Name under Tagged VLAN Settings. Under Static Tagged select port 10 Under Static Untag...
How do I upgrade the firmware?
Download the latest firmware update from our website here and extract it. https://www.TRENDnet.com/support/supportdetail.asp?prod=225_TEG-160WS Open your web browser and type the IP address of your switch in the address bar. The default IP address is 192.168.10.200. Login to the TPE-160WS b...
How do I reset the TEG-160WS?
Press and hold this button on the front of the TEG-160WS for 10 seconds to reset the switch to factory defaults. ...
When logging into the web management interface the browser crashes or elements are not displayed properly. What should I do?
If you encounter problems when logging into the web management interface, you may need to temporarily disable your Antivirus software. Antivirus software installed with additional web browser components (such as the AVG® Anti-Virus Surf Shield component under the LinkScanner feature) may cause probl...
Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
Device Interface
  • 16 x Gigabit ports (ports 1-16)
  • 2 x shared SFP slots (shared with ports 15-16)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Performance
  • Switch fabric: 32 Gbps
  • RAM buffer: 1 MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10 Kbytes
  • HOL Blocking Prevention
  • Forwarding rate: 23.8 Mpps (64-byte packet size)
Management
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP
  • Virtual Cable Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • Bridge MIB Extension RFC 2674
  • SNMPv2 MIB RFC 1907
  • Ethernet Interface MIB RFC 1643
  • Ethernet –like MIB RFC 2863
  • Interface Group MIB RFC2233
  • MIB Traps Convention RFC 1215
  • RMON MIB RFC 1757, RFC 2819
  • 802.1p MIB RFC 2674
  • RADIUS Client Authentication MIB RFC 2618
  • LLDP-MIB IEEE 802.1ab
  • Ping MIB RFC 2925, RFC 4560
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • Multiple management VLAN assignment
  • Asymmetric VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3 (per VLAN)
  • Static Multicast Address
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • One to one
  • Many to one
Security
  • 802.1X Port-Based Network Access Control , RADIUS, TACACS+
  • Local Dial In User Authentication
  • DHCP Snooping (per VLAN)
  • Loopback Detection
  • Duplicated Address Detection
  • Trusted Host
  • Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • DSCP (IPv4 only)
  • IPv6 Address (IPv6 only)
Compatibility
  • Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features
  • Fanless Design
  • IPv6
  • 802.3az power saving
  • Rack mountable
Power
  • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
  • Consumption: 10.8 Watts (max.)
Fan/Acoustics
  • Quantity: 0
  • Noise Level: 0 dB(A) (max.)
MTBF
  • 884,189 hours
Operating Temperature
  • 0 – 45°C (32 - 113°F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 2.6 kg (5.8 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEG-160WS
  • Quick installation guide
  • CD-ROM (Utility & User's Guide)
  • Power cord (1.8 m/6 ft.)
  • Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
