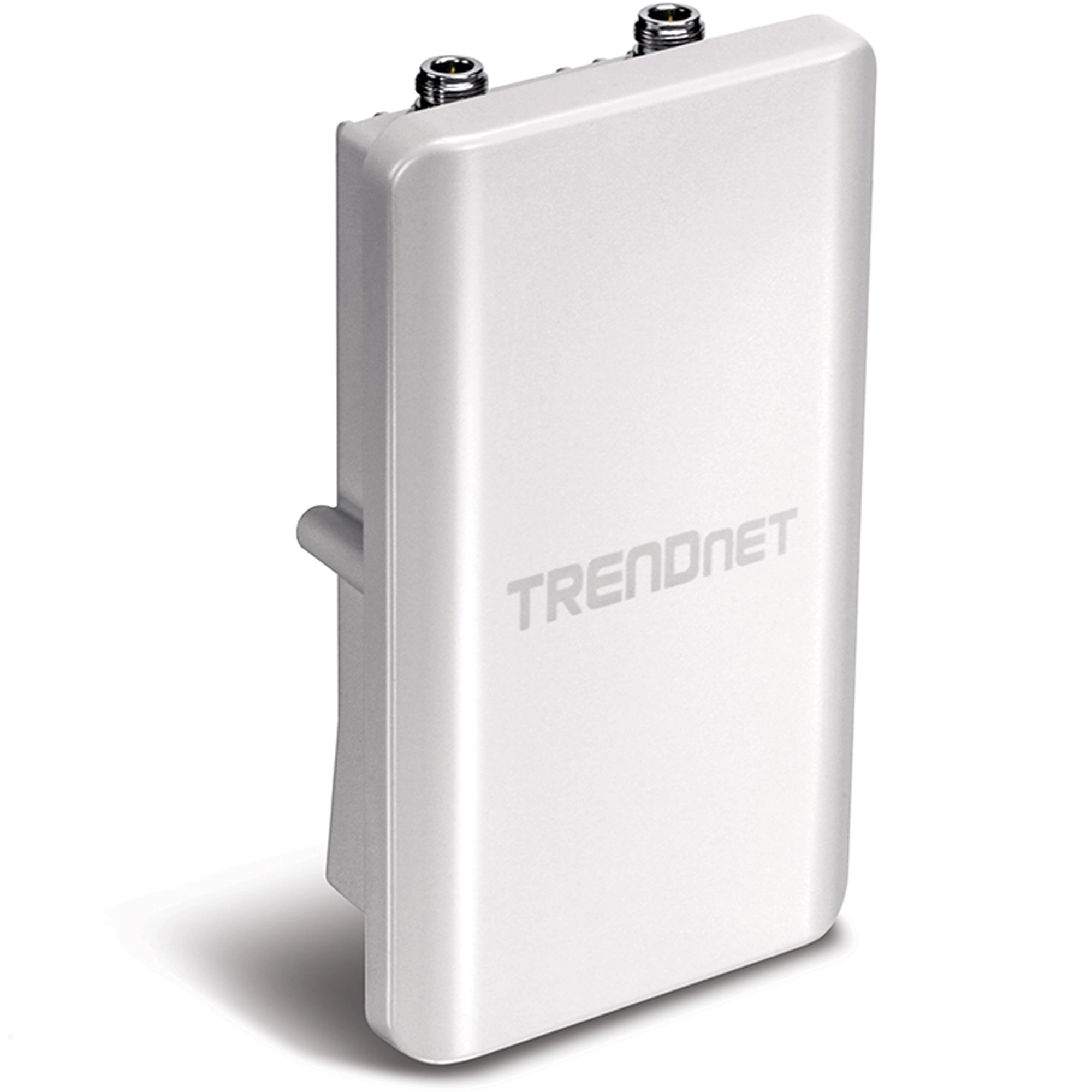

N300 Outdoor PoE Access Point

TEW-739APBO   (Version v1.3R)

   Select Another Version
  • Blanket outdoor Wireless N300 coverage (2.4 GHz band)
  • Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes
  • IP67 rated aluminum housing
  • Required antennas sold separately*

DISCONTINUED PRODUCT

The TEW-739APBO (Version v1.3R) has been discontinued. It has been replaced by the TEW-841APBO (Version v1.0R). For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.1.12
Release Date: 11/2017
Note:

  1. Fixed WPA2 KRACK security vulnerabilities.

Filename: FW_TEW-739APBO_v1(1.1.12).zip
SHA-1 Checksum: 457CE05C9F028D01FD20211BD994CE0D139430E6
Date: 11/17/2017
File Size: 5.47 MB
Download

Other

Management Information Bases (MIB)
File: MIB_TEW-738APBO(V1)_739APBO(V1)_740APBO(V1-2)_(1.00.01).zip
Release Notes
MIB Version: 1.00.01

Release Date: 6/2017
-Initial Release

Filename: MIB_TEW-738APBO(V1)_739APBO(V1)_740APBO(V1-2)_(1.00.01).zip
Date: 7/28/2017
File Size: 135.91 KB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.15 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.16 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.16 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.16 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.16 MB
Download Email
Datasheet (Русский)
Filename: RU_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.15 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-739APBO(v1.3R).pdf
Date: 4/27/2017
File Size: 1.16 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEW-739APBO(V1.0R).pdf
Date: 4/27/2017
File Size: 9.43 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.36 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-739APBO(V1.0R).pdf
Date: 4/27/2017
File Size: 9.27 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.27 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.28 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.35 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.22 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.28 MB
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.17 MB
Download
Quick Installation Guide (Magyar)
Filename: HUG_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.12 MB
Download
Quick Installation Guide (български)
Filename: BUL_Web_TEW-739APBO(V1.0R).pdf
Date: 4/26/2017
File Size: 9.24 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-739APBO(v1.0R).pdf
Date: 4/26/2017
File Size: 2.48 MB
Download

Product Images

JPEG Image
File Size: : 120.46 KB
Date: : 4/26/2017
Download
JPEG Image
File Size: : 324.42 KB
Date: : 4/26/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11d
  • IEEE 802.11e
  • IEEE 802.11f
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 GHz up to 300 Mbps)

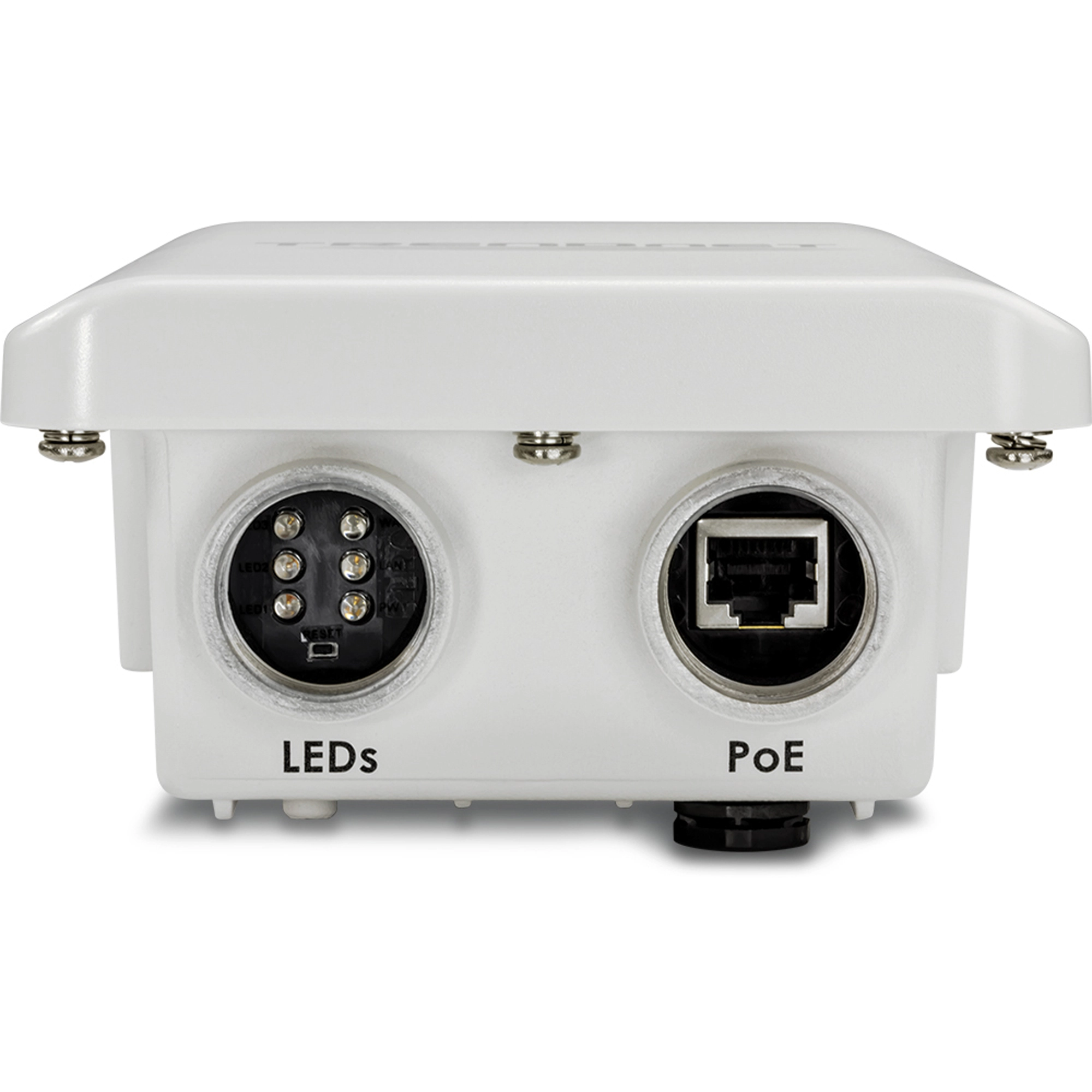

Hardware Interface
  • 1 x 10/100 Mbps (proprietary PoE) port**
  • 2 x N-Type (female) antenna connector (required antennas sold separately*)
  • Reset button
  • Grounding point
  • LED indicators
Special Features
  • IP67 weather rated
  • 802.1Q VLAN assignment per SSID
  • DDNS support for dyn.com, dhs.org, osd, tzo.com
  • Schedule radio on/off time policy
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough
  • Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting
  • 802.1Q VLAN
QoS
  • WMM
  • Diffserv (DSCP)/ToS
  • 802.1p/CoS
Operation Modes
  • Access Point (AP)
  • Wireless Distribution System (WDS)
  • Repeater
  • CPE + AP (WISP)
SSID
  • Up to 8 SSIDs
Internet Connection Types (CPE mode)
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
Management/Monitoring
  • Local/remote web based management (HTTP, HTTPS)
  • Local/remote CLI based management (Telnet, SSH)
  • SNMP v1/v2c/v3
  • SNMP Trap
  • MIB II
  • Upgrade firmware
  • Backup/restore configuration
  • Event logging
  • Reboot
  • Restore to factory defaults
  • Ping test
  • Ping Watchdog
Routing (CPE mode)
  • Static
  • Dynamic (RIP v1/2, OSPF)
Frequency
  • FCC: 2.412 - 2.462 GHz
  • ETSI: 2.412 – 2.472 GHz
Wireless Channels
  • FCC: 1-11
  • ETSI: 1-13
Modulation
  • 802.11b: DBPK, DQPSK, CCK with DSSS
  • 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol
  • CSMA/CA with ACK
Wireless Output Power/Receiving Sensitivity
  • 802.11b: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-88 dBm (typical) @ 11 Mbps
  • 802.11g: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-74 dBm (typical) @ 54 Mbps
  • 802.11n: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-69 dBm (typical) @ 300 Mbps
Power
  • Input: 100 – 220 V, 50 - 60 Hz, 0.6 A
  • Output: 48 V, 0.5 A
  • Consumption: 22 Watts (max.)
Operating Temperature
  • -30 - 60° C (-22 - 140° F)
Operating Humidity
  • Max. 99 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 215 x 122 x 66 mm (8.5 x 4.8 x 2.6 in.) (not including mounting bracket)
Weight
  • 0.8 kg (1.8 lbs.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-739APBO
  • CD-ROM (User's Guide)
  • Multi-Language Quick Installation Guide
  • Mounting hardware
  • Proprietary PoE injector
  • Water-proof RJ-45 plug (Network cable not included)
  • Power adapter (48 V, 0.5 A)
  • Grounding wire

*Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
**Recommended max. PoE cable length of 70 m.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
