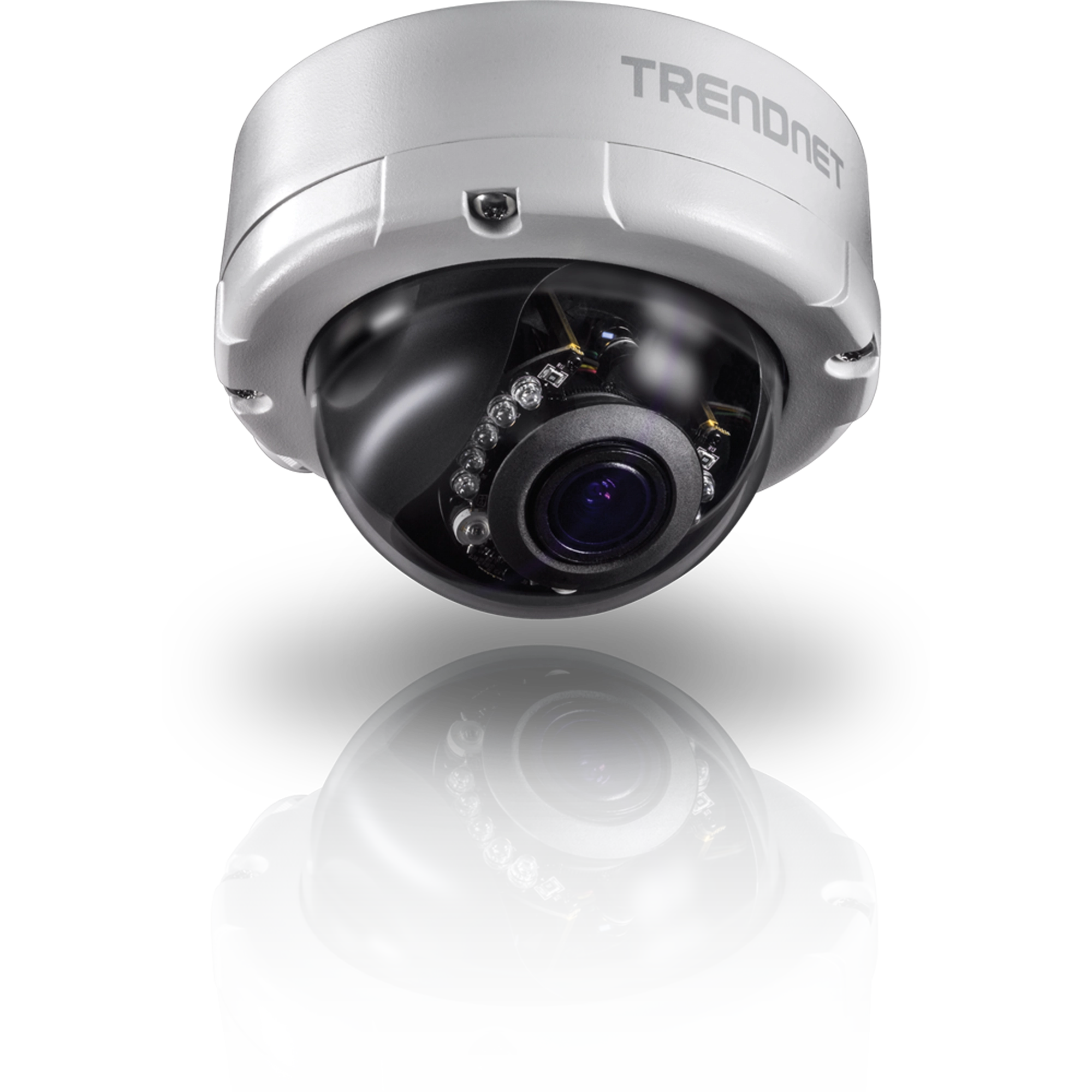

Indoor / Outdoor 4 MP Varifocal PoE IR Dome Network Camera

TV-IP345PI   (Version v1.1R)

   Select Another Version
  • Fixed dome PoE network camera
  • 4 MP resolution at 30 fps
  • Auto-focus / optical zoom and manual pan / tilt
  • Night vision up to 20m (66 ft.)
  • Outdoor IP66 weather rating
  • Program motion detection recording and email alerts
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support


DISCONTINUED PRODUCT

The TV-IP345PI (Version v1.1R) has been discontinued. It has been replaced by the TV-IP345PI (Version v2.0R). For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.2.25
Release Date: 4/2018
Notes:

  • Updated pppd version to 2.4.7
  • Updated to no default private key

Filename: FW_TV-IP344PI_345PI(1.2.25).zip
SHA-1 Checksum: EAD6EFC9FEFB9DC9CE233F6E5F7FBDC432EC484D
Date: 4/26/2018
File Size: 9.17 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.58 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.59 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.58 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.58 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.58 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP345PI_(v1.1R).pdf
Date: 12/4/2017
File Size: 1.58 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 3.30 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 3.42 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 2.79 MB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 2.91 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 2.79 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-IP345PI(V1.0R).pdf
Date: 12/4/2017
File Size: 2.78 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP345PI(V1.1R).pdf
Date: 3/21/2018
File Size: 2.51 MB
Download

Product Images

PNG Image
File Size: : 3.62 MB
Date: : 12/4/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal Length: 2.8 - 12 mm @ F1.4
  • Focal depth: 30 cm to infinity
  • Motorized varifocal lens
  • Sensor: 1/3” 2 Megapixel CMOS sensor
  • Zoom: optical 4.2x, digital 4x
Viewing Angle
  • Diagonal: 45 - 117 °
  • Horizontal: 36 - 103 ˚
  • Vertical : 19 - 56 ˚
Minimum Illumination
  • IR off: 0.031 lux
  • IR on: 0.08 lux
  • 20m IR illumination distance
  • IR wavelength : 850nm
Video Codec / Resolution (16:9)
  • H.264: 2688 x 1520 up to 30 fps
  • MJPEG: 2688 x 1520 up to 30 fps
  • H.264: 640 x 480 up to 15 fps (3GPP only)
Audio
  • 3.5 mm microphone jack
  • 3.5 mm speaker jack
Hardware Standard
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af

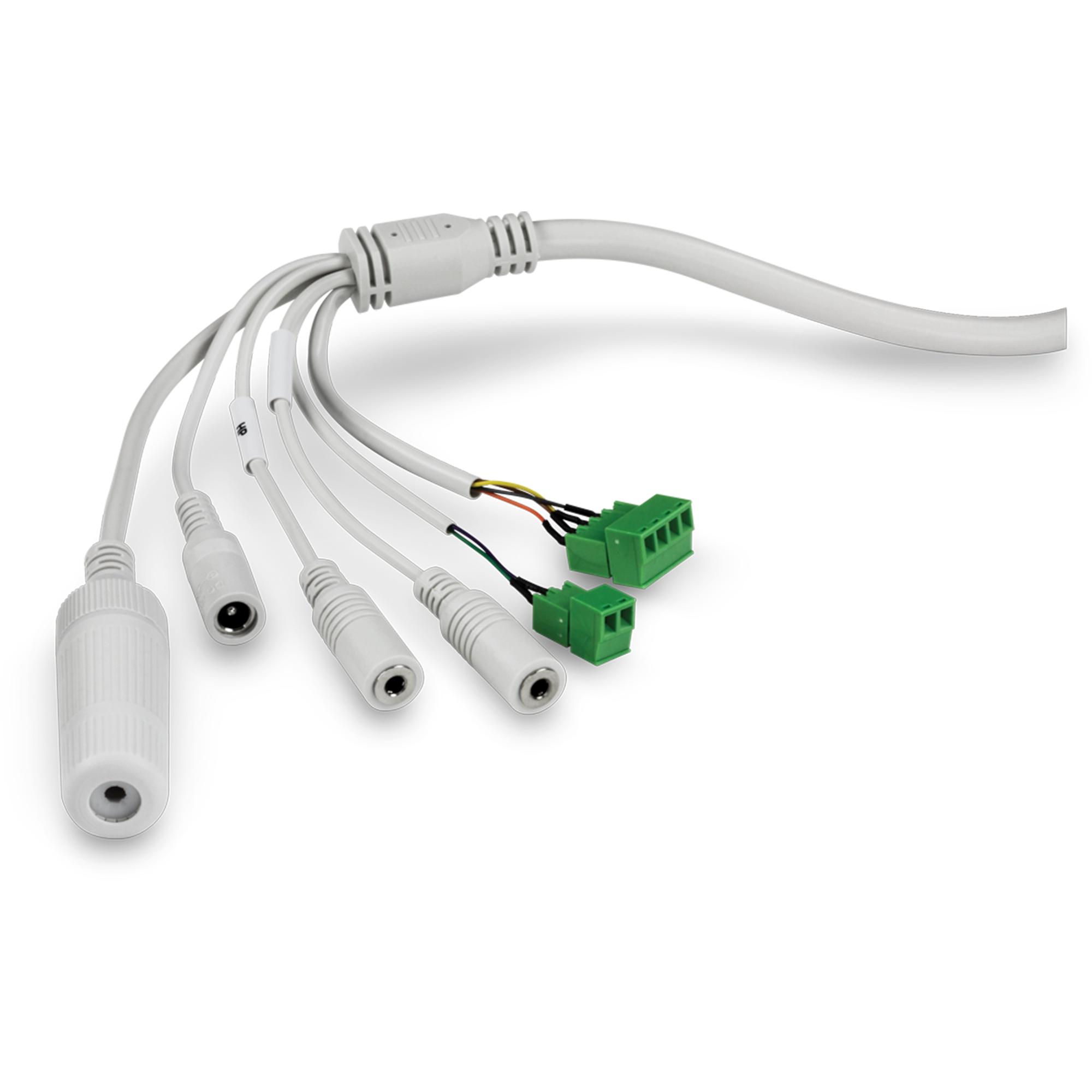

Device Interface
  • 10/100 Mbps PoE port
  • Micro SD card slot
  • IR LEDs
  • 3.5 mm microphone jack
  • 3.5 mm speaker jack
  • GPIO terminal
  • Power jack
Housing
  • IP66 rated
  • IK10 rated
  • Direct cabling through the bottom or side of housing
Network Protocol
  • IPv4, IPv6, UDP, TCP / IP, ONVIF V2.4.2
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1-v3, QoS / DSCP, IEEE 802.1X
  • Samba, Bonjour
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, 3GPP
Dimension
  • 137 x 137 x 102 mm (5.4 x 5.4 x 4 in.)
Weight
  • 962 g (2.1 lbs.)
Operating Temperature
  • -20 – 50 °C (-4 – 122 °F)
Humidity
  • Max. 90% non-condensing
Power (Power adapter not included)
  • Input: 100 - 240 V AC , 50/60 Hz, 1 A
  • Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
  • Max. consumption: 8.64 W
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, hue, sharpness, D-WDR, Denoise 2D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, mirror, 90 degree rotate, IR, day / night mode, white balance
  • D-WDR enhances video quality in high contrast daytime lighting
  • 2D Digital Noise Reduction enhances night vision quality
  • Recording: to computer, NAS, SAMBA, or through software
  • Video Recording: scheduled, motion detection, sound detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Sound detection: requires installation of third party microphone
  • Privacy masks: define custom privacy mask up to 3 areas
  • Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly
  • Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
  • Snapshot: real time snapshot, sound detection, and motion detection
  • Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
  • Management setting: maximum 21 user accounts
  • Supports remote management
  • Compatibility (PC based): Internet Explorer® 8.0 or higher
TRENDnetVIEW Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Advanced search and playback tools
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free iOS™ and Android™ app
  • View the camera on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
  • IK10
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP345PI
  • Quick Installation Guide
  • CD-ROM (Utility, Software, & User's Guide)
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
