N300 Wireless Home Router w/ USB Port
TEW-652BRU (Version v1.0R)
- High speed 300Mbps wireless network
- Convenient USB storage port
- Advanced wireless encryption
- One-touch adapter connection with Wi-Fi Protected Setup (WPS)
- Up to 50% GREENnet power savings
DISCONTINUED PRODUCT
The TEW-652BRU (Version v1.0R) has been discontinued.
It has been replaced by the TEW-831DR (Version v1.0R).
For a list of discontinued products, click here. Utility
Filename: Utility(MACOSX)_USBControlCenter(v1.88).zip
SHA-1 Checksum: 0F299DE9BACF21FCE11E4D62A722B43EDA341138
Date: 7/28/2017
File Size: 2.24 MB
Filename: Utility(Windows)_USBControlCenter(v2.04.1).zip
SHA-1 Checksum: FAD0E9111906A2A8ECF48F669DFFFFEDAD39ADAA
Date: 7/28/2017
File Size: 7.13 MB
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.00b12
Release Date: 9/2011
Note:
- Initial Release
Filename: FW_TEW-652BRU_v1.0R(1.00b12).zip
SHA-1 Checksum: 1518C076550DF933602BDA3DEACF4CFFCC2769D4
Date: 7/28/2017
File Size: 3.17 MB
Datasheet
Filename: EN_spec_TEW-652BRU(v1.0R).pdf
Date: 3/14/2013
File Size: 619.54 KB
Filename: RU_spec_TEW-652BRU(v1.0R).pdf
Date: 3/14/2013
File Size: 578.65 KB
Quick Installation Guide
Filename: EN_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.65 MB
Filename: FR_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.68 MB
Filename: GE_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.09 MB
Filename: PO_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.05 MB
Filename: SP_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.09 MB
Filename: RU_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.76 MB
Filename: EST_Web_TEW-652BRU(1.01).pdf
Date: 3/14/2013
File Size: 1.04 MB
User's Guide

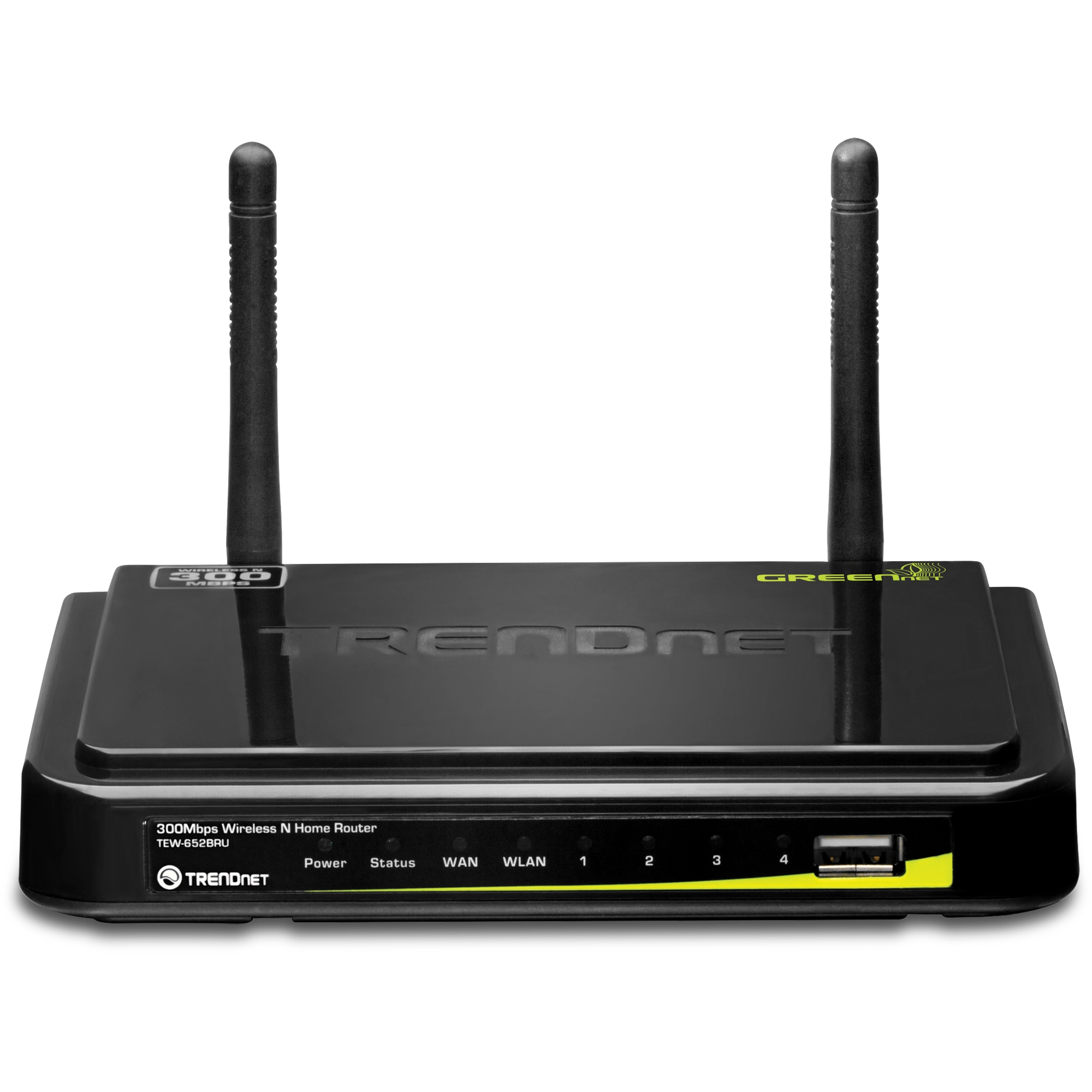

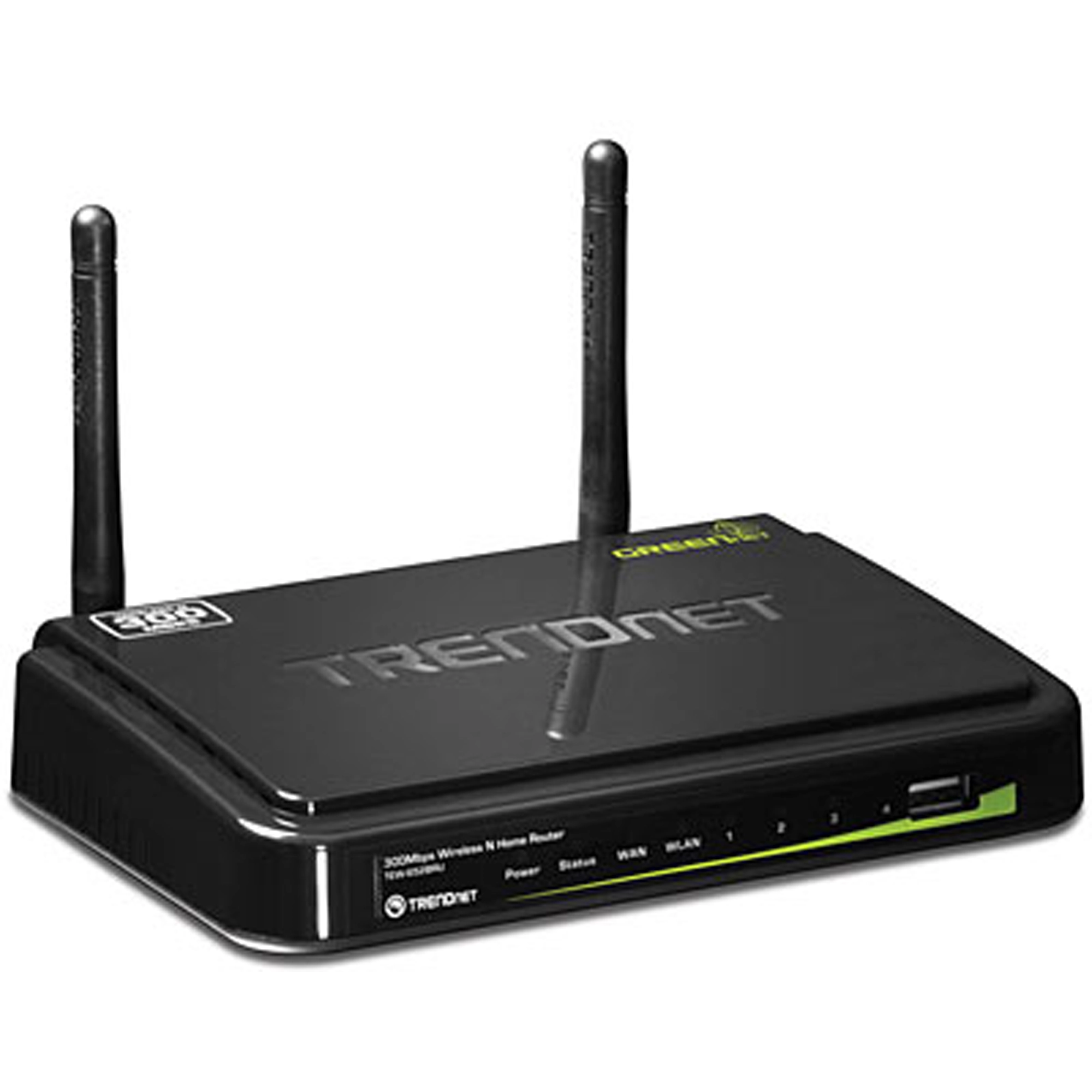

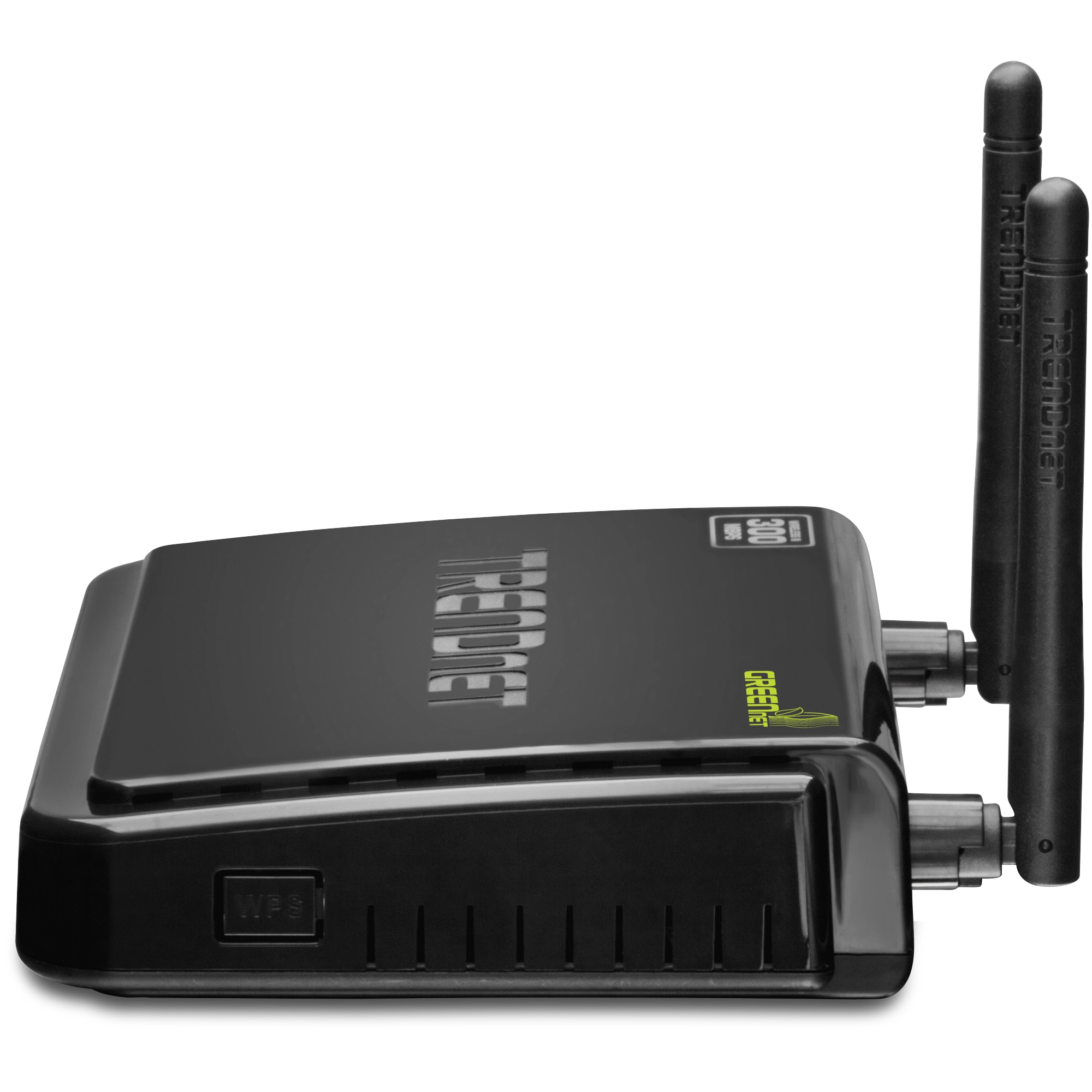

Product Images
| Hardware | |
| Standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b/g/n, IEEE 802.3az |
| WAN | 1 x 10/100Mbps Auto-MDIX port (Internet) |
| LAN | 4 x 10/100Mbps Auto-MDIX ports |
| USB | 1 x USB 2.0 port for file and printer sharing* |
| WPS Button | Enables Wi-Fi Protected Setup (WPS) function |
| Utility OS Compatibility | Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), MAC OS X 10.4, 10.5, 10.6, 10.7 |
| Connection Type | Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP |
| DMZ | DMZ host & Virtual Servers |
| DNS | Static or WAN assigned DNS servers; 3 verified services for DDNS |
| SNMP | Up to 3 external trap receivers |
| Internet Access Control | MAC Address Filter, Domain/URL Filter, Protocol/IP Filter |
| Logging | 5 types of event logging; email report |
| LED Indicator | Power, LAN1~LAN4, WAN, WLAN, Status |
| Power Switch | On/Off power switch |
| Power Adapter | 5V DC, 2A external power adapter |
| Power Consumption | 6 watts (max) |
| Dimension (L x W x H) | 158 x 109 x 34mm (6.2 x 4.3 x 1.3in) |
| Weight | 215g (7.6oz) |
| Temperature |
|
| Humidity | Max. 95% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Modulation | DSSS, DBPSK, DQPSK, CCK, OFDM with BPSK, QPSK, 16QAM, and 64QAM |
| Frequency | 2.412~2.484GHz |
| Antenna | 2 x 2dBi fixed dipole antennas |
| Media Access Protocol | CSMA/CA with ACK |
| Data Rate |
|
| Security | WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK |
| Output Power |
|
| Receiving Sensitivity |
|
| Channels | 1~ 11 (FCC), 1~13 (ETSI) |
| PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
