24-Port Gigabit GREENnet Switch

TEG-S24Dg   (Version v2.1R)

   Select Another Version
  • 24 Gigabit ports
  • 48 Gbps switching fabric
  • Jumbo Frame support
  • Sturdy metal switch
  • Up to 70% GREENnet energy savings*

DISCONTINUED PRODUCT

The TEG-S24Dg (Version v2.1R) has been discontinued. It has been replaced by the TEG-S24Dg (Version v3.0R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.15 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.74 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.70 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.78 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.78 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.72 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEG-S24Dg(v2.1R).pdf
Date: 5/11/2017
File Size: 2.70 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Lineart_QIG_TEG-S24Dg_S24g(V2)_2017.pdf
Date: 8/21/2017
File Size: 3.05 MB
Download

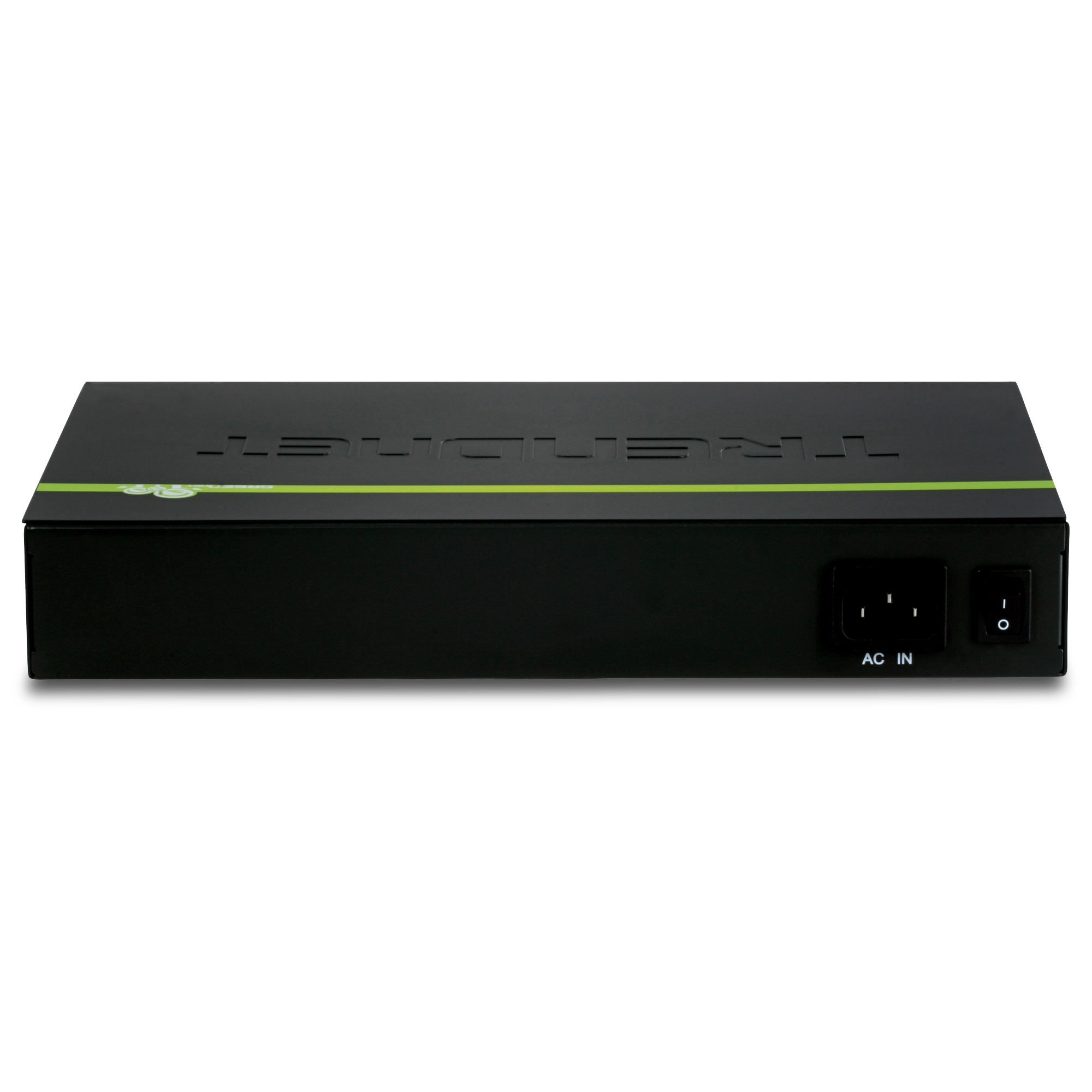

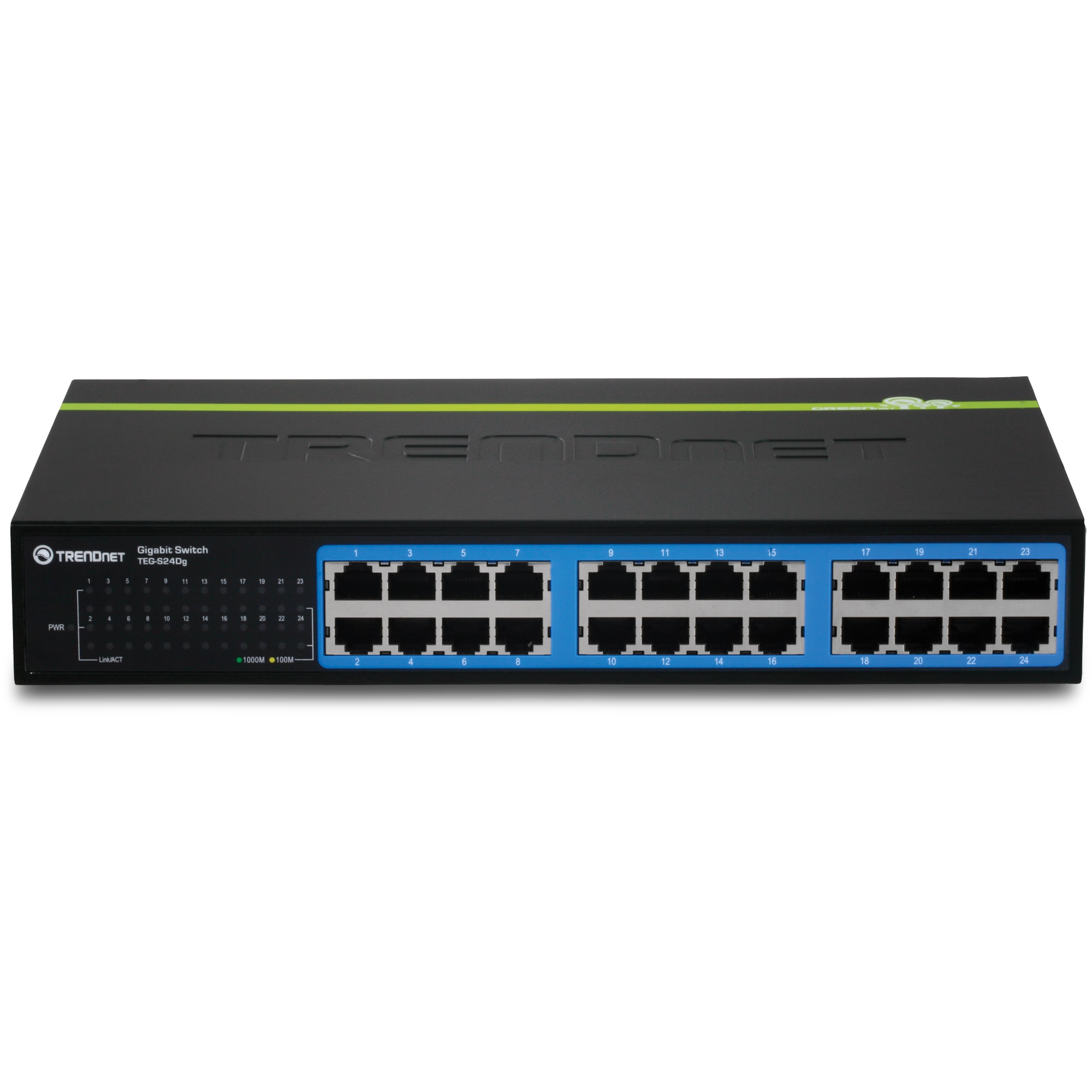

Product Images

JPEG Image
File Size: : 309.32 KB
Date: : 5/11/2017
Download
JPEG Image
File Size: : 244.18 KB
Date: : 5/11/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit Ports
  • LED indicators
  • On/off switch
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 0.5 MB
  • Switch Fabric: 48 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 35.7 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Special Features
  • GREENnet energy saving technology
  • Metal enclosure
Power
  • Internal power supply: 100-240 V AC, 50/60 Hz, 0.2 A
  • Consumption: 13 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Dimensions
  • 280 x 180 x 44 mm (11 x 7 x 1.7 in.)
Weight
  • 1.7 kg g (3/8 lb.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEG-S24Dg
  • Quick Installation Guide
  • Power cord

* Max power savings compared with standard TRENDnet switches.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
