54Mbps 802.11g Wireless Access Point + Bridge

TEW-410APB   (Version A)

DISCONTINUED PRODUCT

The TEW-410APB (Version A) has been discontinued. For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


TEW-411BRPplus (EU), European model (ETSI, with 13 wireless channels) Firmware version: 2.07.

Note:
This firmware is for TEW-411BRPplus European version (ETSI) with 13 wireless channels. Please do not upload this firmware to TEW-411BRPplus FCC version with 11 wireless channels.

Release Note:
411BRPplus_2.07_EU.trx
Date: 11-19-2004
1. (For Singapore users) Improves Dynamic DNS Account automatic IP update function when using www.dyndns.org account.

Firmware upload instructions:
After downloading the file, unzip the file, and follow the instructions in the "readme.txt" file to upload the firmware.
Filename: Firmware_TEW-411BRPplus_2.07_EU.zip
SHA-1 Checksum: 93EC7C61D2838E79B22AC5F30A0B0B7BBBCFF9DF
Date: 7/26/2017
File Size: 2.80 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-411BRPplus(English).pdf
Date: 12/20/2004
File Size: 1.52 MB
Download Email
Datasheet (Français)
Filename: Spec_TEW-411BRPplus(French).pdf
Date: 12/21/2004
File Size: 1.53 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-411BRPplus(German).pdf
Date: 2/15/2005
File Size: 204.62 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-411BRPplus_EN.pdf
Date: 10/27/2004
File Size: 3.48 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-411BRPplus_FR.pdf
Date: 10/27/2004
File Size: 3.67 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-411BRPplus_GE.pdf
Date: 10/27/2004
File Size: 3.79 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-411BRPplus_SP.pdf
Date: 10/27/2004
File Size: 3.77 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-411BRPplus.pdf
Date: 10/27/2004
File Size: 4.62 MB
Download

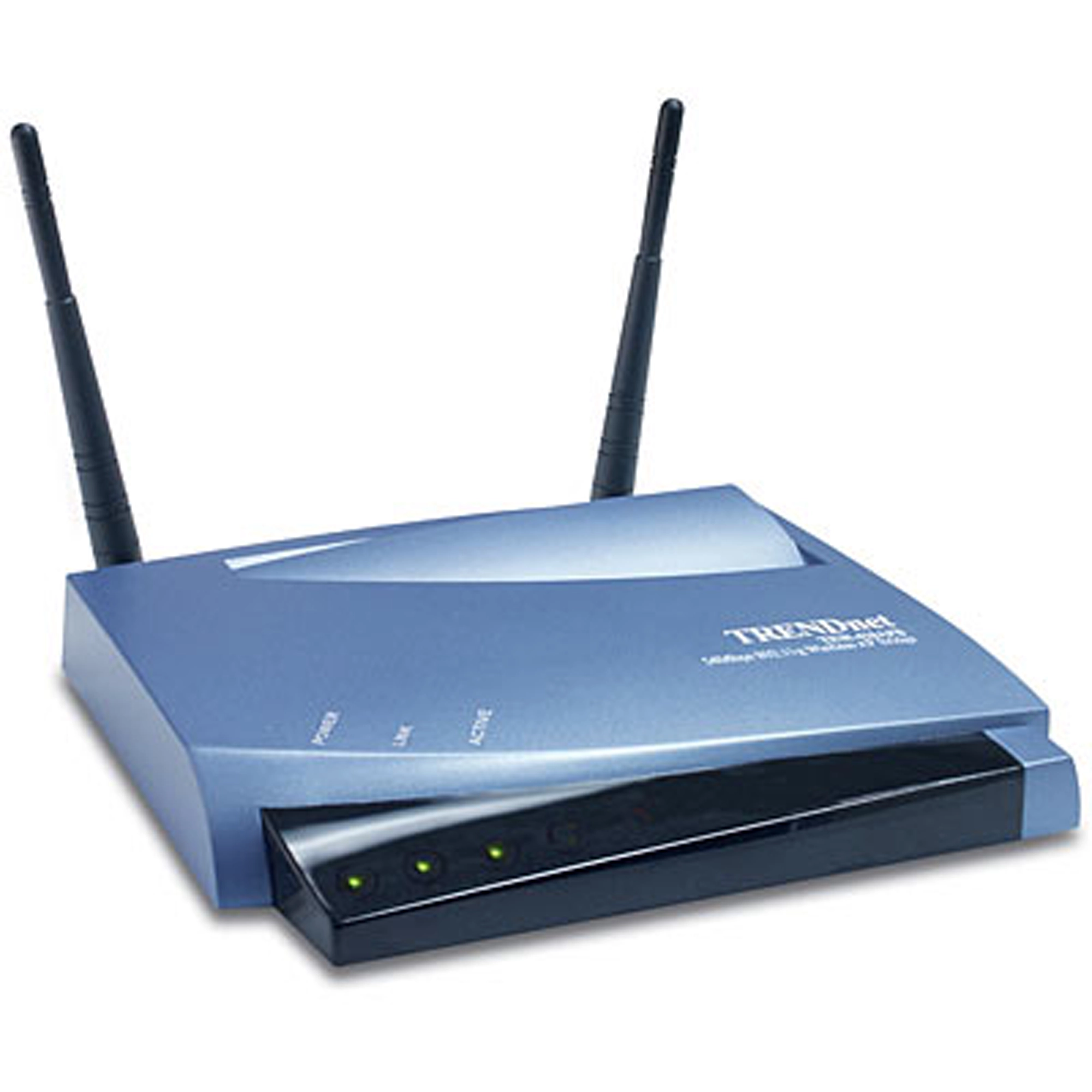

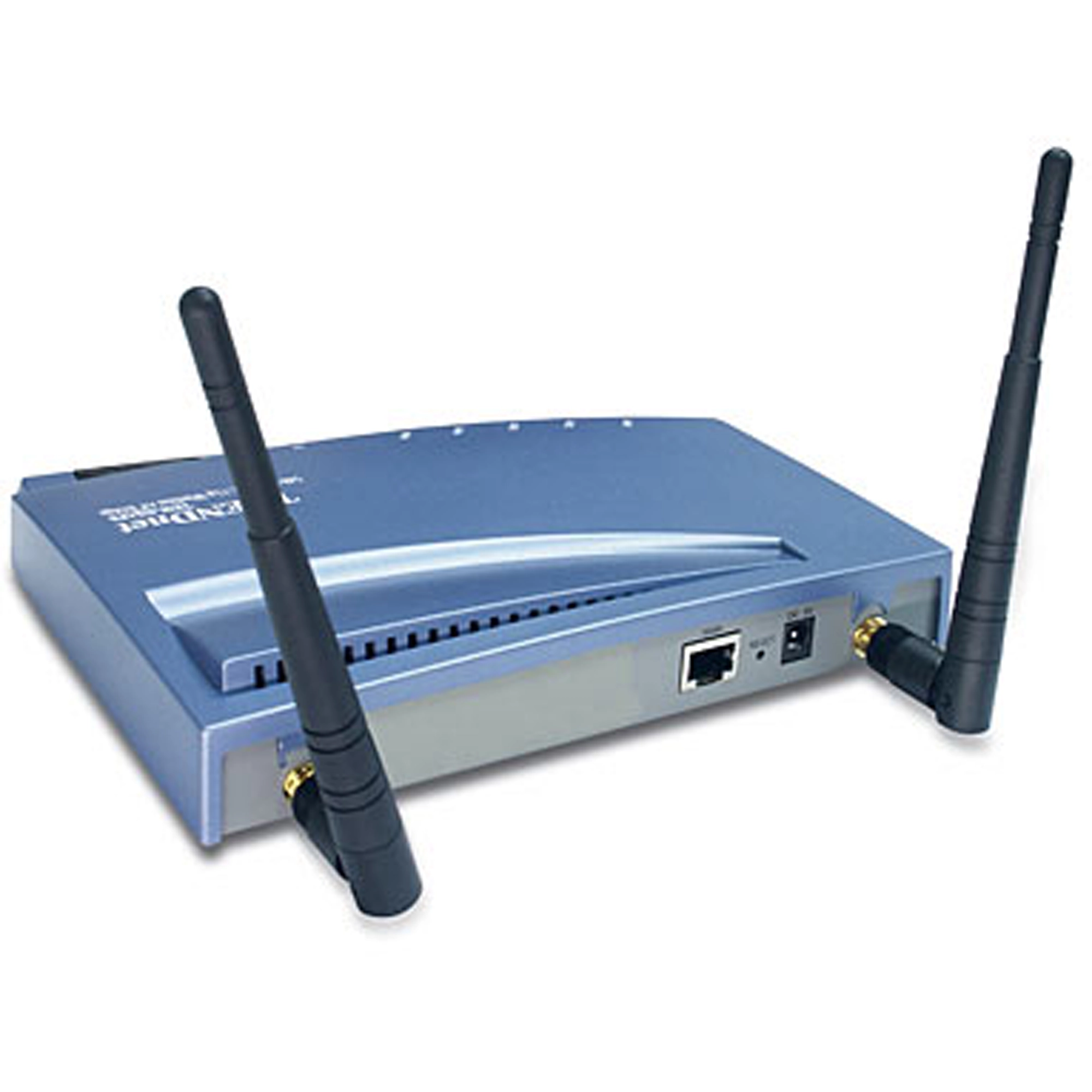

Product Images

JPEG Image
File Size: : 330.86 KB
Date: : 10/1/2004
Download
TIFF Image
File Size: : 2.81 MB
Date: : 9/1/2004
Download
JPEG Image
File Size: : 272.96 KB
Date: : 9/20/2004
Download
TIFF Image
File Size: : 2.15 MB
Date: : 1/27/2006
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX), IEEE 802.11b (11Mbps) and IEEE 802.11g draft (54Mbps)
Protocols:
  • DHCP (Client), TCP/IP, IPX, NetBEUI
Module Technique:
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11g: OFDM
Data Rate (auto fallback):
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Frequency Range:
  • 2.4 ~ 2.497 GHz
Channels:
  • 11 Channels (US & Canada), 13 Channels (EU)
Security:
  • 64/128-bit (WEP) and MAC Address Access Control (ACL)
Antenna Connector:
  • 2 x Male (Reverse Polarity) Reverse SMA Connectors
Antenna:
  • 2 x 2dBi Detachable External Dipole Antennas
Output Power:
  • 15 dBm ± 1dBm
Receiving Sensitivity:
  • 11Mbps 10 – 5 BER @ -80 dBm (typical)
  • 54Mbps 10 – 5 BER @ -65 dBm (typical)
Management:
  • SNMP v1, v2
Ethernet Port:
  • UTP/STP RJ-45, 10/100Mbps, Half/Full Duplex, Auto-MDIX
LED Indicators:
  • Power, Link, Active
Power Adapter:
  • Input: 100~240VAC, 0.35A, 50~60Hz.
  • Output: 5 VDC, 2A
Dimensions (LxWxH):
  • 200 x 181 x 37 mm (7.9x 7.1x 1.46 inches) (with antenna folded)
Weight:
  • 567 g. (20 oz.)
Temperature:
  • Operating: -10°~ 50°C (14°F~ 122°F)
Humidity:
  • Max. 95% (non-condensing)
Certification:
  • FCC, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
