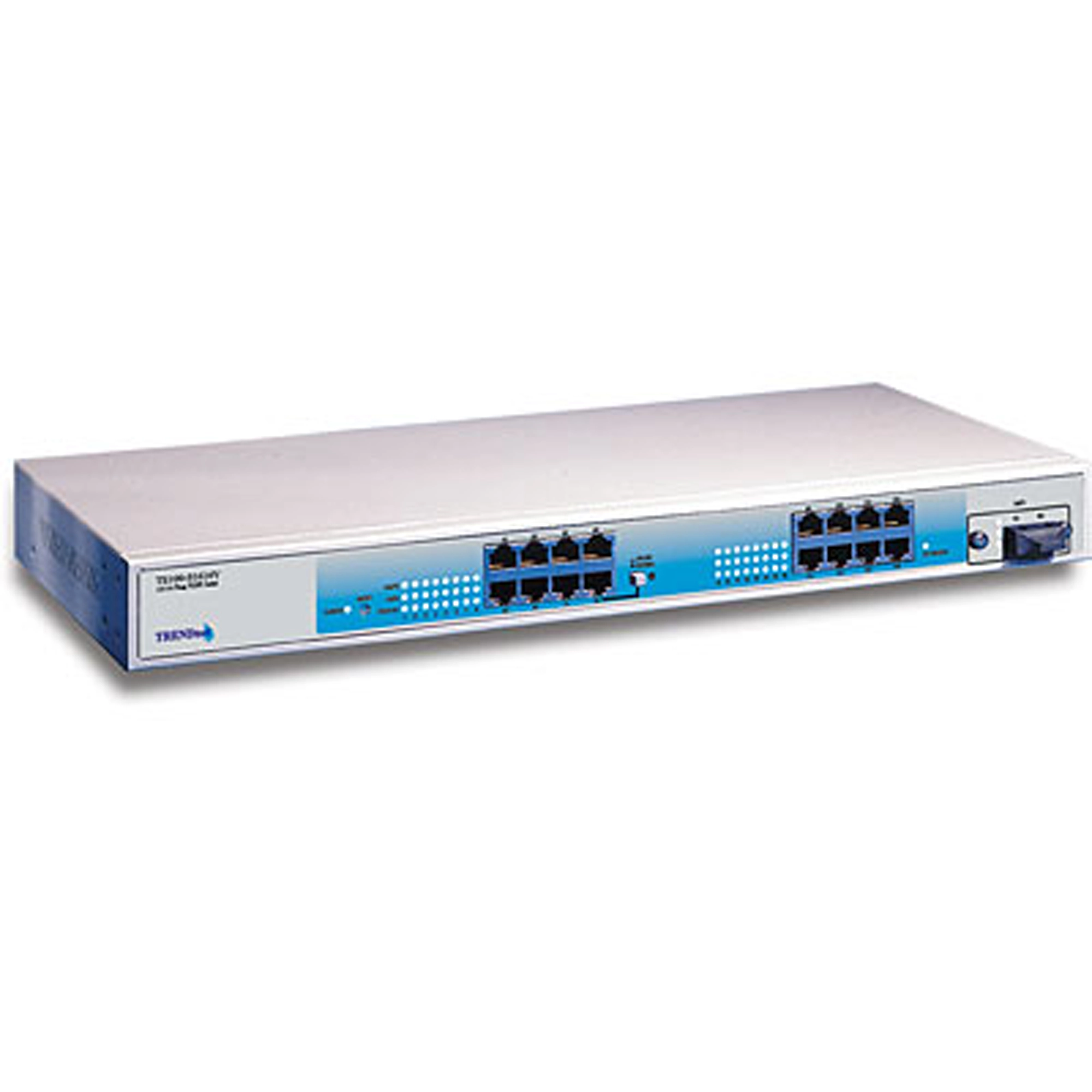

16-port 10/100Mbps N-way VLAN Switch

TE100-S1616V   (Version 1.0)

  • This unique 16-port 10/100Mbps N-way VLAN switch is flexible enough for mid-sized companies and branch offices to meet their high bandwidth requirements
  • Enjoy an optional fiber optic and BNC (10Base-2) module reducing broadcast traffic
  • The N-way ports automatically negotiate between 10Base-T and 100Base-TX network speeds as well as between half- and full-duplex modes

DISCONTINUED PRODUCT

The TE100-S1616V (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Filename: Utility_TE100-P2U1P.zip
SHA-1 Checksum: F8CA3C769BE8EF9FFCCD0B381ADA06BDEDBCF90A
Date: 7/25/2017
File Size: 5.24 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Date: 7-12-2005

Filename:
Firmware _TE100P2U1P_6.10.17W Build0082.zip

Description:
MPS17TRE.BIN (5-3-2004) TE100-P2U1P Firmware 6.10.17 7-12-2005

Release Note:
Update from 6.9.17

1. Added "SMB over TCP/IP" support.

Firmware Upgrade Instruction:
1. Save the new firmware file on to hard disk.
2. Open web browser and go to print server's IP address.
3. From the web config page, click on "MISC", click on "upgrade from browser", click on "browse" to locatethe new firmware file, and then click on "upgrade".


Filename: Firmware_TE100P2U1P_6.10.17W_Build0082.zip
SHA-1 Checksum: 2118D915FC824950F08CDC2D83E7C1BF9C79E8E8
Date: 7/25/2017
File Size: 248.35 KB
Download

Datasheet

Datasheet (English)
Filename: Spec_TE100-P2U1P(English).pdf
Date: 1/3/2005
File Size: 173.84 KB
Download Email
Datasheet (Français)
Filename: Spec_TE100-P2U1P(French).pdf
Date: 1/17/2005
File Size: 303.48 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TE100-P2U1P(German).pdf
Date: 2/7/2005
File Size: 197.75 KB
Download Email
Datasheet (Português)
Filename: Spec_TE100-P2U1P(Portuguese).pdf
Date: 2/25/2005
File Size: 196.14 KB
Download Email
Datasheet (Español)
Filename: Spec_TE100-P2U1P(Spanish).pdf
Date: 2/18/2005
File Size: 196.68 KB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: QIG_TE100-P2U1P.pdf
Date: 5/2/2013
File Size: 1.66 MB
Download

User's Guide

Manual
Filename: UG_TE100-2U1P.pdf
Date: 8/19/2004
File Size: 3.62 MB
Download

Frequently Asked Questions (FAQ)

FAQ
Filename: FAQ_TE100P2U1P_P1P_P1U.pdf
Date: 6/27/2006
File Size: 641.31 KB
Download

Product Images

JPEG Image
File Size: : 399.84 KB
Date: : 9/1/2004
Download
TIFF Image
File Size: : 3.52 MB
Date: : 9/1/2004
Download
JPEG Image
File Size: : 392.41 KB
Date: : 5/4/2005
Download
TIFF Image
File Size: : 3.29 MB
Date: : 5/4/2005
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3m 100Base-TX/100Base-FX, ANSI / IEEE 802.3 N-way auto-negotiation
Forwarding Rate:
  • 14,880pps for 10Mbps, 148,800pps for 100Mbps
Switching Method:
  • Store-and-forward
Cabling:
  • 10Base-T: 2-pair UTP CAT 3, 4, 5 up to 100m (328ft),
  • 100Base-TX: 2-pair UTP CAT 5 up to 100m (328ft.),
  • 100Base-FX: 62.5/125 multi-mode fiber optic cable up to 2,000m (6,560ft.)
Diagnostic LEDs:
  • Per Unit: Power, Uplink, Module Enable (3 LEDs),
  • Per Port: 100Mbps/TX, 10Mbps/RX, Full-duplex/Collision (3 LEDs)
Power:
  • Internal universal power supply (100-240VAC, 50-60Hz, 25Watts max.)
Dimensions:
  • 443 x 203 x 44 mm (17.4 x 8 x 1.7 inches)
Weight:
  • 2.68 kg (5.9 lbs.)
Temperature:
  • Operating: 0° to 40° C (32° to 104° F)
  • Storage: -25° to 70° C (-13° to 158° F)
Humidity:
  • 10 % to 90 % non-condensing
Certifications:
  • FCC, UL, CE, VCCI Class A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
