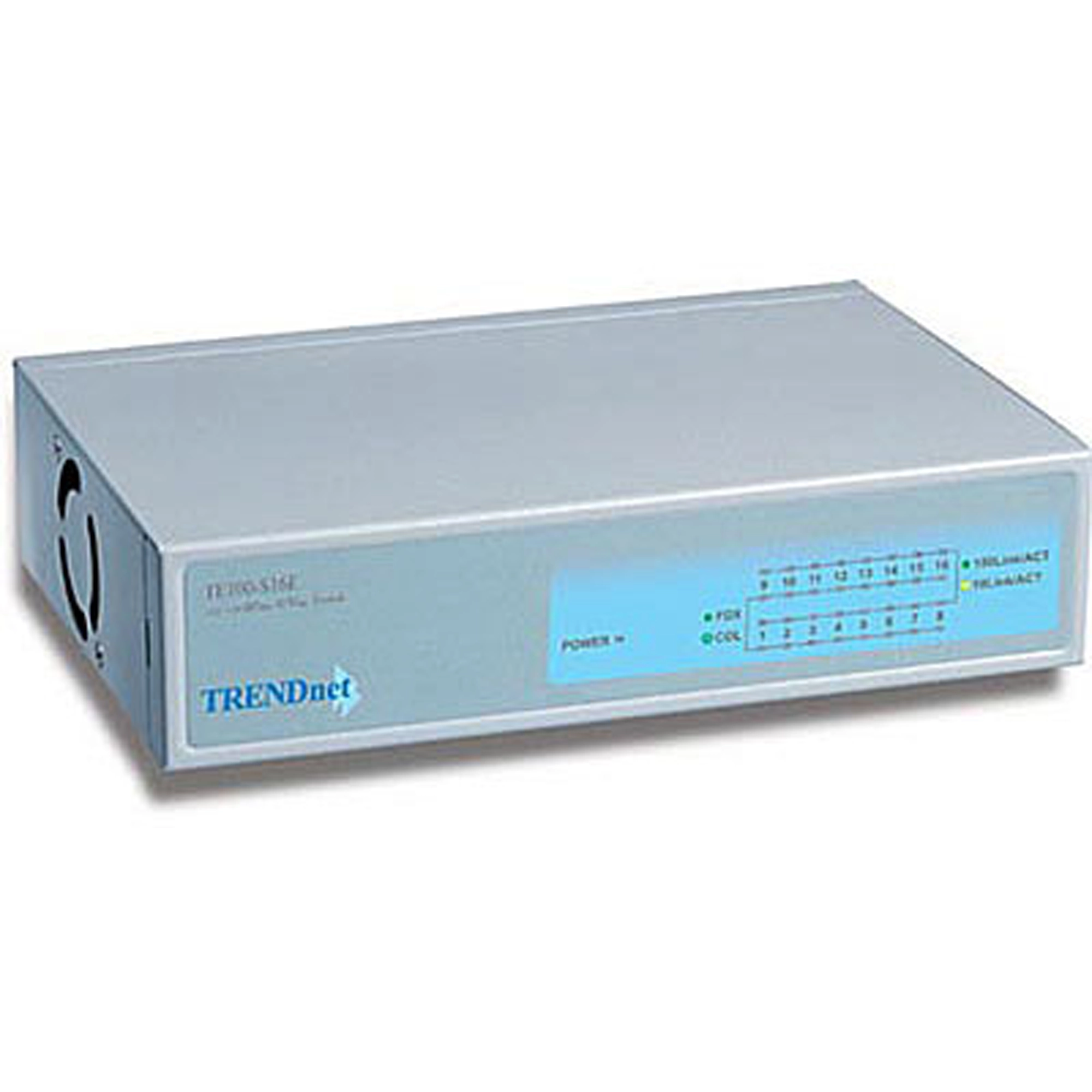

16-port 10/100Mbps NWay Fast Ethernet Compact Switch

TE100-S16E   (Version 1.0)

DISCONTINUED PRODUCT

The TE100-S16E (Version 1.0) has been discontinued. It has been replaced by the TEG-S16Dg (Version v2.1R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TE100-S16E.pdf
Date: 12/2/2005
File Size: 201.03 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE100-S16E.pdf
Date: 12/2/2005
File Size: 204.33 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE100-S16E.pdf
Date: 12/2/2005
File Size: 203.88 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE100-S16E.pdf
Date: 12/2/2005
File Size: 201.46 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S16E.pdf
Date: 8/20/2004
File Size: 120.94 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, ANSI / IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 16 UTP/STP RJ-45
Network Cables:
  • 10BASE T: 2-pair UTP Cat. 3,4,5; EIA/TIA- 568 100-ohm STP
  • 100BASE-TX: 2-pair UTP Cat. 5; EIA/TIA-568 100-ohm STP
Diagnostic LED's:
  • Power, 10 Link/Act, 100Link/Act, FDX, COL
Power:
  • External AC Adapter DC 5V, 5A, 25 Watts Max.
Dimensions:
  • 184x 124 x 44 mm / 7.2" x 4.9" x 1.7" (L x W x H)
Weight:
  • 848g (1.87lbs)
Temperature:
  • Operating.: -10° to 50° C (14° to 122° F)
  • Storage: -10° to 70° C (14° to 158° F)
Humidity:
  • Operating: 10 to 90% (non-condensing)
  • Storage: 5 to 90% (non-condensing)
Certifications:
  • FCC, CE, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
