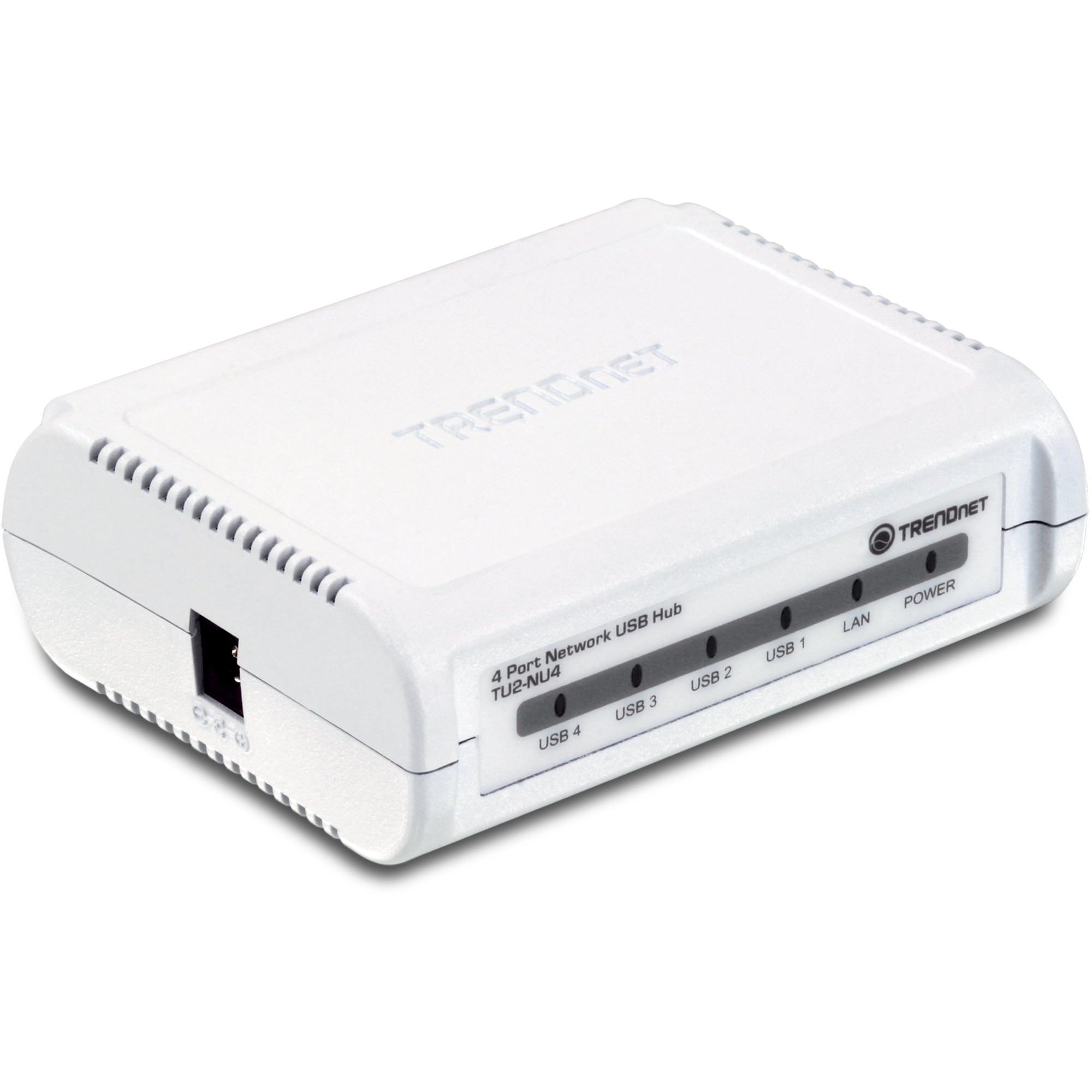

4-Port Network USB Hub

TU2-NU4   (Version v1.0R)

  • Access USB devices across your Local Area Network
  • Connect USB hard drives, flash drives, printers, digital cameras, iPods and more
  • High Speed USB 2.0 data transfers

DISCONTINUED PRODUCT

The TU2-NU4 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Utility

Firmware Version: v2.0.0.1
Release Date: 12/2010
Note:

  • Fixed port numbers on utility do not match the device numbers in the web GUI.

Filename: Utility_USB_Server_Control_Center(2.0.0.1).zip
SHA-1 Checksum: 3C53D7295333AA838ED6962CA83265BEEDE35E74
Date: 7/25/2017
File Size: 33.39 MB
Download

Firmware

Firmware
Firmwarwe: V.1.00.074
Date: 1/6/2010

1.Initial Release
Filename: FW_TU2-NU4_V1(1.00.074).zip
SHA-1 Checksum: 53B4A8B9E95573B1F6503F50447DDEF9A17A41BB
Date: 7/25/2017
File Size: 398.11 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TU2-NU4(V1.0R).pdf
Date: 11/26/2012
File Size: 453.61 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TU2-NU4(V1.0R).pdf
Date: 11/26/2012
File Size: 458.85 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TU2-NU4(1.01)-010810.pdf
Date: 11/26/2012
File Size: 1.04 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TU2-NU4(1.01)-010810.pdf
Date: 11/26/2012
File Size: 1.04 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TU2-NU4(1.01)-010810.pdf
Date: 11/26/2012
File Size: 1.04 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TU2-NU4(1.01)-010810.pdf
Date: 5/16/2013
File Size: 1.04 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TU2-NU4(1.01)-010810.pdf
Date: 11/26/2012
File Size: 1.03 MB
Download
Quick Installation Guide (Русский)
Filename: RU_Web_TU2-NU4(1.01)-010810.pdf
Date: 5/16/2013
File Size: 1.83 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TU2-NU4(1.01)-010810.pdf
Date: 11/26/2012
File Size: 1.03 MB
Download

User's Guide

User's Guide (English)
Filename: UG_TU2-NU4.pdf
Date: 11/26/2012
File Size: 1.55 MB
Download

Product Images

JPEG Image
File Size: : 294.88 KB
Date: : 8/31/2010
Download
JPEG Image
File Size: : 331.62 KB
Date: : 8/31/2010
Download
JPEG Image
File Size: : 308.64 KB
Date: : 8/31/2010
Download
TIFF Image
File Size: : 3.15 MB
Date: : 8/31/2010
Download
TIFF Image
File Size: : 3.52 MB
Date: : 8/31/2010
Download
TIFF Image
File Size: : 3.56 MB
Date: : 8/31/2010
Download
JPEG Image
File Size: : 474.47 KB
Date: : 8/31/2010
Download
TIFF Image
File Size: : 5.09 MB
Date: : 8/31/2010
Download
JPEG Image
File Size: : 91.89 KB
Date: : 2/17/2011
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
StandardsIEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), USB 1.1/2.0

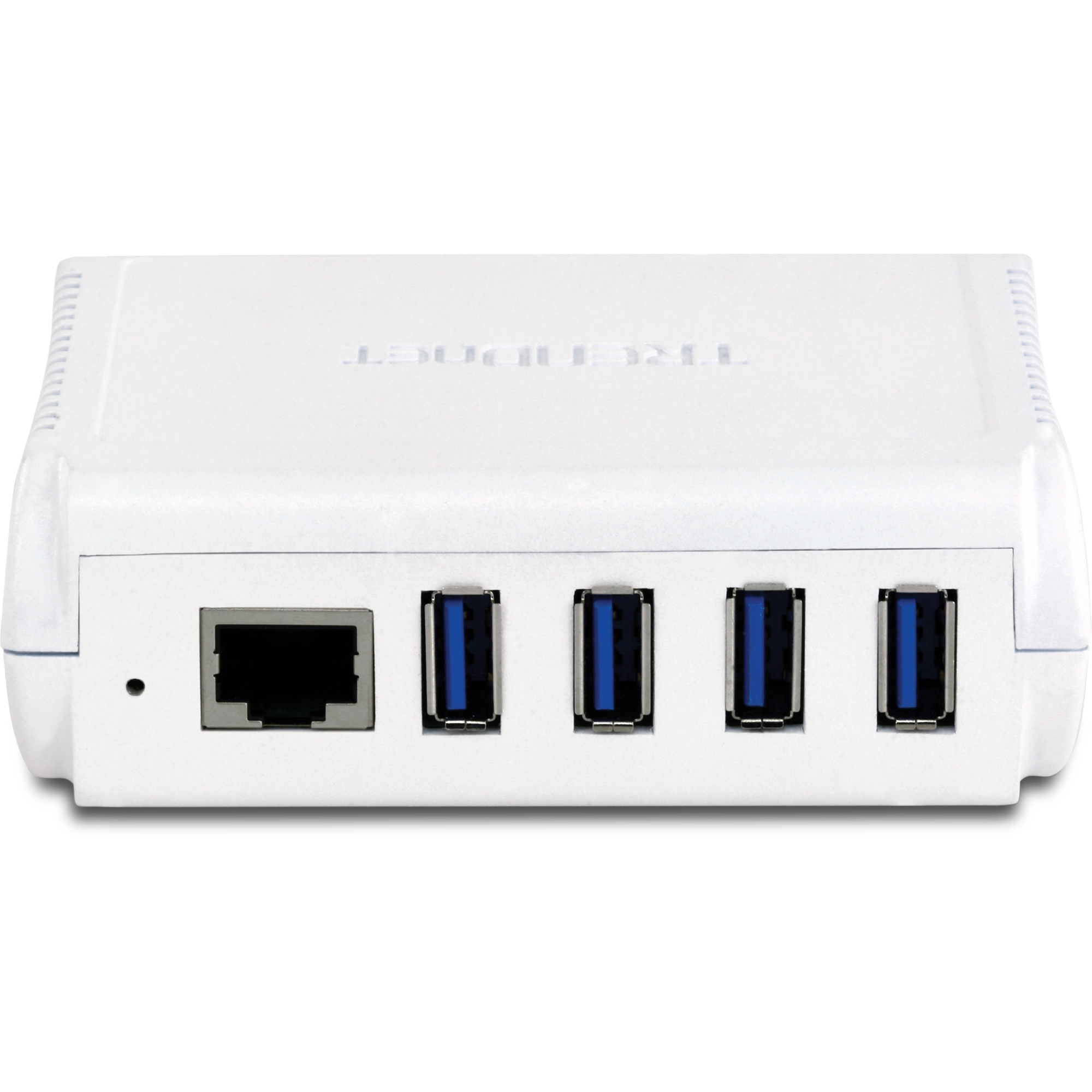

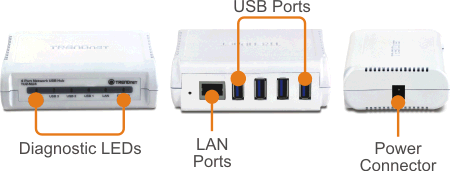

LAN Port 1 x 10/100Mbps Auto-MDIX Ethernet port
USB Ports4 x USB 2.0

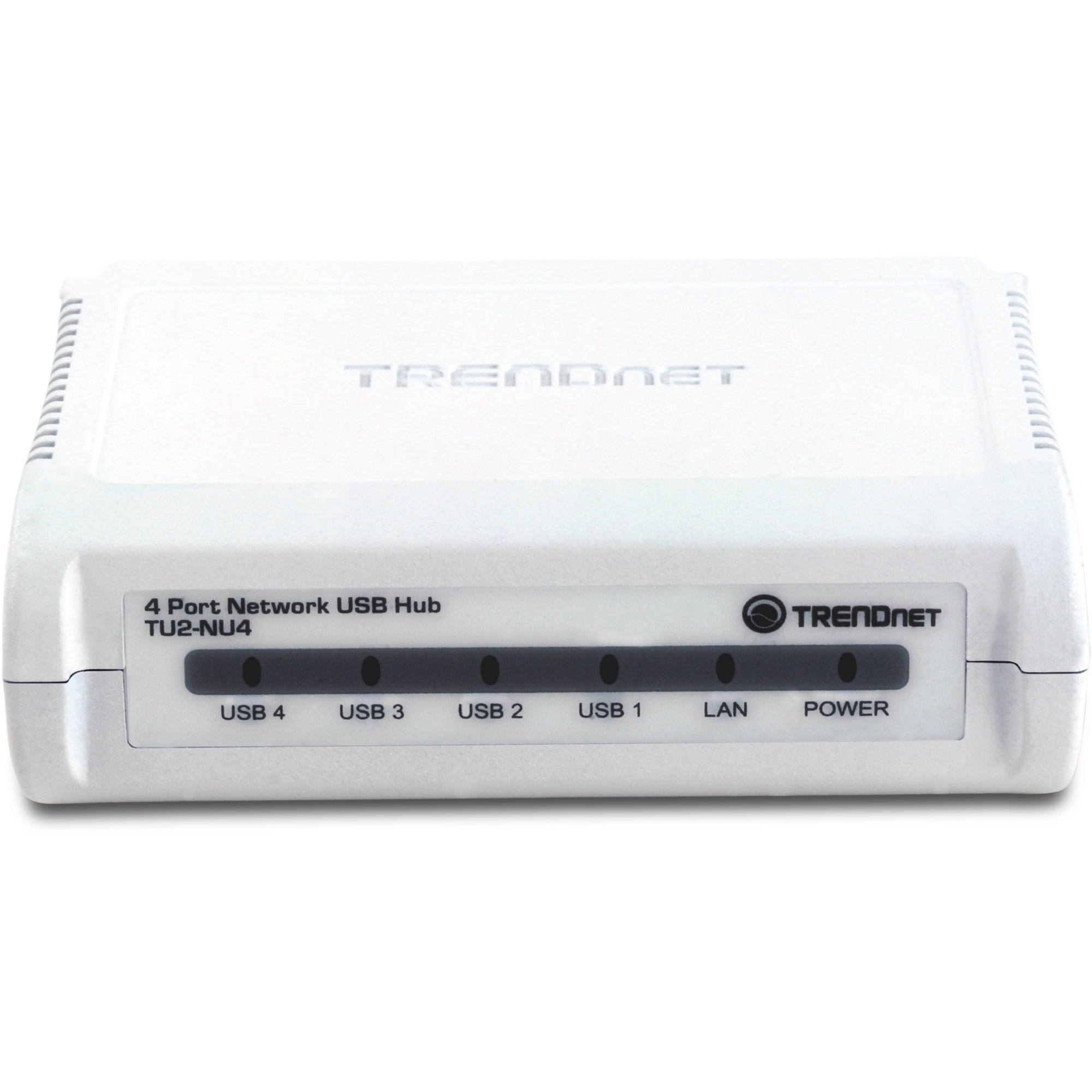

LED IndicatorsPower, LAN, USB Port 1-4
TCP/IP Protocol SupportedDHCP
Supported OSWindows 7(32/64-bit)/Vista(32/64-bit)/XP(32/64-bit)
ButtonsReset button – restores factory default settings

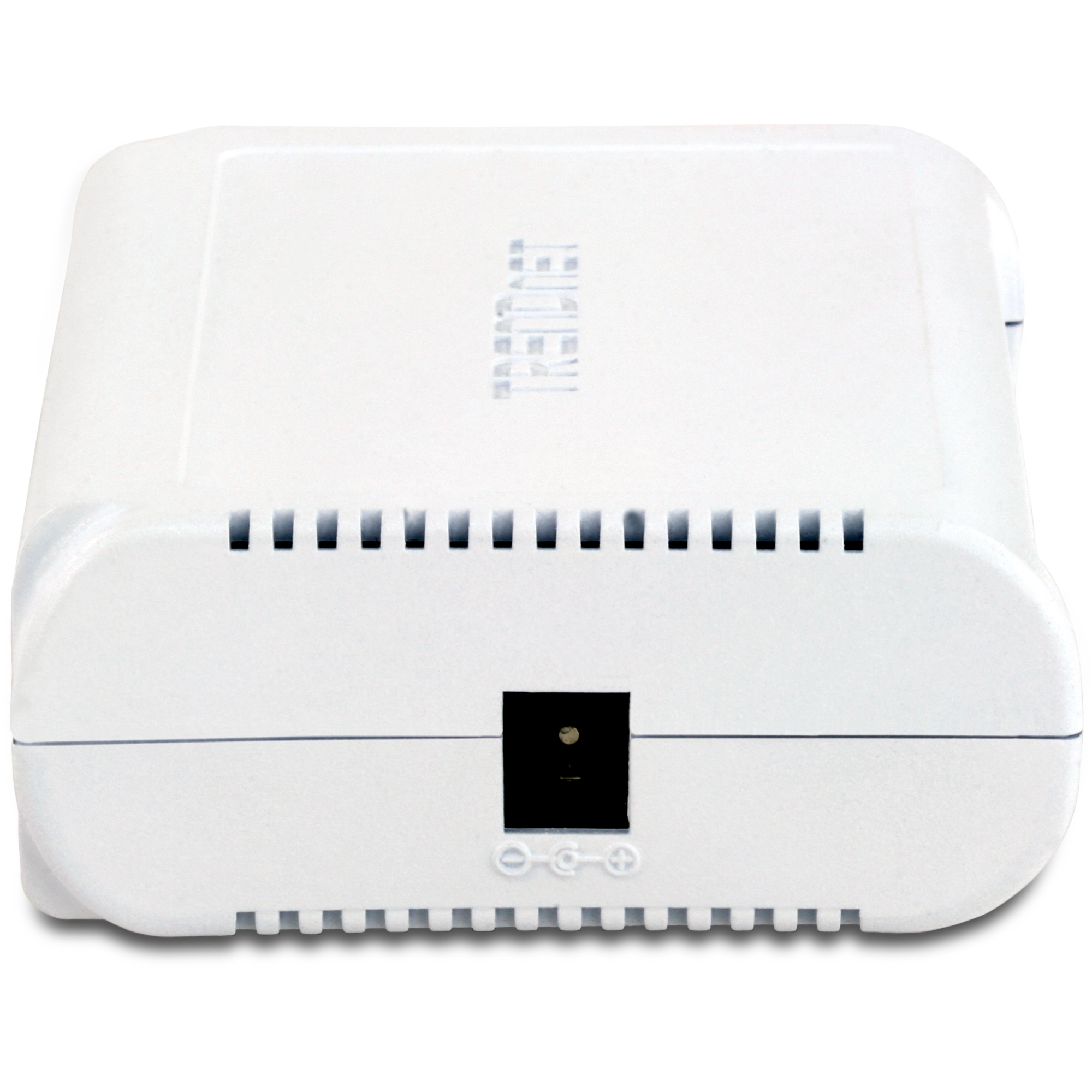

Power SupplyPower adapter 5V DC, 3A
Power Consumption1.1w (max)
Dimensions
(LxWxH)		100 x 78 x 31mm (3.93 x 3.07 x 1.22in.)
Weight128g (4.5oz)
TemperatureOperating: 0~55°C (32-131 °F)
Storage: -10~70°C (14-158 °F)
HumidityOperating: 10%~90% (non-condensing)
Storage: 5%~90% (non-condensing)
CertificationsCE, FCC

PACKAGE CONTENTS
  • TU2-NU4
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power adapter (5V DC, 3A)
  • Cat. 5 Ethernet cable (1.5m / 5ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
