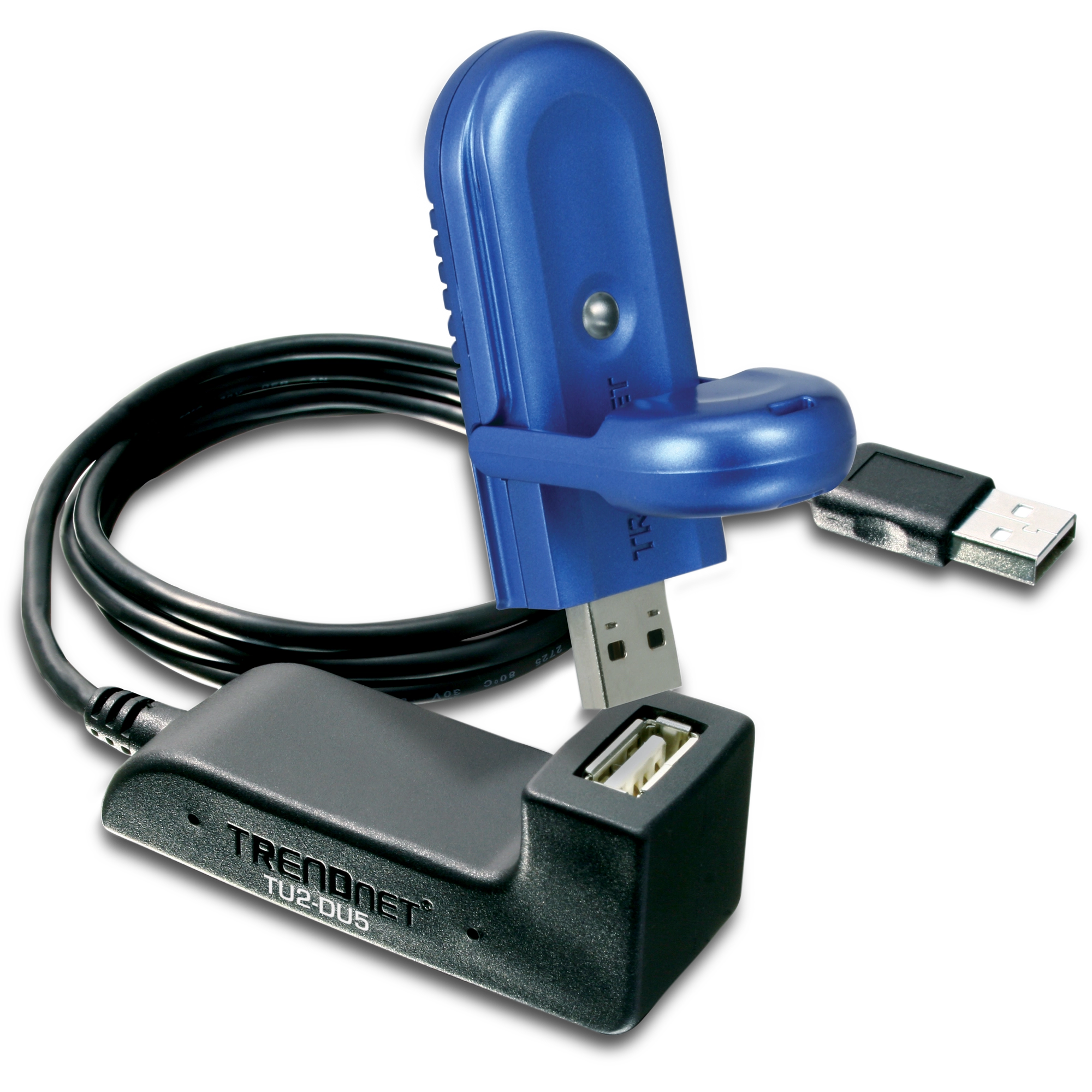

54Mbps Wireless G USB Adapter Kit

TEW-424UBK

  • Connect your PC or Laptop to a wireless network in minutes
  • Capture the strongest wireless signal strength using the 0.9 meters (3 ft.) USB Docking Cable
  • Protect your wireless network with advanced wireless encryption
  • Use the USB Docking Cable to connect other USB devices

DISCONTINUED PRODUCT

The TEW-424UBK  has been discontinued. It has been replaced by the TEW-809UB (Version v1.0R). For a list of discontinued products, click here.

Drivers

Driver
Filename: UtilityDriver_TEW-424UB_UBKv3(CD3.13).zip
SHA-1 Checksum: E375BE0893B54C71A511EAD88D2A6CCD0A683771
Date: 7/26/2017
File Size: 89.55 MB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-424UBK(V3.1R).pdf
Date: 7/24/2009
File Size: 549.85 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-424UBK(V3.1R).pdf
Date: 7/24/2009
File Size: 551.21 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-424UBK(V3.1R).pdf
Date: 7/24/2009
File Size: 551.08 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-424UBK(V3.1R).pdf
Date: 7/24/2009
File Size: 549.21 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEW-424UBK(V3.1R).pdf
Date: 7/24/2009
File Size: 1.36 MB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TEW-424UBK(V3.1R).pdf
Date: 5/16/2013
File Size: 545.22 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TEW-424UB(V3.1.1).pdf
Date: 4/1/2008
File Size: 665.65 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TEW-424UB(V3.1.1).pdf
Date: 4/1/2008
File Size: 666.35 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TEW-424UB(V3.1.1).pdf
Date: 4/1/2008
File Size: 660.22 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TEW-424UB(V3.1.1).pdf
Date: 4/1/2008
File Size: 663.72 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TEW-424UB(V3.1.1).pdf
Date: 4/1/2008
File Size: 803.03 KB
Download

User's Guide

User's Guide (English)
Filename: UG_TEW-424UB_v3.1R.pdf
Date: 2/26/2008
File Size: 1.53 MB
Download

Product Images

JPEG Image
File Size: : 416.69 KB
Date: : 2/27/2008
Download
TIFF Image
File Size: : 3.96 MB
Date: : 2/27/2008
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Interface
  • USB 2.0, 1.1, 1.0 Compliant
Standards
  • IEEE 802.11b and IEEE 802.11g
Antenna
  • 2dBi Integrated Printed Antenna
LED Indicator
  • Link
Power Consumption
  • Receive Mode: 280mA
  • Transmit Mode: 410mA
Supported OS
  • Windows 98SE, ME, 2000, XP(32-bit), Vista (32/64-bit), Mac OS X 10.4/10.5
Dimensions (LxWxH)
  • 80 x 30 x 12 mm (3.1 x 1.2 x 0.5 inches)
Weight
  • 15 g (0.5 oz.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • 10% ~ 95% max (Non-condensing)
Certification
  • FCC, CE, ETS
Wireless
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Frequency
  • 2.412 to 2.484 GHz (Industrial Scientific Medical Band)
Media Access Protocol
  • CSMA/CA with ACK
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • **6Mbps for 802.11g using USB 1.1 or 1.0 Connection
Output Power
  • 18dBm (typically) @ 802.11b
  • 15dBm (typically) @ 802.11g
Receiving Sensitivity
  • 54Mbps 10% PER @ -68 dBm (typical)
  • 11Mbps 8% PER @ -83 dBm (typical)
Security
  • 64/128-bit WEP (Hex/ASCII), WPA-PSK/WPA2-PSKWPA / WPA2 (Windows 2000 / XP only)
Channels
  • 1~11 channel (FCC), 1~13 channel (ETSI)

PACKAGE CONTENTS
  • TEW-424UB
  • Quick Installation Guide
  • Utility & Driver CD-ROM
  • TU2-DU5

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
