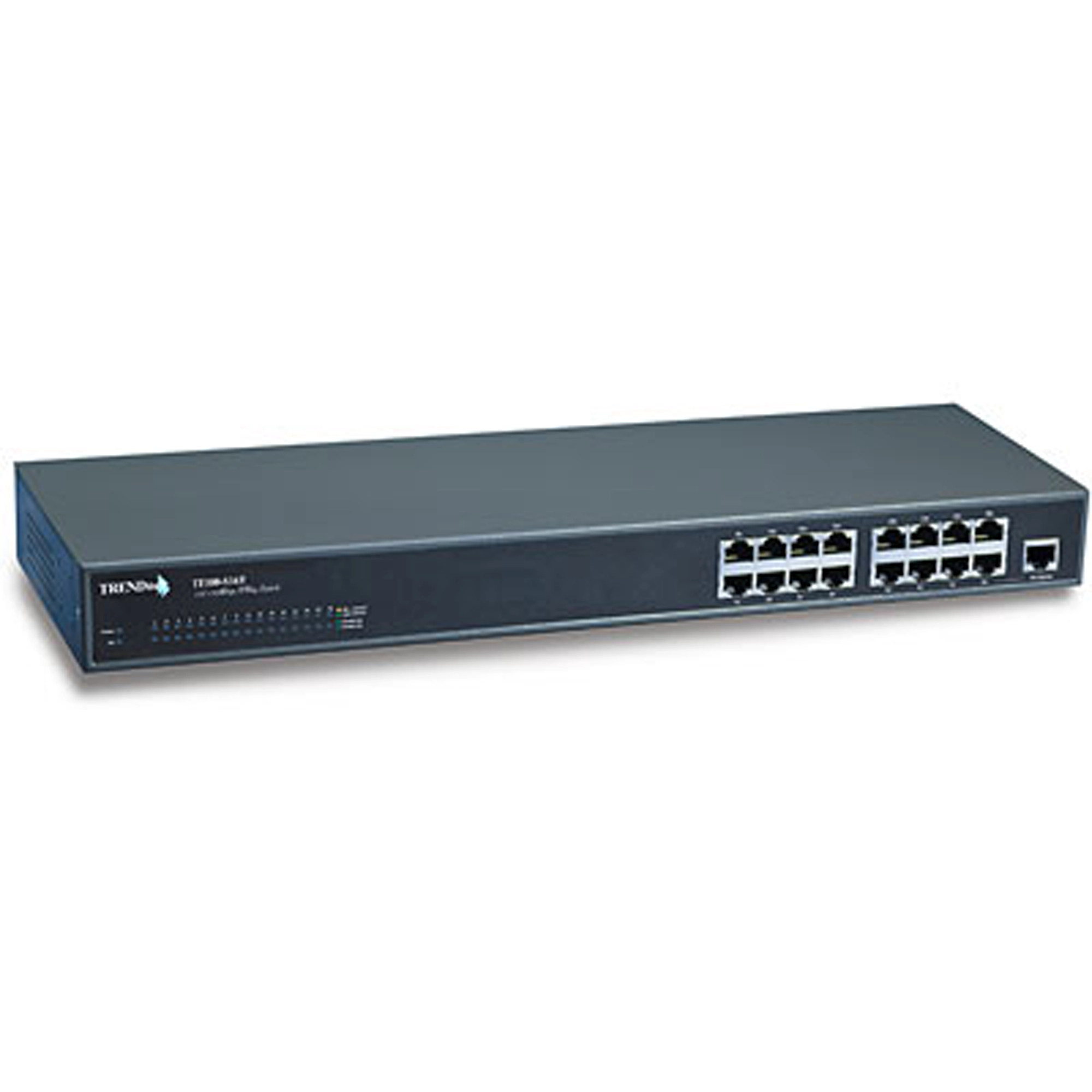

16-Port 10/100Mbps NWay Fast Ethernet Switch

TE100-S16R   (Version 1.0)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S16R (Version 1.0) has been discontinued. It has been replaced by the TEG-S16Dg (Version v2.1R). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S16R.pdf
Date: 5/2/2013
File Size: 171.52 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S16R.pdf
Date: 8/20/2004
File Size: 170.63 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX/100Base-FX ANSI/IEEE 802.3 NWay auto-negotiation
Connectors:
  • 16 10/100Mbps shielded RJ45 MDI-X ports; one MDI-II Uplink port shared with port 8
Network Cables:
  • CAT 3, 4, 5 UTP/STP for 10Base-T; CAT 5 UTP/STP for 100Base-TX
Protocols:
  • CSMA/CD
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
  • Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
Data RAM Buffers:
  • 512Kbytes per device
Filtering Address Table:
  • 16K entries per device
Internal Power Adapter:
  • 100~240 VAC, Universal Power Supply
Diagnostic LEDs:
  • Power, FX, Link/Act, FDX/COL
Weight:
  • 2.11 Kg (4.66 lb.)
Dimensions:
  • 440 x 140 x 44 mm (17.3 x 5.51 x 1.73 inch) (W x H x D)
Temperature:
  • Operating: -10° ~ 50°C (14° ~ 122°F)
  • Storage: -10° ~ 70°C (14° ~ 158°F)
Humidity:
  • Operating: 10% ~ 90% RH
  • Storage: 5% ~ 90% RH
Emission:
  • FCC Class A, CE Mark A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
