10 Gigabit PCIe SFP+ Network Adapter

TEG-10GECSFP   (Version v1.0R)

   Select Another Version
  • Converts a PCIe slot into a 10G SFP+ Slot
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows® and Linux® support

DISCONTINUED PRODUCT

The TEG-10GECSFP (Version v1.0R) has been discontinued. It has been replaced by the TEG-10GECSFP (Version v2.0R). For a list of discontinued products, click here.

Drivers

Drivers/Utility (VMwareOS)

Release Version: 1.0.1
Release Date: 5/2017
OS Compatibility: VMware ESXi 5.x/6.0

  • Initial Release


Filename: Driver(VMwareOS)_TEG-10GECSFP_v1(1.01).tar.gz
SHA-1 Checksum: 41A8ED80AD9881FE8FDB039A117D218D00BF931D
Date: 1/4/2019
File Size: 1.56 MB
Download
Drivers/Utility (Linux)

Release Version: 1.0.1
Release Date: 5/2017
OS Compatibility: Linux 2.6.x, 3.x.x, 4.6.x

  • Initial Release


Filename: Driver(LinuxOS)_TEG-10GECSFP_v1(1.01).tar.gz
SHA-1 Checksum: EB8CB614A3A3FF423D568607BEE146D89FEF4E70
Date: 1/4/2019
File Size: 425.10 KB
Download
Drivers/Utility (Windows)

Release Version: 1.0.1
Release Date: 5/2017
OS Compatibility: Windows 10/8.1/8/7, Windows Server 2012/2012 R2/2008/2008 R2 (32-bit & 64-bit)

  • Initial Release


Filename: Driver(WinOS)_TEG-10GECSFP_v1(1.01).zip
SHA-1 Checksum: 4B25AD76F12C1A0F580611563E5BCEA34B81F763
Date: 1/4/2019
File Size: 2.75 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEG-10GECSFP_(v1.0R).pdf
Date: 5/23/2017
File Size: 1.11 MB
Download Email

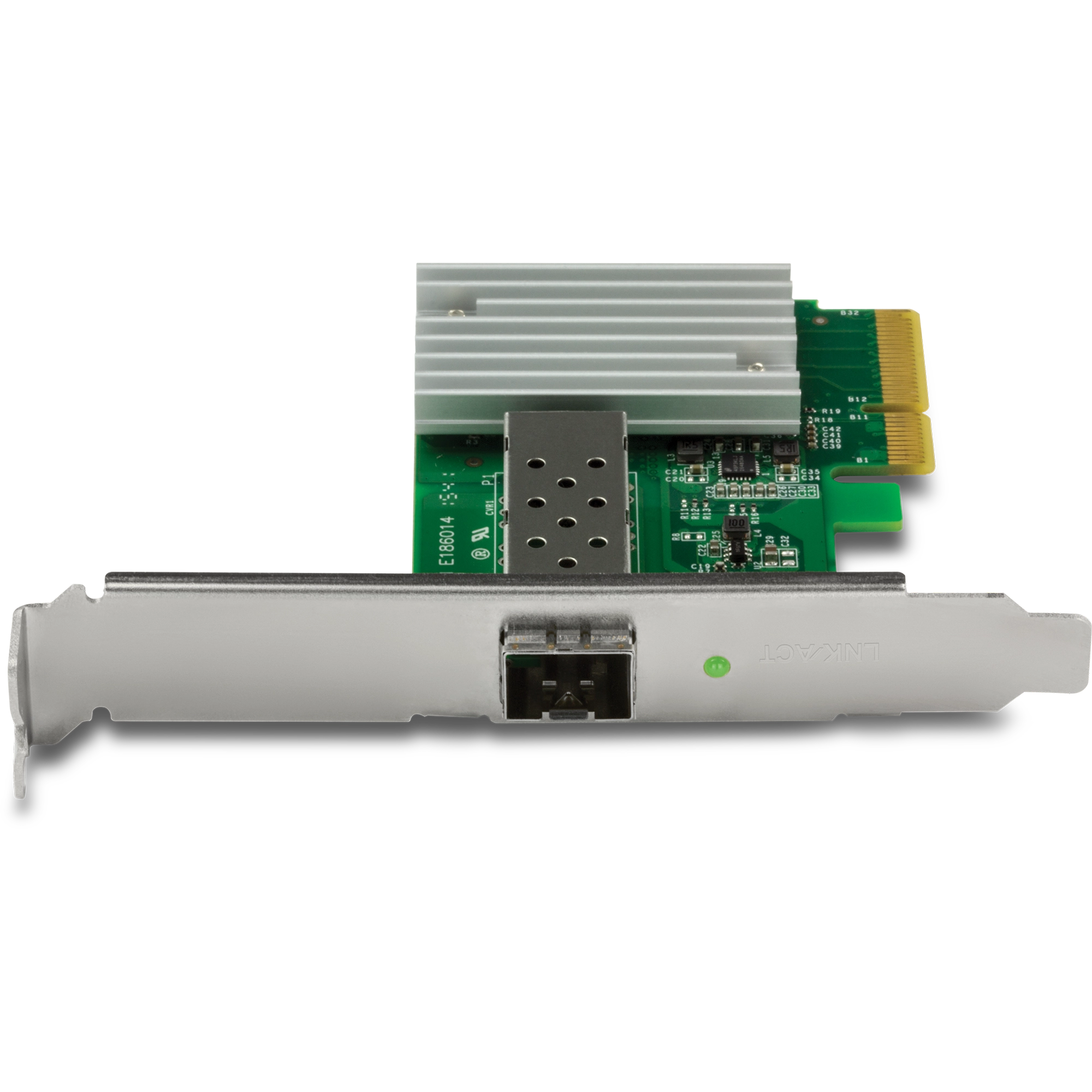

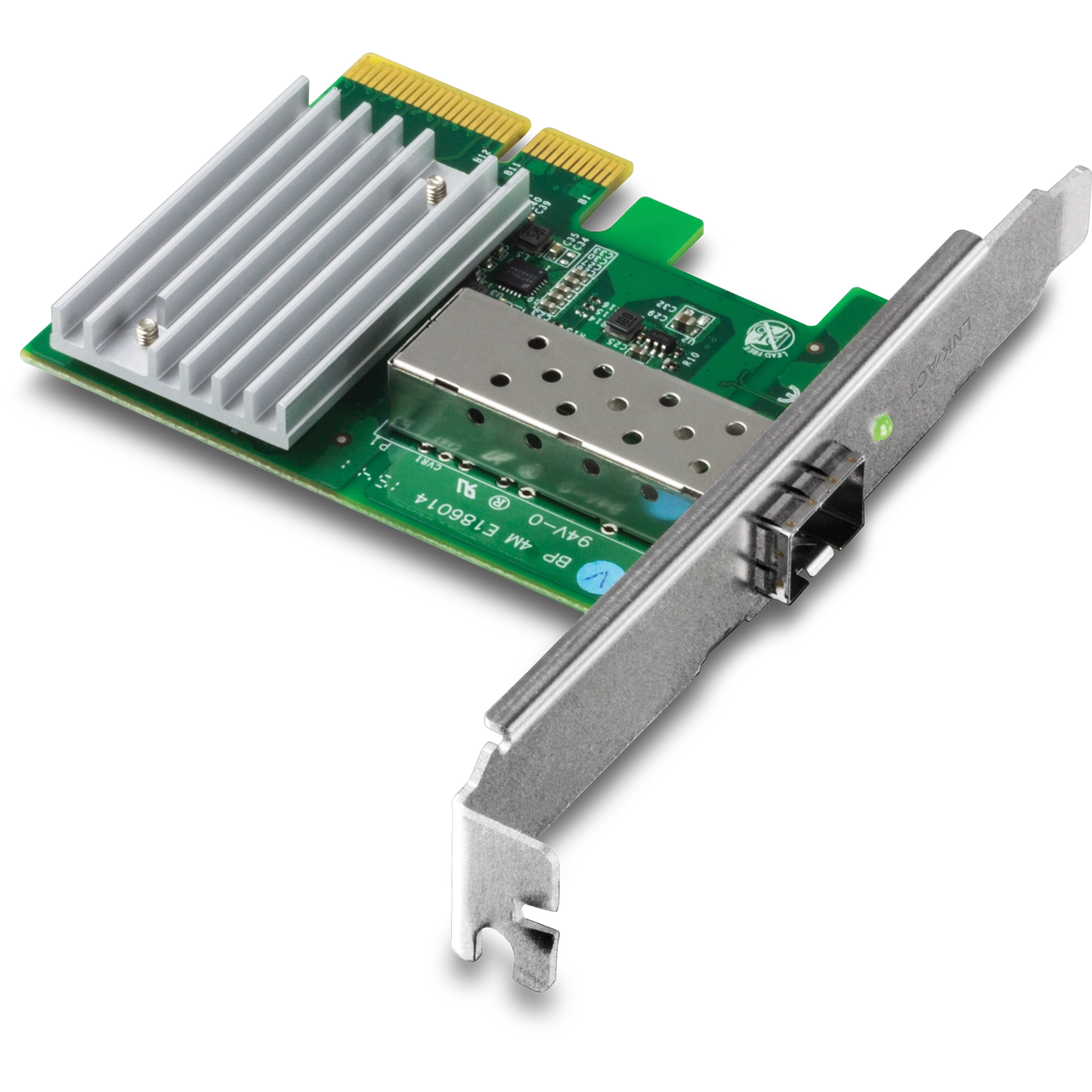

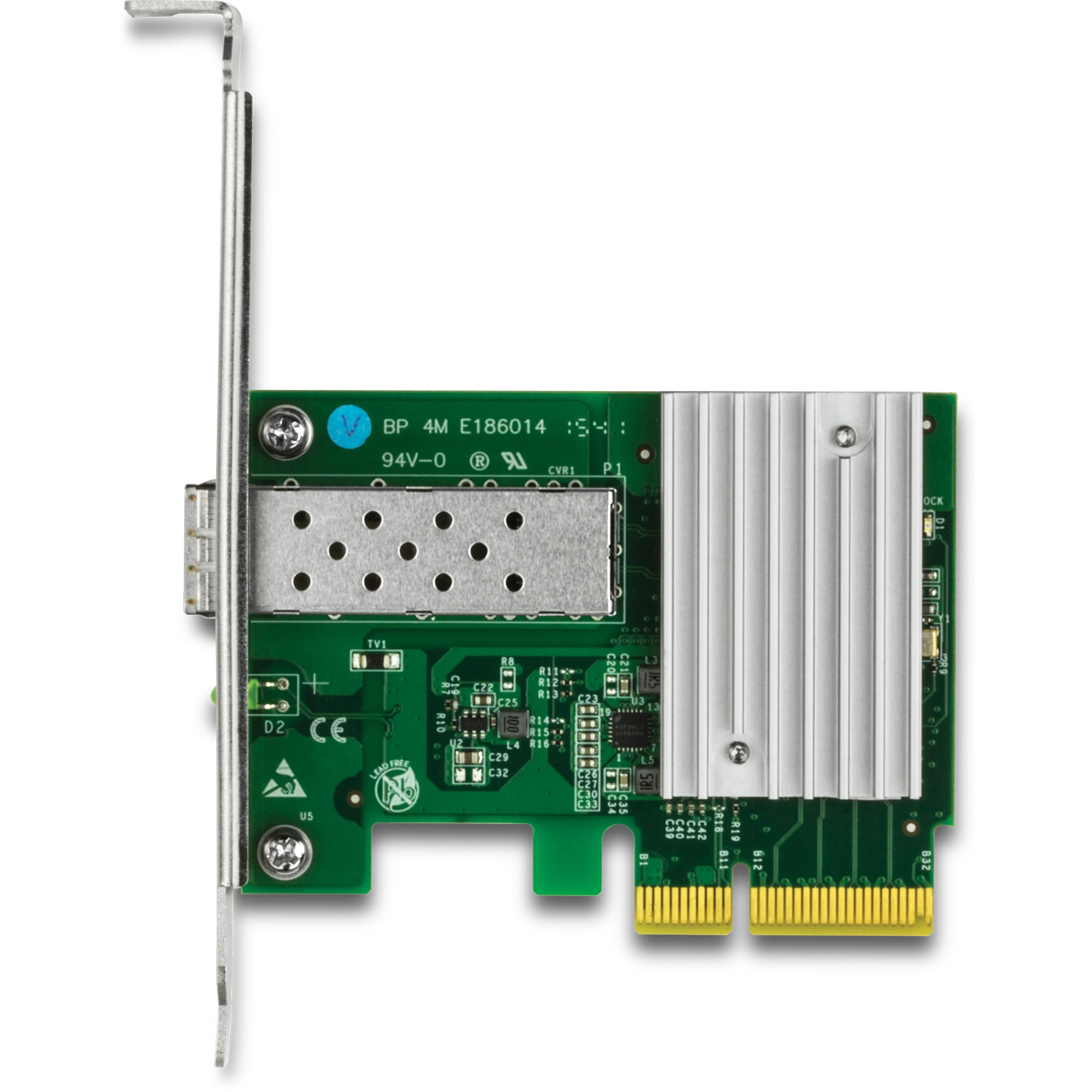

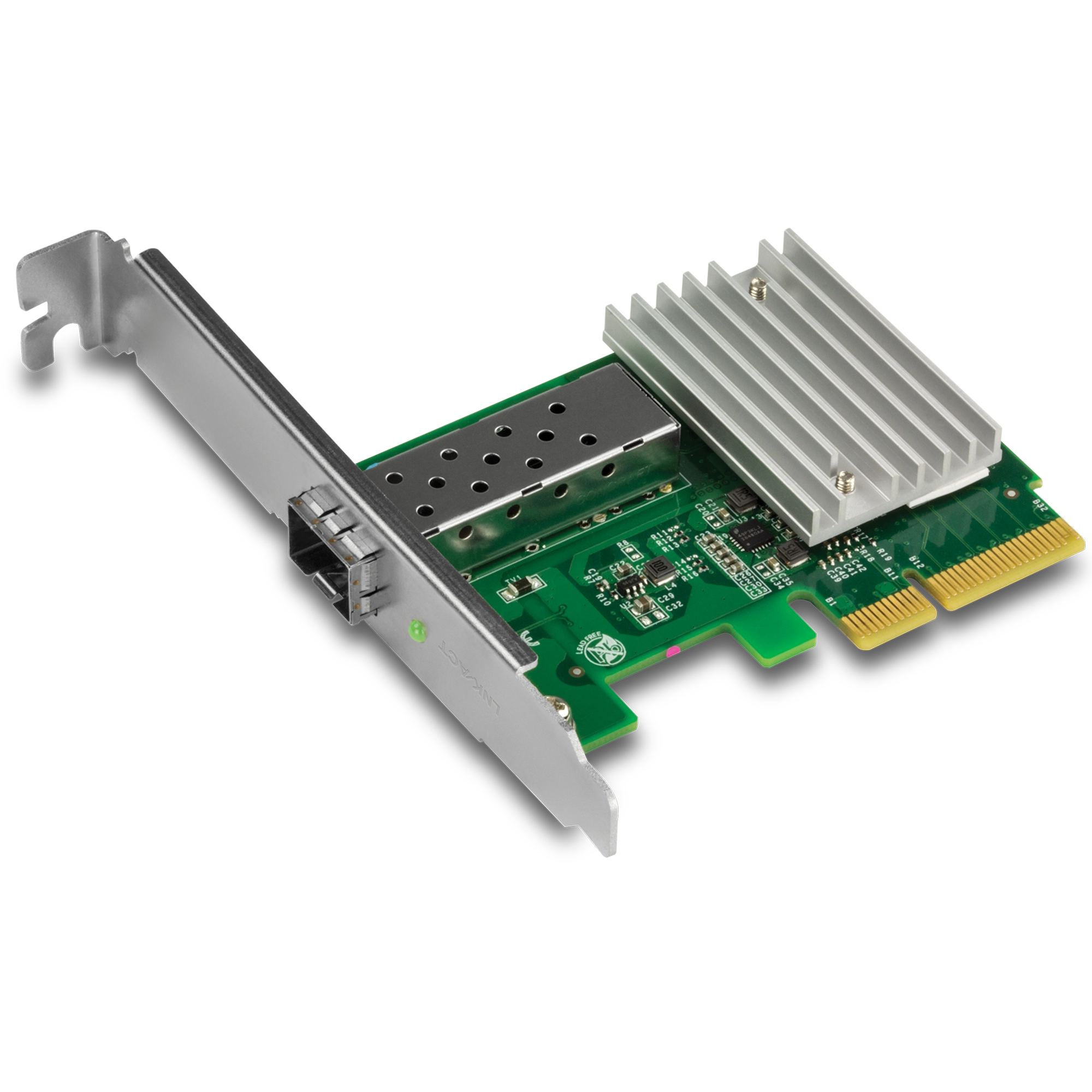

Product Images

PNG Image
File Size: : 2.51 MB
Date: : 1/11/2017
Download
PNG Image
File Size: : 1.60 MB
Date: : 1/11/2017
Download
PNG Image
File Size: : 1.68 MB
Date: : 1/11/2017
Download
PNG Image
File Size: : 2.33 MB
Date: : 1/11/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3ae
  • IEEE 802.3ad
  • IEEE 802.1Q
Hardware Interface
  • PCIe 2.0 x4 interface
  • 1 x 10Gbps SFP+ slot (SFP+ modules sold separately: TEG-10GBSR, TEG-10GBS10, TEG-10GBS40)
  • LED indicator
  • Standard and low profile brackets
Compatibility
  • Windows® 10, 8.1, 8, 7
  • Windows® Server 2012, 2012 R2, 2008, 2008 R2
  • Linux® 2.6.x, 3.x.x, 4.6.x or later
  • VMware® ESXi™ 5.x/6.x & Hyper-V®
Jumbo Frames
  • Up to 16 KB
Special Features
  • 10G SFP+ for high speed network connectivity
  • Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables
  • Windows Server support
  • VMware® ESXi™ 5.x/6.x & Hyper-V® hypervisor support for virtualization
Additional Support
  • 802.3ad LACP NIC teaming
  • 802.1Q VLAN Tagging
  • Microsoft Scalable Networking
  • Receive-side scaling (RSS)
  • Message Signaled Interrupts (MSI)
  • IP, TCP, and UDP checksum offloading
  • Minimize overhead with reduced host bus traffic and CPU utilization
Power
  • Consumption: 4.12 W max.
Operating Temperature
  • 0 - 50 °C (32 – 122 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 87 x 63 x 18 mm (3.4 x 2.5 x 0.7 in.)
Weight
  • 58 g (2 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-10GECSFP
  • Quick Installation Guide
  • CD-ROM (Driver & User's Guide)
  • Standard & low profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
