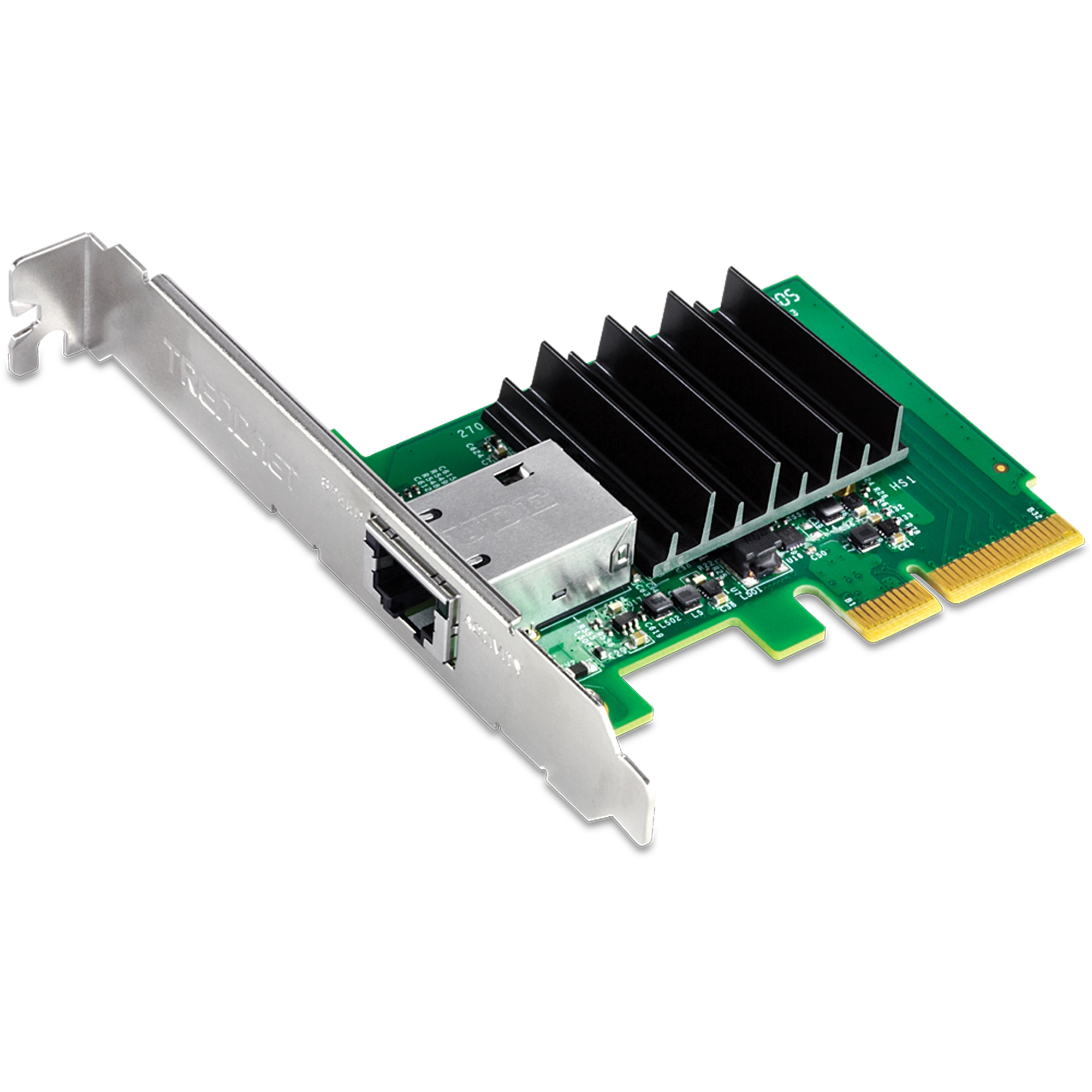

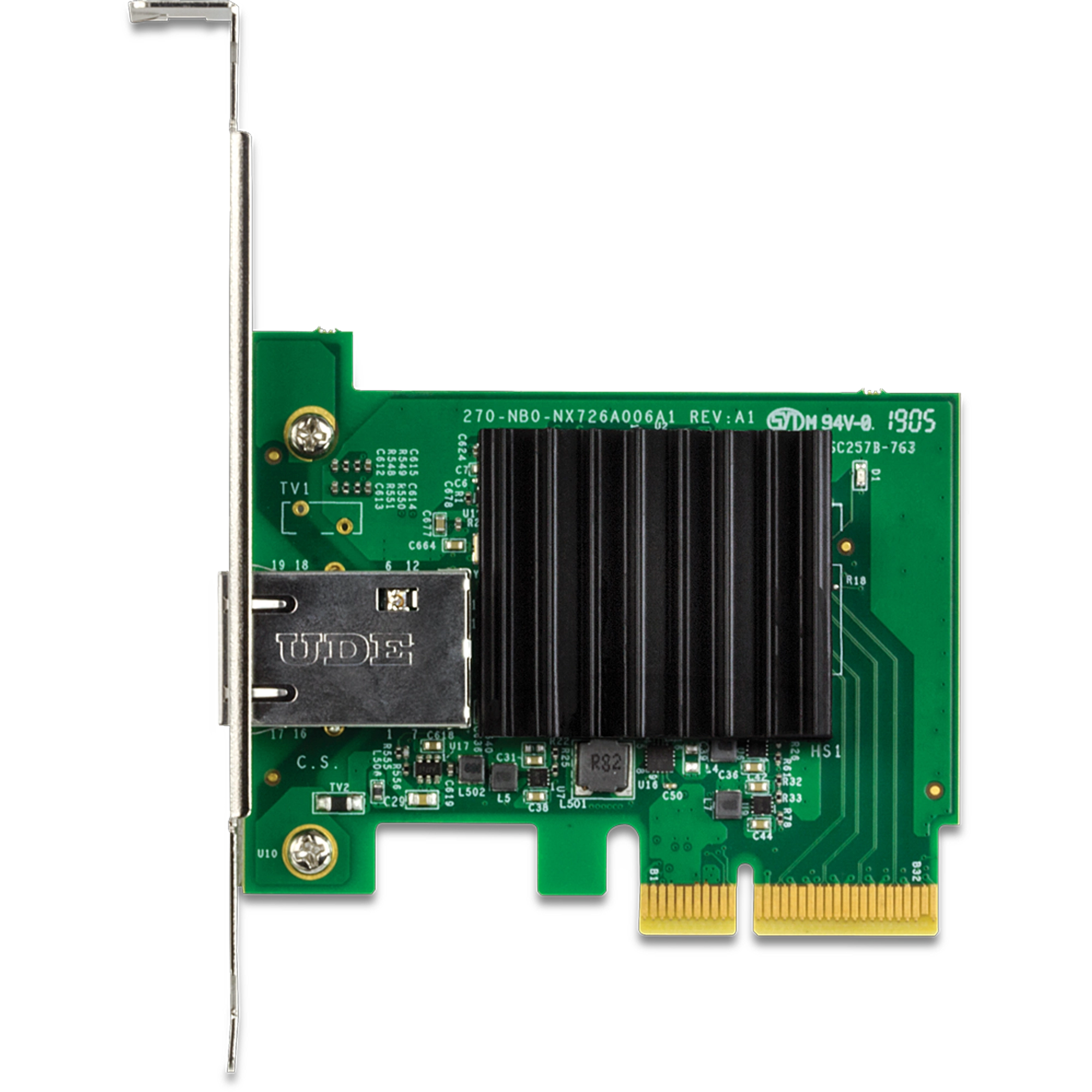

10 Gigabit PCIe Network Adapter

TEG-10GECTX   (Version v2.0R)

   Select Another Version
  • Converts a PCIe slot into a 10G Ethernet Port
  • Supports 802.1Q VLAN Tagging

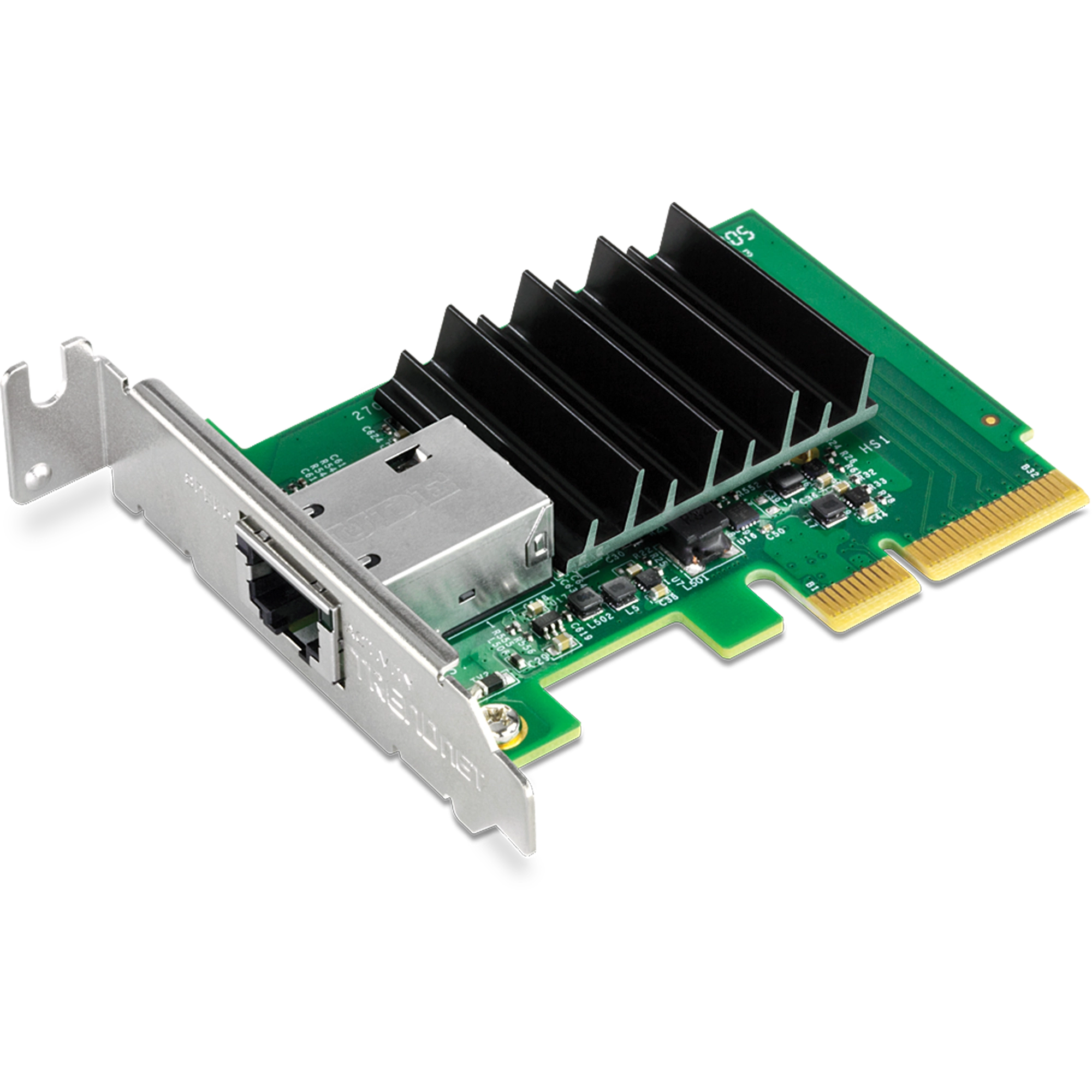

  • Includes standard and low-profile brackets
  • Windows® support
  • IEEE 802.3an and 802.3bz compliant

DISCONTINUED PRODUCT

The TEG-10GECTX (Version v2.0R) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

Drivers

Drivers (Windows)

Drivers (Windows)
Release Version: v1.00
Release Date: 3/2020
OS Compatibility: Windows 10, 8.1, 7 (32-bit & 64-bit), Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Hyper-V

  • Initial Release


Filename: driver(winOS)_TEG-10GECTX_v2.zip
SHA-1 Checksum: C7B61E585030CAA1463436D567938FA6939EB8DD
Date: 3/12/2020
File Size: 3.16 MB
Download
Drivers (Linux)

Drivers (Linux)
Release Version: 1.2020
Release Date: 3/2019
OS Compatibility: Linux®2.6.32 – 4.20, 5.0.0 – 5.1.x


Filename: Driver(Linux)_TEG-10GECTX_v2(1.00).gz
SHA-1 Checksum: AFDB565EAE73B4F27A935DDF8DE9921C0023E0F7
Date: 6/19/2020
File Size: 345.69 KB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.32 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.34 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.30 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.23 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.23 MB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.33 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEG-10GECTX_(V2.0R).pdf
Date: 6/8/2021
File Size: 1.29 MB
Download Email

Quick Installation Guide

Quick Installation Guide (QIG)
Filename: Lineart_TEG-10GECTX _TEG-25GECTX(V2).pdf
Date: 9/20/2021
File Size: 3.23 MB
Download
Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz 2.5G/5GBASE-T
  • IEEE 802.3an 10GBASE-T
  • IEEE 802.3ad
  • IEEE 802.1Q
Hardware Interface
  • PCIe 3.0 x4 interface
  • 1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps)

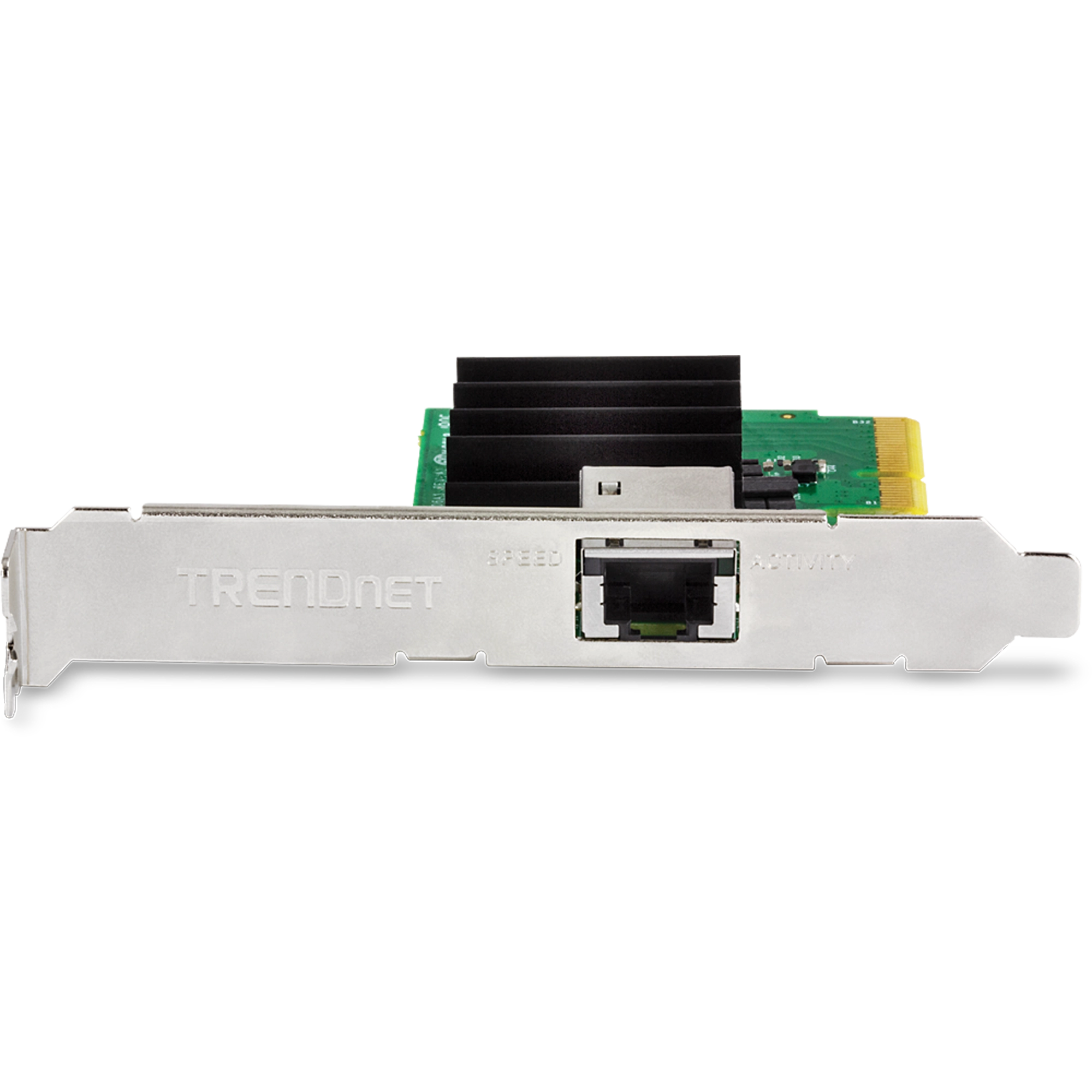

  • LED indicators
Cable Requirements
  • 10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A or Cat7 twisted pair @ 100 m / 328 ft. (max.)
  • 5GBASE-T (5Gbps): Cat6 twisted pair @ 100m / 328 ft. (max.)
  • 2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
  • 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
  • 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m / 328 ft. (max.)
Compatibility
  • Windows® 10, 8.1, 7
  • Windows® Server 2016, 2012, 2012 R2, 2008 R2
  • VMware® ESXi™ 5.1/5.5/6.5
  • Microsoft® Hyper-V
Jumbo Frames
  • Up to 9KB
Special Features
  • 10GBASE-T (10Gbps) & 2.5G/5GBASE-T (2.5Gbps/5Gbps) support for high speed network connectivity
  • Windows Server support
  • VMware® ESXi™ 5.1/5.5/6.5 & Microsoft® Hyper-V hypervisor support for virtualization
Additional Support
  • 802.3ad LACP NIC teaming
  • 802.1Q VLAN Tagging
  • Microsoft Scalable Networking
  • Receive-side scaling (RSS)
  • Message Signaled Interrupts (MSI)
  • IP, TCP, and UDP checksum offloading
  • Minimize overhead with reduced host bus traffic and CPU utilization
Power
  • Max. consumption: 6.1W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 84 x 63 x 18mm (3.3 x 2.5 x 0.7 in.)
Weight
  • 62g (2.2 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-10GECTX
  • Quick Installation Guide
  • CD-ROM (Driver)

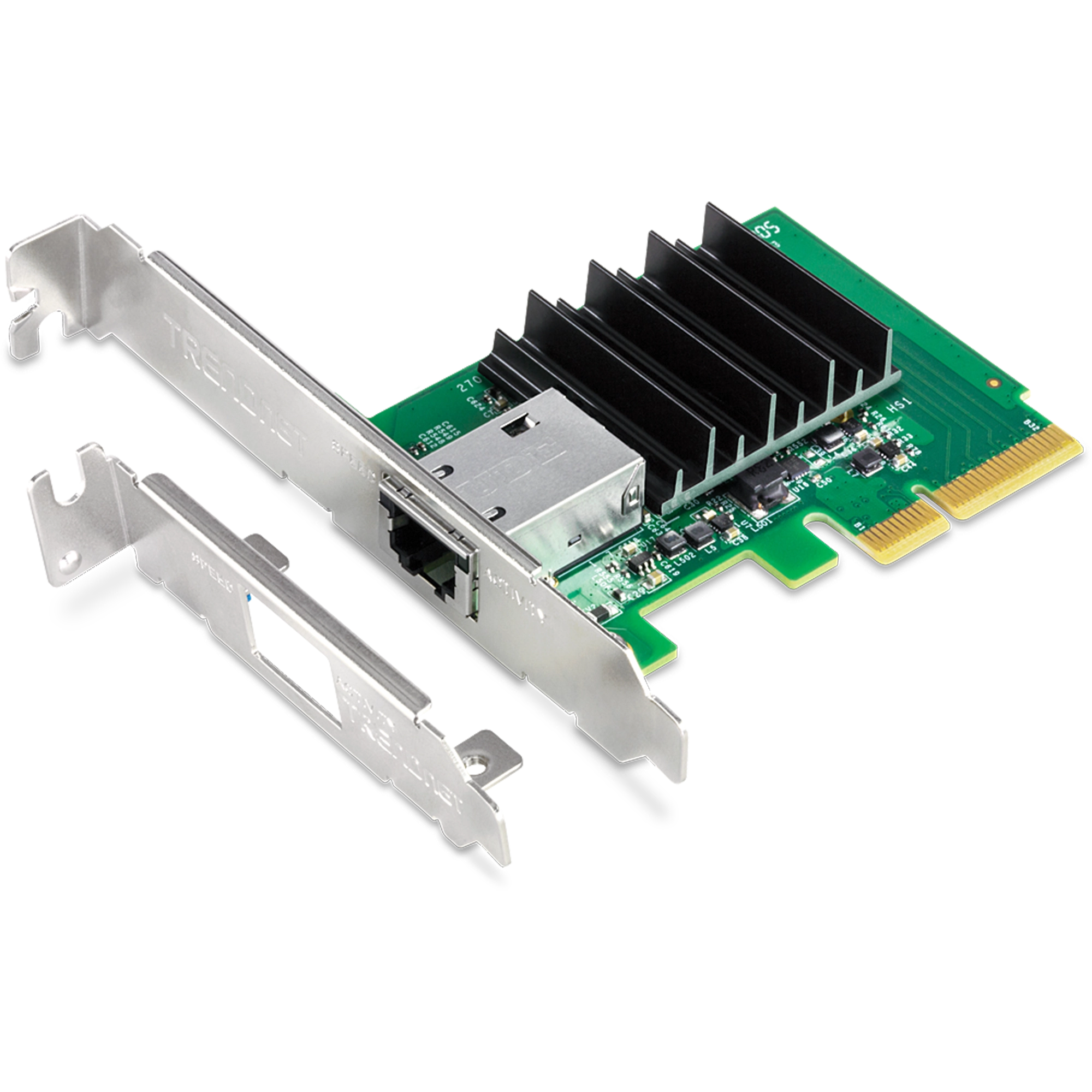

  • Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
