Universal USB 3.0 Docking Station

TU3-DS2   (Version v1.1R)

   Select Another Version
  • Unlock laptop or ultrabook workstation efficiency
  • Quick computer docking
  • Extend your visual workspace with two additional HD displays*
  • Gigabit wired network connection
  • Connect peripheral devices to the USB 3.0 and USB 2.0 ports**
  • Two way audio support
  • Windows® and Mac® (10.9 - 10.15) compatible

DISCONTINUED PRODUCT

The TU3-DS2 (Version v1.1R) has been discontinued. It has been replaced by the TUC-DS1 (Version v1.0R). For a list of discontinued products, click here.

Drivers/Utility

Drivers/Utility (MAC)
Filename: Driver_TU3-DS2_(Mac).zip
SHA-1 Checksum: C997B4BAD8DC031F1814D109FCB67B53C39C2FBA
Date: 1/2/2020
File Size: 10.73 MB
Download
Drivers/Utility (Windows)
Filename: Driver_TU3-DS2_(Windows).zip
SHA-1 Checksum: D60B903F58B2CCF86620B6B1BF1DC9DD568FBF19
Date: 1/2/2020
File Size: 61.61 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.13 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.11 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.11 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.11 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.13 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.09 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TU3-DS2(v1.0R).pdf
Date: 6/18/2018
File Size: 1.12 MB
Download Email

User's Guide

User's Guide
Filename: UG_TU3-DS2(V1.0R).pdf
Date: 4/20/2017
File Size: 1.43 MB
Download

Product Images

PNG Image
File Size: : 1.05 MB
Date: : 4/24/2018
Download
PNG Image
File Size: : 1.51 MB
Date: : 4/24/2018
Download
PNG Image
File Size: : 933.44 KB
Date: : 4/24/2018
Download
PNG Image
File Size: : 1.03 MB
Date: : 4/24/2018
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • DVI HDDE
  • HDMI 1.3
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
  • USB 2.0
  • USB 3.0

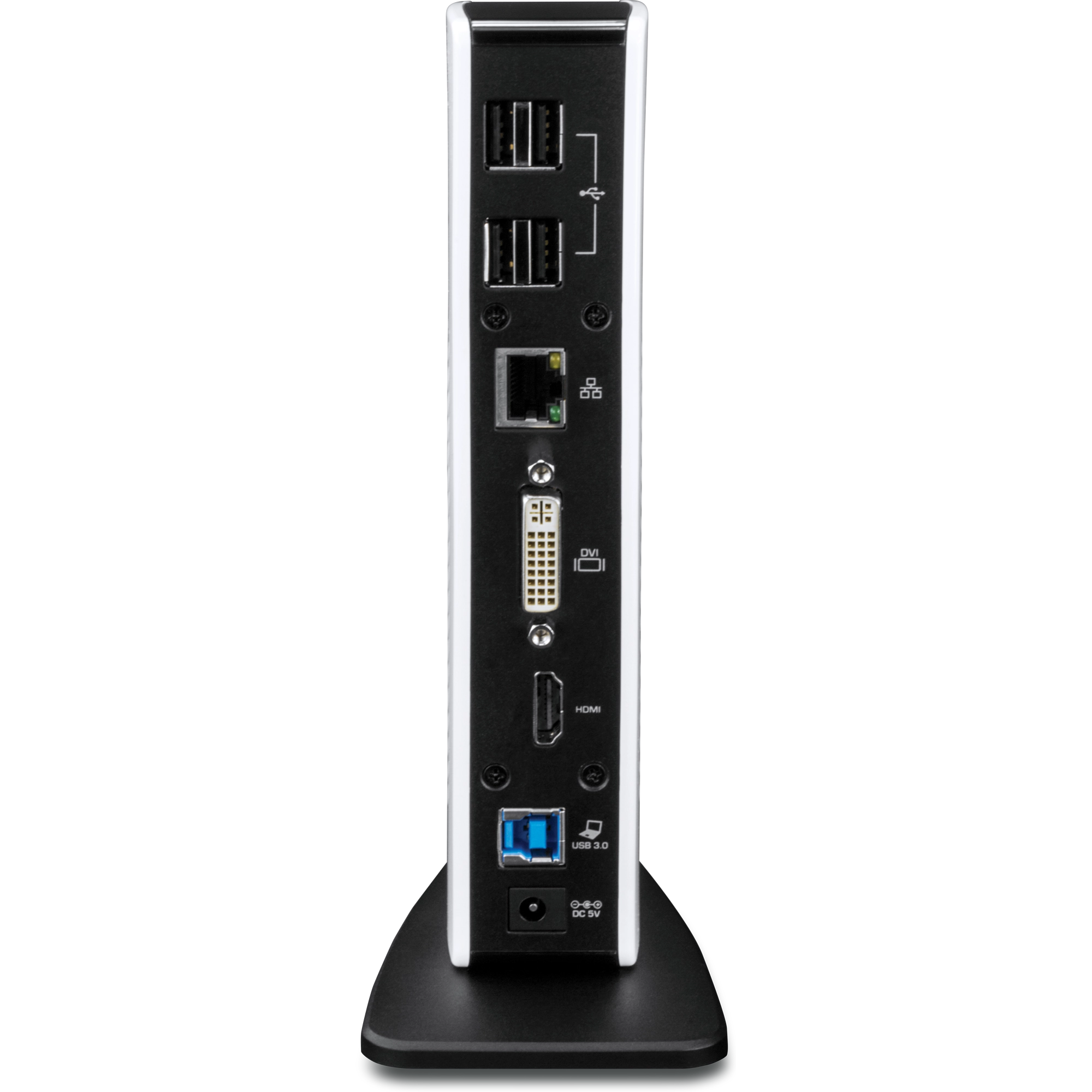

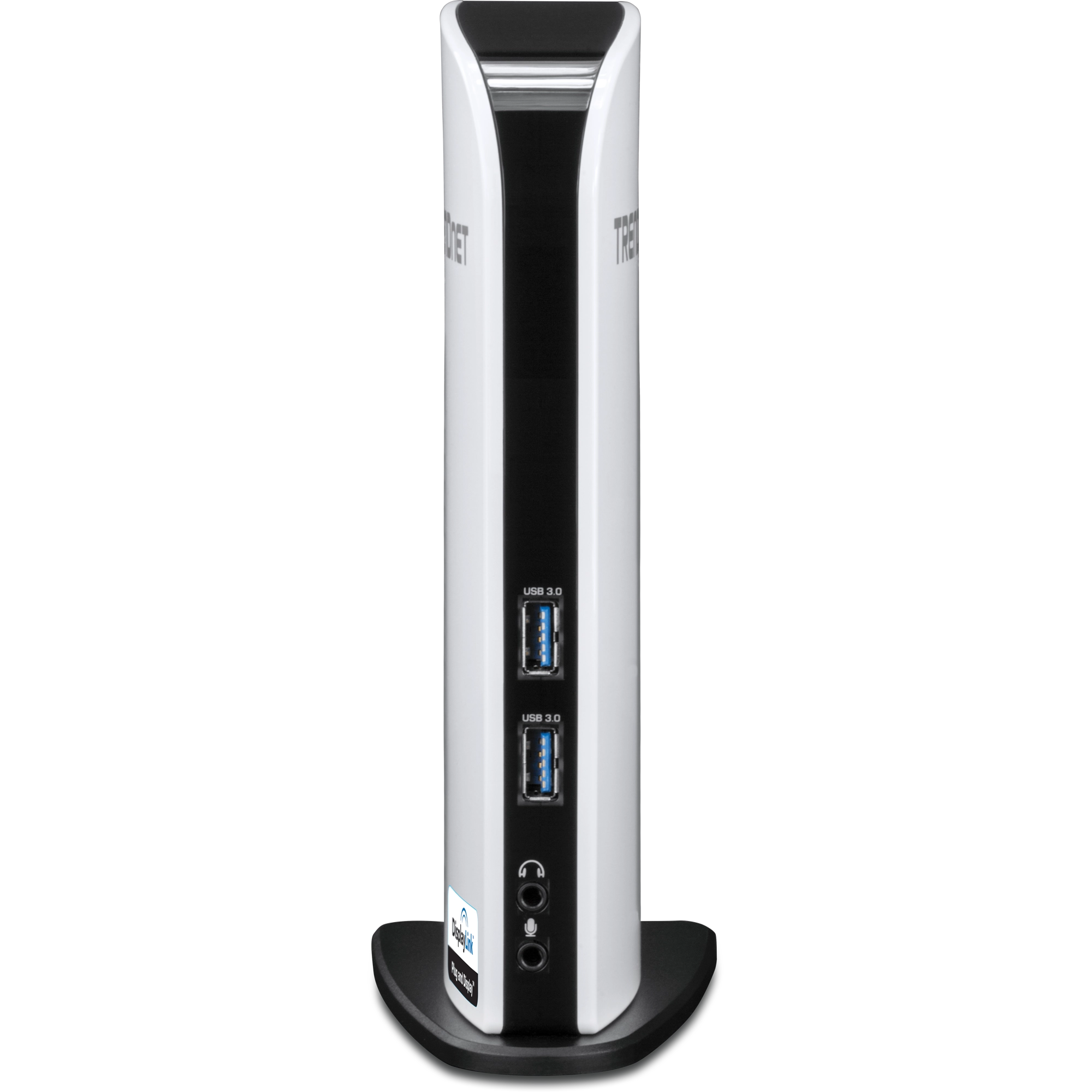

Interface
  • 1 x HDMI 30-pin female
  • 1 x DVI 30-pin female
  • 1 x VGA to DVI adapter
  • 1 x Gigabit Ethernet port
  • 1 x Type B USB 3.0 port (computer connection)
  • 2 x Type A USB 3.0 ports
  • 4 x Type A USB 2.0 ports
  • 1 x 3.5 mm microphone jack
  • 1 x 3.5 mm speaker jack
  • LED indicators
Monitor
  • HDMI: Max. QXGA 2048 x 1536 resolution (supports full 1080p)
  • DVI: Max. 2048 x 1152 resolution
  • 16-bit and 32-bit true color support
Audio
  • 2.0 Channel (audio ports)
  • 5.1 Channel (over HDMI)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 - 240 V AC, 50/60 Hz, 0.8 A
  • Output: 5 V DC, 4 A external power adapter
  • Consumption: 18.2 Watts (max.)
Dimensions
  • 195 x 80 x 70 mm (7.7 x 3 x 2.75 in.)
Weight
  • 364 g (12.8 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TU3-DS2
  • Quick Installation Guide
  • CD-ROM (Drivers & User's Guide)
  • Power adapter (5 V DC, 4 A)
  • VGA to DVI adapter
  • USB 3.0 cable (90 cm/35 in.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
