5-port 10/100Mbps Auto-MDIX Fast Ethernet Mini Switch

TE100-S55Eplus   (Version E1.0)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S55Eplus (Version E1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TE100-S55Eplus(English).pdf
Date: 1/10/2005
File Size: 931.60 KB
Download Email
Datasheet
Filename: TE100-S55Eplus_v1.pdf
Date: 5/2/2013
File Size: 186.01 KB
Download Email
Datasheet (Français)
Filename: Spec_TE100-S55Eplus(French).pdf
Date: 1/10/2005
File Size: 1.09 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TE100-S55Eplus(German).pdf
Date: 2/7/2005
File Size: 201.06 KB
Download Email
Datasheet (Español)
Filename: Spec_TE100-S55Eplus(Spanish).pdf
Date: 2/18/2005
File Size: 200.03 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 473.18 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 474.77 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 473.64 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 474.52 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 770.53 KB
Download
Quick Installation Guide (Romania)
Filename: RO_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 487.69 KB
Download

User's Guide

User's Guide (English)
Filename: UG_TE100-S55Eplus(English).pdf
Date: 11/29/2004
File Size: 4.37 MB
Download
User's Guide (Français)
Filename: UG_TE100-S55Eplus(French).pdf
Date: 11/29/2004
File Size: 2.73 MB
Download
User's Guide (Deutsch)
Filename: UG_TE100-S55Eplus(German).pdf
Date: 11/29/2004
File Size: 2.61 MB
Download
User's Guide (Español)
Filename: UG_TE100-S55Eplus(Spanish).pdf
Date: 11/29/2004
File Size: 2.80 MB
Download
User's Guide (Pусский)
Filename: UG_TE100-S55Eplus(Russian).pdf
Date: 11/29/2004
File Size: 2.61 MB
Download

Product Images

JPEG Image
File Size: : 364.04 KB
Date: : 9/8/2004
Download
TIFF Image
File Size: : 3.19 MB
Date: : 9/8/2004
Download
JPEG Image
File Size: : 321.47 KB
Date: : 9/29/2005
Download
TIFF Image
File Size: : 3.30 MB
Date: : 9/29/2005
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:

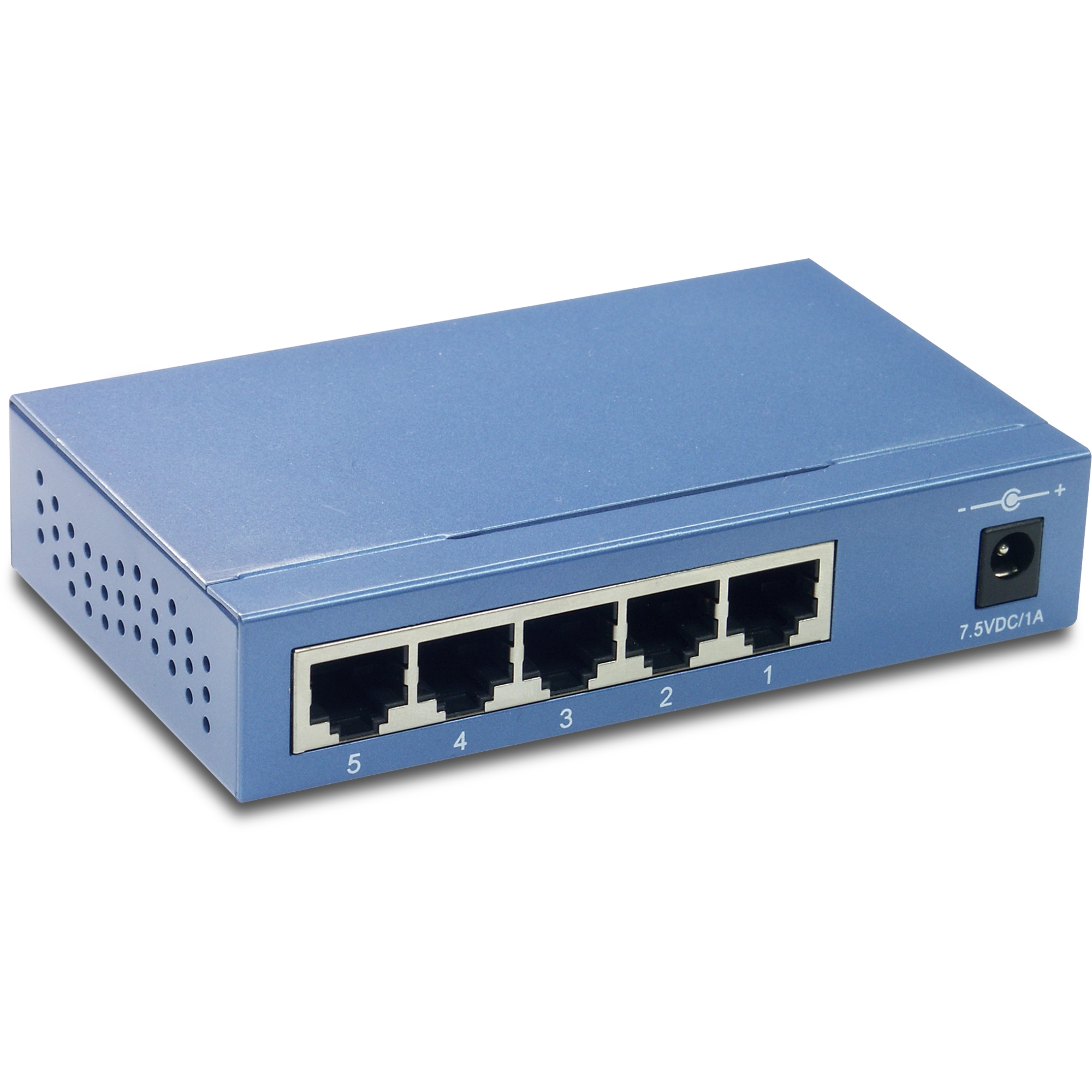

  • 5 UTP/STP RJ-45 Auto-MDIX
Network Media:
  • 10Mbps: UTP/STP Cat. 3, 4, 5 EIA/TIA-568, 100 ohm, 100 meters max.
  • 100Mbps: UTP/STP Cat. 5 EIA/TIA-568, 100 ohm, 100 meters max.
Data Transfer Rate:
  • Ethernet: 10Mbps (half-duplex); 20Mbps (full-duplex)
  • Fast Ethernet: 100Mbps (half-duplex); 200Mbps (full-duplex)
Topology:
  • Star

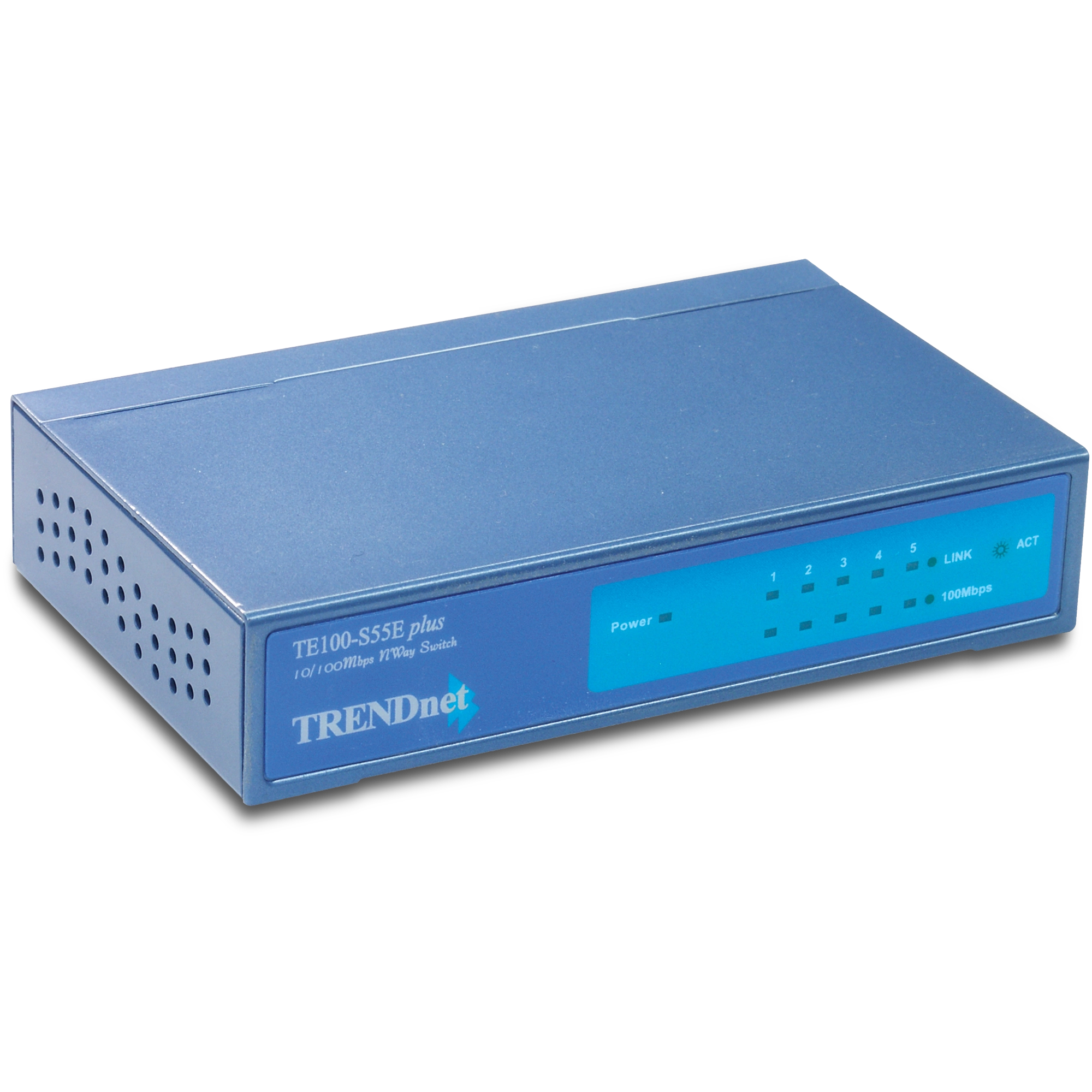

Diagnostic LEDs:
  • Power, Link/Activity, 100Mbps
Power:
  • External power supply, 7.5V, 1A. 2.5 Watts (max.)
Dimensions:
  • 125 x 65 x 30 mm (4.9 x 2.55 x 1.1 inches)
Weight:
  • 234 g (8 oz.)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10 % ~ 90 % RH
  • Storage: 5 % ~ 90 % RH
Certifications:
  • FCC, CE, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
