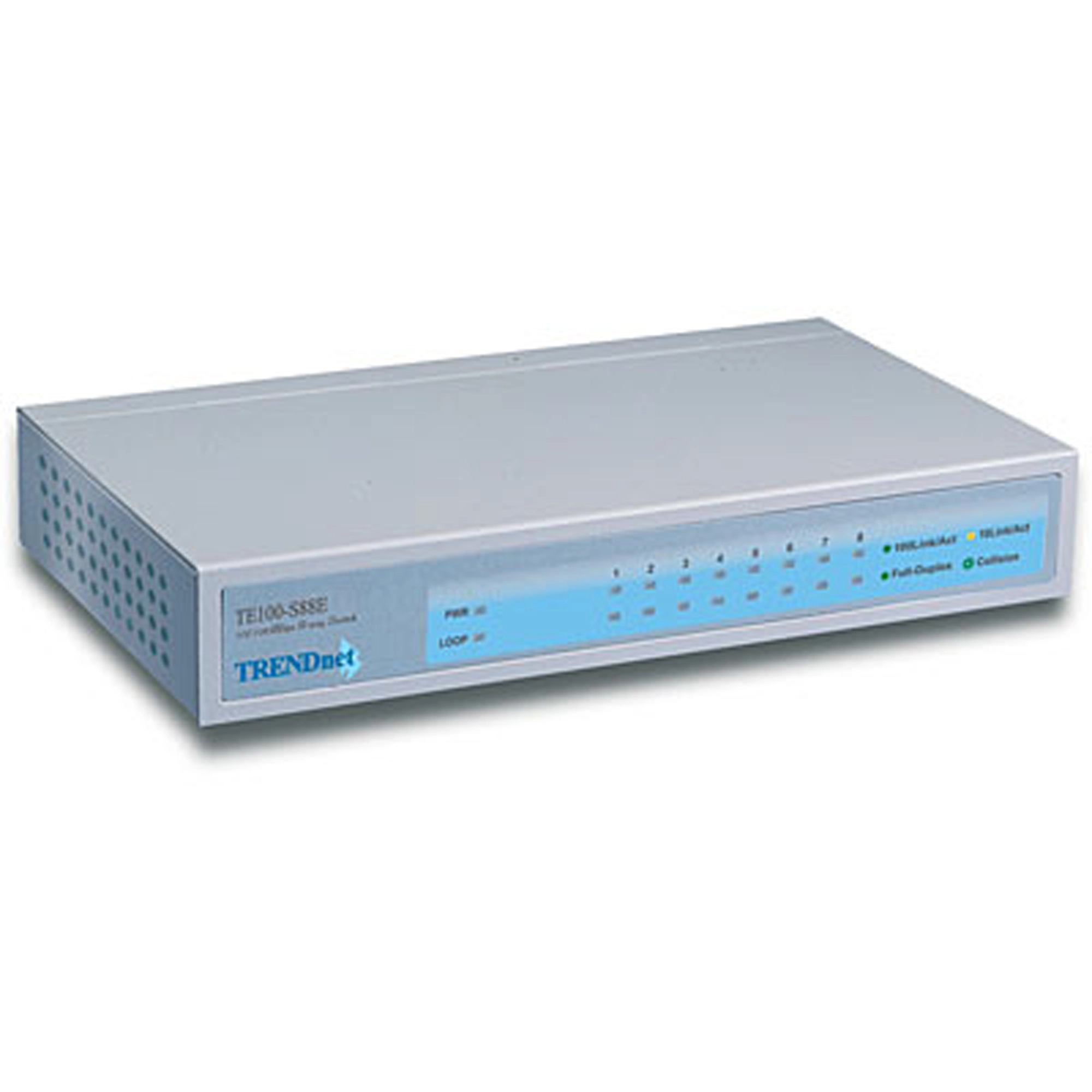

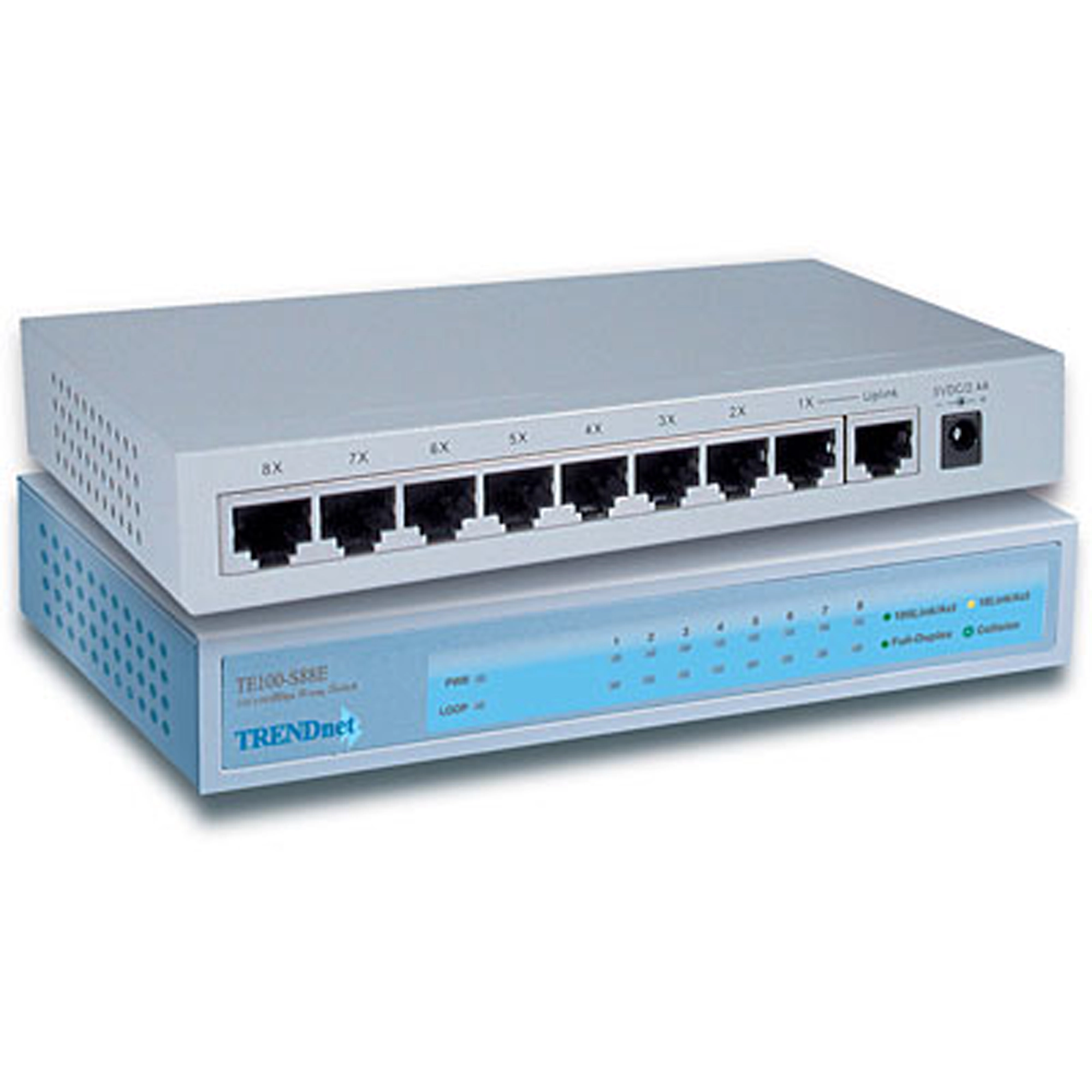

8-Port 10/100Mbps N-Way Ethernet Switch

TE100-S88E

  • 8-port palm-sized 10/100Mbps N-way Ethernet switch, present the perfect choice for small workgroups for any desktop space
  • The N-way ports automatically negotiate between 10Base-T and 100Base-TX network speeds, as well as between half-and full-duplex modes
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S88E  has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S88E.pdf
Date: 5/2/2013
File Size: 189.31 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S88E.pdf
Date: 8/20/2004
File Size: 138.11 KB
Download
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet, ANSI/IEEE 802.3 N-way auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 8 UTP/STP RJ-45
Network Media:
  • UTP CAT 3, 4, 5 (100m) for 10Base-T,
  • EIA/TIA-568 100-ohm STP (100m) for 10Base-T, UTP CAT 5 (100m),
  • EIA/TIA-568 100-ohm STP (100m) for 100Base-TX
Packet Forwarding Rate:
  • 10Base-T: 14,880 pps per port (half-duplex)
  • 100Base-TX/100Base-FX: 148,800 pps per port (half-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Per Unit: PWR, LOOP
  • Per Port: 10 Link/Act, 100 Link/Act
Power:
  • External power supply DC5V, 2.4A, max. power consumption: 1.2 Watt
Dimensions:
  • 171 x 98 x 29 mm (6.73 x 3.86 x 1.14 inches)
Weight:
  • 460 g (1.01 lbs.)
Temperature:
  • Operating: 0° to 50° C
  • Storage:-10° to 70° C
Humidity:
  • Operating: 10 % to 90 % RH
  • Storage: 5 % to 90 % RH
Certifications:
  • FCC, CE, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
