8-port 10/100Mbps Auto-MDIX Fast Ethernet Mini Switch

TE100-S88Eplus   (Version E1.0R)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S88Eplus (Version E1.0R) has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TE100-S88Eplus(English).pdf
Date: 5/21/2007
File Size: 197.08 KB
Download Email
Datasheet
Filename: [OLD] Spec_TE100-S88Eplus.pdf
Date: 5/2/2013
File Size: 190.11 KB
Download Email
Datasheet (Français)
Filename: Spec_TE100-S88Eplus(French).pdf
Date: 5/21/2007
File Size: 178.62 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TE100-S88Eplus(German).pdf
Date: 5/21/2007
File Size: 183.21 KB
Download Email
Datasheet (Español)
Filename: Spec_TE100-S88Eplus(Spanish).pdf
Date: 5/21/2007
File Size: 194.32 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 473.18 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 474.77 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 473.64 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 474.52 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 8/24/2006
File Size: 770.53 KB
Download
Quick Installation Guide (Romania)
Filename: RO_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 5/21/2007
File Size: 487.69 KB
Download

User's Guide

User's Guide (English)
Filename: UG_TE100-S88Eplus(English).pdf
Date: 11/29/2004
File Size: 4.37 MB
Download
User's Guide (Français)
Filename: UG_TE100-S88Eplus(French).pdf
Date: 11/29/2004
File Size: 2.73 MB
Download
User's Guide (Deutsch)
Filename: UG_TE100-S88Eplus(German).pdf
Date: 11/29/2004
File Size: 2.61 MB
Download
User's Guide (Español)
Filename: UG_TE100-S88Eplus(Spanish).pdf
Date: 11/29/2004
File Size: 2.80 MB
Download
User's Guide (Pусский)
Filename: UG_TE100-S88Eplus(Russian).pdf
Date: 11/29/2004
File Size: 2.61 MB
Download

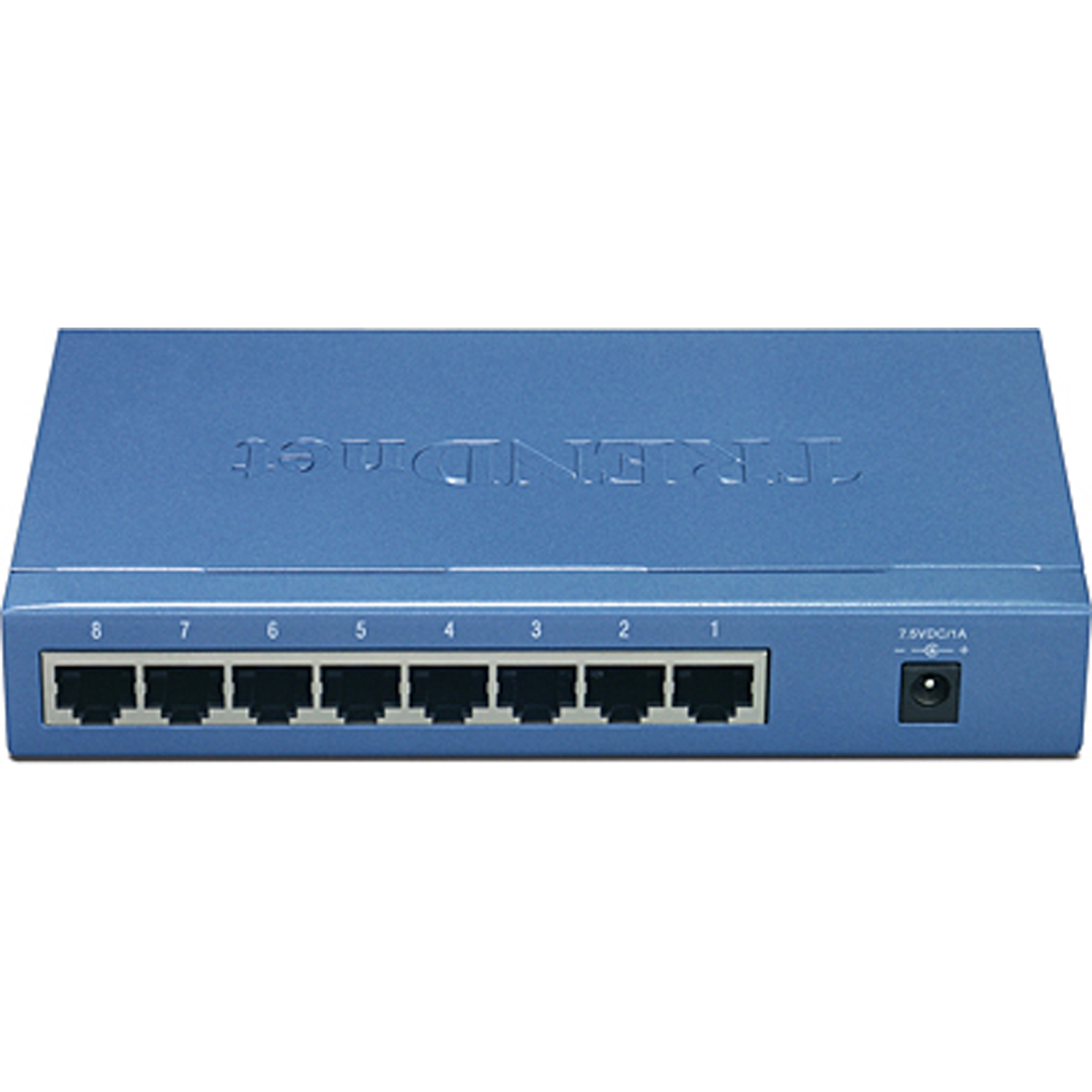

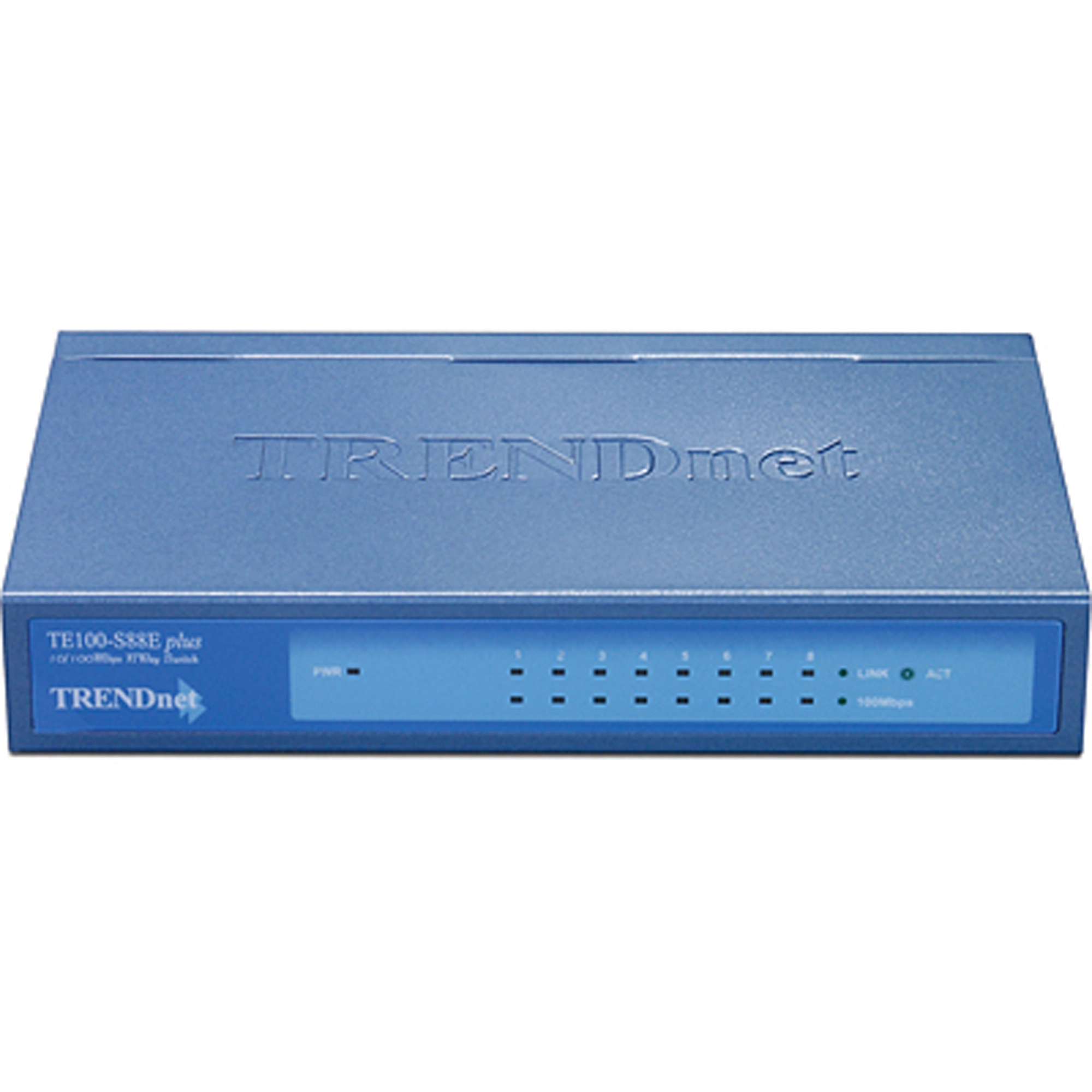

Product Images

JPEG Image
File Size: : 266.13 KB
Date: : 9/9/2004
Download
TIFF Image
File Size: : 2.64 MB
Date: : 9/9/2004
Download
JPEG Image
File Size: : 277.74 KB
Date: : 9/9/2004
Download
TIFF Image
File Size: : 2.85 MB
Date: : 9/9/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 8 UTP/STP RJ-45 Auto-MDIX
Network Media:
  • 10Base-T: UTP EIA/TIA-568 CAT 3, 4, 5 (100 meters max.)
  • 100Base-T: UTP EIA/TIA-568 CAT 5 (100 meters max.)
Packet Forwarding Rate:
  • 10Base-T: 14,880pps per port (half-duplex)
  • 100Base-TX: 148,800pps per port (half-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Power, Link/Act, 100Mbps
Power:
  • External power supply, 7.5V, 1A. 4 Watts max.
Dimensions:
  • 171 x 99.8 x 31 mm (6.73 x 3.92 x 1.22 inches)
Weight:
  • Appr. 454 g (16 oz.)
Temperature:
  • Operating Temp: 0° ~ 40° C (32° ~ 104° F)
  • Storage Temp: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10 % ~ 90 % RH
  • Storage: 5 % ~ 90 % RH
Certifications:
  • FCC, CE, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
