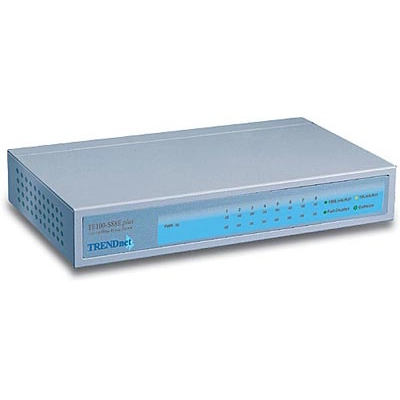

8-port 10/100Mbps NWay Auto-MDI Fast Ethernet Mini Switch

TE100-S88Eplus   (Version 1.0R)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S88Eplus (Version 1.0R) has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 8 UTP/STP RJ-45 Auto-MDI
Network Media:
  • 10Base-T: UTP EIA/TIA-568 CAT 3, 4, 5 (max. 100m)
  • 100Base-TX: UTP EIA/TIA-568 CAT 5 (max. 100m)
Packet Forwarding Rate:
  • 10Base-T: 14,880pps per port (half-duplex)
  • 100Base-TX: 148,800pps per port (half-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Power, 10/100M Link/Activity
Power:
  • External power supply, 7.5V, 1A, max. 4.5 Watts
Dimensions:
  • 171 x 98 x 29 mm (6.73 x 3.86 x 1.14 inches)
Weight:
  • Appr. 454 g (16 oz.)
Temperature:
  • Operating: 0° to 50° C (32° F to 122° F)
  • Storage: -10° to 70° C (14° F to 158° F)
Humidity:
  • Operating: 10 % to 90 % RH
  • Storage: 5 % to 90 % RH
Certifications:
  • FCC, UL, CE, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
