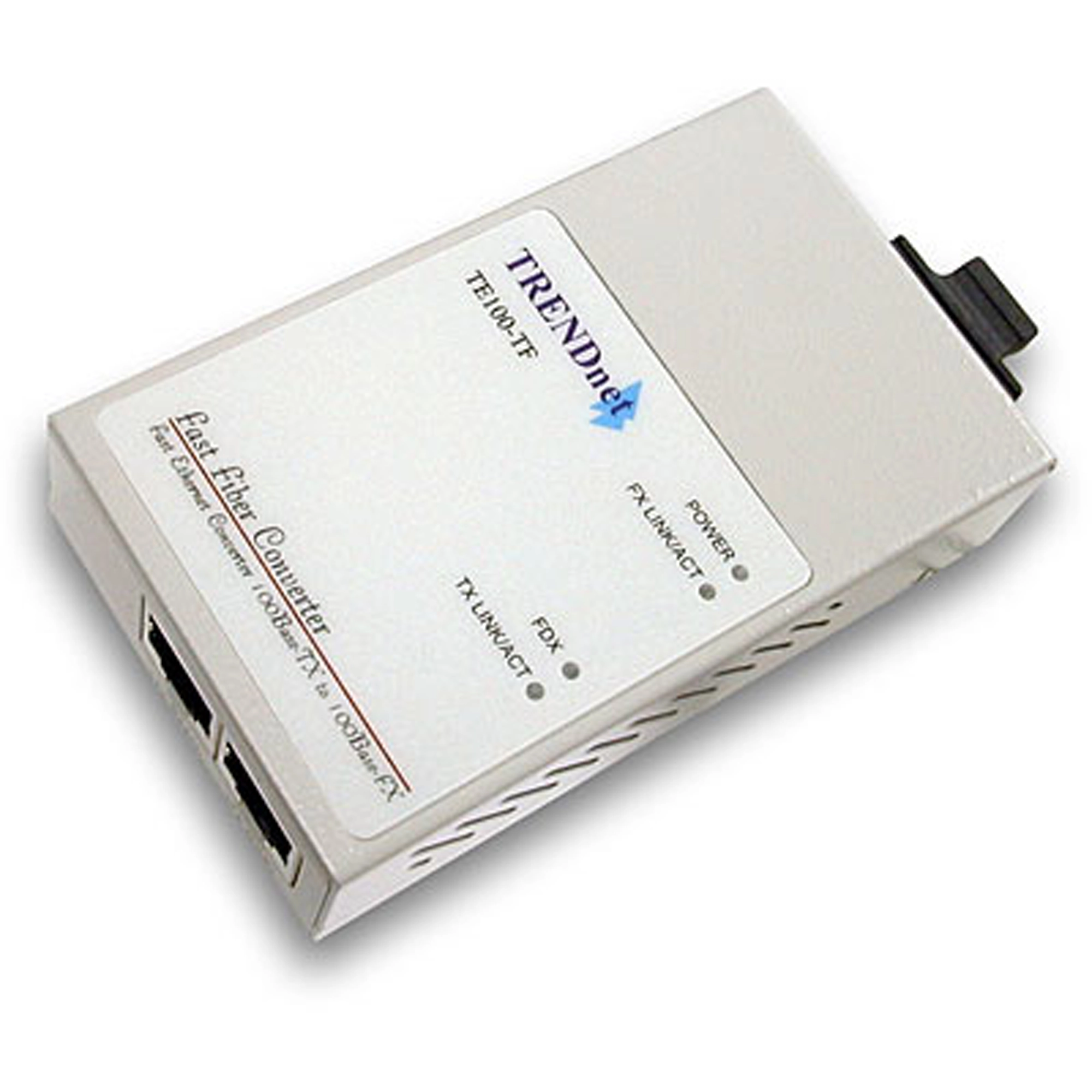

ProXpress 100Mbit Fast Ethernet Transceiver

TE100-TF

  • The TE100-TF is a media converter that converts the 100Base-TX Ethernet UTP/STP medium to the 100Base-FX fiber optic, and vice versa
  • This converter will not increase the repeater count in the fast Ethernet environment, thus no need to purchase additional switches or bridges
  • 5-year user warranty

DISCONTINUED PRODUCT

The TE100-TF  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-TF.pdf
Date: 5/2/2013
File Size: 172.73 KB
Download Email
Hardware
Standards:
  • IEEE 802.3u 100Base-TX and 100Base-FX
Ports:
  • 1 SC fiber optic; 1 RJ-45 (UTP/STP)
Cable Distance:
  • Fiber optic: 2000m (6600ft); TP: 100m (330ft)
Power:
  • 12VDC @ 0.8A
Dimensions:
  • 110mm x 69mm x 23mm (4.5" x 2.6" x 1.0")
Temperature:
  • Operating: 0°C to 55°C
  • Storage: -20°C to 70°C
Humidity:
  • Operating: 10% to 80% Non-condensing;
  • Storage: 5% to 90% Non-condensing
Certifications:
  • UL, FCC Class A, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
