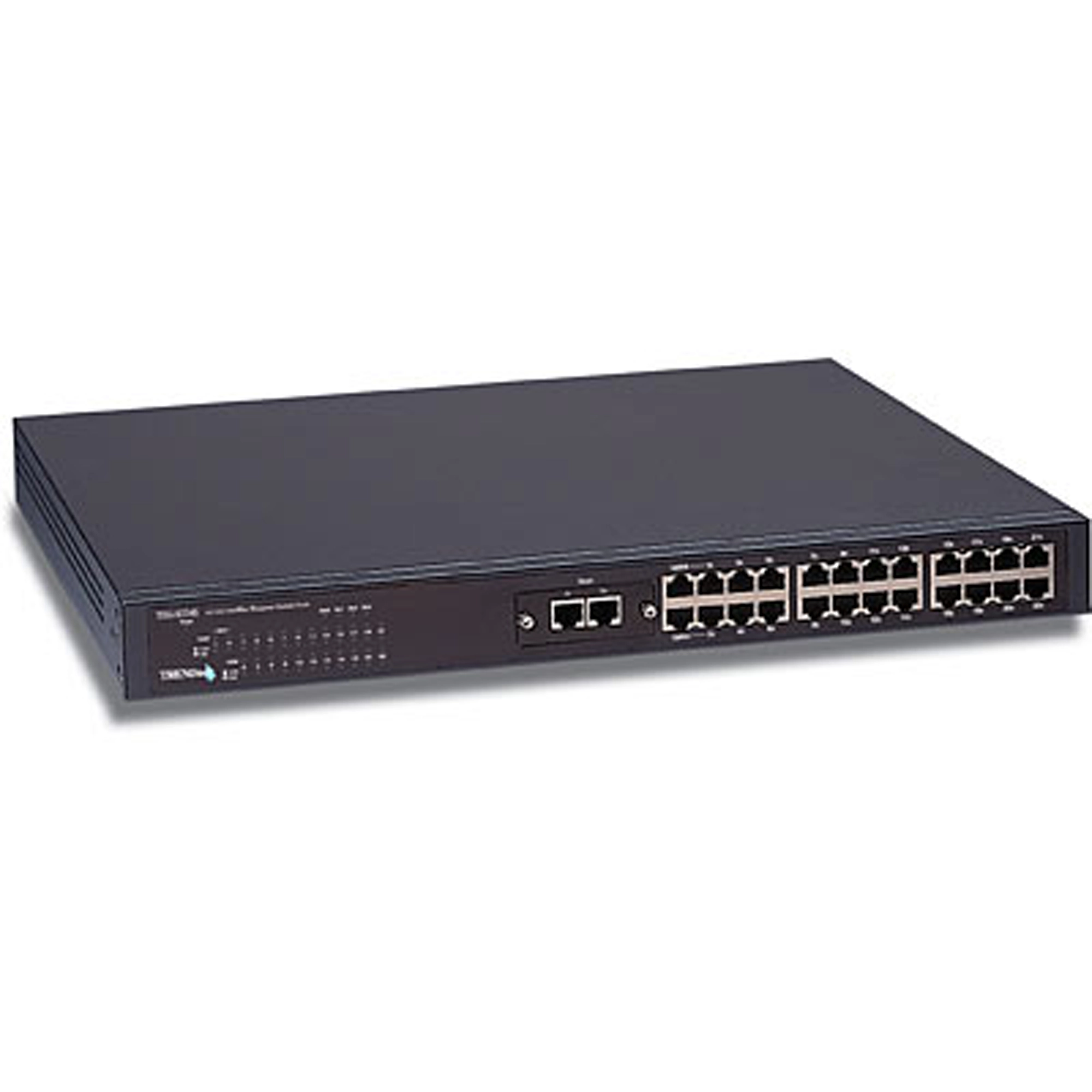

24-port 10/100Mbps Management Stackable Fast Ethernet Slave Switch

TEG-S224S

  • The full-duplex gigabit switch brings high bandwidth with 2000Mbps speed
  • Expandable up to 94 10/100Base-TX ports and two gigabit ports
  • With different optional modules, the switch can be easily connected to other networks

DISCONTINUED PRODUCT

The TEG-S224S  has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Filename: s224m_v200b43.zip
SHA-1 Checksum: 7A45775D3784D391CB6DC0EF7ECF2D03366B9A96
Date: 7/25/2017
File Size: 1.60 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only



Filename: 224M_B43.ZIP
SHA-1 Checksum: 1E47A4FA85E23803D716BA341960D8BBAC4C003A
Date: 7/25/2017
File Size: 1.46 MB
Download

Datasheet

Datasheet
Filename: Spec_TEG-S224S.pdf
Date: 5/13/2013
File Size: 207.96 KB
Download Email

User's Guide

Manual
Filename: UG_TEG-S224MS.pdf
Date: 8/18/2004
File Size: 4.31 MB
Download
Hardware
Standards:
  • IEEE 802.3, IEEE 802.3µ, IEEE 802.1p/Q, IEEE 802.3x, IEEE 802.3z
Protocol:
  • CSMA/CD
Switching Method:
  • Store-and-forward
Management Protocols:
  • SNMP, Web-based Management, RMON, Java Management Application, Telnet, MIBs (MIB-II, Bridge, RMON, and VLAN), Local and remote out-of-band management
Cabling:
  • CAT 3, 4, 5 UTP/STP RJ-45 for 10Mbps, 100 meter max.;
  • CAT 5 UTP/STP RJ-45 for 100Mbps, 100 meter max.;
  • multimode SC-type fiber, 2 km max.;
  • multimode MT-RJ type fiber, 2 km max.
LEDs:
  • Per Device: Power, Slot 1, Stacking Port
  • Per Port: 100M, Link/Act
Power:
  • 100-240 VAC, 50/60Hz, 46Watt max.
Dimensions:
  • 441 x 367 x 44 mm / 17.3 x 8.0 x 1.7 inches
Weight:
  • 5 kg / 11 lbs.
Operating Temperature:
  • 0° to 50° C / 32° to 122° F
Humidity:
  • 5 % to 95 % non-condensing
Certifications:
  • FCC, CE, VCCI Class A, C-tick, BCIQ

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
