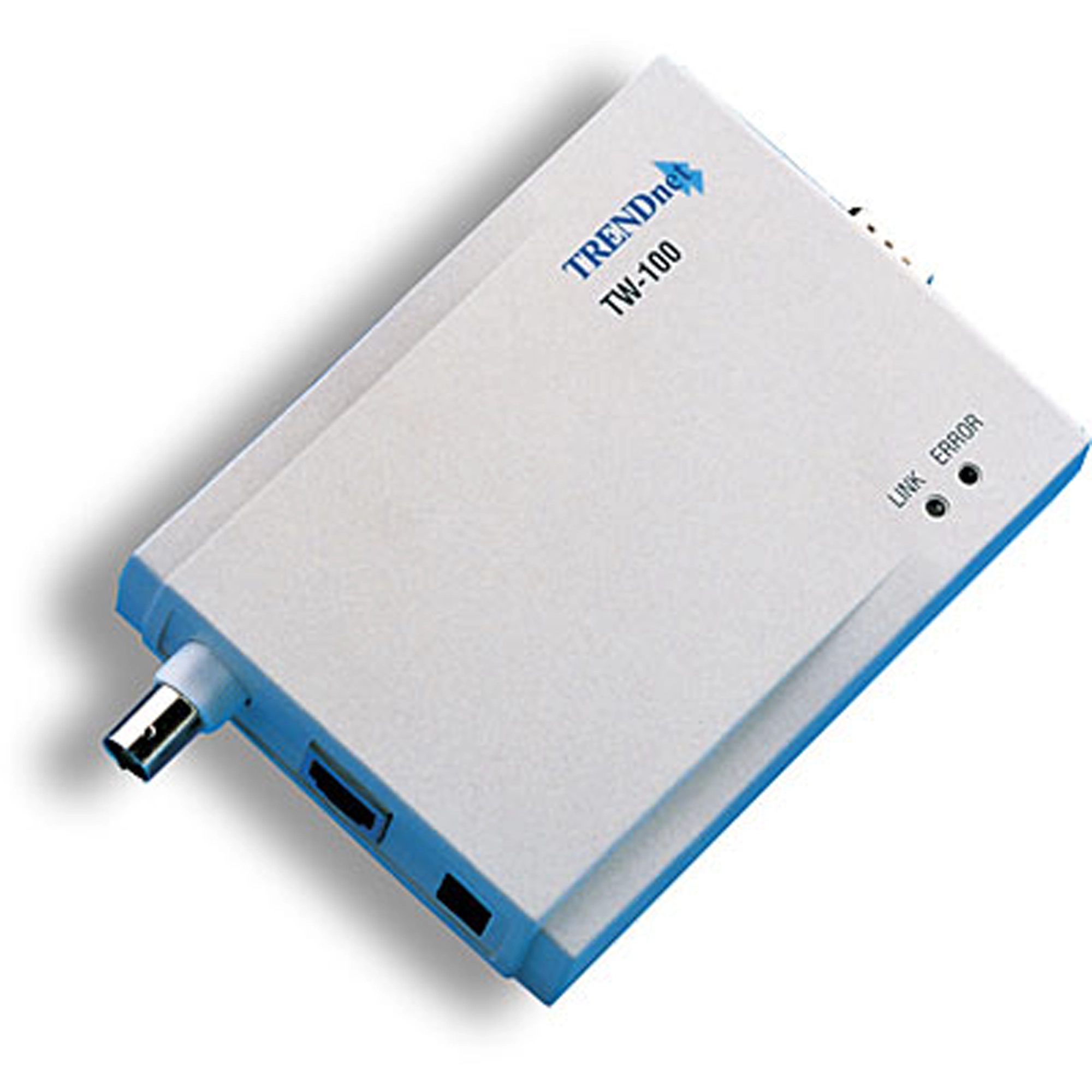

1-port Ethernet Internet Station

TW-100

DISCONTINUED PRODUCT

The TW-100  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TW-100.pdf
Date: 5/16/2013
File Size: 183.64 KB
Download Email
Hardware
Protocols:
  • PPP(RFC1661)
  • Compression TCP/IP(RFC 1144)
  • CHAP/PAP IP(791)
  • ICMP(792)
  • ARP(826)
  • SNMP(1157)
  • DHCP(1533,1541)
Security:PAP/CHAP(RFC1334), local password
Management:
  • VT100,VT102, VT220 compatible terminal application via its RS-232 port.
  • Internet Browser
LAN Port: 1 x 10Base-2 (BNC) and 1 x 10Base-T (RJ45) 10Mbps Connector type auto-sensing Ethernet interface
WAN Port: 1 x asynchronous port (male)
WAN Speed:230.4Kbps Max. Speed
Weight: 142g / 5oz. (excluding power adapter)
Power Consumption: DC9v/500mA
Dimensions: 120mm x 86mm x 30mm (LxWxH)
LED: Green—Link, Red—Error, one WAN ports for traffic
Certifications: FCC, UL, VCCI, CSA, C-tick, TUV, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
