16-Port 10/100 Mbps GREENnet Switch

TE100-S16Dg   (Version v1.0R)

   Select Another Version
  • 16 x 10/100 Mbps Ethernet ports
  • 3.2 Gbps switching fabric
  • Compact fanless design
  • Up to 40% GREENnet energy savings*

DISCONTINUED PRODUCT

The TE100-S16Dg (Version v1.0R) has been discontinued. It has been replaced by the TEG-S16Dg (Version v2.1R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.31 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.31 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.31 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.32 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.31 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.32 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TE100-S16dg(v1.0R).pdf
Date: 12/1/2014
File Size: 2.31 MB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: EUNL_Lineart_Web_QIG_TE100-S16Dg(V1.0R).pdf
Date: 6/23/2015
File Size: 2.35 MB
Download
Quick Installation Guide
Filename: Lineart_Web_QIG_TE100-S16Dg(V1).pdf
Date: 8/27/2014
File Size: 3.29 MB
Download

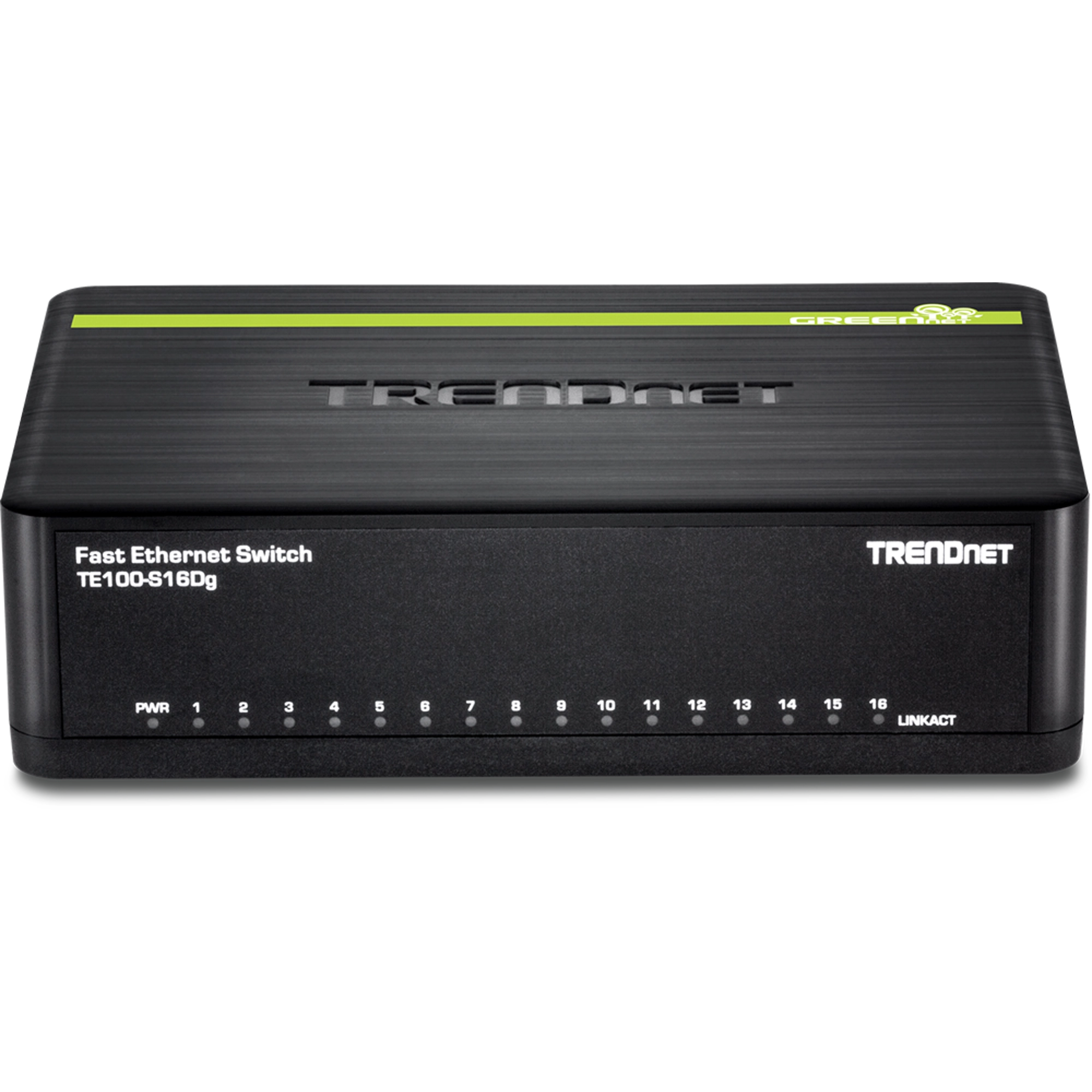

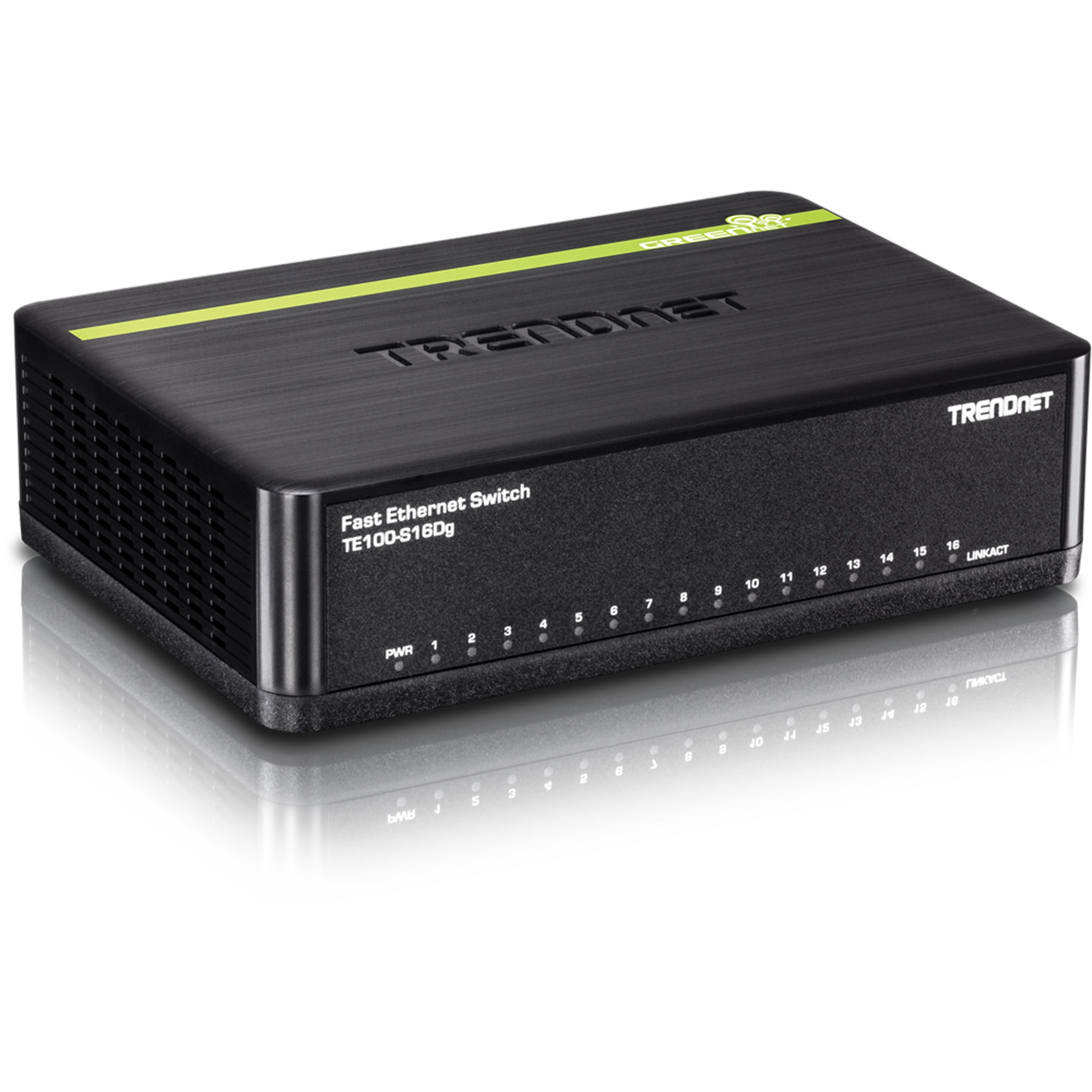

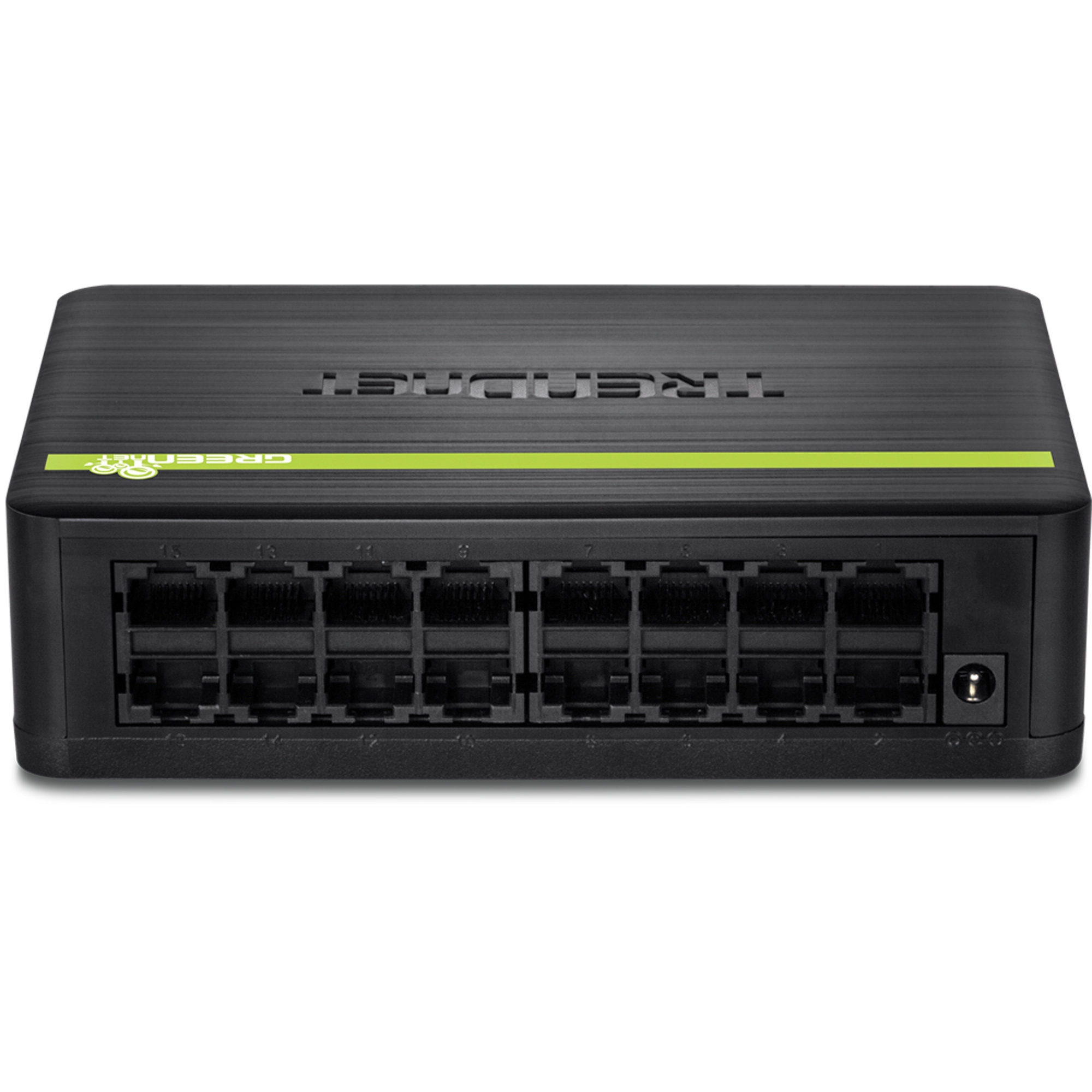

Product Images

JPEG Image
File Size: : 318.71 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 356.03 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 294.00 KB
Date: : 5/27/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
Device Interface
  • 16 x 10/100 Mbps ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Performance
  • Data RAM Buffer: 156 KB
  • Switch Fabric: 3.2 Gbps
  • MAC Address Table: 4 K entries
  • Forwarding rate: 2.38 Mpps (64-byte packet size)
Special Features
  • GREENnet energy saving technology
Power
  • Input: 100-240 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1A
  • Consumption: 5 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Dimensions
  • 156 x 107 x 42.5 mm (6.1 x 4.2 x 1.6 in.)
Weight
  • 261 g (9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TE100-S16Dg
  • Quick Installation Guide
  • Power adapter (5V DC, 1A)

* Max power savings compared with standard TRENDnet switches.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
