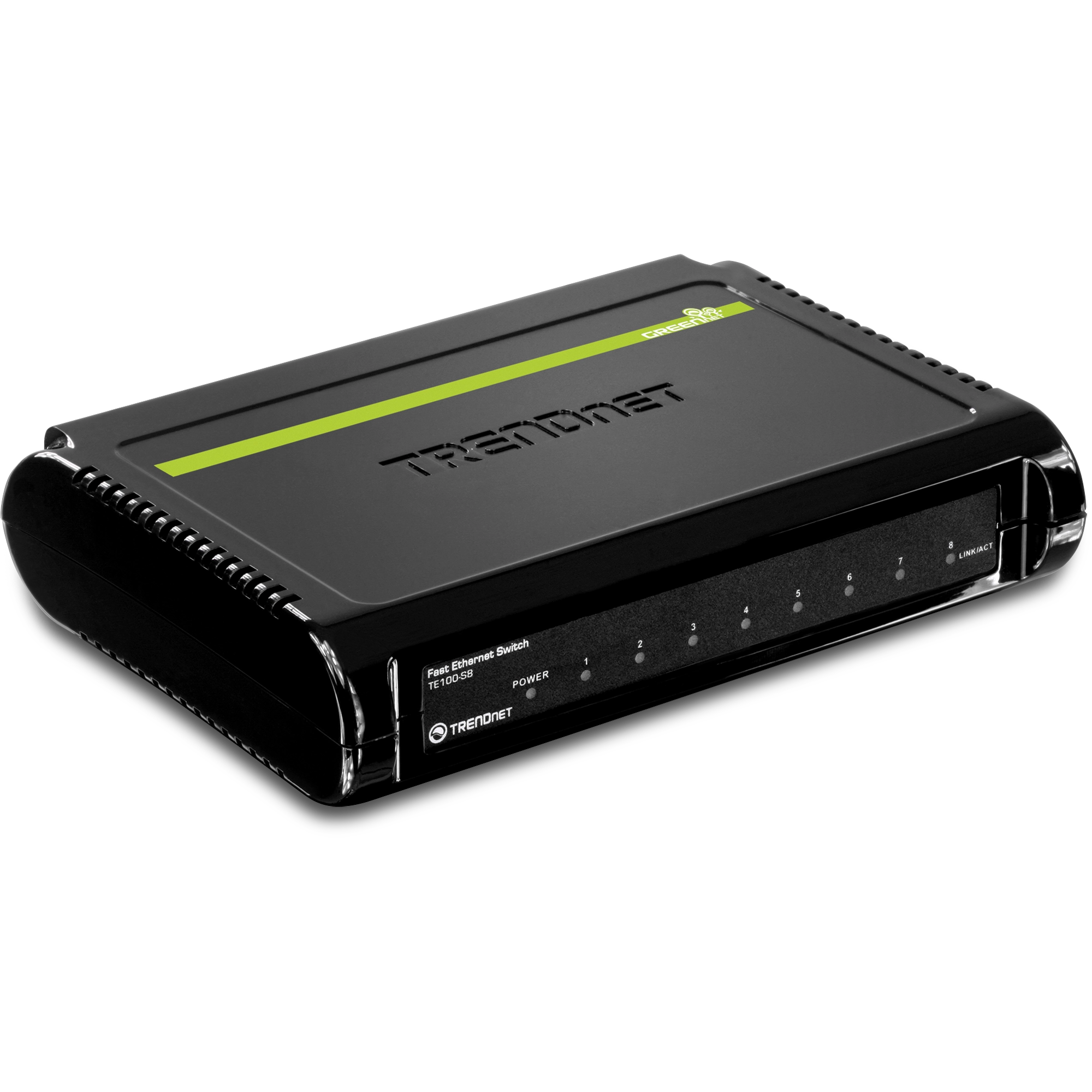

8-Port 10/100 Mbps GREENnet Switch

TE100-S8   (Version v2.0)

   Select Another Version
  • 8 x 10/100 Mbps Ethernet ports
  • Up to 40% GREENnet energy saving technology
  • 1.6 Gbps switching capacity

DISCONTINUED PRODUCT

The TE100-S8 (Version v2.0) has been discontinued. It has been replaced by the TE100-S8 (Version v3.2R). For a list of discontinued products, click here.

Datasheet

Data Sheets (English)
Filename: EN_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 948.03 KB
Download Email
Data Sheets (Français)
Filename: FR_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 949.79 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 947.43 KB
Download Email
Data Sheets (Português)
Filename: PO_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 954.79 KB
Download Email
Data Sheets (Español)
Filename: SP_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 956.21 KB
Download Email
Data Sheets (Pусский)
Filename: RU_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 926.97 KB
Download Email
Data Sheets (Italiano)
Filename: IT_spec_TE100-S8(v2.0R).pdf
Date: 12/27/2013
File Size: 946.55 KB
Download Email

Quick Installation Guide

Quick Installation Guide (European)
Filename: European_QIG_TE100-S8(V2.0R).pdf
Date: 7/1/2013
File Size: 2.32 MB
Download
Quick Installation Guide
Filename: QIG_TE100-S8(V2.0R).pdf
Date: 7/1/2013
File Size: 1.77 MB
Download

Product Images

JPEG Image
File Size: : 223.10 KB
Date: : 7/1/2013
Download
JPEG Image
File Size: : 180.82 KB
Date: : 7/1/2013
Download
JPEG Image
File Size: : 155.18 KB
Date: : 7/1/2013
Download
TIFF Image
File Size: : 2.57 MB
Date: : 7/1/2013
Download
TIFF Image
File Size: : 2.31 MB
Date: : 7/1/2013
Download
TIFF Image
File Size: : 1.84 MB
Date: : 7/1/2013
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
Device Interface

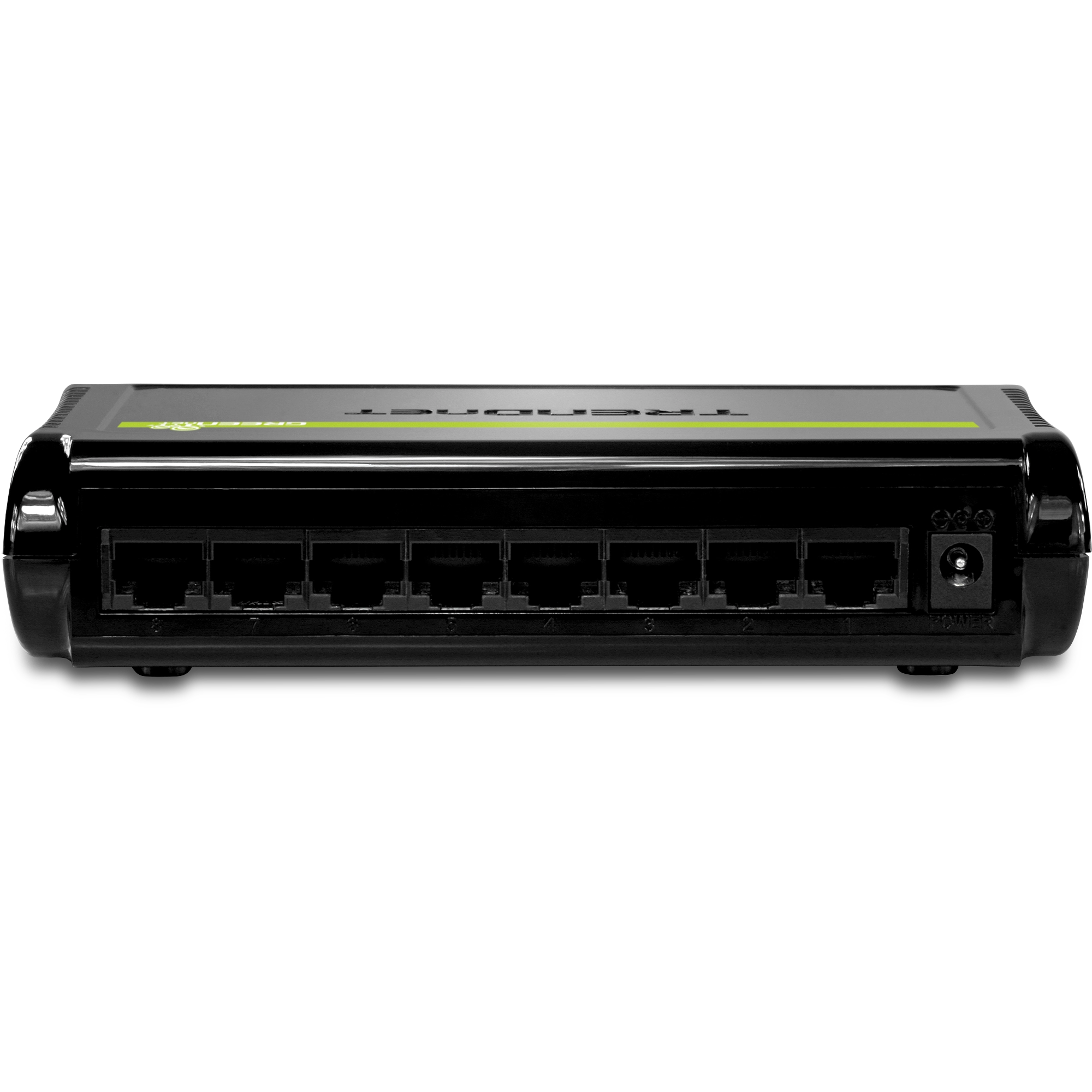

  • 8 x 10/100 Mbps Ethernet ports

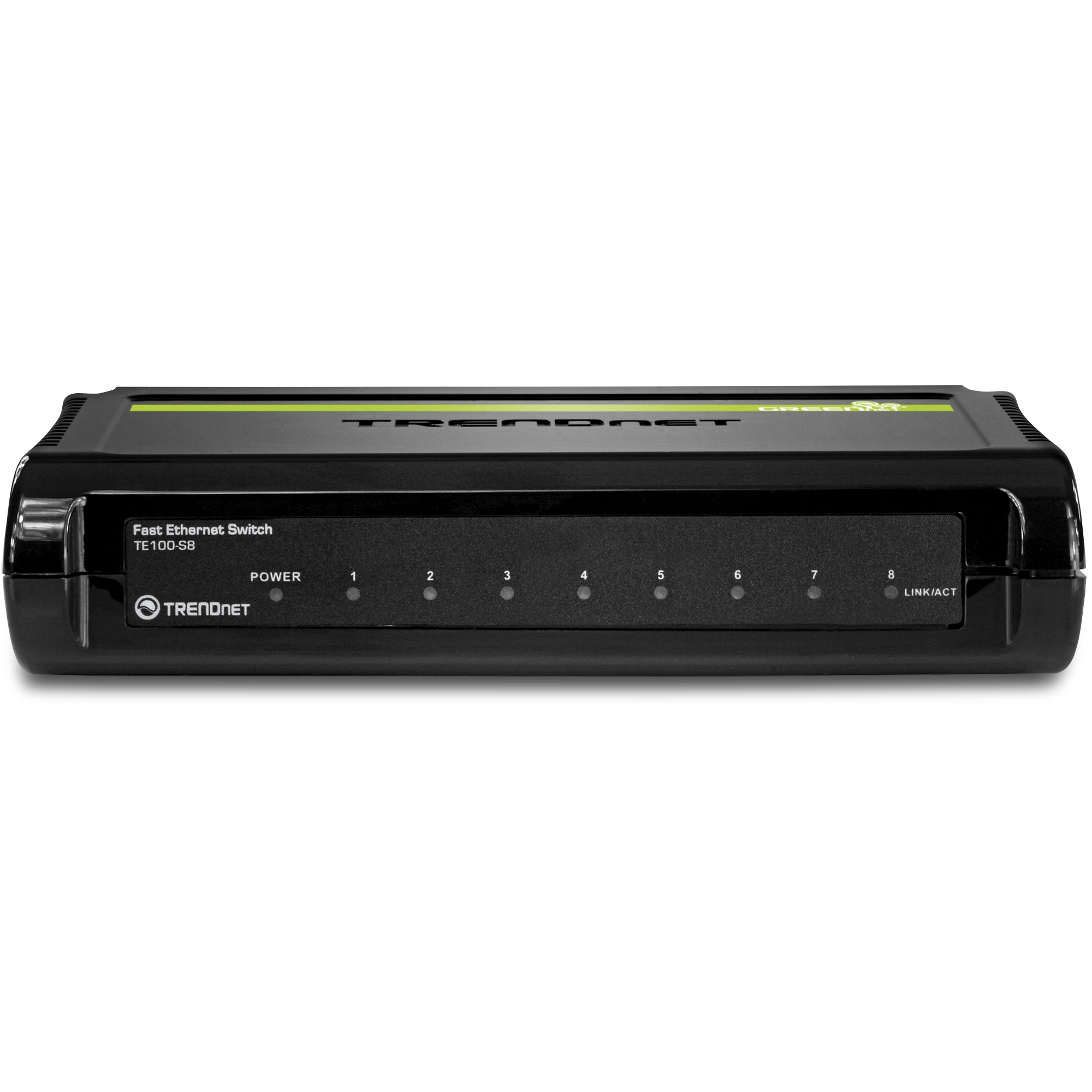

LED indicators
  • External power adapter
Data Transfer Rate
  • Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
  • Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
Performance
  • Switch fabric: 1.6 Gbps
  • Non-blocking wire speed
  • RAM buffer: 448 Kbits
  • MAC Address Table: 1K entries
  • Packet Filtering/Forwarding Rates
  • Ethernet: 14,881 pps
  • Fast Ethernet: 148,810 pps
Special Feature
  • Up to 40% GREENnet energy savings
Power
  • Input: 100-240 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 0.6 A
  • Max consumption: 1.4 Watts
Operating Temperature
  • 0 – 50 °C (32 - 122 °F)
Operating Humidity
  • Max. 90 % (non-condensing)
Dimensions
  • 154 x 110 x 33 mm (6 x 4.3 x 1.3 in.)
Weight
  • 225 g (8 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TE100-S8
  • Quick Installation Guide
  • Power adapter (5 V DC, 0.6 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
