8-Port Gigabit GREENnet Switch

TEG-S81g   (Version v1.0R)

   Select Another Version
  • GREENnet technology reduces power consumption by up to 70%*
  • 8 x Gigabit Auto-Negotiation ports
  • Build a high performance energy efficient Gigabit network in minutes
  • Plug and Play installation

DISCONTINUED PRODUCT

The TEG-S81g (Version v1.0R) has been discontinued. It has been replaced by the TEG-S82g (Version v3.1R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 520.28 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 524.94 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 523.77 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 528.53 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 488.07 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEG-S81g(v1.0R).pdf
Date: 3/15/2013
File Size: 521.92 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: EuropeanQIG_TEG-S81g(V1.0R).pdf
Date: 2/4/2013
File Size: 2.90 MB
Download
Quick Installation Guide
Filename: QIG_TEG-S81g(V1.0R).pdf
Date: 2/4/2013
File Size: 4.07 MB
Download

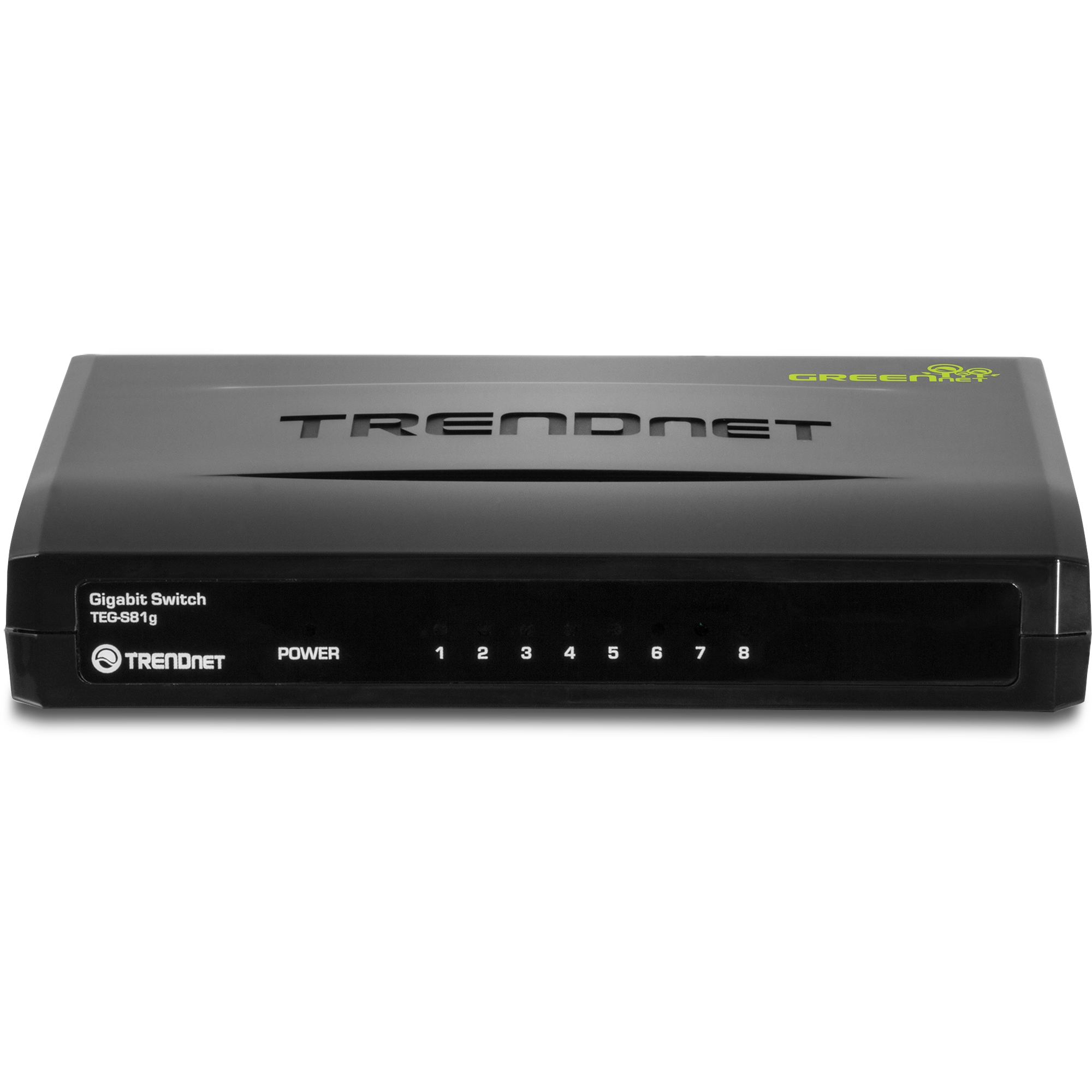

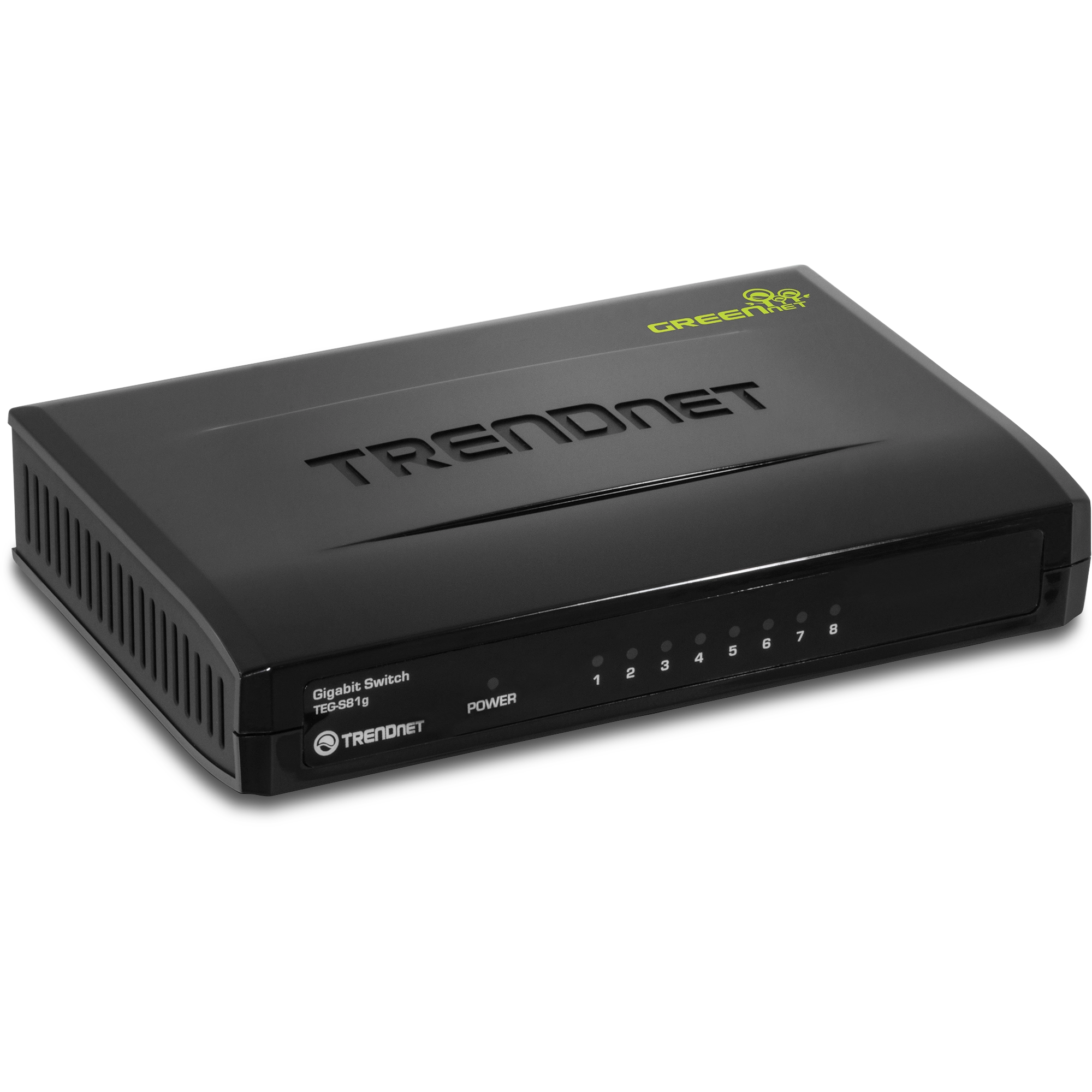

Product Images

JPEG Image
File Size: : 219.09 KB
Date: : 2/4/2013
Download
JPEG Image
File Size: : 187.84 KB
Date: : 2/4/2013
Download
JPEG Image
File Size: : 178.23 KB
Date: : 2/4/2013
Download
TIFF Image
File Size: : 3.14 MB
Date: : 2/4/2013
Download
TIFF Image
File Size: : 2.75 MB
Date: : 2/4/2013
Download
TIFF Image
File Size: : 2.40 MB
Date: : 2/4/2013
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 up to 100 m
  • Gigabit Ethernet: Cat. 5, 5e,6 up to 100 m
Data Rate
  • Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
  • Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
  • Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
  • CSMA / CD, Star
Power Consumption
  • 3.5 Watts (max.)
Switch Fabric
  • 16 Gbps forwarding capacity
Interface
  • 8 x Gigabit Auto-MDIX RJ-45 ports
Data RAM Buffer
  • 256 KBytes
Filtering Table
  • 8 K entries
Jumbo Frame Support
  • 9216 Bytes
Diagnostic LEDs
  • Power, Link / ACT, 100 Mbps / 1000 Mbps
Power Adapter
  • Input: 100-240 V, 50 / 60 Hz, 190 mA
  • Output: 5 V DC, 1 A external power adapter
Dimension
  • 171 x 100 x 31 mm (6.7 x 3.9 x 1.2 in.)
Weight
  • 190 g (6.8 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -10° ~ 70°C (14° ~ 158°F)
Humidity
  • Max 90% (non-condensing)
Certifications
  • FCC, CE

PACKAGE CONTENTS
  • TEG-S81g
  • Multi-Language Quick Installation Guide
  • Power adapter (5 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
