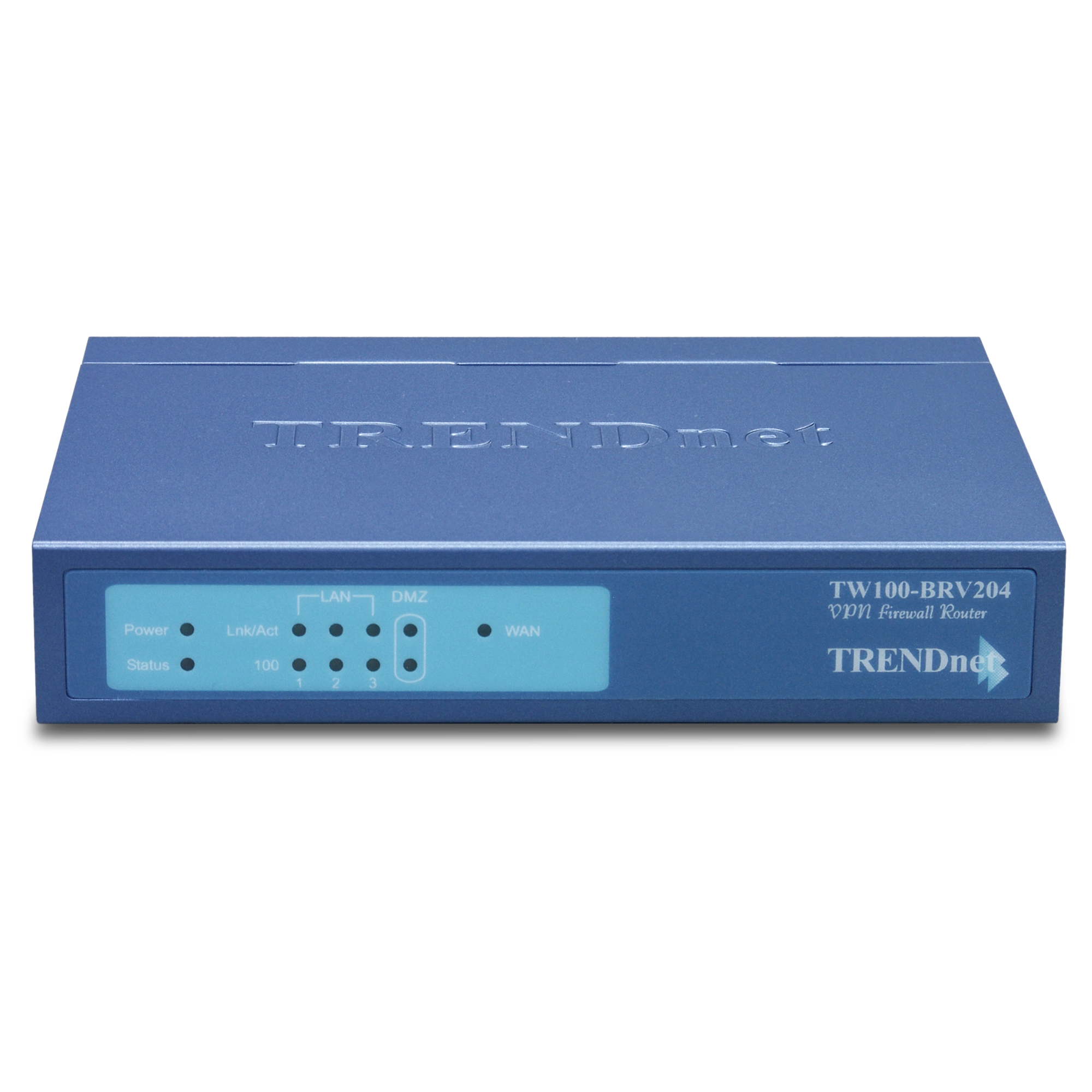

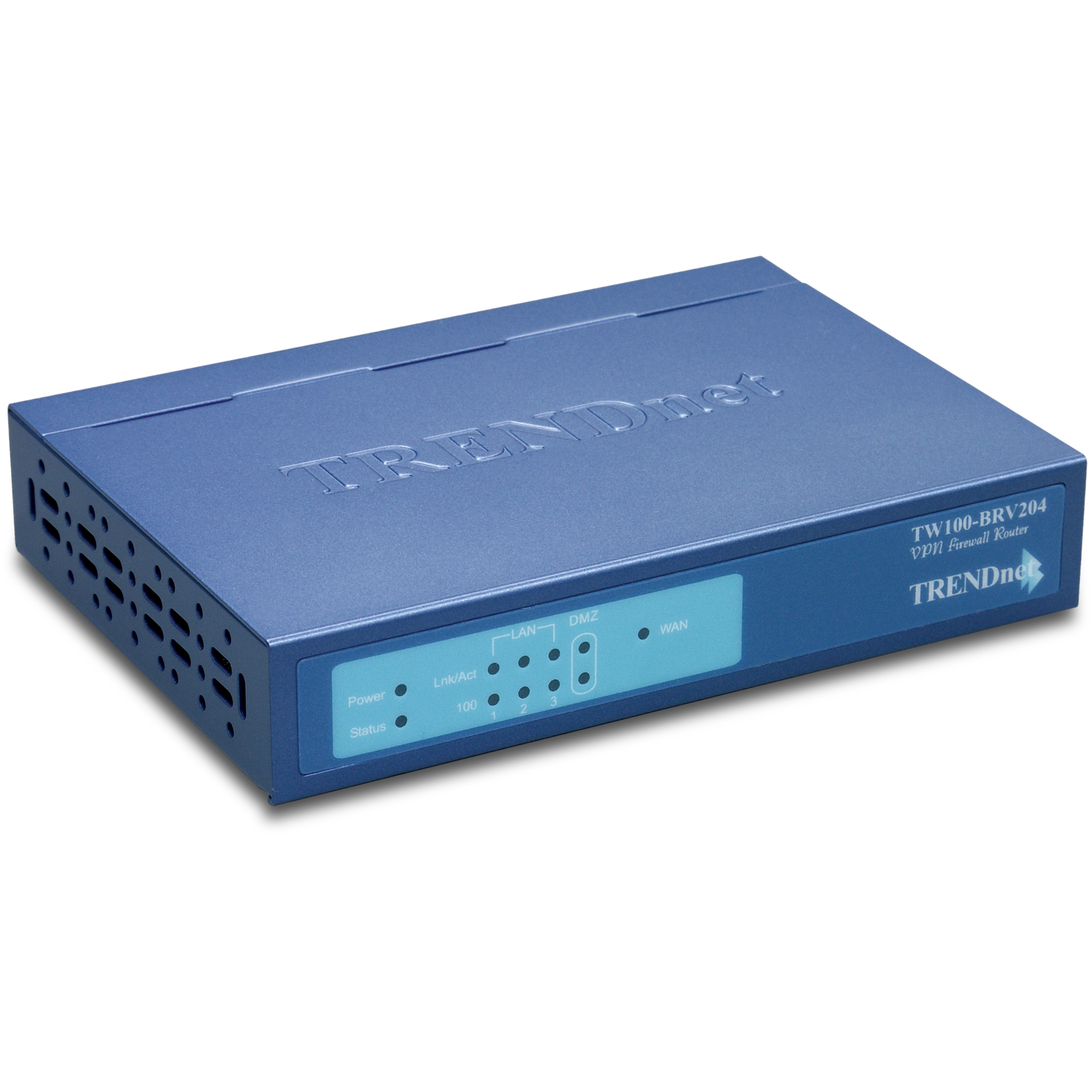

Kabel/DSL VPN-Firewall-Router
TW100-BRV204 (Version 2)
- Provide up to 10 Virtual Private Networks tunnels
- Enjoy Fast Ethernet networking speeds
- Advanced firewall protection (NAT, NAPT & SPI)
- Secure remote management allows global network monitoring
DISCONTINUED PRODUCT
The TW100-BRV204 (Version 2) has been discontinued. It has been replaced by the TWG-431BR (Version v1.0R). For a list of discontinued products, click here.Firmware
Aktualisieren Sie die Firmware von TRENDnet-Produkten NICHT über eine drahtlose Verbindung. Wenn die Firmware über eine drahtlose Verbindung aktualisiert wird, kann das Produkt Schaden nehmen. Führen Sie Aktualisierungen deshalb bitte nur über verdrahtete Verbindungen durch. |
Dateiname:
TW100-BRV204_1018.zip
Firmware file: "TW100-BRV204-1018.img"
Release Note:
This firmware is for TW100-BRV204 (Version 2.00). To check the version number, please look for the serial number sticker on the bottom of the unit, the version number is printed on the sticker.
Firmware Upgrade Instructions:
Please download and unzip the firmware file to computer's local hard drive.
Warning!
Firmware upgrade failure may permanently damage the unit and causing it not to function. If the issues in the "Release Note" do not address the problem you are experiencing, please do not upgrade the firmware. Never upgrade the firmware using a wireless connection. Firmware Upgrade requires resetting the Router to factory default state (all current settings will be replaced by default settings). When necessary, please write down the Router's current settings before performing the firmware upgrade. Please do not restore the previously saved Router "configuration file" to the new firmware. We apologize for the inconvenience.
If you need assistance performing the firmware upgrade or if you have any questions, please contact our Techsupport Team http://www.trendnet.com/support.
Dateiname: TW100-BRV204_1018.zip
SHA-1 Checksum: 8C18F4EEB0244E2FD752FDDF4D221D5B196E48CE
Datum: 7/28/2017
Dateigröße: 1.04 MB
Datenblätter
Dateiname: EN_Spec_TW100-BRV204_v2.pdf
Datum: 7/27/2006
Dateigröße: 319.04 KB
Dateiname: FR_Spec_TW100-BRV204_v2.pdf
Datum: 7/27/2006
Dateigröße: 322.60 KB
Dateiname: GE_Spec_TW100-BRV204_v2.pdf
Datum: 7/27/2006
Dateigröße: 324.18 KB
Dateiname: SP_Spec_TW100-BRV204_v2.pdf
Datum: 7/27/2006
Dateigröße: 321.94 KB
Dateiname: RU_Spec_TW100-BRV204_v2.pdf
Datum: 7/27/2006
Dateigröße: 1.38 MB
Kurzanleitung zur Installation
Dateiname: QIG_TW100-BRV204_v2.pdf
Datum: 5/16/2013
Dateigröße: 6.76 MB
Dateiname: PO_QIG_TW100-BRV204(old).pdf
Datum: 10/26/2007
Dateigröße: 1.25 MB
Dateiname: QIG_TW100-BRV204_EST_ONLY.pdf
Datum: 7/27/2006
Dateigröße: 1.13 MB
Dateiname: POL_QIG_TW100-BRV204.pdf
Datum: 7/24/2007
Dateigröße: 1.40 MB
Bedienungsanleitung
Dateiname: UG_TW100-BRV204v2.pdf
Datum: 3/29/2005
Dateigröße: 1.87 MB
Frequently Asked Questions (FAQ)
Produktbild(er)
Well Known Ports
1) Open your web browser and type the IP address of the TW100-BRV204/304
in the address bar. The default IP address is 192.168.0.1. At the login,
enter your username (blank) and password (blank).
2) Click Security then
Firewall Rules on the left hand side.
3) Sele...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click Microsoft VPN then Server on
the left hand side. Place a check mark in Enable PPTP (VP...
Use the following screenshots as a guide.
Scenario
PC1 (192.168.1.x)-BRV204 (66.135.11.92) ~ BRV304 (64.11.212.22)–PC
2 (192.168.2.x) Simply match both ends information. After the connections are
created, 192.168.1.x should be able to ping 192.168.2.x.
Settings on BRV204
Settings on BR...
Use the following screenshots as a guide
Scenario
PC1 (192.168.1.x)-BRV204 (dynamic) ~ BRV304 (64.11.212.22)–PC 2 (192.168.2.x)
Simply match both ends information. After the connections are created, 192.168.1.x
should be able to ping 192.168.2.x.
Important Note:
1. Please match Local/Remo...
The MAC Address can be found on a label on the bottom of the router. You can
alternately find it by doing the following:
1) Open your web browser and type
the IP address of the TW100-BRV204/304 in the address bar. The default IP address
is 192.168.0.1. At the login, enter your username (...
1) Click Start then click on the Control Panel. For Windows 2000 click on Start,
highlight settings then click on the Control Panel.
2) Double-Click on the Network
Connection icon.
3) Right-Click on the Local Area Connection icon then click
on Properties.
4) Highlight the Interne...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on LAN on the left hand side.
3) Change the IP address in the IP Address fiel...
The default username & password for the TW100-BRV204/304 are both (blank). There is no username and password set by default....
The default IP address for the TW100-BRV204/304 is 192.168.0.1.

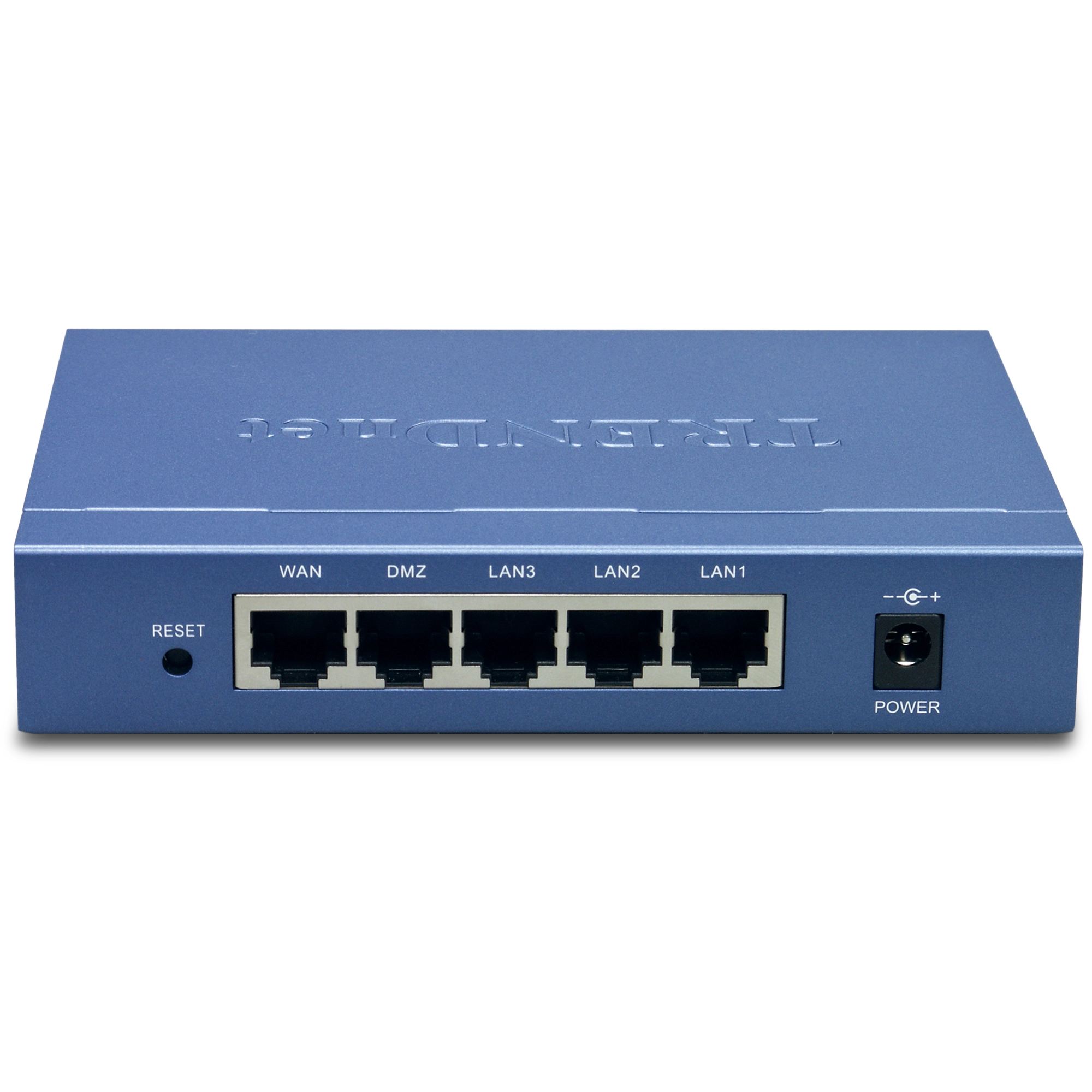

1) Locate the reset button on the back of the TW100-BRV204/304.
2) Press and
hold in the reset button for approximately 15 seconds.
This will reset the
unit back to its default configuration.
...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Security then Admin Login
on the left hand side.
3) Enter in the desired...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose None (Direct Con...
Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
1) Open your web browser and type the IP address
of the TW100-BRV204/304 in the address bar. The default IP address is 192.168.0.1.
At the login, enter your username (blank) and passwor...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose PPPoE for the Logi...
Option 1: Please go to Status section from the configuration page, click on Connection Detail button. Click on Release/Renew button to allow the router to regain fresh connection from your ISP. Then try browsing a website such as https://www.TRENDnet.com again with your Internet browser. Option 2: ...
You can simply contact your Internet Service Provider (ISP)'s Customer Service or Technical Support Department for the correct information. ...
Please check your hardware and TCP/IP settings again by checking through section 1-3, make sure the Power, WAN, and on the LAN lights on the Router's front panel are on and the TCP/IP configurations are done properly. Then try browsing to the 192.168.0.1 again using your Internet browser. ...
| Hardware | |
| Standards: |
|
|---|---|
| Protokolle: | NAT, PPPoE, NTP, SMTP, HTTP, TFTP, DHCP, TCP/IP, PAP, CHAP, RIP1, RIP2, DDNS |
| WAN: | 1 x 10/100-MBit/s-Port (Internet) |
| LAN: | 3 x 10/100 MBit/s Auto-MDIX-Ports |
| DMZ: | 1 x 10/100 MBit/s Auto-MDIX-Port |
| LED-Anzeigen: |
|
| Netzteil: | 12 V Gleichstrom, 1A |
Abmessungen | 141 x 100 x 27 mm |
| Gewicht: | 0,36 kg |
| Temperatur: |
|
| Luftfeuchtigkeit: |
|
| Zertifizierungen: | FCC, CE, VCCI |
| Router | |
| Firewall: | NAT-Firewall, SPI-Firewall |
| Sicherheit: | URL-Filter, Zugriffskontrolle, Kennwortschutz, E-Mail-Alarme und -Protokolle |
| VPN (IPSec): | MD5-HMAC/SHA1-HMAC-Authentifizierung, DES-CBC-, 3DES-CBC-Verschlüsselung, Internet Key Exchange, manuell verschlüsselte Verbindung |
| VPN Tunnel: | 10 (IPSec), 10 (PPTP) |
| VPN Pass-Through-Abfragen: | IPSec, PPTP, L2TP (100 Abfragen) |
Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
