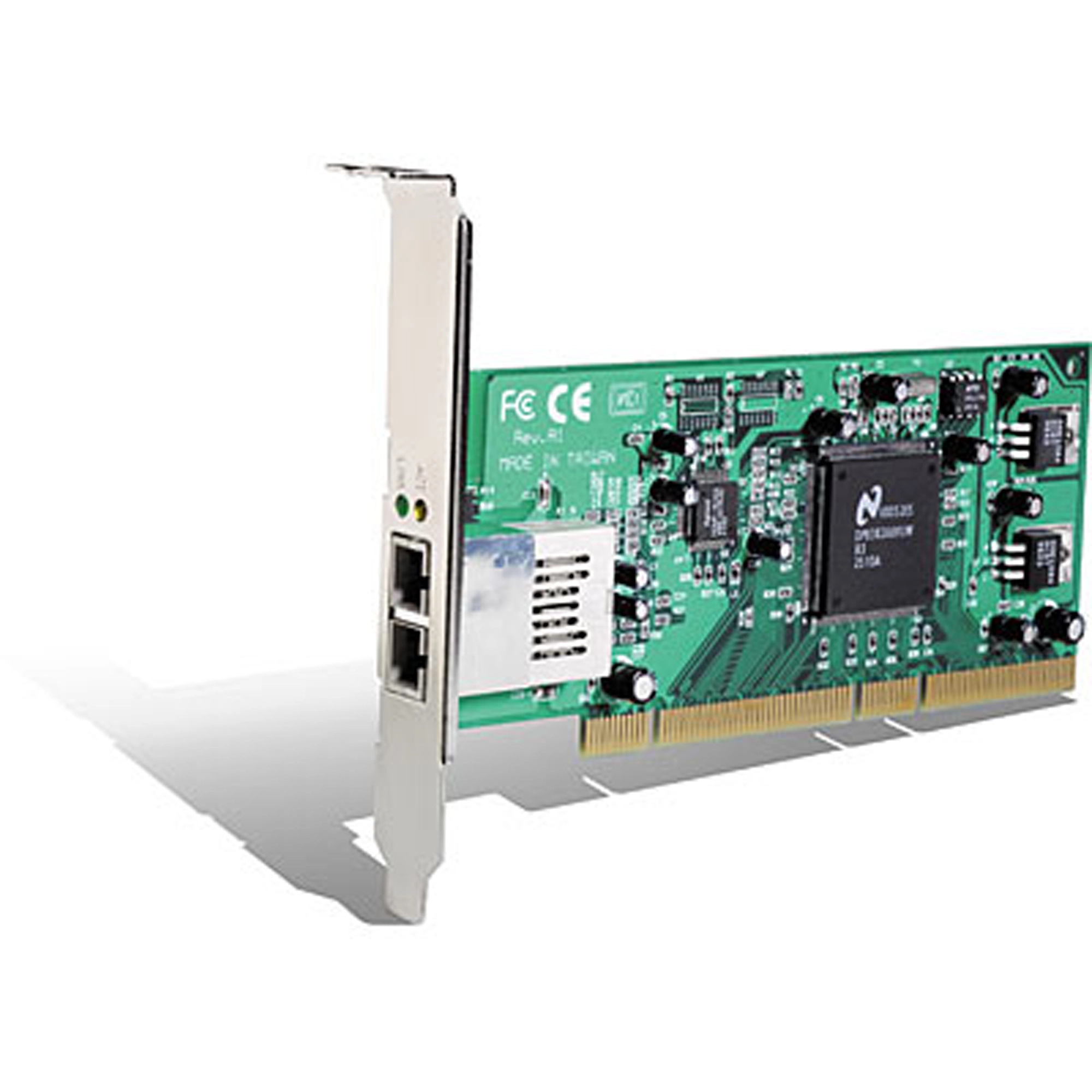

32/64-bit 1000Base-SX Gigabit Ethernet Adapter

TEG-PCISXplus

  • This full-duplex gigabit adapter brings high bandwidth with 1000Mbps speed, which makes more bandwidth available for the applications.
  • Enjoy a 32-bit PCI bus as well as 64-bit PCI bus, making it the perfect choice for greater bandwidth and the cost effective solution for high-speed network connectivity
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TEG-PCISXplus  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver

Note:

  1. This driver set includes Windows XP driver.
  2. When installing the TEG-PCISXplus adapter in Windows 2000 and XP, Windows would automatically load the default “National Semiconductor DP83820 Gigabit Adapter” driver, which does not work with fiber Gigabit adapter.

Dateiname: Driver_TEGPCISXplus_1.2.zip
SHA-1 Checksum: 1F74AAED0122ECC6A06ED4B86495CDEB8B53CC81
Datum: 7/25/2017
Dateigröße: 399.16 KB
Download

Datenblätter

Datasheet
Dateiname: Spec_TEG-PCISXplus.pdf
Datum: 5/10/2013
Dateigröße: 227.97 KB
Download Email

Bedienungsanleitung

Manual
Dateiname: UG_TEG-PCISXplus.pdf
Datum: 8/18/2004
Dateigröße: 47.52 KB
Download
Hardware
Standards:
  • IEEE 802.3z 1000Base-SX Gigabit Ethernet
Protocol:
  • CSMA/CD
Network Media:
  • 62.5/125um multi-mode fiber optic cable with SC type connector, 220 meters max. 50/125um multi-mode fiber optic cable with SC type connector, 550 meters max.
Host Interface:
  • 32/64-Bit PCI rev. 2.1/2.2
Supported Drivers:
  • Microsoft Windows 98/Me/2000/NT4.0/XP, Novell Netware Server 5.x, Linux 2.2, 2.4
Diagnostic LEDs:
  • Link, Activity
Network Data Transfer:
  • 2000Mbps Full-Duplex
Dimensions:
  • 175 x 69 mm (6.9 x 2.7 inches)
Weight:
  • Approximately 120 g. (4.25 Oz.)
Temperature:
  • Operating: 0° ~ 65° C (32° ~ 149° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • 10% - 90% (non-condensing)
Certifications:
  • FCC Class B, CE Mark B, VCCI-B
