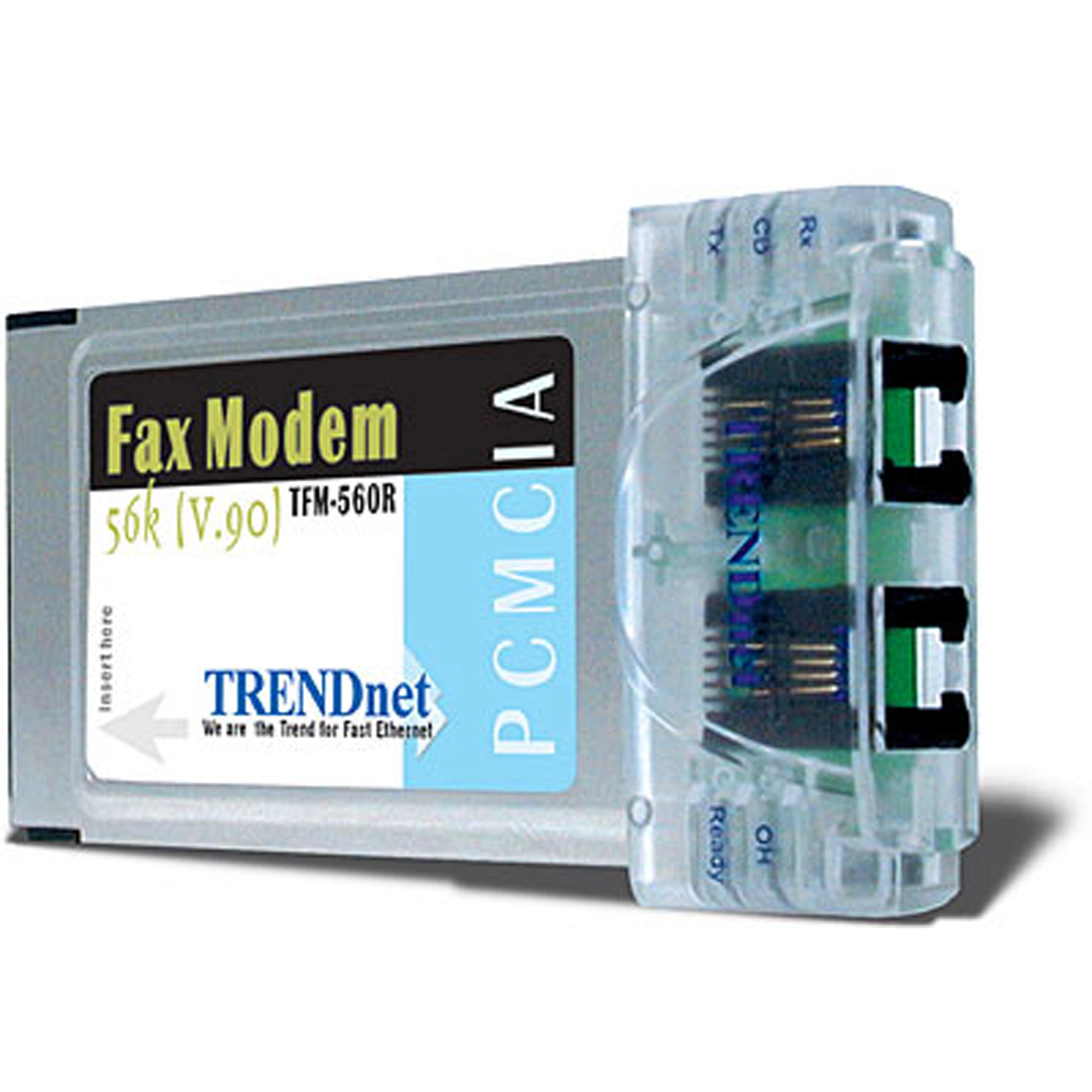

56K (V90/K56Flex) Modem PC Card mit Express Port
TFM-560R
DISCONTINUED PRODUCT
The TFM-560R has been discontinued. For a list of discontinued products, click here.Drivers
Dateiname: Linux_TFM-560R.zip
SHA-1 Checksum: CC67DAF79EAD0956E007E96FAA9F6D821275AF01
Datum: 7/25/2017
Dateigröße: 1.96 KB
Datenblätter
| Hardware | |
| Modem Operating Protocol: | V.90, K56Flex, V.34+, V.34, V.32bis, V.32, V.22bis, V.23, V.22/Bell 212A, V.21/Bell 103 |
|---|---|
| Compatibility: | PCMCIA 2.1/JEIDA 4.1 Type II |
| Error Control: | V.42, MNP Class 2-4 |
| Data Compression: | CCITT V.42 bis, MNP 5 |
| Fax Compatibility: | Group 3 send-and-receive, EIA Class 1 fax commands, ITU-T V.17, ITU-T V.29, ITU-T V.27ter, ITU-T V.21 |
| Flow Control: | Hardware RTS/CTS, software XON/XOFF |
| Transmit Level: | Permissive - 10dBm |
| Software Control: | Industry standard AT command set, Hayes compatible |
| Diagnostics: | Power on self-test, Local Analog loop back test, Local Digital loop back test, Re-mote Digital loop back test |
| Power Consumption: | Operation: 250mA, Sleep Mode: 17mA |
| Dialing: | DTMF tone and rotary pulse |
| Certifications: | FCC, CE 0560 X |
Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
