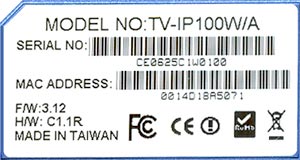

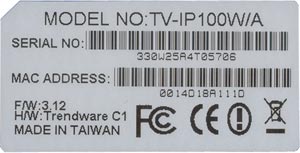

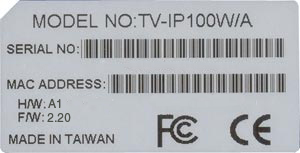

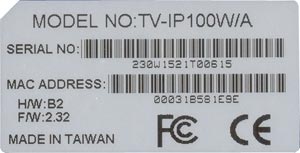

| Please select the material to download according to your version of TV-IP100W. There are 3 versions (C1.1,C1,B2,A1) of this product. Follow the illustrations below. Click on your version of the TV-IP100W to view available downloads |
|
|
| Wireless Specification |
| Wireless Standard: | IEEE 802.11b |
|---|
| Data Rate: | 1, 2, 5.5, 11 (Mbps) |
|---|
| Module Technique: | DSSS (Direct Sequence Spread Spectrum) |
|---|
| Antenna: | 2 dBi Female Reverse SMA connector |
|---|
| Frequency: | 2.4 ~ 2.4835Ghz (ISMB) |
|---|
| Output Power: | 17 dBm (typical) |
|---|
| Receiving Sensitivity: | 10-5 BER @ -84 dBm (11Mbps) min. |
|---|
| Channels: | 11 (US & Canada) |
|---|
| Network Architecture: | Ad-Hoc (peer-to-peer) or Infrastructure (with Access Point) |
|---|
| WEP: | Disable/64-bit/128-bit |
|---|
| Camera Specification |
| Resolution: | 640 x 480 pixels |
|---|
| Image Sensor: | 1/3” color CMOS |
|---|
| Gain / Exposure / White Balance Control: | Automatic |
|---|
| Focal Length: | 6.0 mm |
|---|
| Shutter: | Electronics 1/60 ~ 1/15000 sec |
|---|
| Aperture: | F=1.8 |
|---|
| Signal/ Noise Ratio: | 57dBm |
|---|
| Lens mounting: | Fixed board lens |
|---|
| System Hardware |
| LAN Connector: | RJ-45 10/100Mbps Auto-MDIX |
|---|
| Wireless Connector: | Male Reverse SMA Connector |
|---|
| LED Indicator: | Power, Activity |
|---|
| Power Supply: | DC 5V, 2.4A switching type |
|---|
| Power Consumption: | 6.5 Watts (1300mA x 5V) |
|---|
| Physical / Environmental |
| Dimensions: | 130 x 70 x 35 mm (5 x 2.75 x 1.3 inches) |
|---|
| Weight: | 145 g (5 oz) without metal stand |
|---|
| Stand Height: | 65mm (2.6 inches) |
|---|
| Temperature: | Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F) |
|---|
| Humidity: | 5% ~ 95% non-condensing |
|---|
| EMI: | FCC, CE, VCCI |
|---|
| Image (Video Setting) |
| Image Compression: | JPEG |
|---|
| Frame Rate: | 20fps@SIF, 6pfs@VGA |
|---|
| Compression Rate Selection: | 5-level, (very low, low, medium, high, very high) |
|---|
| Frame Rate Setting: | 1, 5, 7, 15, 20, auto (depends on video format) |
|---|
| Video Resolution: | 320x240, 640x480 |
|---|
| Brightness Control/ Contrast Control/ Saturation Control: | Yes |
|---|
| Communication Protocols |
| HTTP, FTP, TCP/IP, UDP, ARP, ICMP, BOOTP, RARP, DHCP, PPPoE, SMTP |
| Hardware Requirements (minimum) |
| PC: | Pentium III, 450 Mhz or above |
|---|
| Memory Size: | 128M (256 Recommended) |
|---|
| VGA card resolution: | 800 x 600 or above |
|---|
| Software Requirements |
| Operating System: | Windows 98, ME, 2000, XP, NT4.0, Mac OS 8 or above, Unix, or Linux |
|---|
| Web Browser: | Web Browser with Active X or Java enabled |
|---|
| Remote Management Software (included): | IP View , runs with Windows 98, ME, 2000, XP |
|---|
PACKUNGSINHALT |
- TV-IP100W
- Multi-Language Quick Installation Guide
- Utility CD-ROM
- Power Adapter (5V DC, 2.5A)
- 1 x RJ-45 Network Cable
- Camera Mounting Bracket
|
